Hunter Engineering HawkEye Elite® Alignment System

Hunter Engineering

HawkEye Elite® Alignment System

Alignment

HawkEye Elite® is a wheel alignment system that takes alignment measurements in 70 seconds, using QuickGrip® wheel adaptors, high-resolution camera sensors and WinAlign® software. Diagnostic, reset and ADAS options depend on the configuration, so tell us the work you do and we will match it.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Measurement time
70 seconds (Hunter-stated)
Software
WinAlign®
System
Wheel alignment
Sensors
Four high-resolution cameras
Wheel adaptors
QuickGrip® adaptors with no metal-to-metal contact
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Measurement & Coverage

System
Wheel alignment
Measurement time
70 seconds (Hunter-stated)
Sensors
Four high-resolution cameras
Wheel adaptors
QuickGrip® adaptors with no metal-to-metal contact
Software
WinAlign®
Configuration options
Hunter also describes integrated steering-system reset and diagnostic functions and expandable Ultimate ADAS® configurations; we will confirm the exact configuration and requirements with you.

Configure this HawkEye Elite® Alignment System

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for HawkEye Elite® Alignment System

TAG confirms final fit and configuration before purchase.

Optional accessory · 10

  • Optional accessory

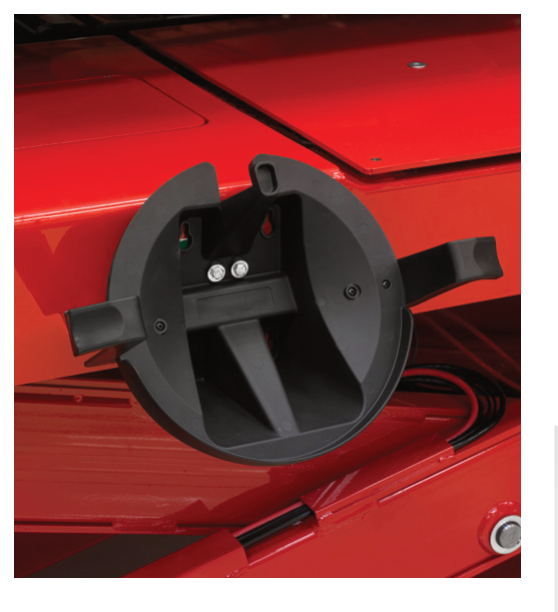

    Hunter Engineering Storage Bracket Kit

    Part no. 20-2528-1

    Provides storage for wheel adaptors on the console, lift or sensor column. Bolts to clip-on work step holes, no drilling required. Includes four brackets.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Instrument Support Kit

    Part no. 20-1900-1

    For use with Mercedes-Benz and BMW quick clamp adaptors as well as HawkEye Elite® HE421, HawkEye® HS401 and DSP600 sensors.

    Fits this model.

    Full Details

  • Optional accessory

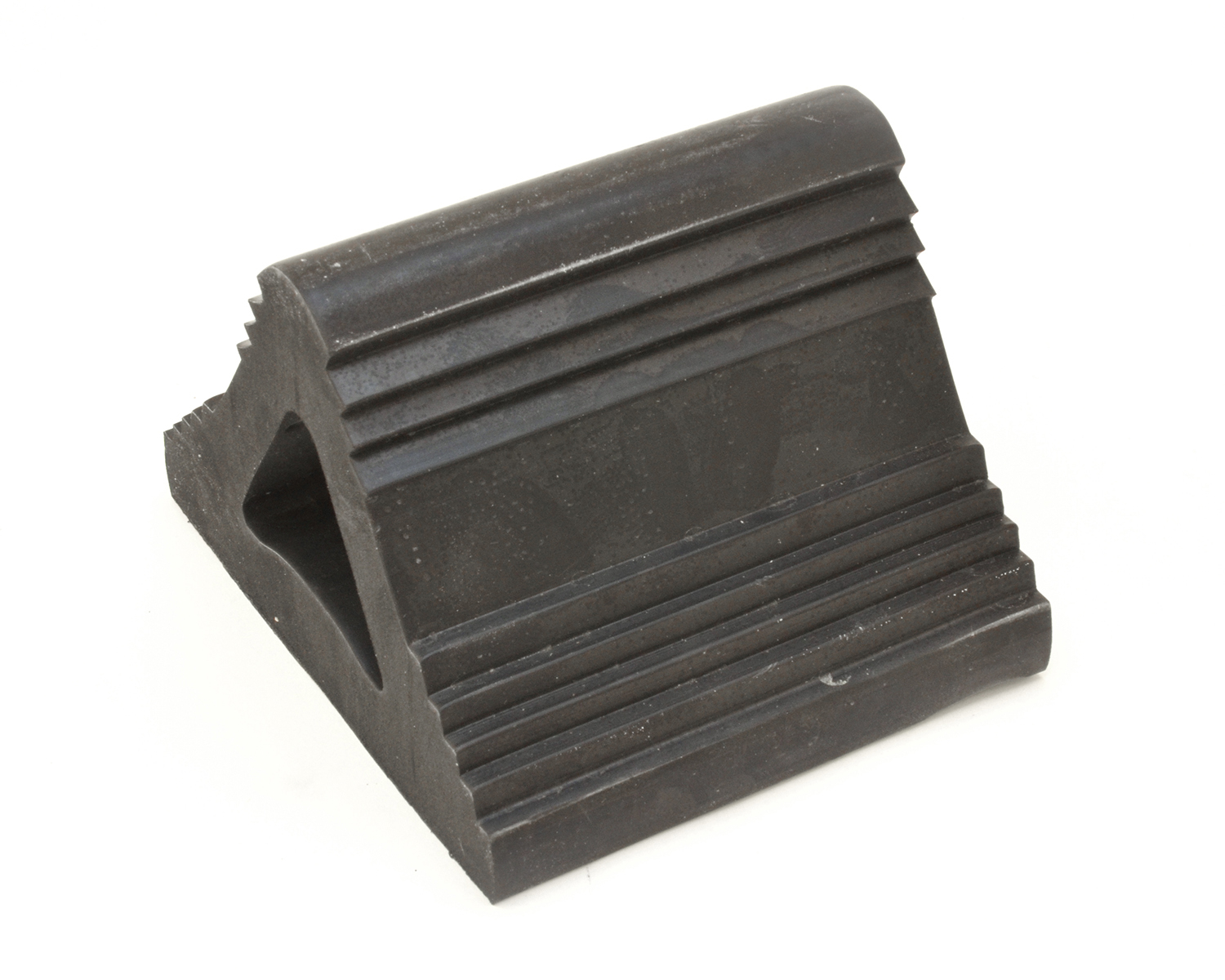

    Hunter Engineering Wheel chock

    Part no. 22-525-2

    Wheel chock that helps keep a vehicle from rolling once it is positioned on a Hunter lift.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Single gray hook

    Part no. 216-110-1

    Single gray replacement tire hook for Hunter QuickGrip alignment adaptors.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Spade Sleeve Kit (Rim Stud Sleeves)

    Part no. 20-831-1

    Eight 106-70-2 rim stud sleeves, covering two adaptors.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Passenger Wide-Angle Target Kit

    Part no. 20-2511-1

    Attaches to TD targets to perform the max steer procedure. Includes two target extensions.

    Fits this model.

    Full Details

  • Optional accessory

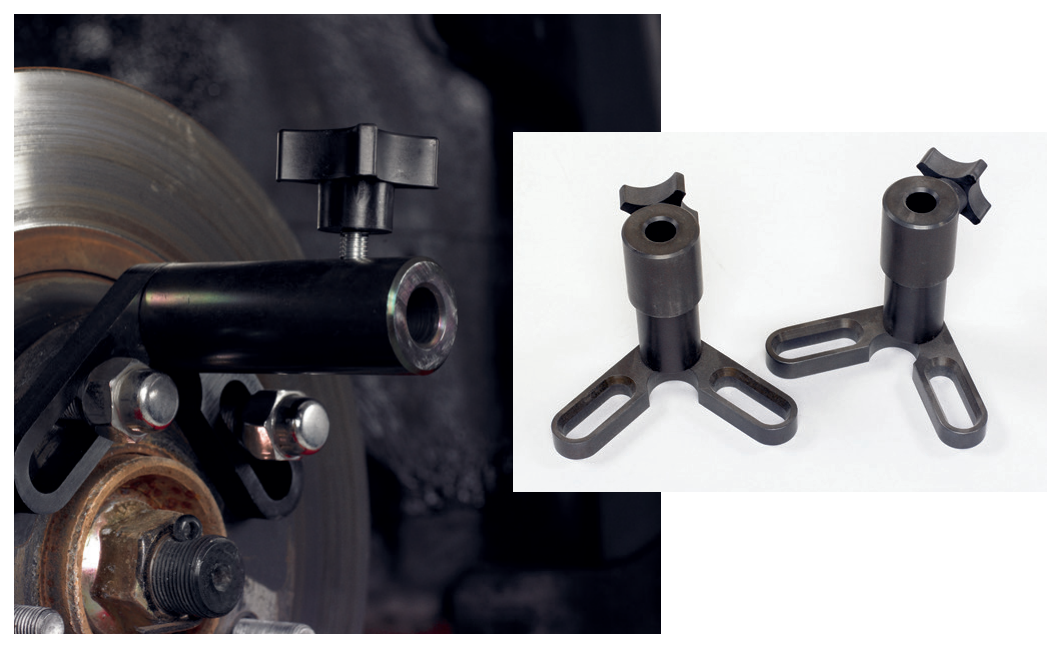

    Hunter Engineering Wheel-Off Adaptor Kit

    Part no. 20-1978-1

    Two adaptors that mount directly to the hub bolts once the wheel is removed. Requires WinAlign® 9.0 or greater.

    Fits this model.

    Full Details

  • Optional accessory

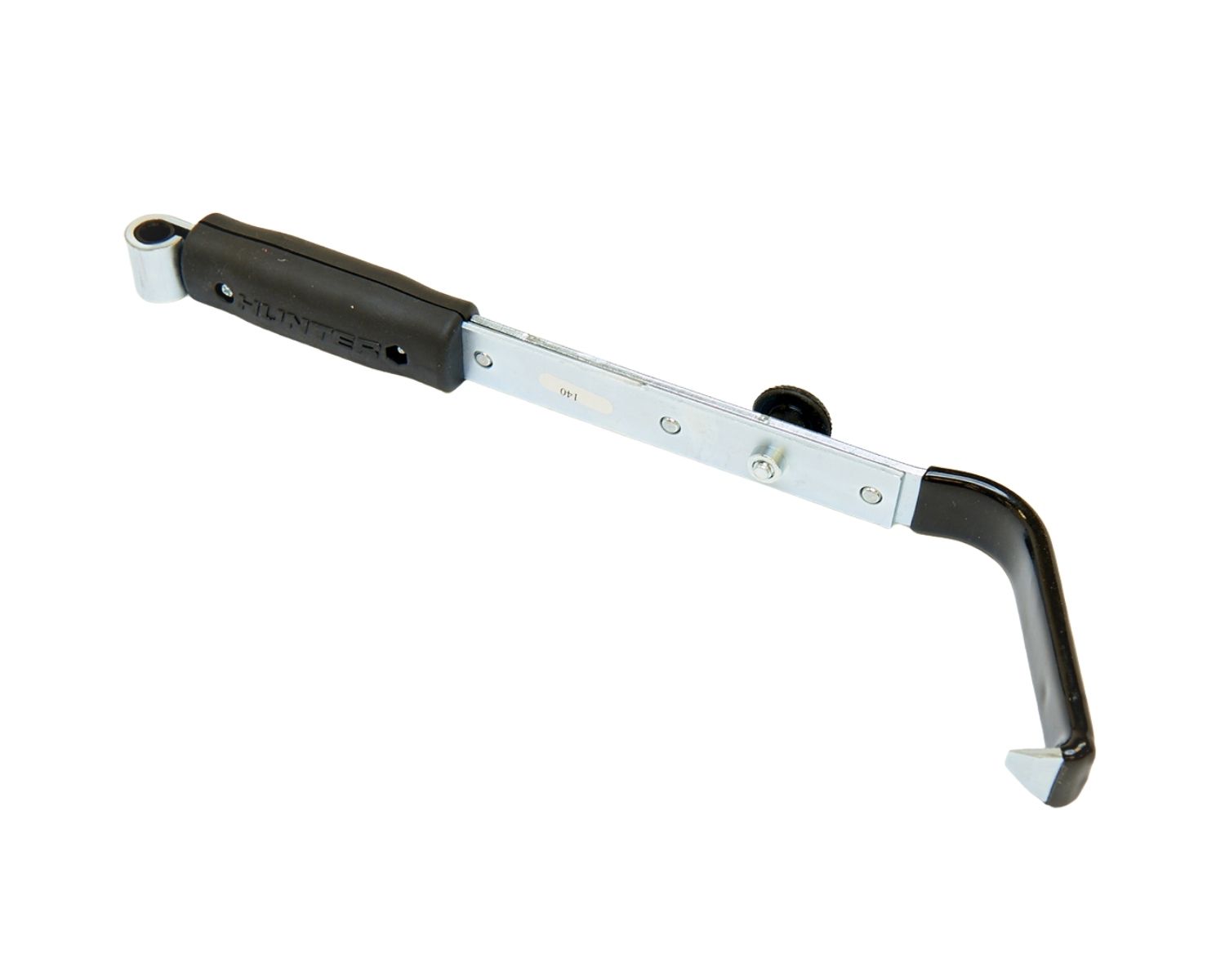

    Hunter Engineering Adjustable Tire Hook Kit (8 Hooks)

    Part no. 20-2521-1

    Covers a clamping range of 20 in. to 36 in. tires (outside diameter). Eight hooks cover both axles.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Steering Wheel Holder

    Part no. CTN-20

    Steering wheel holder used to lock the steering wheel during alignment measurement and adjustment procedures.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Adjustable Tire Hook Kit (4 Hooks)

    Part no. 20-2639-1

    Four hooks for very limited clearance applications on the front axles of modified and some European models.

    Fits this model.

    Full Details

Configuration-specific items

These depend on your exact configuration. TAG confirms and includes them with your quote — they are not self-selected here.

  • Required accessory

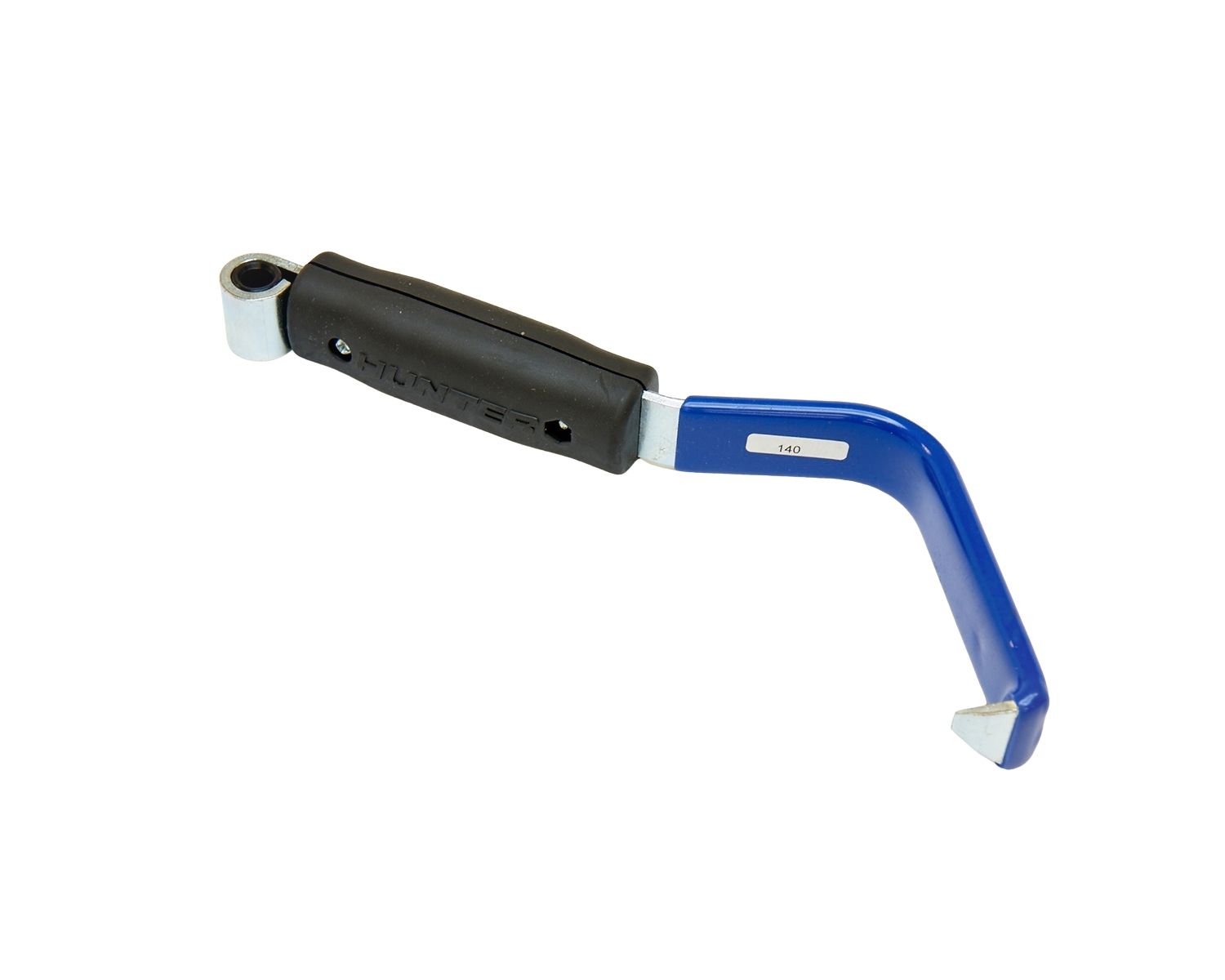

    Hunter Engineering Single blue hook

    Part no. 216-164-1

    Single blue replacement tire hook for Hunter QuickGrip alignment adaptors.

    Fits this model.

    Full DetailsTAG confirms for your configuration

  • Required accessory

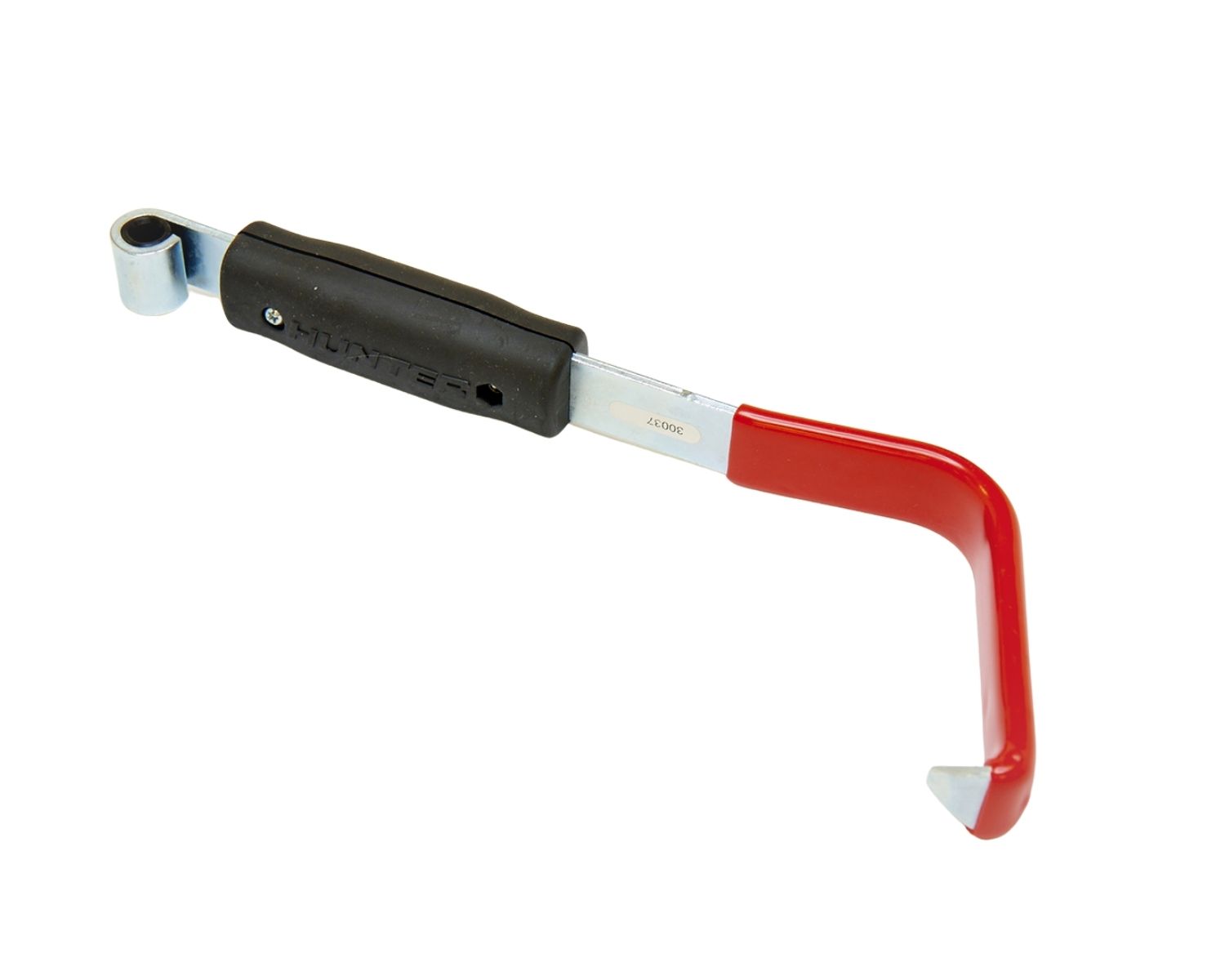

    Hunter Engineering Single red hook

    Part no. 216-163-1

    Single red replacement tire hook for Hunter QuickGrip alignment adaptors.

    Fits this model.

    Full DetailsTAG confirms for your configuration

  • Required accessory

    Hunter Engineering Single black hook

    Part no. 216-167-1

    Single black replacement tire hook for Hunter QuickGrip alignment adaptors.

    Fits this model.

    Full DetailsTAG confirms for your configuration
