Hunter Engineering RX Alignment Scissor Lifts (RX10-RX16)

Hunter Engineering

RX Alignment Scissor Lifts (RX10-RX16)

scissor-lifts

Hunter RX scissor alignment lifts in four capacities — RX10, RX12, RX14 and RX16 — in surface-mount or flush-mount, in several wheelbase lengths. Capacity, mounting and options decide the exact model, so we will look at your floor and workload before quoting.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Model

Choose a model to add this product to your project.

Capacity
10,000 lb
Swing jacks
2 x 6,000 lb
Wheelbase
162-179 in.
Mounting
Flush or surface mount

Key specifications

RX16
16,000 lb capacity; 2 x 9,000 lb jacks; 195 in. two-wheel alignment wheelbase; flush mount only
Site note
Flush-mount and surface-mount versions have different specification sheets and site requirements
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Four published capacities

RX10, RX12, RX14 and RX16 publish 10,000 lb through 16,000 lb capacities.

Open-front and rear access

Standard features published for the family: open-front and rear access, stainless steel turnplates and built-in slip plates.

options

PowerSlide®, InflationStation™, AlignLights and Fully Integrated Alignment (FIA) are published options.

Capacity & Dimensions

RX10: 10,000 lb capacity; 2 x 6,000 lb jacks; 162-179 in. two-wheel alignment wheelbase; flush or surface mount.

ConfigurationCapacitySwing jacksWheelbaseMounting
RX1010,000 lb2 x 6,000 lb162-179 in.Flush or surface mount
RX1212,000 lb2 x 6,000 lb179 in.Flush or surface mount
RX1414,000 lb2 x 9,000 lb195 in.Surface mount only
RX1616,000 lb2 x 9,000 lb195 in.Flush mount only
Family specifications at a glance
10,000-16,000 lb capacity; two swing jacks; 24 in. and 26 in. wide runways; 162-195 in. two-wheel alignment wheelbase
RX10
10,000 lb capacity; 2 x 6,000 lb jacks; 162-179 in. two-wheel alignment wheelbase; flush or surface mount
RX12
12,000 lb capacity; 2 x 6,000 lb jacks; 179 in. two-wheel alignment wheelbase; flush or surface mount
RX14
14,000 lb capacity; 2 x 9,000 lb jacks; 195 in. two-wheel alignment wheelbase; surface mount only
RX16
16,000 lb capacity; 2 x 9,000 lb jacks; 195 in. two-wheel alignment wheelbase; flush mount only
Standard features
Open-front and rear access; stainless steel turnplates; built-in slip plates; two moveable worksteps
Options
InflationStation™, PowerSlide®, AlignLights, Fully Integrated Alignment (FIA), harsh-duty options for high road salt/brine use
Site note
Flush-mount and surface-mount versions have different specification sheets and site requirements

Configure this RX Alignment Scissor Lifts (RX10-RX16)

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for RX Alignment Scissor Lifts (RX10-RX16)

TAG confirms final fit and configuration before purchase.

Optional accessory · 12

  • Optional accessory

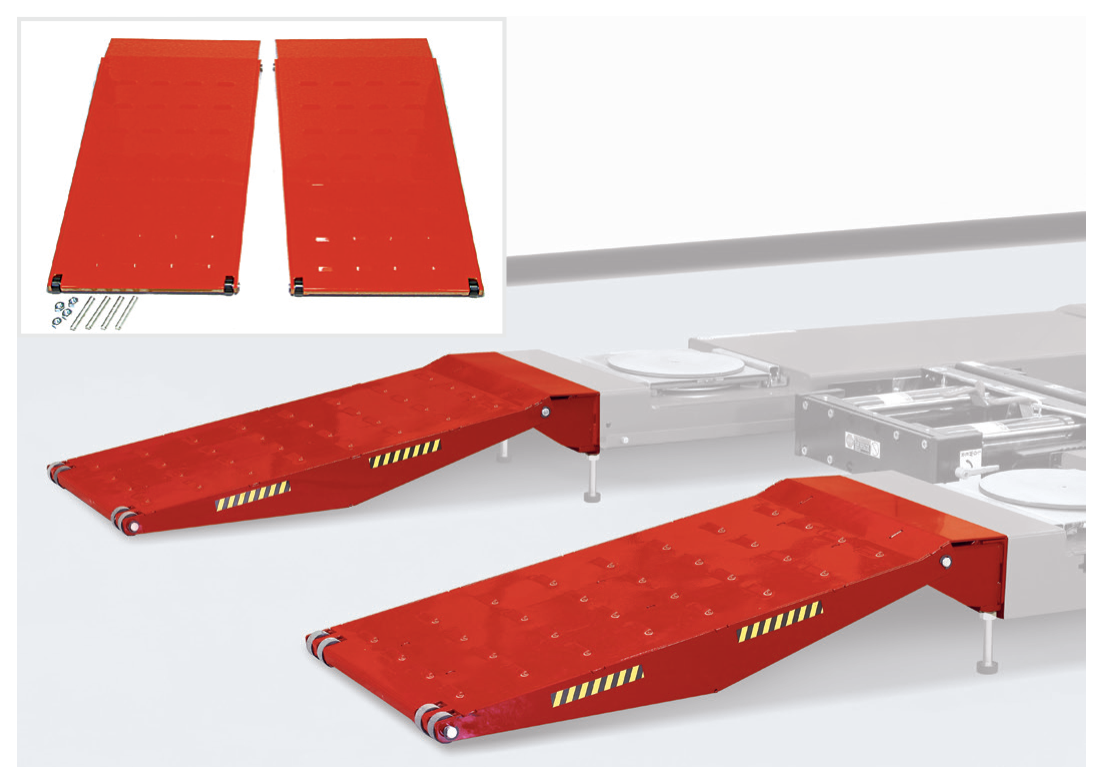

    Hunter Engineering Drive-Thru Kit

    Part no. 20-2498-1

    Drive-thru kit for use with camera sensors. Adds 52 in. to overall length. For RX10K, RX12K, RX14K and legacy RX10, RX12A and RX16 racks.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Work Step

    Part no. 51-1696-1

    Work step that makes custom steer or underhood shim work easier. Can be used with RX, L45X, L42X, L44X, RM, PN and RMHD models.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering PowerSlide® Turnplates with Automatic Bridges

    Part no. 20-2076-1

    Eliminates removing and replacing lock pins during an alignment; integrated bridges lower and raise as plates are locked. For camera-based alignment sensors.

    Fits this model.

    Full Details

  • Optional accessory

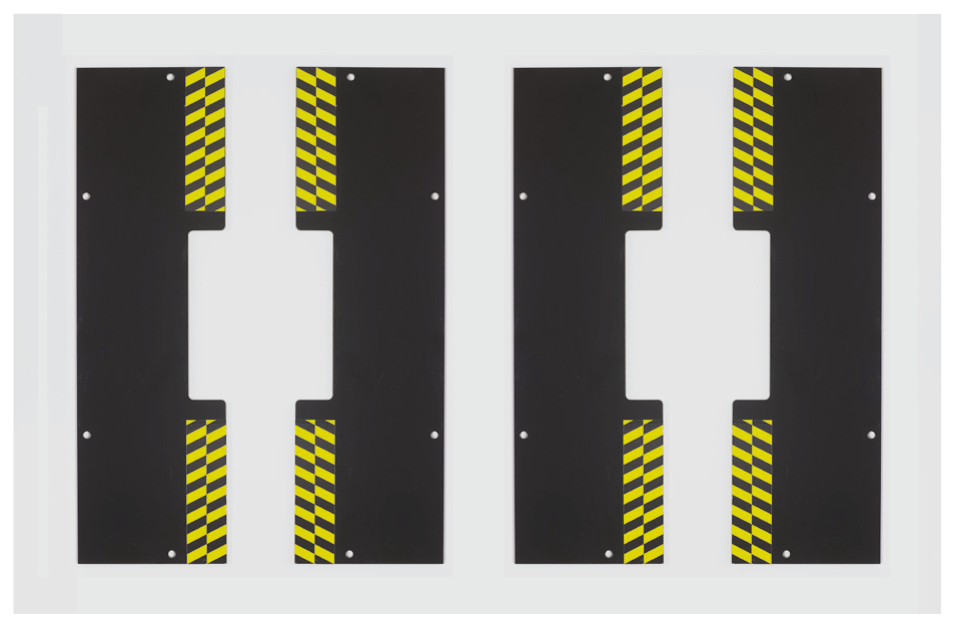

    Hunter Engineering Pit Hose Reel Cover Plates (Set of 4)

    Part no. 20-2267-1

    Cover plates for InflationStation™ lifts to trim around flush-mount cut-outs.

    Fits this model.

    Full Details

  • Optional accessory

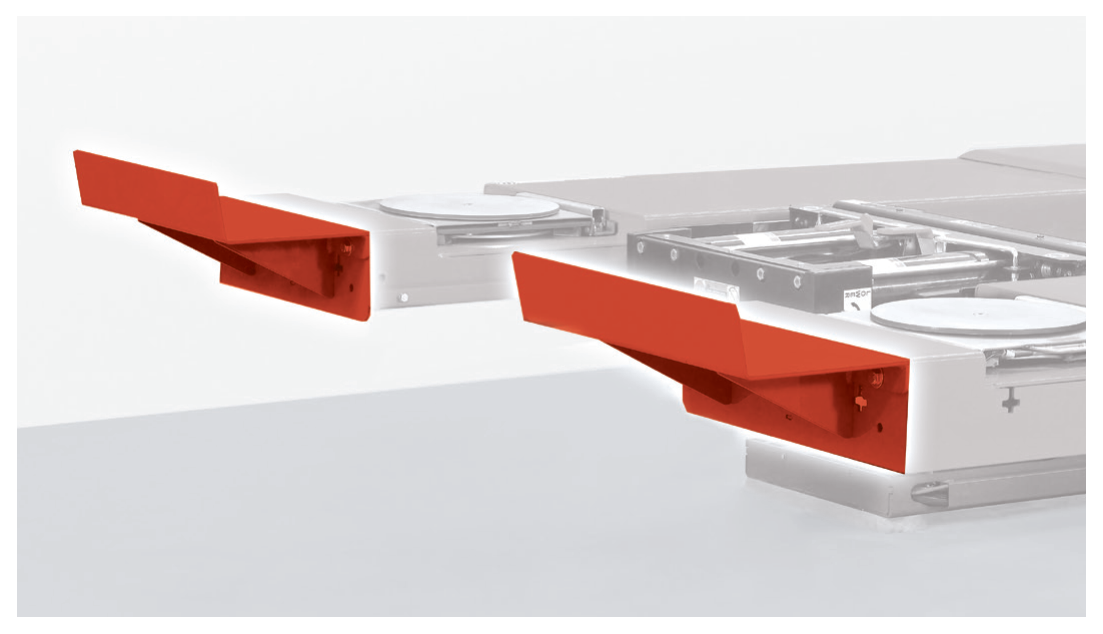

    Hunter Engineering Long Wheel Stops

    Part no. 20-2497-1

    For use with conventional sensors and vehicles with low spoilers. Adds approximately 12 in. in length. Not compatible with current RX14KL and RX16KLF.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering RX Approach Ramp Extension Kit (Set of 2)

    Part no. 20-3113-1

    Adds 17.75 in. of ramp length for RX10K, RX9, RX10 and RX16 lifts. Available in red or black.

    Fits this model.

    Full Details

  • Optional accessory

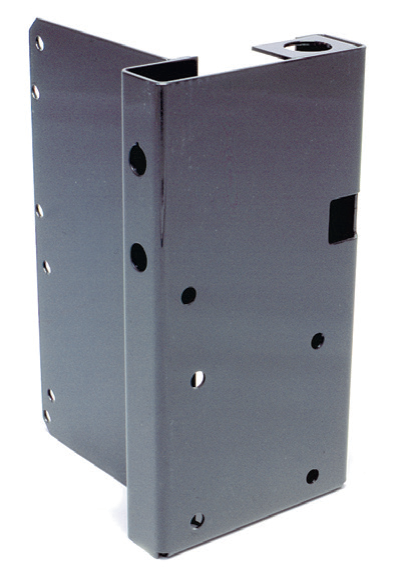

    Hunter Engineering Pit Hose Reel Cover Plate (Single)

    Part no. 51-2308-1

    Single pit hose reel cover plate for InflationStation™ lifts.

    Fits this model.

    Full Details

  • Optional accessory

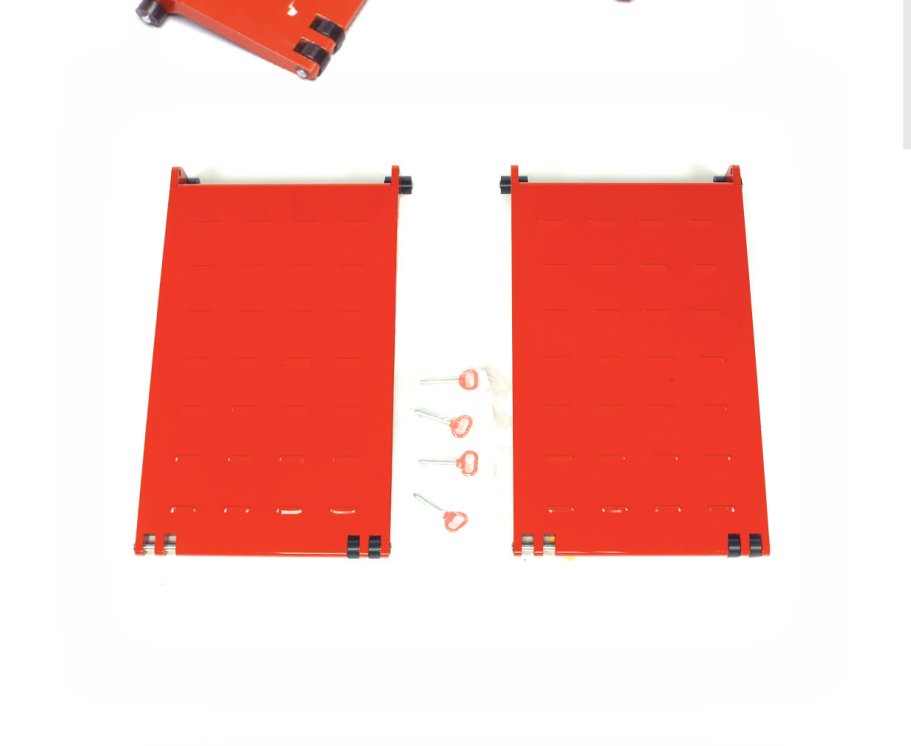

    Hunter Engineering RX Approach Ramp Extension (Long)

    Part no. 20-2189-1

    Adds 50 in. of ramp length for RX10K, RX9, RX10 and RX16, or 37.25 in. for RX-12, RX12A, RX12K and RX14K. Includes quick-release pins.

    Fits this model.

    Full Details

  • Optional accessory

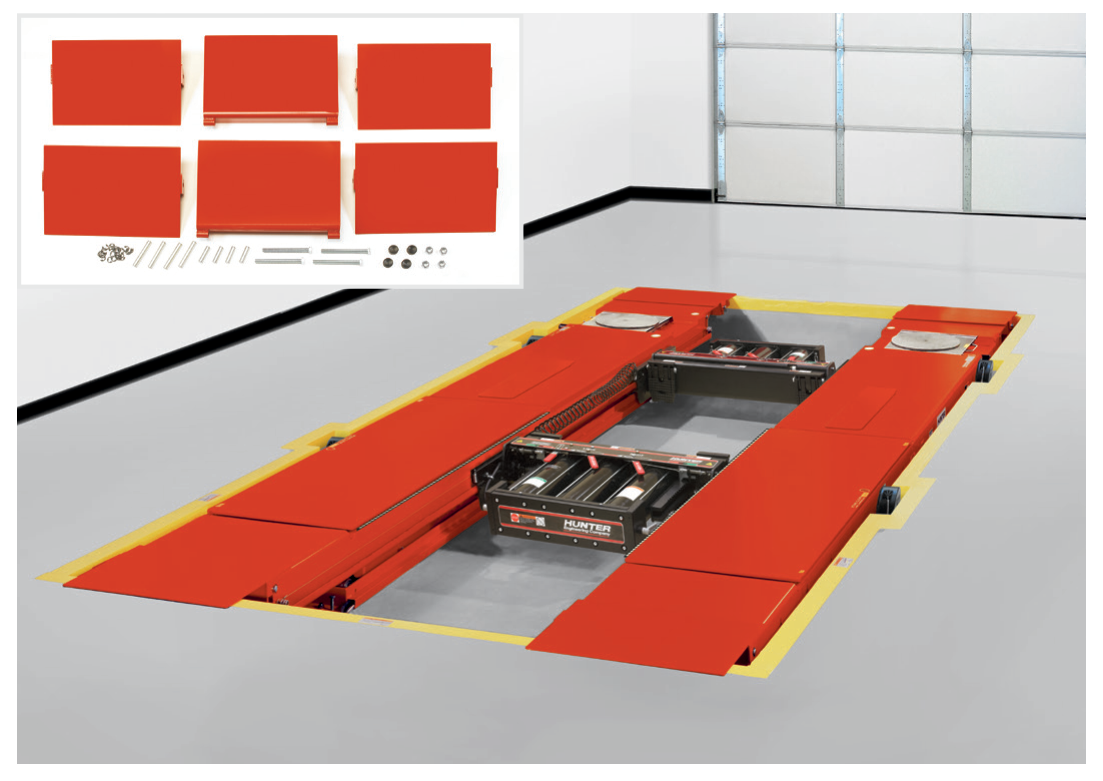

    Hunter Engineering Flush-Mount Conversion Kit

    Part no. 20-2736-1

    Converts surface-mount installations to flush-mount installations using current site requirements. For RX10K, RX12K and legacy RX10 and RX12A racks.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Swing Air Jack — 9,000 lb. Triple Composite Cylinder

    Part no. 133-84-1

    Full-pneumatic swing air jack with low drive-on height for RX16 and L45x lift models.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering AlignLights (RX_K Models)

    Part no. 20-3438-1

    LED underbody lighting that switches on automatically when the lift is raised. ALI listed accessory.

    Fits this model.

    Full Details

  • Optional accessory

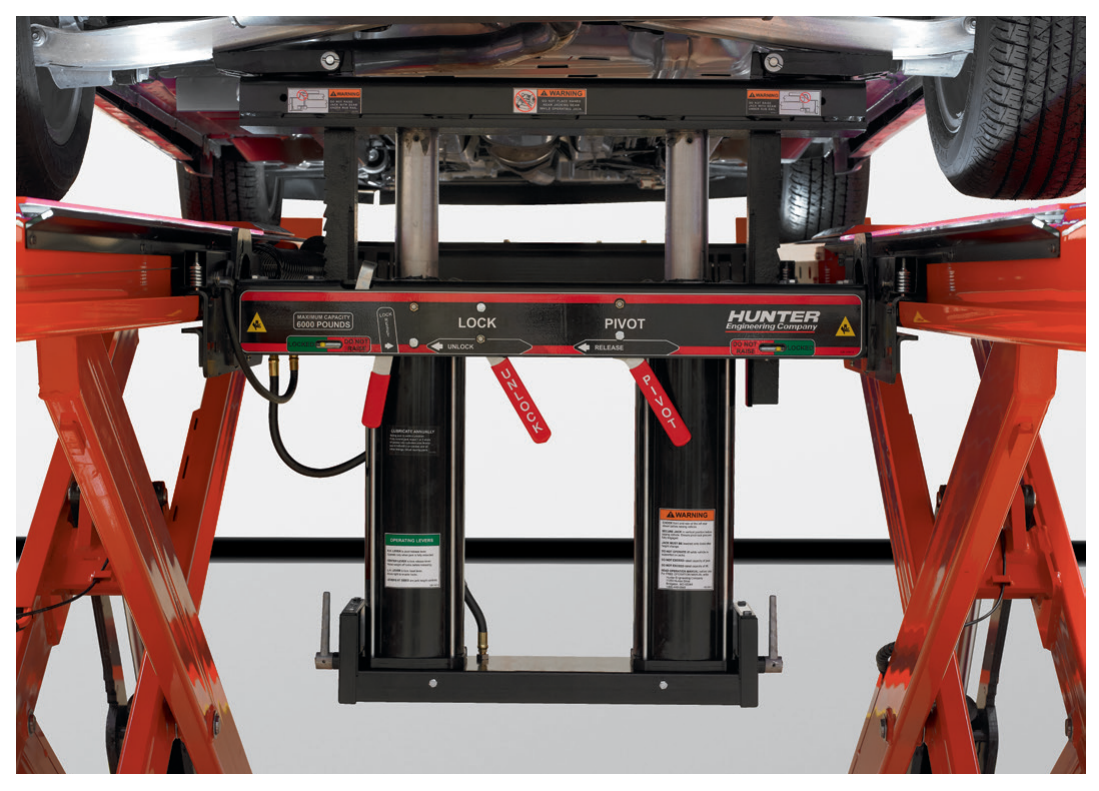

    Hunter Engineering Swing Air Jack — 6,000 lb. Dual Composite Cylinder

    Part no. 133-85-1

    Full-pneumatic swing air jack with low drive-on height that raises the vehicle from the suspension or frame.

    Fits this model.

    Full Details
