Hunter Engineering Four-Post Alignment Lifts (L451 / L454)

Hunter Engineering

Four-Post Alignment Lifts (L451 / L454)

four-post-lifts

Hunter four-post alignment racks in open-front (L451) and closed-front (L454) layouts, each in two wheelbase lengths. Every model carries 18,000 lb on 26 in. wide runways. We will help you pick the model, wheelbase and options that fit the bay you have.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Model

Choose a model to add this product to your project.

Capacity
18,000 lb
Runway width
26 in
Wheelbase
177 in
Workspace
Open front

Key specifications

Standard features
Stainless steel turnplates; built-in slip plates; two moveable worksteps
Site note
Open-front and closed-front workspaces have separate specification sheets
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

18,000 lb capacity

Every published four-post alignment model in this family carries an 18,000 lb capacity.

Open or closed front

Choose the open-front (L451) or closed-front (L454) workspace that fits the bay.

Two wheelbase lengths

two-wheel alignment wheelbases of 177 in. and 211 in. (L-suffix models).

Capacity & Dimensions

L451: open front workspace with a 177 in. two-wheel alignment wheelbase, 18,000 lb capacity and 26 in. wide runways.

ConfigurationCapacityRunway widthWheelbaseWorkspace
L45118,000 lb26 in177 inOpen front
L451L18,000 lb26 in211 inOpen front
L45418,000 lb26 in177 inClosed front
L454L18,000 lb26 in211 inClosed front
Family specifications at a glance
18,000 lb capacity; 2 x 9,000 lb capacity jacks; 26 in. wide runways; 177 in. or 211 in. two-wheel alignment wheelbase
L451
Open front, no beam; 177 in. two-wheel alignment wheelbase; PowerSlide® and InflationStation capable
L451L
Open front, no beam; 211 in. two-wheel alignment wheelbase; PowerSlide® and InflationStation capable
L454
Closed-front beam; 177 in. two-wheel alignment wheelbase; PowerSlide® and InflationStation capable
L454L
Closed-front beam; 211 in. two-wheel alignment wheelbase; PowerSlide® and InflationStation capable
Standard features
Stainless steel turnplates; built-in slip plates; two moveable worksteps
Options
InflationStation™, PowerSlide®, AlignLights, swing air jacks, Fully Integrated Alignment, harsh-duty options for high road salt/brine use
Site note
Open-front and closed-front workspaces have separate specification sheets

Configure this Four-Post Alignment Lifts (L451 / L454)

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for Four-Post Alignment Lifts (L451 / L454)

TAG confirms final fit and configuration before purchase.

Optional accessory · 7

  • Optional accessory

    Hunter Engineering AlignLights (L45x Models)

    Part no. 20-2993-1

    LED underbody lighting that switches on automatically when the lift is raised. ALI listed accessory.

    Fits this model.

    Full Details

  • Optional accessory

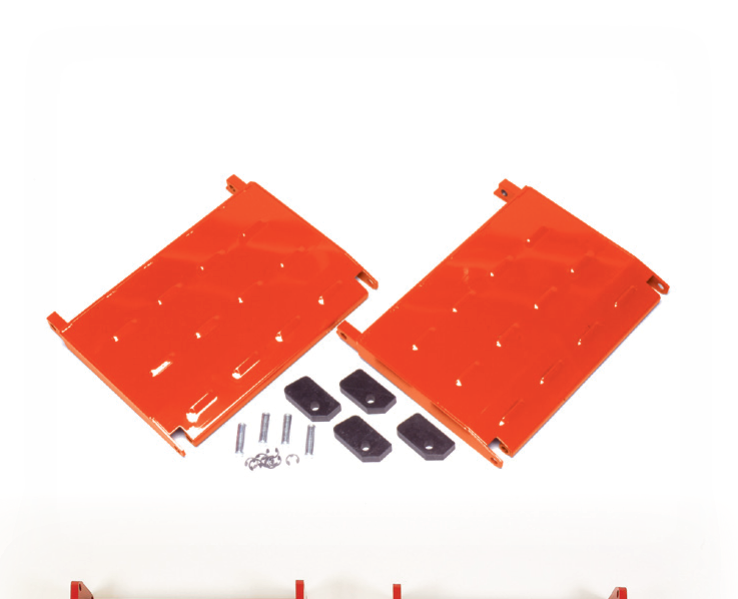

    Hunter Engineering Four-Post Ramp Extension — 17.5 in.

    Part no. 20-3145-1

    Adds 17.5 in. of ramp length for four-post lifts with 26-in. runways. Available in red or black.

    Fits this model.

    Full Details

  • Optional accessory

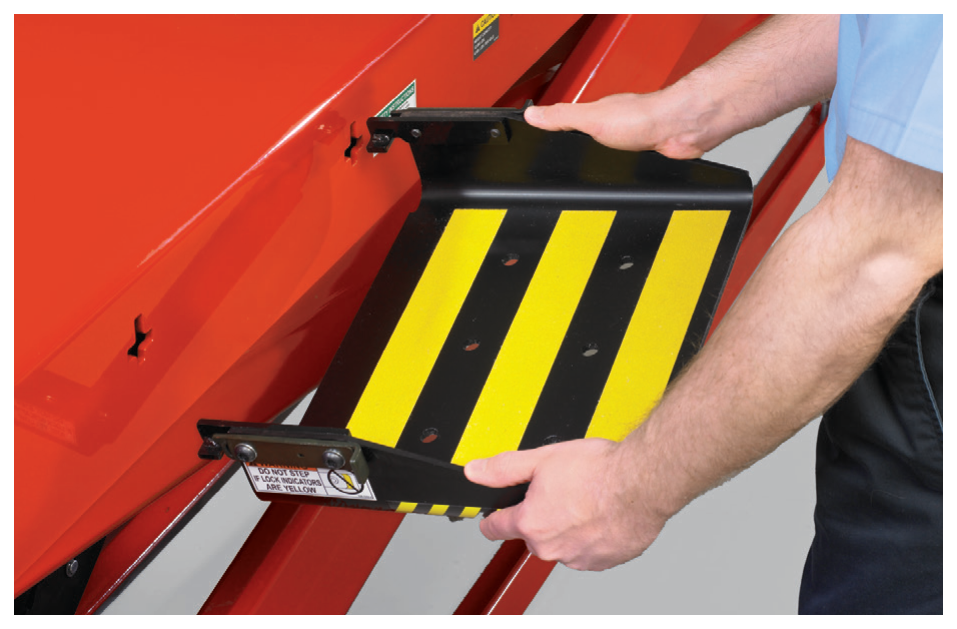

    Hunter Engineering Work Step

    Part no. 51-1696-1

    Work step that makes custom steer or underhood shim work easier. Can be used with RX, L45X, L42X, L44X, RM, PN and RMHD models.

    Fits this model.

    Full Details

  • Optional accessory

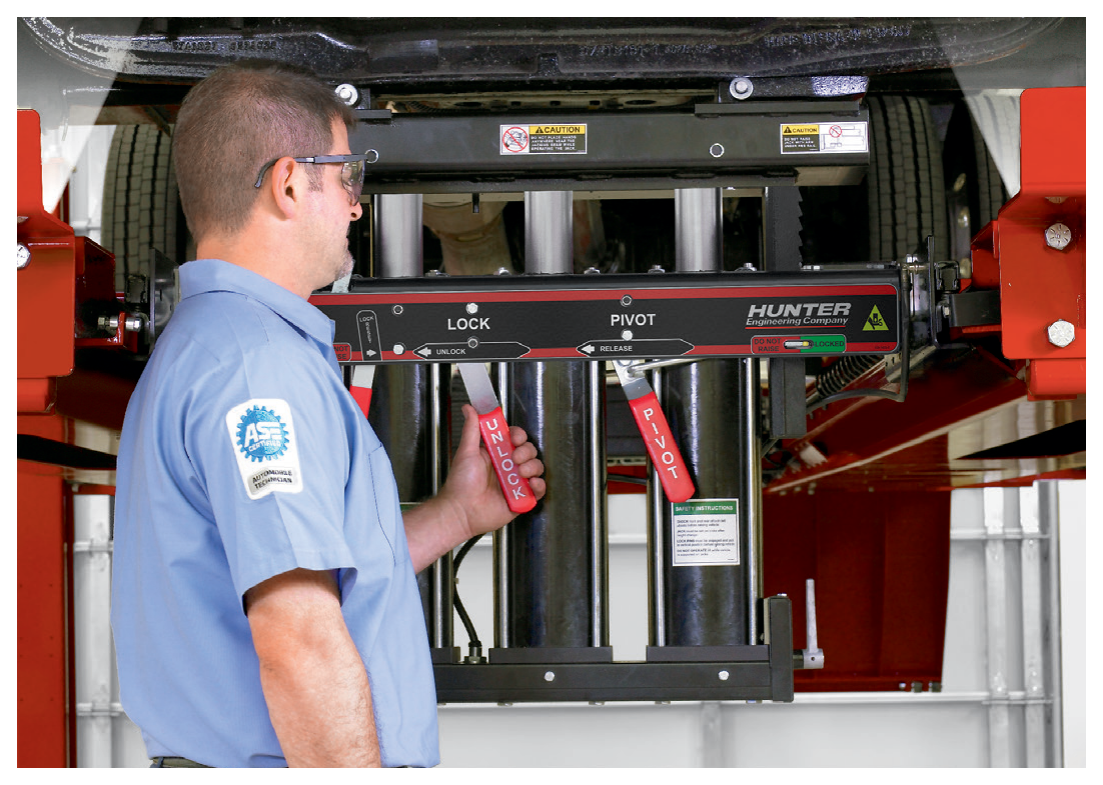

    Hunter Engineering Swing Air Jack — 9,000 lb. Triple Composite Cylinder

    Part no. 133-84-1

    Full-pneumatic swing air jack with low drive-on height for RX16 and L45x lift models.

    Fits this model.

    Full Details

  • Optional accessory

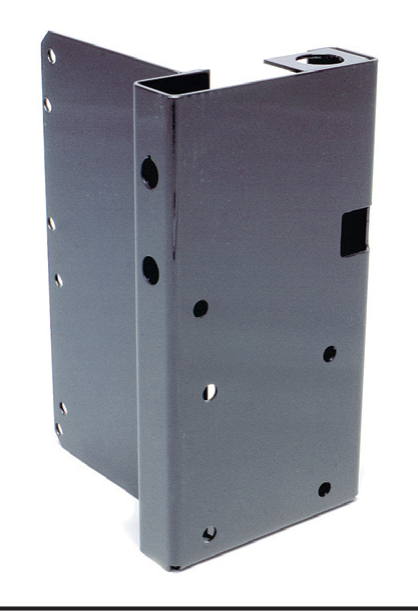

    Hunter Engineering Front-Mount Power Unit Bracket

    Part no. 20-3072-1

    Moves the power unit mounting to the front of the four-post column for bays with very little space. For L45x models.

    Fits this model.

    Full Details

  • Optional accessory

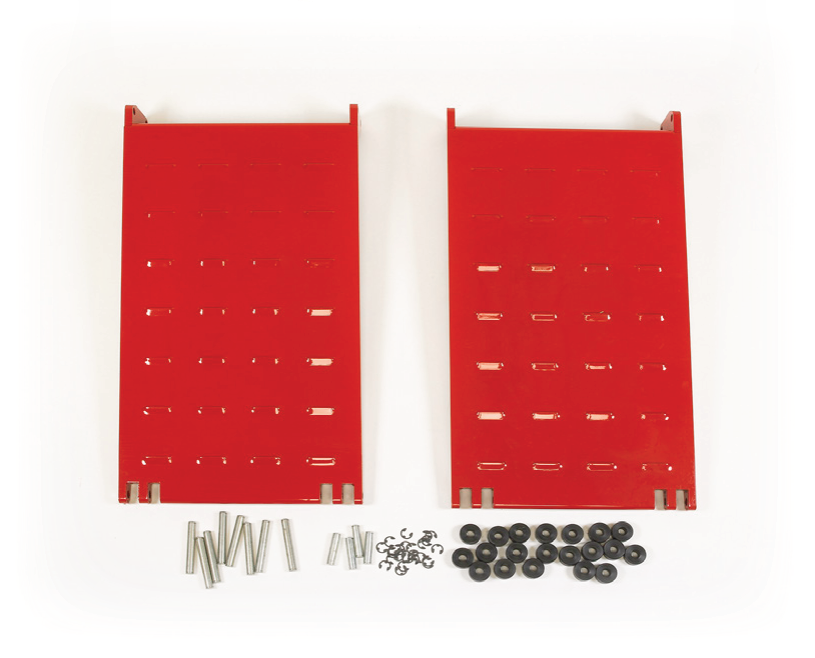

    Hunter Engineering Four-Post Ramp Extension — 40 in.

    Part no. 20-3146-1

    Adds 40 in. of ramp length for four-post lifts with 26-in. runways. Available in red or black.

    Fits this model.

    Full Details

  • Optional accessory

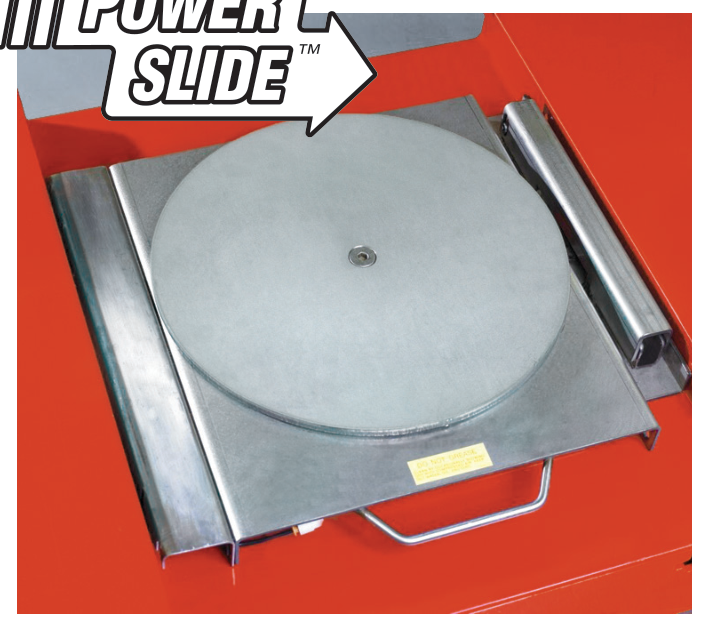

    Hunter Engineering PowerSlide® Turnplates with Automatic Bridges

    Part no. 20-2076-1

    Eliminates removing and replacing lock pins during an alignment; integrated bridges lower and raise as plates are locked. For camera-based alignment sensors.

    Fits this model.

    Full Details
