Hunter Engineering Ultimate ADAS®

Hunter Engineering

Ultimate ADAS®

ADAS

This system combines wheel alignment and static ADAS calibration in the same bay, using laser-guided target placement and monitored procedures. Talk with us about target kits, vehicle coverage, subscriptions, site conditions, utilities, installation and service before you decide.

Select console

Choose a model to add this product to your project.

Model
UAD 145
Console
Standard work stand
Target storage
On board
Connectivity
Wireless to Ultimate ADAS

Key specifications

Software compatibility
Ultimate ADAS compatible with WinAlign® version 18 or greater
System type (Hunter spec sheet)
Wheel alignment and static ADAS calibration
Wireless Internet requirement
10+ Mbps upload and download
Power requirements
115/230 V, 15 amp minimum circuit rating, 50/60 Hz, single phase
Mobility
Mobile, bay-to-bay sensor configuration
Laser safety
Class 2 laser product
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a model above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Power requirements
115/230 V, 15 amp minimum circuit rating, 50/60 Hz, single phase

What TAG confirms with you

  • Bay length, width and clear floor area available for target placement
  • Floor levelness and lighting in the area used for calibrations
  • Vehicles and brands you calibrate most often, so target kits can be matched
  • Where the console and wheel targets will be stored between jobs
  • Whether calibrations happen in a dedicated bay or share an alignment bay
  • Network access and electrical service at the calibration position
Ask TAG about this model

Two console choices

Hunter offers Ultimate ADAS with the standard console or the optional compact console.

Same interface

The compact work stand keeps the same connectivity and interface as the standard console.

Wheel alignment and static ADAS

Either console runs wheel alignment and static ADAS calibrations in the same bay with the same equipment.

Measurement & Coverage

Standard console: the full-size Ultimate ADAS work stand, with on-board storage for the wheel targets.

ConfigurationModelConsoleTarget storageConnectivityFootprintPower
Standard consoleUAD 145Standard work standOn boardWireless to Ultimate ADAS——
Compact consoleUAD 115Compact work standSuited to centralized on-site storageWireless to Ultimate ADASReduced, more maneuverablePlug-in, with a built-in battery option
System type (Hunter spec sheet)
Wheel alignment and static ADAS calibration
Wireless Internet requirement
10+ Mbps upload and download
Power requirements
115/230 V, 15 amp minimum circuit rating, 50/60 Hz, single phase
Mobility
Mobile, bay-to-bay sensor configuration
Software compatibility
Ultimate ADAS compatible with WinAlign® version 18 or greater
Laser safety
Class 2 laser product
Site planning
Refer to the linked Hunter site-requirement documents; bay space requirements vary by vehicle and procedure

Additional details

  • We will confirm the current target kits, vehicle and OEM coverage, any subscriptions, bay space, power and network, installation, training and price before anything is ordered.

Configure this Ultimate ADAS®

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for Ultimate ADAS®

TAG confirms final fit and configuration before purchase.

33 of 33 shown

Optional accessory · 33

  • Optional accessory

    Hunter Engineering KIA Corner Cube Target Kit (Large)

    Part no. 20-4105-1

    KIA-approved large corner cube target kit for Ultimate ADAS® static calibrations.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Complete Honda / Acura Target Kit

    Part no. 20-4028-1

    Complete Honda/Acura OEM-approved target kit including all Honda/Acura kits shown in the ordering guide.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Complete Mazda Target Kit

    Part no. 20-4108-1

    Complete Mazda target kit including all Mazda kits shown in the ordering guide.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Honda BSI Target Kit

    Part no. 20-4027-1

    OEM-approved Honda blind spot information (BSI) target kit for Ultimate ADAS® static calibrations.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering GM Surround View Target Kit

    Part no. 20-3940-1

    OEM-approved Chevrolet / GMC / Cadillac / Buick surround view target kit for Ultimate ADAS® static calibrations.

    Fits this model.

    Full Details

  • Optional accessory

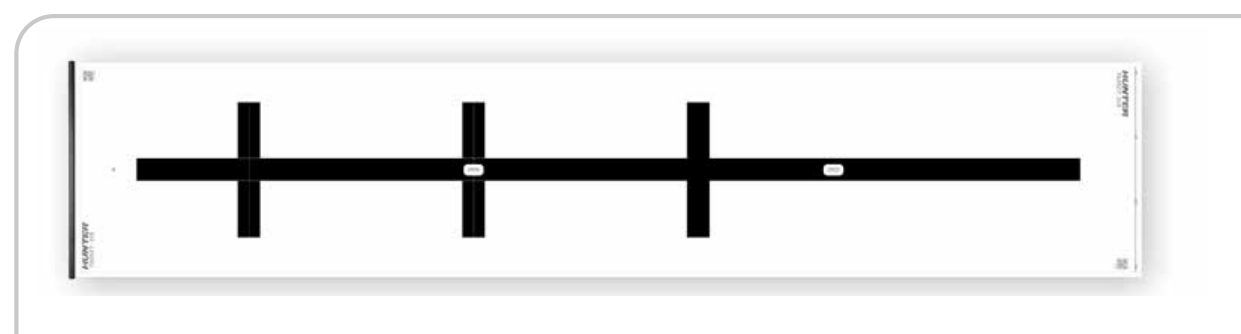

    Hunter Engineering Subaru Surround View Target Kit

    Part no. 20-4083-1

    OEM-approved Subaru surround view target kit for Ultimate ADAS® static calibrations.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Related Equipment to Review

Related equipment to review for this work area.

Final configuration is confirmed before purchase.

How TAG can help

Ask TAG about delivery, installation, training and service for this equipment. Your quote will state what is included.

  • Site review

    TAG reviews equipment dimensions, clearances, slab, utilities and site requirements with you.

  • Delivery & installation

    Plan delivery and installation with TAG. Your quote will state what is included.

  • Training

    Ask TAG about training for your team and the equipment you choose.

  • Service & calibration

    Contact TAG to confirm service options for this model in your area.

Next step

Ready to scope this model into your shop?

TAG will confirm configuration, installation requirements, training and service coverage for your facility.
