Pro Spot SP-2 Smart MIG Welder

Pro Spot

SP-2 Smart MIG Welder

MIG Welding

The SP-2 Smart MIG has two MIG torches that can be set up for two different base metals, so the shielding gas and weld program with the right synergic curve switch automatically when the technician pulls the trigger. In synergic mode the microprocessor controls arc stability and weld quality, welding can run continuous or pulse, and maximum power output is 200 A.

Key specifications

Input
1 phase; 208-240V; 30A; 50/60Hz
Cooling
Fan cooled
MIG range
20A/15V to 200A/24V
Protection
IP22
Insulation
H
System weight
154 lb (70 kg)
Specifications
Quantity
1
Request a Quote

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

System weight
154 lb (70 kg)
Dimensions
37 x 25 x 72 in (940 x 635 x 1829 mm)

What TAG confirms with you

  • Incoming power at the weld station: voltage, phase and breaker size
  • Materials you repair — steel, high-strength steel, aluminium or a mix
  • Processes you need to cover, such as squeeze-type resistance, MIG or brazing
  • Whether aluminium work must be isolated from steel work
  • Fume extraction and ground/clamp access around the vehicle

Welding Output & Power

Input
1 phase; 208-240V; 30A; 50/60Hz
MIG range
20A/15V to 200A/24V
Protection
IP22
Cooling
Fan cooled
Insulation
H
System weight
154 lb (70 kg)
Dimensions
37 x 25 x 72 in (940 x 635 x 1829 mm)

What ships with it

Box 1 and Box 2 contents as printed. Named kits stay whole; their pictured pieces are not counted separately.

Supplied components
26
Listed as optional
1
Included components (26 items)
  • Box 1 — Silicon Bronze Torch Orange (9 ft.)Part no. 82-70151 ea.
  • Box 1 — Ground Cable (10 ft.)Part no. 82-70181 ea.
  • Box 1 — Aluminum Torch Blue (9 ft.)Part no. 82-70251 ea.
  • Box 1 — Gas RegulatorPart no. 82-70012 ea.
  • Box 1 — Aluminum 5554 1.2mm - 2kgPart no. 50-71171 ea.
  • Box 1 — Tow HandlePart no. 90-05791 ea.
  • Box 1 — Silicon Bronze 0.8mm - 2kgPart no. 50-70381 ea.
  • Box 1 — Consumable KitPart no. SA-05721 ea.
  • Instruction Manual
  • Box 2 — Bottle BracketPart no. 90-05551 ea.
  • Box 2 — Boom Tube BasePart no. 90-06221 ea.
  • Box 2 — Swivel CasterPart no. 51-70012 ea.
  • Box 2 — Rear Wheel 9" Dia.Part no. 51-70022 ea.
  • Box 2 — Base w/ Plastic ShroudPart no. 90-0602 / 90-06241 ea.
  • Box 2 — AxlePart no. 90-06041 ea.
  • Box 2 — Vertical Hanger (Side 1 and Side 2)Part no. 90-0615 / 90-06161 ea.
  • Box 2 — Top Hanger (Side 1 and Side 2)Part no. 90-0613 / 90-06141 ea.
  • Box 2 — Trolley, BottlesPart no. 90-05541 ea.
  • Box 2 — Boom Hardware KitPart no. 51-00311 ea.
  • Box 2 — Hanger TubePart no. 90-06121 ea.
  • Box 2 — Hood HangerPart no. 90-06172 ea.
  • Box 2 — Torch Saddle HooksPart no. 90-0618 / 90-06191 ea.
  • Box 2 — Parts Bin TrayPart no. 90-02412 ea.
  • Box 2 — Cable ChannelsPart no. 90-0620 / 90-06211 ea.
  • Box 2 — 35" ChainPart no. M-882 ea.
  • Box 2 — Base Hardware Kit1 ea.

View full component sheet

Listed as optional

The manufacturer prints these as optional — they are not included with the machine. TAG confirms exactly what is on your project before quoting.

  • PS Protective CoverPart no. 80-9912

Page 2 of the sheet lists torch parts, consumables and available wire as a reference; those are not part of the shipped contents.

Shipping data

Crate figures for transport planning. These are not operating specifications.

Shipping dimensions (Box 1)
39" x 15" x 15"
Shipping weight (Box 1)
162 lbs (73.5 kg)
Shipping dimensions (Box 2)
21" x 12" x 7.5"
Shipping weight (Box 2)
25 lbs (11 kg)

Source: Pro Spot SP-2 Smart MIG Components List Rev. C.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelPro Spot
SP-2 Smart MIG WelderYou are viewing		Pro Spot
SP-1 Pulse MIG Welder
Why TAG lists itThis modelPro Spot publishes the SP-1 pulse MIG welder as another single-phase MIG platform. Compare before choosing.
Input1 phase; 208-240V; 30A; 50/60Hz1 phase; 208-240V; 30A; 50/60Hz
MIG range20A/15V to 200A/24V20A/15V to 200A/24V
ProtectionIP22IP22
Coolingfan cooledfan cooled
InsulationHH
System weight154 lb (70 kg)43 lb (20 kg)

Configure this SP-2 Smart MIG Welder

Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for SP-2 Smart MIG Welder

TAG confirms final fit and configuration before purchase.

46 of 46 shown

Optional accessory · 46

  • Optional accessory

    Pro Spot Ergonomic Silicon Bronze Torch

    Part no. 82-7015

    Optional dedicated silicon bronze MIG torch for the Pro Spot SP-1.

    Fits this model.

    Full Details

  • Optional accessory

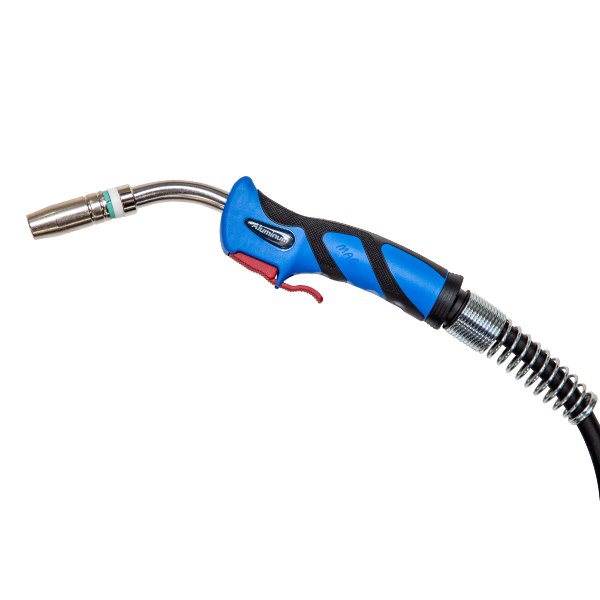

    Pro Spot Ergonomic Aluminum Torch

    Part no. 82-7025

    Pro Spot 82-7025 — Ergonomic Aluminum Torch. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

    Pro Spot 82-7014 Stick / MMA Cable, 10 ft.

    Part no. 82-7014

    Optional stick and MMA electrode holder cable for the Pro Spot SP-1, SP-2, SP-5.3 and SP-5 DP.

    Fits this model.

    Full Details

  • Optional accessory

    Pro Spot Ergonomic Steel Torch

    Part no. 82-7016

    Optional dedicated steel MIG torch for the Pro Spot SP-1.

    Fits this model.

    Full Details

  • Optional accessory

    Pro Spot 82-7017 TIG Torch, 13 ft.

    Part no. 82-7017

    Optional TIG torch for the Pro Spot SP-1, SP-2, SP-5.3 and SP-5 DP.

    Fits this model.

    Full Details

  • Optional accessory

    Pro Spot Wire Feed Roller for Steel Size : 0.8mm - 1.0mm

    Part no. 50-7209

    Pro Spot 50-7209 — Wire Feed Roller for Steel Size : 0.8mm - 1.0mm. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details
Quote Cart (—)

Compatible consumables

TAG confirms final fit and configuration before purchase.

  • Pro Spot Nozzle for Plus 25 Torch, part number 50-7114

    50-7114

    Nozzle for Plus 25 Torch

    MIG/MAG Welding · Torch Consumables

    Choose Options
  • Pro Spot Mild Steel Welding Wire 0.8mm (5kg), part number 50-7208

    50-7208

    Mild Steel Welding Wire 0.8mm (5kg)

    MIG/MAG Welding · Welding Wire · 5 kg

    Choose Options
  • Pro Spot MIG Welding Contact Tip for Steel/Silicone Bronze 1.0mm (0.040") - 50-7010, part number 50-7010-10PK

    50-7010-10PK

    MIG Welding Contact Tip for Steel/Silicone Bronze 1.0mm (0.040") - 50-7010

    MIG/MAG Welding · MIG Welding Consumables · 10 pack

    Choose Options
  • Pro Spot MIG Welding Contact Tip for Steel/Silicone Bronze 1.0mm (0.040"), part number 50-7010

    50-7010

    MIG Welding Contact Tip for Steel/Silicone Bronze 1.0mm (0.040")

    MIG/MAG Welding · Contact Tips

    Choose Options
  • Pro Spot Blue Liner 0.6mm - 0.9mm, part number 50-7002

    50-7002

    Blue Liner 0.6mm - 0.9mm

    MIG/MAG Welding · Torch Consumables

    Choose Options
  • Pro Spot Gas Diffuser for Aluminum (Blue) Torch, part number 50-7251

    50-7251

    Gas Diffuser for Aluminum (Blue) Torch

    MIG/MAG Welding · Torch Consumables

    Choose Options

View all 32 consumables for this machine

Build out this work area

Related Equipment to Review

Related equipment to review for this work area.

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.
