Pro Spot
i5 Smart Welder
Resistance Spot Welding
The i5 has a medium-frequency trans-gun rated at 14,500A with 1,243 lbs (565 daN) of electrode force, AUTO and MANUAL two-sided spot welding modes, automatic measuring and sensing of the metals before welding, a double-acting self-aligning spot gun, water-cooled weld arms, a C-to-X adapter, a full-color interface, on-board cabinet storage and single-sided welding programs.
Key specifications
- Welding amperage
- 14,500 amps DC
- Input
- 3 phase; 208-240V 50/60Hz 60A; 400-420V 50/60Hz 40A; 460-480V 50/60Hz 40A
- Liquid cooling system
- Radiator/pump active loop cooled to the weld caps
- Cable length
- Input 30 ft (10 m); weld cable 16 ft (5 m)
- Electrode pressure
- 1243 lb (565 daN)
- Microprocessor
- I5 upgradeable software platform
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Welding amperage
- 14,500 amps DC
- Electrode pressure
- 1243 lb (565 daN)
- System weight
- 314 lb (142 kg)
- Dimensions
- 45 x 34 x 50 in (1143 x 864 x 1270 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Welding Output & Power
- 3 phase; 208-240V 50/60Hz 60A; 400-420V 50/60Hz 40A; 460-480V 50/60Hz 40A
- 14,500 amps DC
- Input 30 ft (10 m); weld cable 16 ft (5 m)
- 1243 lb (565 daN)
- Radiator/pump active loop cooled to the weld caps
- I5 upgradeable software platform
- IP21
- 5,239,155; 6,706,990; 6,539,770
- 314 lb (142 kg)
- 45 x 34 x 50 in (1143 x 864 x 1270 mm)
What ships with it
Pro Spot prints: the i5 comes with the listed parts except those listed as optional. Voltage is a build choice (220V, 400V or 480V), so no single voltage is shown here.
- Supplied components
- 13
- Listed as optional
- 0
Included components (13 items)
- Auto-gun assembly with F-44 release trigger switch, F-44 weld trigger switch, SA-5001 coolant hoses with fittings, PSW-302 C-arm, PS-030 A-weld cap, 50-2506 shank, 90-1875S screw-in shank and PS-5203 clamping handlePart no. Water Cooled Auto-Gun
- Auto Gun Hanger KitPart no. SA-0454
- Shank PliersPart no. M-2751 ea.
- Electrode Kit for i5 (PS-030 weld cap female 'A' 5 pcs, 50-2506 shank 1-1/2", 50-2509 shank 2-1/4", CLT-57 3mm allen wrench, CLT-58 4mm allen wrench, CLT-58A 5mm allen wrench, 51-0006 gun hanger pins 2 pcs, PS-1213 plastic case)Part no. SA-5555
- 80MM C-ArmPart no. PSW-302
- 520mm U-ArmPart no. PSW-305
- Wheelhouse ArmPart no. PSW-52
- Ergo Lift AssistPart no. SA-0843
- Protective CoverPart no. 80-0001
- Weld coupon, 18 gage steel 2" x 8"Part no. 50-2008
- Weld coupon, 18 gage steel 2" x 10"Part no. 50-2010
- Weld coupon, 18 gage steel 2" x 12"Part no. 50-20122 pcs
- Instruction Manual
Shipping data
- Shipping dimensions
- 47" x 40" x 60"
- Shipping weight
- 480 lbs
Configure this i5 Smart Welder
Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

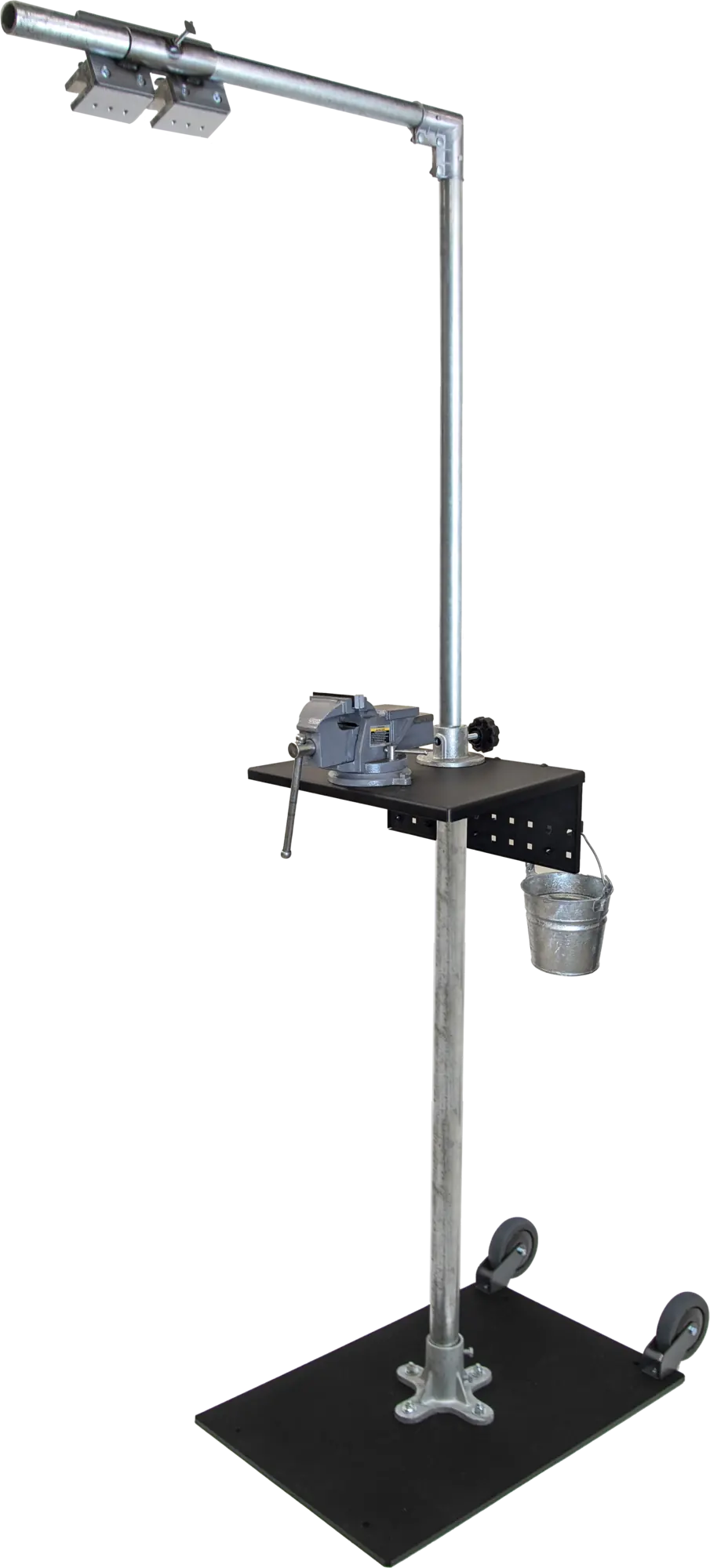

Accessories for i5 Smart Welder
53 of 53 shown
Optional accessory · 53
Optional accessory

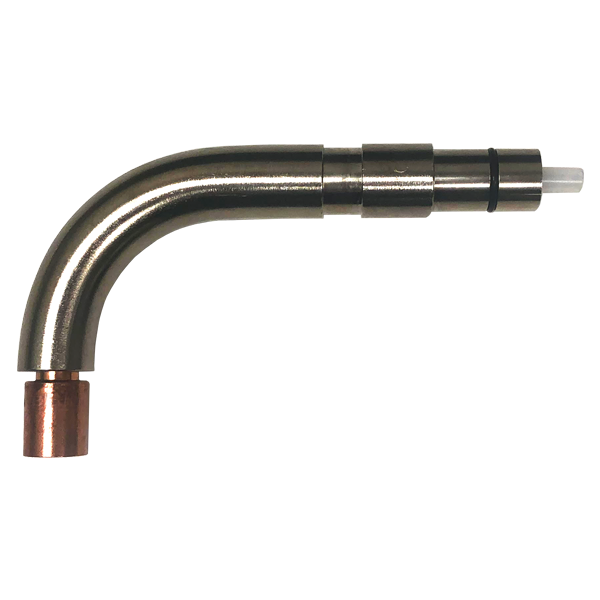

Pro Spot CXL-i5 C-X Arm XL
Part no. CXL-i5
Optional accessory
Pro Spot PSW-406-5CT 406mm Extension Arm
Part no. PSW-406-5CT
Optional accessory

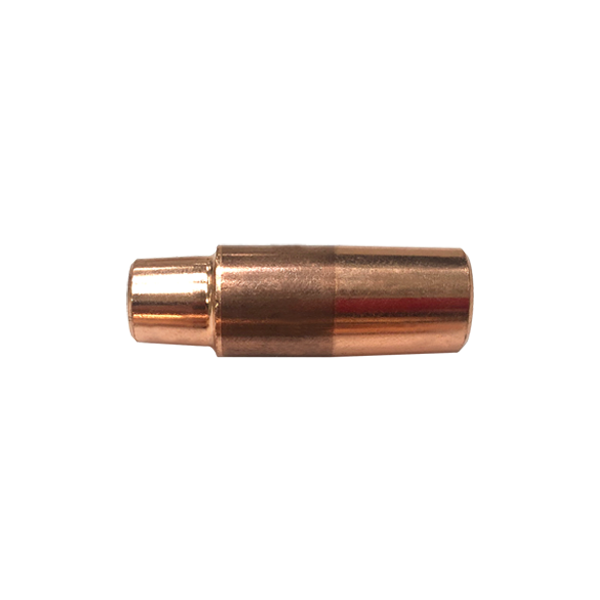

Pro Spot CX-i5 Female Electrode
Part no. 90-1877S
Optional accessory
Pro Spot 2" Shank
Part no. 50-2508
Optional accessory
Pro Spot Tip Dresser B Cap
Part no. PLT-51/A
Optional accessory

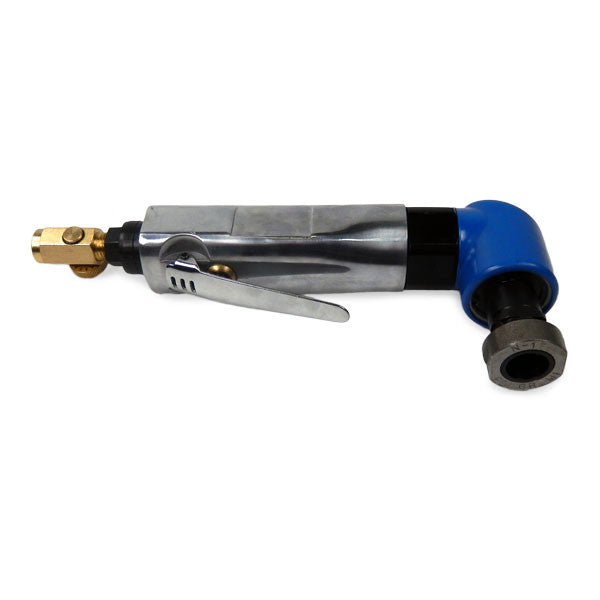

Pro Spot Electrode Tip Dresser System (5RW)
