Pro Spot
SP-1 Pulse MIG Welder
MIG Welding
The SP-1 Pulse MIG is a welder for body shops working with stainless steel or aluminum. In synergic mode the microprocessor controls arc stability and weld quality, the machine also comes equipped for MMA/stick welding, an optional TIG torch is available, MIG and TIG welding can be done in continuous or pulse mode, and maximum power output is 200 A.
Key specifications
- Input
- 1 phase; 208-240V; 30A; 50/60Hz
- Cooling
- Fan cooled
- MMA range
- 5A/20.2V to 200A/28V
- TIG range
- 5A/10V to 200A/18V
- MIG range
- 20A/15V to 200A/24V
- Protection
- IP22
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- System weight
- 43 lb (20 kg)
- Dimensions
- 27 x 11.5 x 15.5 in (686 x 293 x 394 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Welding Output & Power
- 1 phase; 208-240V; 30A; 50/60Hz
- 5A/20.2V to 200A/28V
- 5A/10V to 200A/18V
- 20A/15V to 200A/24V
- IP22
- Fan cooled
- H
- 43 lb (20 kg)
- 27 x 11.5 x 15.5 in (686 x 293 x 394 mm)
Configure this SP-1 Pulse MIG Welder
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for SP-1 Pulse MIG Welder
34 of 34 shown
Optional accessory · 34
Optional accessory

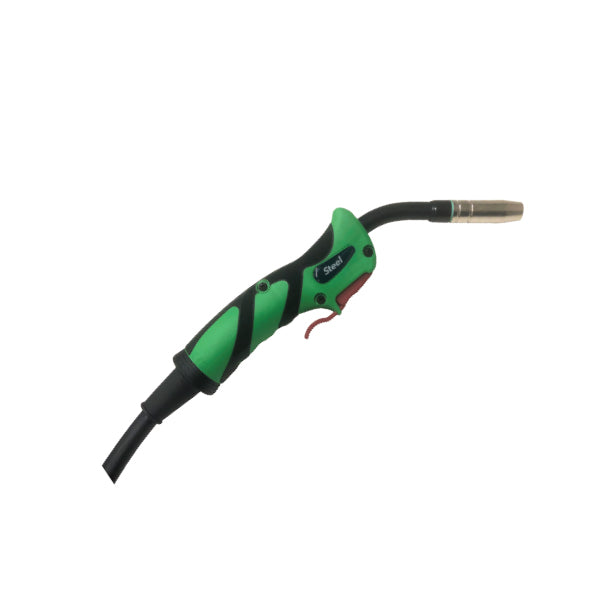

Pro Spot Ergonomic Steel Torch
Part no. 82-7016
Optional accessory
Pro Spot 82-7017 TIG Torch, 13 ft.
Part no. 82-7017
Optional accessory

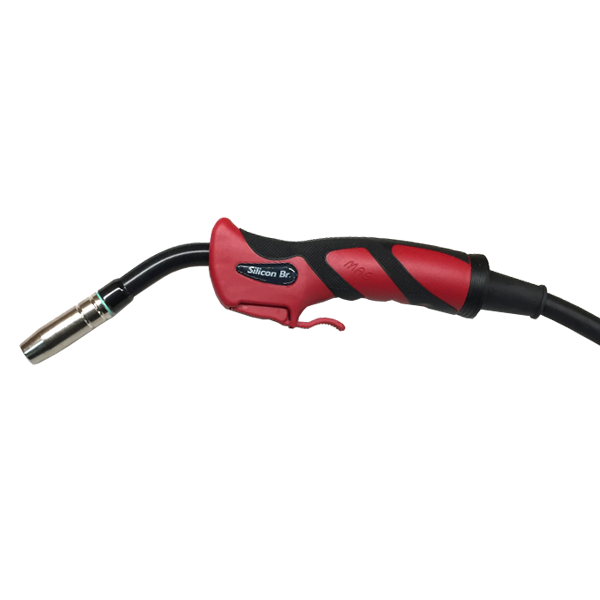

Pro Spot Ergonomic Silicon Bronze Torch
Part no. 82-7015
Optional accessory

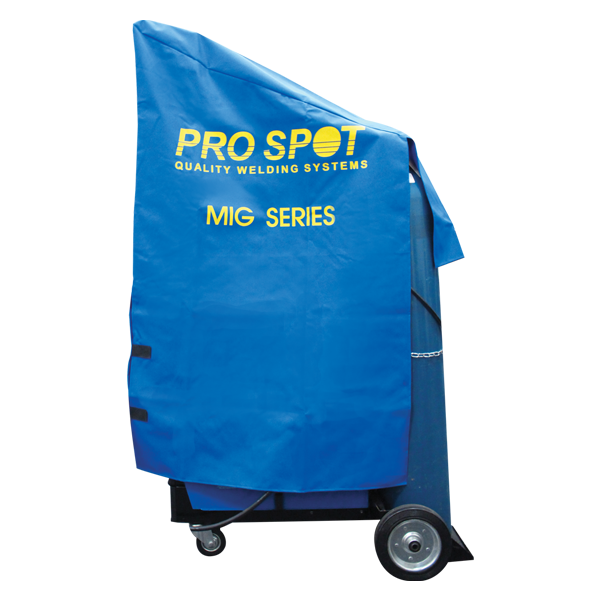

Pro Spot MIG Welder Protective Cover
Part no. 80-9912
Optional accessory

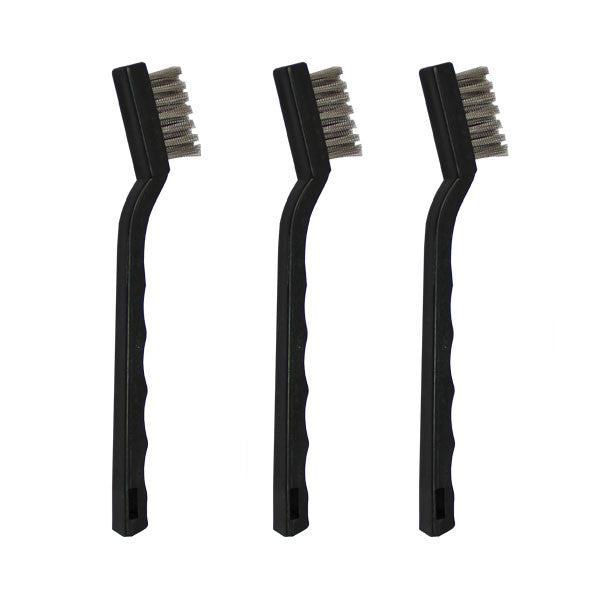

Pro Spot 50-0580-3
Part no. 50-0580-3
Optional accessory
Pro Spot 82-7014 Stick / MMA Cable, 10 ft.
Part no. 82-7014
Compatible consumables
MIG/MAG Consumable Kit
MIG/MAG Welding · Consumable Kits
Wire Spool - Silicon Bronze - 0.8mm - 0.030 in - 2 kg/8 in dia
MIG/MAG Welding · Welding Wire · 2 kg
MIG Welding Contact Tip for Steel/Silicon Bronze 0.6mm (0.023")
MIG/MAG Welding · Contact Tips
TIG Ceramic Nozzle
MIG/MAG Welding · Torch Consumables
Aluminum Wire 5356 1.0mm (2kg)
MIG/MAG Welding · Welding Wire · 2 kg
Gas Diffuser Spring
MIG/MAG Welding · Torch Consumables
Build out this work area
Upgrade Options to Review
Another option to compare in the same line.
- View details for Pro Spot SP-5 DP Single Phase Double Pulse MIG Welder
Pro Spot
MIG Welding
SP-5 DP Single Phase Double Pulse MIG Welder
Pro Spot publishes the SP-5 DP as its double pulse single-phase MIG step up.
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Pro Spot | Pro Spot |
|---|---|---|
| Why TAG lists it | This model | Pro Spot publishes the SP-2 smart MIG welder as another single-phase MIG platform. Compare before choosing. |
| Input | 1 phase; 208-240V; 30A; 50/60Hz | 1 phase; 208-240V; 30A; 50/60Hz |
| MIG range | 20A/15V to 200A/24V | 20A/15V to 200A/24V |
| Protection | IP22 | IP22 |
| Cooling | fan cooled | fan cooled |
| Insulation | H | H |
| System weight | 43 lb (20 kg) | 154 lb (70 kg) |
