Pro Spot
PR-8D Multi-Function Riveting System
Riveting & Bonding
The cordless PR-8D Rivet Gun System handles multi-function processes on heat-sensitive materials and multi-material stackups. It can be configured in hand or remotely from any supported device, force is settable anywhere in its 20-80 kN range, and it logs data for quality checks, with settable warning tones, safety measures and Bluetooth settings adjustment. Applications include self-piercing rivets (SPR), rivet removal, solid rivets, flow form, blind rivets, calibrating, BOM rivets, flattening and pin and collar, with quick-change riveting arms and a blind rivet adapter.
Key specifications
- Force range
- 20-80 kN
- Power source
- Two 18V lithium-ion batteries
- Charging source
- AC 100-240V; 50-60Hz; auto-switching
- Travel
- 2 in (50 mm)
- Typical cycle time
- 3-5 sec
- Charging time
- 2 hr
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Power source
- two 18V lithium-ion batteries
- System weight
- 29 lb (13.15 kg)
- Dimensions
- 28 x 18 x 9 in (711 x 457 x 228 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Riveting Capability
- 20-80 kN
- AC 100-240V; 50-60Hz; auto-switching
- 2 in (50 mm)
- 3-5 sec
- Two 18V lithium-ion batteries
- 2 hr
- Approximately 250 rivets
- Bluetooth
- 29 lb (13.15 kg)
- 28 x 18 x 9 in (711 x 457 x 228 mm)
- Batteries excluded
Configure this PR-8D Multi-Function Riveting System
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PR-8D Multi-Function Riveting System
21 of 21 shown
Optional accessory · 21
Optional accessory
Pro Spot PR-PA20 Blind Rivet Adapter
Part no. PR-PA20
Optional accessory
Pro Spot PRR-80kN-130 Extended Reach Quick-Change Arm
Part no. PRR-80kN-130
Optional accessory

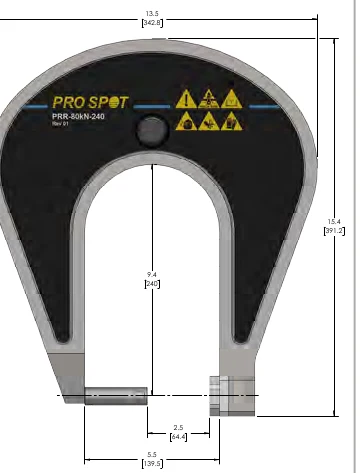

Pro Spot PRR-80kN-240 Extended Reach Quick-Change Arm
Part no. PRR-80kN-240
Optional accessory
Pro Spot PR8-PA38 Blind Rivet Adapter
Part no. PR8-PA38
Optional accessory
Pro Spot Self-Piercing Rivets, 5 x 6 mm
Part no. PR-SPR-56-12PK
Optional accessory
Pro Spot Weld Sample Coupon, 3 x 5 in, 2.5 mm
Part no. 50-2016
Compatible consumables
Self-Piercing Rivets, 5 x 6 mm
Riveting & Bonding · Self-Piercing Rivets · 12 pack
Weld Sample Coupon, 3 x 5 in, 2.5 mm
Resistance Spot Welding · Weld Coupons
Self-Piercing Rivets, 5 x 10 mm
Riveting & Bonding · Self-Piercing Rivets · 12 pack
Self-Piercing Rivets, 5 x 10 mm
Riveting & Bonding · Self-Piercing Rivets · 50 pack
Self-Piercing Rivets, 3 x 5 mm
Riveting & Bonding · Self-Piercing Rivets · 12 pack
Self-Piercing Rivets, 3 x 5 mm
Riveting & Bonding · Self-Piercing Rivets · 200 pack
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Pro Spot i5s Smart Spot Welder
Pro Spot
Resistance Spot Welding
i5s Smart Spot Welder
Pro Spot publishes the i5s smart spot welder for the resistance welding side of the same joining cell.
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Pro Spot | Pro Spot |
|---|---|---|
| Why TAG lists it | This model | Pro Spot publishes the PR-5D riveter as a lighter riveting platform. Compare before choosing. |
| Force range | 20-80 kN | 10-50 kN |
| Charging source | AC 100-240V; 50-60Hz; auto-switching | AC 100-240V; 50-60Hz; auto-switching |
| Travel | 2 in (50 mm) | 1.75 in (45 mm) |
| Typical cycle time | 3-5 sec | 3-5 sec |
| Power source | two 18V lithium-ion batteries | two 18V lithium-ion batteries |
| Charging time | 2 hr | 2 hr |
