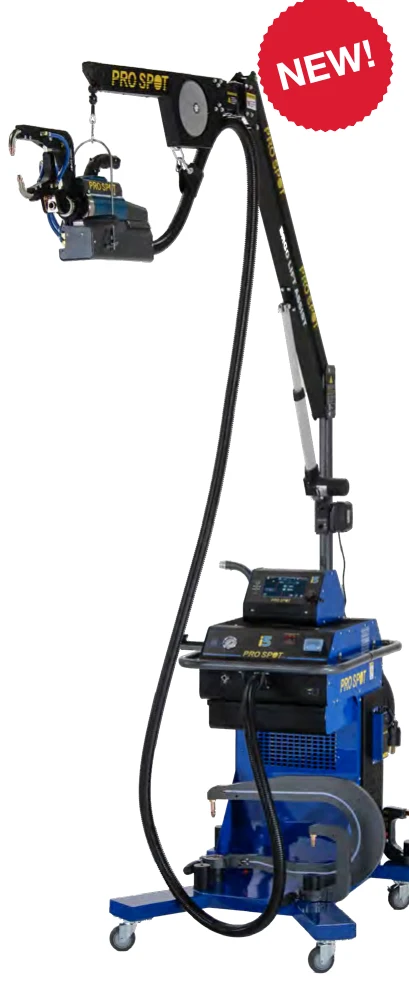

i5s Smart Spot Welder
Resistance Spot Welding
The i5s has adaptive welding control that reacts to material composition, thickness and resistance in real time, on-gun controls, a water-cooled transformer gun with rotating quick-connect arms, Wi-Fi connectivity, built-in training and weld-log export.
Key specifications
- Welding amperage
- 14,500 Amps (DC)
- Input voltage
- 3 phase, 208-240V 50/60Hz, 400-480V 50/60Hz
- Electrode force
- 1,240 lbs (565 daN)
- Liquid cooling system
- Radiator/pump active loop, cooled to the electrode tips
- Cable length
- Power cable 30 ft (10 m); weld cable 16.4 ft (4.9 m)
- Microprocessor
- Wirelessly upgradeable software platform
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Input voltage
- 3 phase, 208-240V 50/60Hz, 400-480V 50/60Hz
- Welding amperage
- 14,500 Amps (DC)
- System weight
- 385 lbs (Pro Spot i5s brochure BRO-i5s-A3, page 6)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Welding Output & Power
- 3 phase, 208-240V 50/60Hz, 400-480V 50/60Hz
- 14,500 Amps (DC)
- Power cable 30 ft (10 m); weld cable 16.4 ft (4.9 m)
- 1,240 lbs (565 daN)
- Radiator/pump active loop, cooled to the electrode tips
- Wirelessly upgradeable software platform
- IP 21
- 385 lbs (Pro Spot i5s brochure BRO-i5s-A3, page 6)
What ships with it
The i5s ships with the parts below except those the manufacturer prints as Optional.
- Supplied components
- 24
- Listed as optional
- 8
Included components (24 items)
- Shaft Protector Ring, i5s (double side gun)Part no. 90-23622ea
- Electrode Shank, Tapered End Q-ConnectPart no. 90-24804ct
- Shank Protector Ring, i5sPart no. 90-23772ea
- O-Ring, #112, BUNA-N (gun side)Part no. 52-00935 pc.
- O-Ring (arm side)Part no. 52-00865 pc.
- Ergo Lift AssistPart no. SA-0843
- Cap Removal ToolPart no. PS-004
- Allen Wrench - 5mmPart no. CLT-58A1 pc.
- Screw, FHMS, M6 x 12mm, BrassPart no. S-6171ea
- Weld Cap, 4RW, .375" Radius, FemalePart no. PS-0326ea
- Weld Cap, 4RW, .375" Radius, MalePart no. PS-0362ea
- Weld Cap, 3/8" Full Domed 4RW Female, Honda ApprovedPart no. PS-0382ea
- Weld Coupon, 2"x10", 18 gauge steelPart no. 50-20102ea
- Protective CoverPart no. 80-00011ea
- Cable HangerPart no. 90-18032ea
- C-Arm, 80mm depthPart no. PSW-0801ea
- Wheelhouse Arm, 90mm depthPart no. PSW-WH-0901ea
- Extension Arm, 520mm depthPart no. PSW-5201ea
- HandlePart no. PS-5203
- FittingsPart no. F-251 / F-252
- DividerPart no. 90-1711 / 90-1726
- Screw-In ShankPart no. 90-1710 / 90-1717 / 90-0416
- WasherPart no. 52-9029
- Weld Washer, 1" ØPart no. PS-1135
Listed as optional
- 320mm Extension ArmPart no. PSW-310
- 406mm Extension ArmPart no. PSW-406
- 600mm Extension ArmPart no. PSW-600
- C-X ArmPart no. CX-i5s
- C-X Arm XLPart no. CXL-i5s
- Tip Dresser (pneumatic drill and sharpener; blade as ordered)
- Optional Weld Washer, 1.394" ØPart no. 90-1385
- Shunt PliersPart no. 85-0018
Shipping data
- Shipping dimensions
- 38" x 47" x 54.5"
- Shipping weight
- 440 lbs
Configure this i5s Smart Spot Welder
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for i5s Smart Spot Welder
31 of 31 shown
Optional accessory · 31
Optional accessory

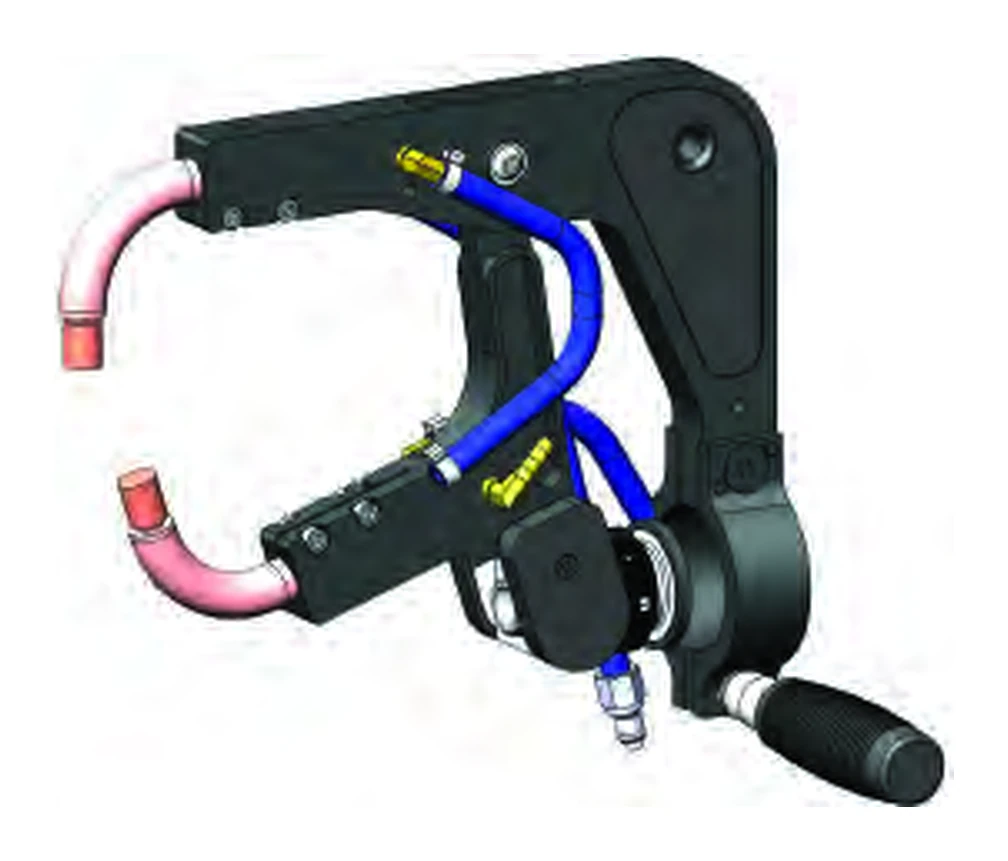

Pro Spot CX Arms Patented C-to-X Arms (Spot Welder Accessory)
Part no. C2X
Optional accessory
Pro Spot CX-i5s C-X Arm
Part no. CX-i5s
Optional accessory

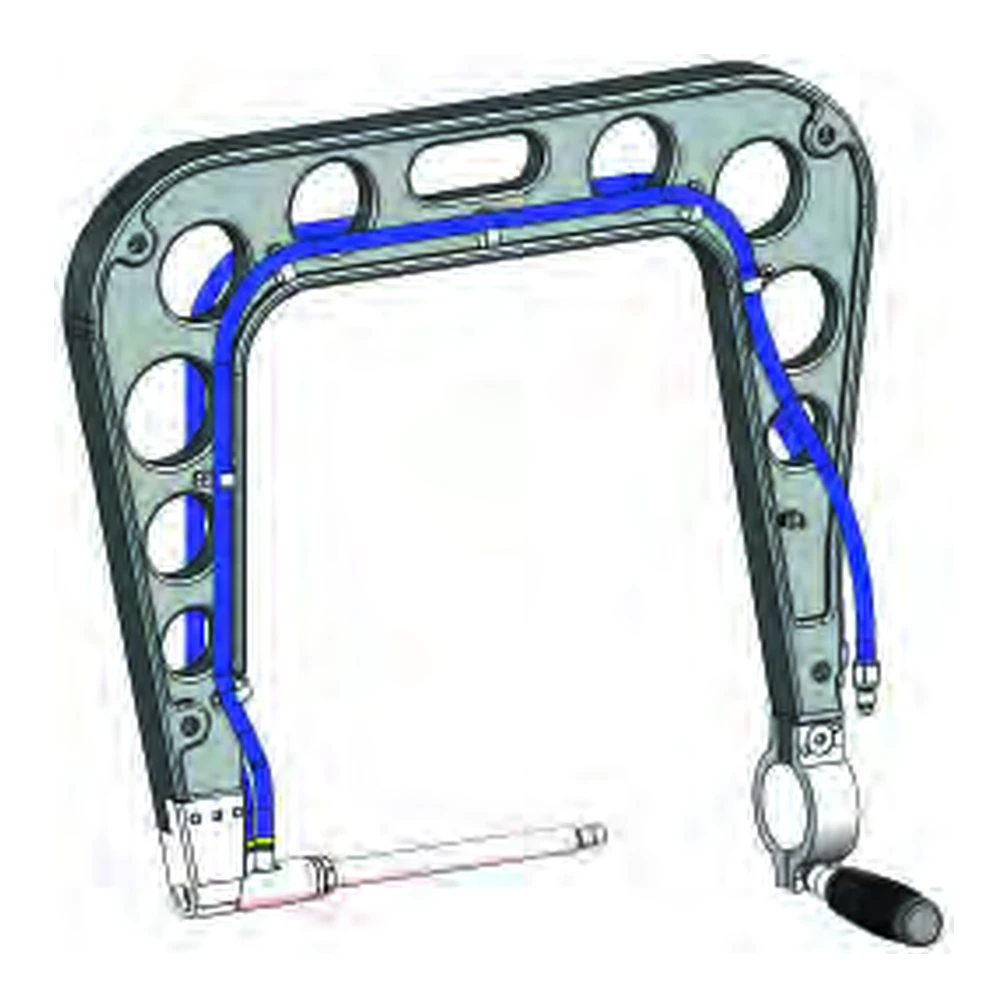

Pro Spot PSW-406 406mm Extension Arm
Part no. PSW-406
Optional accessory

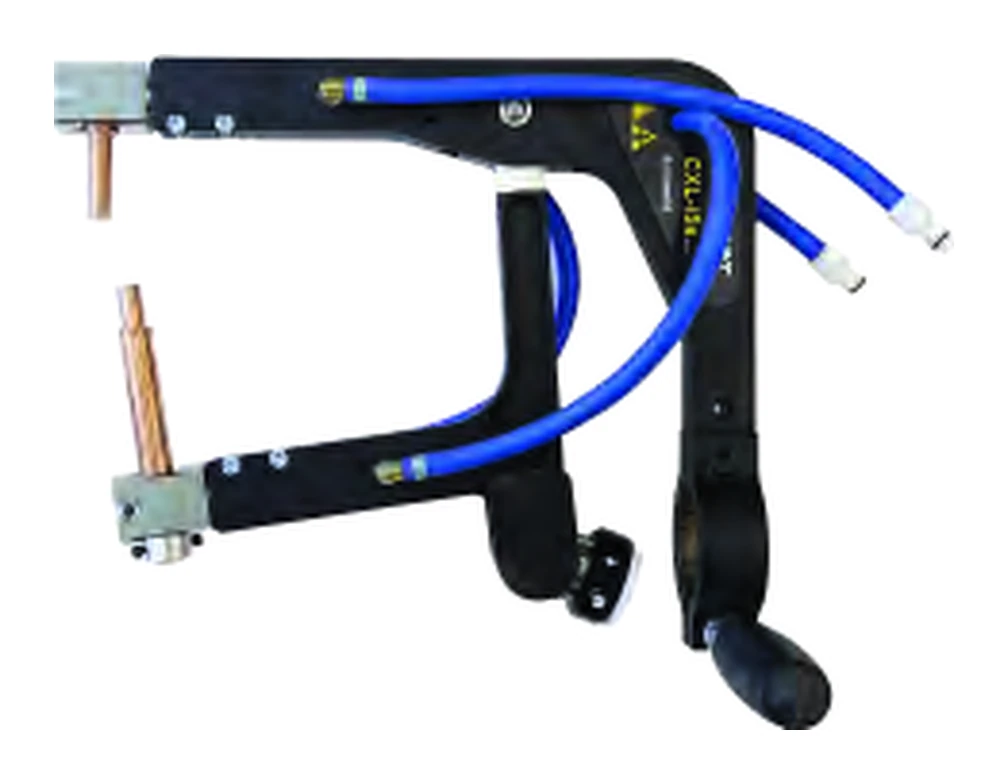

Pro Spot CXL-i5s C-X Arm XL
Part no. CXL-i5s
Optional accessory
Pro Spot Ergo Lift Assist System (ELA)
Optional accessory

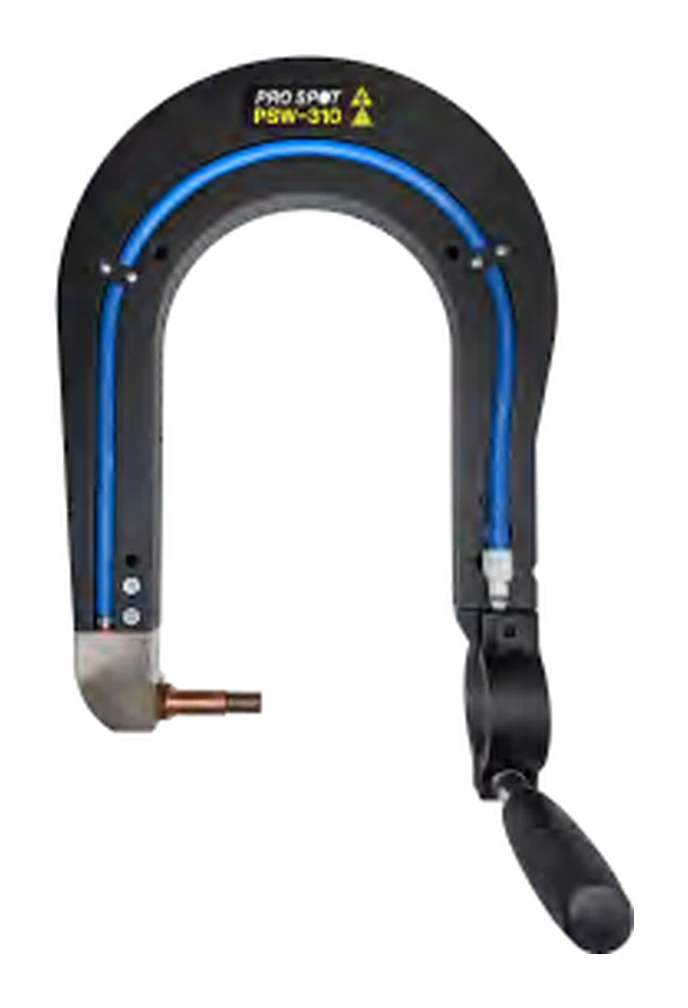

Pro Spot PSW-310 320mm Extension Arm
Part no. PSW-310
Compatible consumables

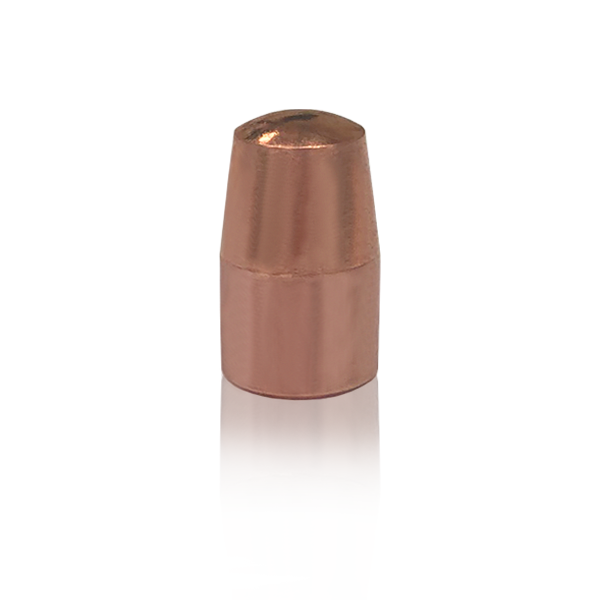

Weld Caps Female
Resistance Spot Welding · Resistance Spot Welding Consumables · 15 pack
WHEELHOUSE ELECTRODE WASHER, 1.394" OD
Resistance Spot Welding · Resistance Spot Welding Consumables
Weld Caps Male
Resistance Spot Welding · Weld Caps - 4RW · 15 pack
18 Gauge Steel Weld Coupon, 2 x 8 in
Resistance Spot Welding · Weld Coupons
Weld Caps Female
Resistance Spot Welding · Resistance Spot Welding Consumables · 15 pack
4RW .375 Radius Dresser Blade
Resistance Spot Welding · Tip Dresser Blades
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Pro Spot SP-5.3 3 Phase SMART Double Pulse MIG Welder
Pro Spot
MIG Welding
SP-5.3 3 Phase SMART Double Pulse MIG Welder
Pro Spot publishes the SP-5.3 three-phase MIG welder for the MIG side of a collision joining cell.
- View details for Pro Spot PR-5D Riveting and Bonding Station
Pro Spot
Riveting & Bonding

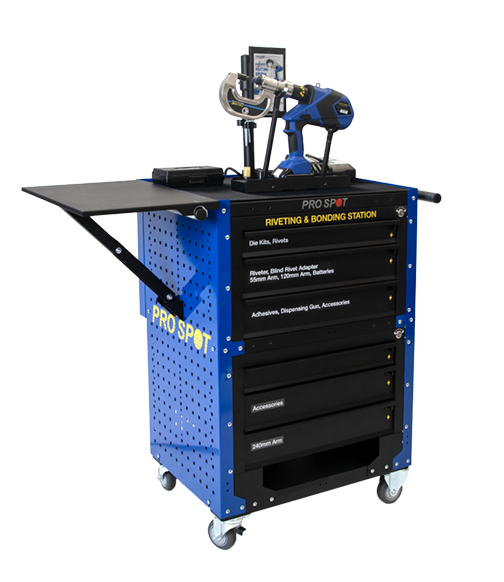

PR-5D Riveting and Bonding Station
