Pro Spot

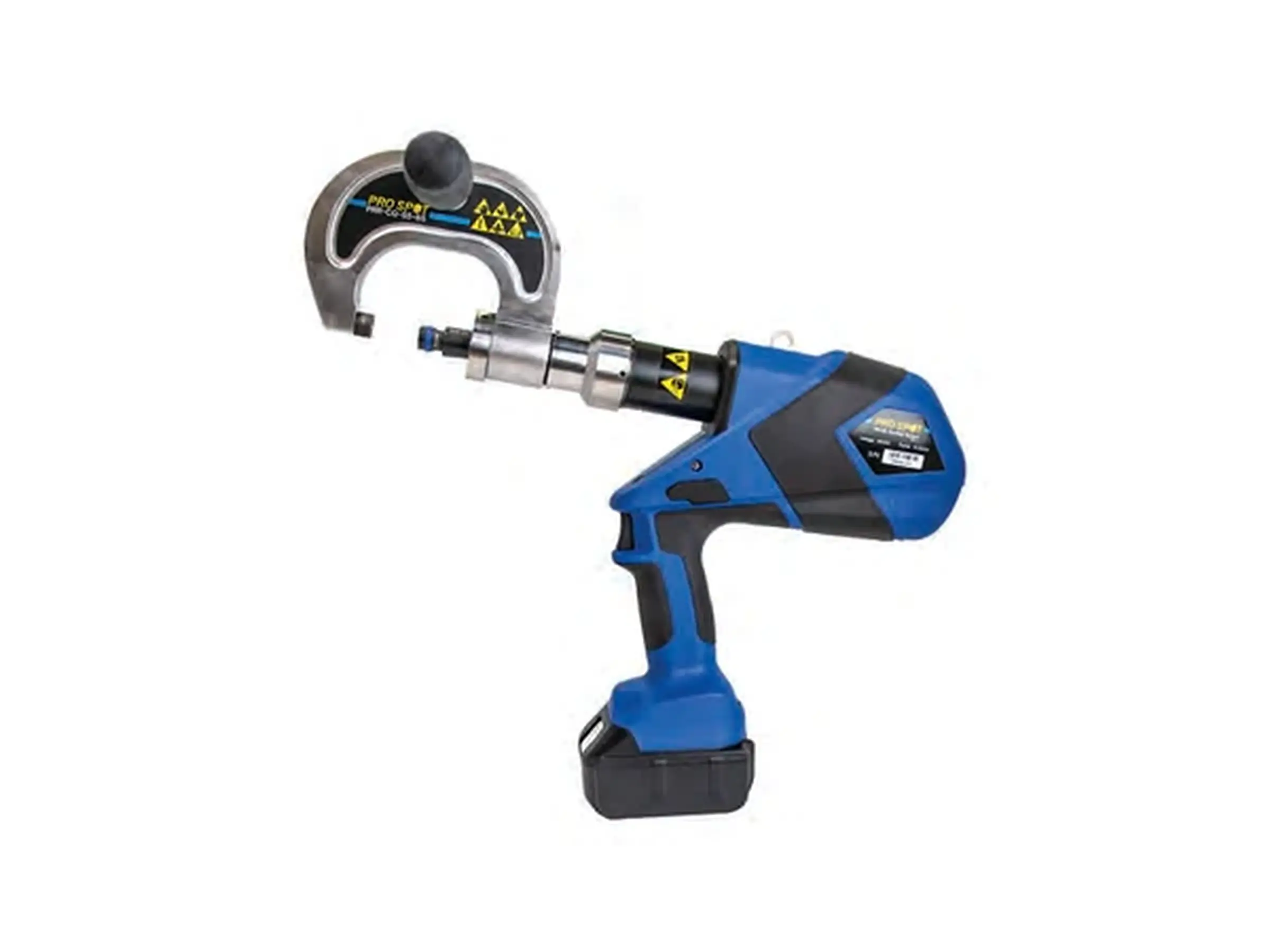

PR-5D Riveter
Riveting & Bonding
The PR-5D Rivet Gun System applies and removes rivets as a cold joining process, so it suits heat-sensitive materials such as aluminum. It comes with a magnetic die kit for applying SPR and solid rivets, removing rivets and flattening, uses magnetic dies for quick die changes, and ships with two lithium rechargeable batteries and a charging dock. The standard arm is 55 mm, with optional 120 mm and 240 mm extension arms and a blind rivet adapter.
Key specifications
- Force range
- 10-50 kN
- Power source
- Two 18V lithium-ion batteries
- Charging source
- AC 100-240V; 50-60Hz; auto-switching
- Travel
- 1.75 in (45 mm)
- Typical cycle time
- 3-5 sec
- Charging time
- 2 hr
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Power source
- two 18V lithium-ion batteries
- System weight
- 9.9 lb (4.5 kg)
- Dimensions
- 28 x 18 x 9 in (711 x 457 x 228 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Riveting Capability
- 10-50 kN
- AC 100-240V; 50-60Hz; auto-switching
- 1.75 in (45 mm)
- 3-5 sec
- Two 18V lithium-ion batteries
- 2 hr
- Approximately 250
- 9.9 lb (4.5 kg)
- 28 x 18 x 9 in (711 x 457 x 228 mm)
- Batteries excluded
Configure this PR-5D Riveter
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PR-5D Riveter
19 of 19 shown
Optional accessory · 19
Optional accessory

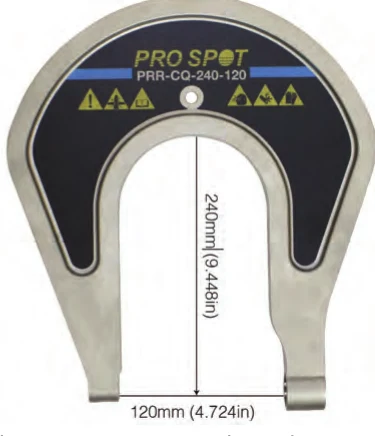

Pro Spot PR-5D 120 mm & 240 mm Extension Arm Set
Part no. PRR-CQ-240-120
Optional accessory
Pro Spot PR-PA20 Blind Rivet Adapter
Part no. PR-PA20
Optional accessory
Pro Spot Self-Piercing Rivets, 3 x 5 mm
Part no. PR-SPR-35-12PK
Optional accessory
Pro Spot Self-Piercing Rivets, 3 x 5 mm
Part no. PR-SPR-35-200PK
Optional accessory
Pro Spot O-Ring Lubricant
Part no. M-312-A
Optional accessory
Pro Spot Self-Piercing Rivets, 5 x 8 mm
Part no. PR-SPR-58-50PK
