Pro Spot
PR-205MV Synergic MIG Welder
MIG Welding
The PR-205MV is a compact, lightweight, microprocessor-controlled welding inverter suitable for MIG/MAG, MMA and TIG processes, with manual or synergic control, a multi-voltage adapter that switches from 220V to 100V with a plug-in, quick electrode polarity change for solid or flux core wire, and an optional cart.
Key specifications
- Input
- 1 phase; 230V or 115V; 50/60Hz
- Duty cycle
- 25% at 170A; 60% at 110A; 100% at 85A
- Open-circuit voltage
- 25VDC
- Current range
- 5-170A
- Insulation
- Type H
- Protection
- IP22S
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Open-circuit voltage
- 25VDC
- System weight
- 23 lb (10 kg)
- Dimensions
- 21 x 10 x 13 in (534 x 254 x 331 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Welding Output & Power
- 1 phase; 230V or 115V; 50/60Hz
- 25VDC
- 5-170A
- 25% at 170A; 60% at 110A; 100% at 85A
- Type H
- IP22S
- 23 lb (10 kg)
- 21 x 10 x 13 in (534 x 254 x 331 mm)
What ships with it
Where the sheet prints one quantity for a cell holding several part numbers, that grouping is kept as printed. The Green Torch Consumables section lower on the sheet is a parts reference, not a shipped-contents block, and 50-7208 welding wire is printed there as Not Included.
- Supplied components
- 10
- Listed as optional
- 0
Included components (10 items)
- Steel Torch Green (9 ft.)Part no. 82-70161 ea.
- Ground Cable (6 ft.)Part no. 82-70351 ea.
- Wire Feed Roller - for Steel (0.6 - 0.9 mm / 0.023 - 0.035 in and 0.8 - 1.0 mm / 0.030 - 0.040 in)Part no. 50-7020 / 50-72091 ea.
- Power Adapter 220V-110VPart no. 82-70361 ea.
- Contact Tips (0.6 mm / 0.023 in, 0.8 mm / 0.030 in, 1.0 mm / 0.040 in)Part no. 50-7006 / 50-7008 / 50-70101 ea.
- Gas HosePart no. 82-70371 ea.
- Hardware Kit1 ea.
- HandlePart no. 90-06101 ea.
- 110Volt 20-15A AdapterPart no. 63-00061 ea.
- Gas RegulatorPart no. 82-70011 ea.
Shipping data
- Shipping dimensions (Box 1)
- 27" x 11.5" x 15.5"
- Shipping weight (Box 1)
- 46 lbs (21 kg)
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Pro Spot | Pro Spot |
|---|---|---|
| Why TAG lists it | This model | Pro Spot publishes the PR-220MV as another multi-process inverter platform. Compare before choosing. |
| Input | 1 phase; 230V or 115V; 50/60Hz | 1 phase; 230V or 115VAC; 50/60Hz |
| Current range | 5-170A | 5-200A |
| Insulation | Type H | Type H |
| Protection | IP22S | IP22S |
| Dimensions | 21 x 10 x 13 in (534 x 254 x 331 mm) | 20 x 11 x 17 in (508 x 280 x 432 mm) |
Configure this PR-205MV Synergic MIG Welder
Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PR-205MV Synergic MIG Welder
16 of 16 shown
Optional accessory · 16
Optional accessory
Pro Spot Wire Feed Roller for Aluminum 0.8-1.0mm
Part no. 50-7109
Optional accessory

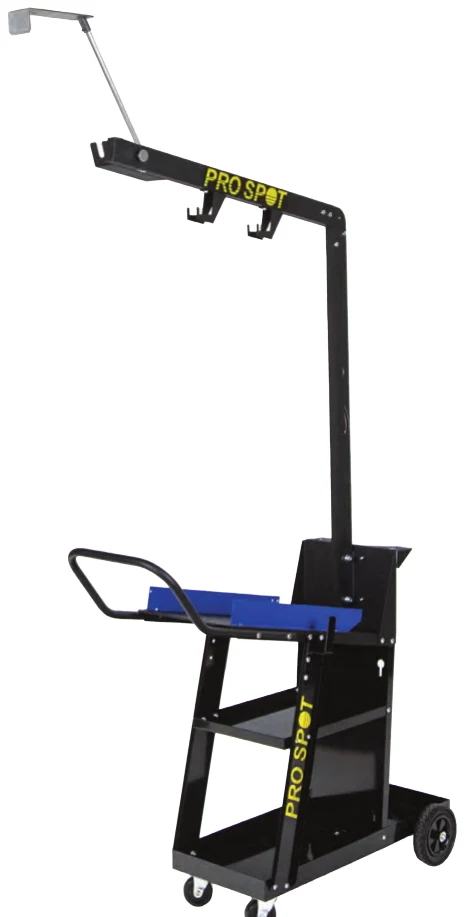

Pro Spot CART-100 Welding Cart
Part no. CART-100
Optional accessory
Pro Spot Torch Neck for Aluminum (Blue) Torch
Part no. 50-7025
Optional accessory
Pro Spot Gas Diffuser for Steel & Silicon Bronze (Green & Orange) Torch
Part no. 50-7151
Optional accessory
Pro Spot Aluminum Wire 4043 1.0mm (2kg)
Part no. 50-7110
Optional accessory
Pro Spot Contact Tip, 0.8 mm / .030 in
Part no. 50-7008
Compatible consumables
Gas Diffuser for Steel & Silicon Bronze (Green & Orange) Torch
MIG/MAG Welding · Torch Consumables
Aluminum Wire 4043 1.0mm (2kg)
MIG/MAG Welding · Welding Wire · 2 kg
Contact Tip, 0.8 mm / .030 in
MIG/MAG Welding · Contact Tips
Contact Tip, 0.9 mm / .035 in
MIG/MAG Welding · Contact Tips
Gas Nozzle (Green or Orange Torch)
MIG/MAG Welding · Torch Consumables
MIG Welding Contact Tip for Steel/Silicone Bronze 1.0mm (0.040")
MIG/MAG Welding · Contact Tips
Build out this work area
Ways to Expand the Workflow
Equipment to review when expanding this workflow.

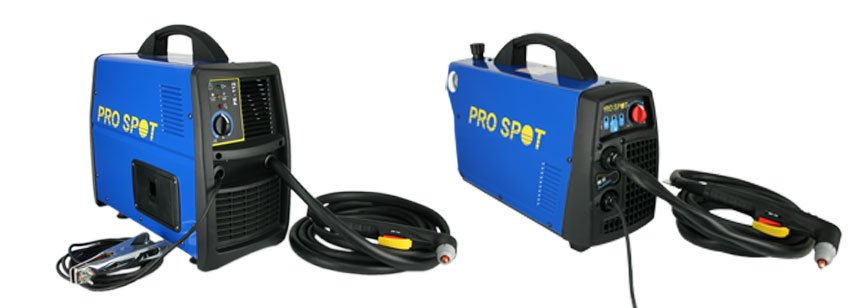

- View details for Pro Spot PR Series Plasma Cutters (PR-111, PR-112)
