PR Series Plasma Cutters (PR-111, PR-112)
Plasma Cutting
The PR Series plasma cutters use inverter technology and are portable, single-phase and microprocessor controlled, with a pneumatic cutting torch that can work away from the air source. They cut conductive materials such as steel, stainless steel, aluminum, copper and brass, for light and heavy cutting. Two configurations: the PR-111 (110V, max 20A, runs on shop air) and the PR-112 (220V, max 25A, built-in air compressor).
Model
Choose a model to add this product to your project.
- Input
- 110V, 1 phase, max 20A
- Cutting capacity
- 0.314 in (8 mm)
- Duty cycle
- 25A at 40%
- Weight
- 23 lb (10 kg)
Key specifications
- PR-111 amp/volts range
- 12A/54.8V to 25A/90V
- PR-112 amp/volts range
- 12A/54.8V to 25A/90V
- PR-111 input
- 1 phase; 110V; 50/60Hz; max 20A
- PR-112 input
- 1 phase; 220V; 50/60Hz; max 25A
- PR-111 duty cycle
- 25A at 40%; 12A at 100%
- PR-112 duty cycle
- 25A at 40%; 12A at 100%
Choose a model above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- PR-111 amp/volts range
- 12A/54.8V to 25A/90V
- PR-111 cutting capacity
- 0.314 in (8 mm)
- PR-111 system weight
- 23 lb (10 kg)
- PR-111 dimensions
- 37 x 15.5 x 30 in (940 x 394 x 762 mm)
- PR-112 amp/volts range
- 12A/54.8V to 25A/90V
- PR-112 cutting capacity
- 0.314 in (8 mm)
- PR-112 system weight
- 45 lb (20 kg)
- PR-112 dimensions
- 22 x 12 x 16 in (559 x 305 x 407 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Same cutting capacity
Both models publish a 0.314 in (8 mm) cutting capacity.
110V or 220V input
PR-111 runs 1 phase 110V at max 20A; PR-112 runs 1 phase 220V at max 25A.
duty cycle
Both models publish 25A at 40% and 12A at 100%.
Welding Output & Power
PR-111: 1 phase, 110V, 50/60Hz, max 20A input; 12A/54.8V to 25A/90V range; 25A at 40% and 12A at 100% duty cycle; 0.314 in (8 mm) cutting capacity; IP22S; insulation H; 23 lb (10 kg).
| Configuration | Input | Cutting capacity | Duty cycle | Weight |
|---|---|---|---|---|
| PR-111 | 110V, 1 phase, max 20A | 0.314 in (8 mm) | 25A at 40% | 23 lb (10 kg) |
| PR-112 | 220V, 1 phase, max 25A | 0.314 in (8 mm) | 25A at 40% | 45 lb (20 kg) |
- 1 phase; 110V; 50/60Hz; max 20A
- 12A/54.8V to 25A/90V
- 25A at 40%; 12A at 100%
- 0.314 in (8 mm)
- IP22S
- H
- 23 lb (10 kg)
- 37 x 15.5 x 30 in (940 x 394 x 762 mm)
- 1 phase; 220V; 50/60Hz; max 25A
- 12A/54.8V to 25A/90V
- 25A at 40%; 12A at 100%
- 0.314 in (8 mm)
- IP22S
- H
- 45 lb (20 kg)
- 22 x 12 x 16 in (559 x 305 x 407 mm)
Configure this PR Series Plasma Cutters (PR-111, PR-112)
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PR Series Plasma Cutters (PR-111, PR-112)
Optional accessory · 7
Optional accessory
Pro Spot Plasma Cutter Tip, 0.8, for PR-112
Part no. 50-7014
Optional accessory

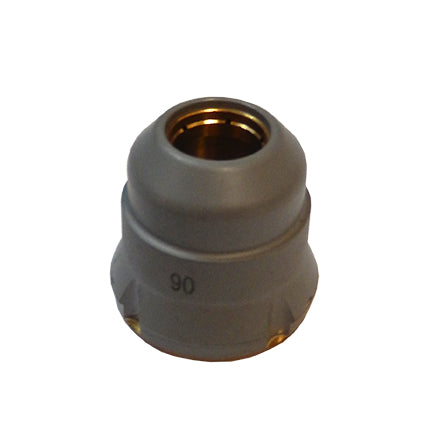

Pro Spot Brass Retaining Cap / Nozzle for PR-111
Part no. 50-7018
Optional accessory
Pro Spot Plasma Cutter Electrode
Part no. 50-7012
Optional accessory
Pro Spot Copper Retaining Cap / Nozzle for PR-112
Part no. 50-7017
Optional accessory
Pro Spot Plasma Cutter Air Diffuser - 50-7016 5PK
Part no. 50-7016
Optional accessory

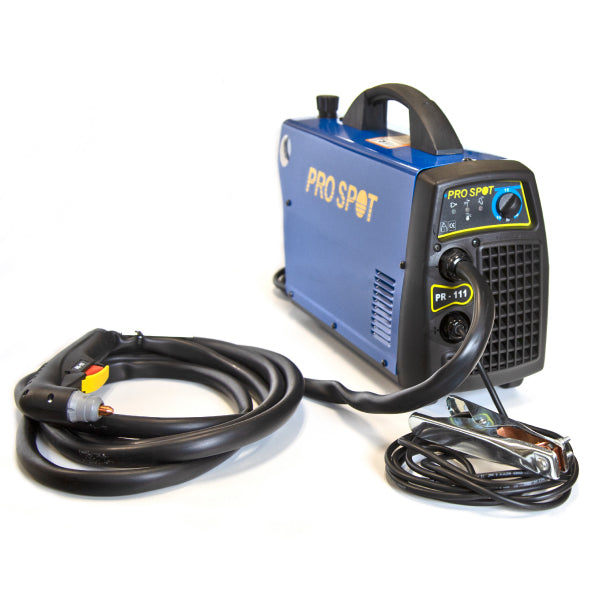

Pro Spot PR-111 Plasma Cutter
Part no. PR-111
Optional accessory
Pro Spot Plasma Cutter Tip, 0.65, for PR-111
Part no. 50-7013
Compatible consumables
Plasma Cutter Tip, 0.8, for PR-112
Plasma Cutting · Torch Consumables
Brass Retaining Cap / Nozzle for PR-111
Plasma Cutting · Torch Consumables
Plasma Cutter Electrode
Plasma Cutting · Torch Consumables
Copper Retaining Cap / Nozzle for PR-112
Plasma Cutting · Torch Consumables
Plasma Cutter Air Diffuser - 50-7016 5PK
Plasma Cutting · Torch Consumables
PR-111 Plasma Cutter
Plasma Cutting · Plasma Cutter Consumables
