Pro Spot Fume Extractor

Pro Spot

Fume Extractor

Welding Fume Extraction

Pro Spot fume extractors pull harmful welding fumes away through a 6-foot flame-retardant flexible hose. They are portable, quiet and efficient, available in 110 or 220VAC, use two filters (a carbon prefilter and a HEPA filter), and can be built into the Pro Spot Aluminum Weld Station.

Key specifications

FE-110 input voltage
110VAC
FE-220 (Europe) input voltage
220VAC
Shared airflow as printed
100-1600 CFM
Shared filters
Carbon pre-filter and HEPA filter; each printed as 99.99% efficiency at 0.3 micron
Shared cabinet size
17.5 W x 20 H x 20 L in (445 x 508 x 508 mm)
Shared flexible hose
6 in (153 mm) diameter x 72 in (1829 mm) length
Specifications
Quantity
1
Request a Quote

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

FE-110 input voltage
110VAC
FE-220 (Europe) input voltage
220VAC
Shared weight
55 lb (24.9 kg)
Shared dimensions as printed
12 x 3 x 13.5 in

What TAG confirms with you

  • Incoming power at the weld station: voltage, phase and breaker size
  • Materials you repair — steel, high-strength steel, aluminium or a mix
  • Processes you need to cover, such as squeeze-type resistance, MIG or brazing
  • Whether aluminium work must be isolated from steel work
  • Fume extraction and ground/clamp access around the vehicle

Welding Output & Power

FE-110 input voltage
110VAC
FE-220 (Europe) input voltage
220VAC
Shared airflow as printed
100-1600 CFM
Shared filters
Carbon pre-filter and HEPA filter; each printed as 99.99% efficiency at 0.3 micron
Shared cabinet size
17.5 W x 20 H x 20 L in (445 x 508 x 508 mm)
Shared flexible hose
6 in (153 mm) diameter x 72 in (1829 mm) length
Shared working sound level
65 dBA
Shared weight
55 lb (24.9 kg)
Shared dimensions as printed
12 x 3 x 13.5 in

What ships with it

The two power cords are voltage alternatives: 69-0002 is 110V only and 69-0135 is 220V only. The 6" fume arm and the pulley boom are each supplied as one assembly; their named sub-parts are part of that assembly, not extra units.

Supplied components
10
Listed as optional
0
Included components (10 items)
  • Power Cord, 110V onlyPart no. 69-00021 ea.
  • Power Cord, 220V onlyPart no. 69-01351 ea.

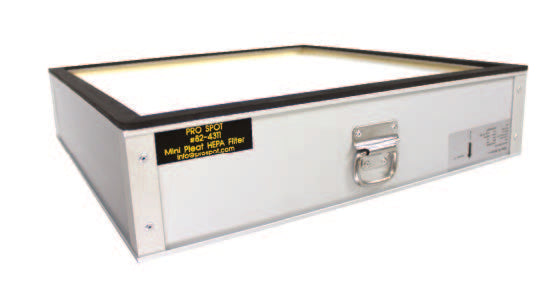

  • Mini Pleat Hepa FilterPart no. 82-43111 ea.

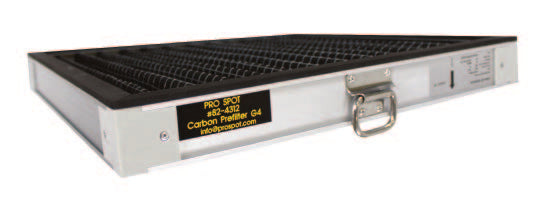

  • Carbon Pre FilterPart no. 82-43121 ea.
  • Fume Arm 6" Assembly (52-0014 6" Fume Flange, 53-0066 6" x 6' Fume Extraction Hose, 51-5416 Worm Drive Hose Clamp for 6" Duct)Part no. SA-01651 ea.
  • Pulley Boom Assembly (C-09 Snap Hook w/Latch 2")Part no. SA-01641 ea.
  • 2" Swivel CastersPart no. P2-094 ea.
  • Grip KnobsPart no. 51-61124 ea.
  • Mesh ScreenPart no. 51-00211 ea.
  • Instruction Manual

View full component sheet

Shipping data

Crate figures for transport planning. These are not operating specifications.

Shipping dimensions (Box 1)
12" x 3" x 13.5"
Shipping weight (Box 1)
9.9 lbs (4.5 kg)

Source: Pro Spot Fume Extractor Components List.
