Pro Spot PR-2 Multi-task Welder

Pro Spot

PR-2 Multi-task Welder

Single-Sided Welding

The PR-2 welds a wide range of OEM fasteners and handles many single-sided welding jobs: stitch welding, washer welding, nut and bolt welding, nail welding, moulding clip rivet welding and Pro Pull dent pulling. An optional MIG Combi package can be ordered with the PR-2 or added later, combining single-sided resistance welding and MIG welding in one unit.

Key specifications

Output amperage
2,000A max at electrodes
Welding cable
7 ft (2.1 m)
Input
1 phase; 208-230V or 400V; 24A
Input cable
30 ft (9 m)
System weight
92 lb (43 kg)
Dimensions
18 x 14 x 12 in (457 x 356 x 305 mm)
Specifications
Quantity
1
Request a Quote

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Output amperage
2,000A max at electrodes
System weight
92 lb (43 kg)
Dimensions
18 x 14 x 12 in (457 x 356 x 305 mm)

What TAG confirms with you

  • Incoming power at the weld station: voltage, phase and breaker size
  • Materials you repair — steel, high-strength steel, aluminium or a mix
  • Processes you need to cover, such as squeeze-type resistance, MIG or brazing
  • Whether aluminium work must be isolated from steel work
  • Fume extraction and ground/clamp access around the vehicle

Welding Output & Power

Input
1 phase; 208-230V or 400V; 24A
Input cable
30 ft (9 m)
Output amperage
2,000A max at electrodes
Welding cable
7 ft (2.1 m)
System weight
92 lb (43 kg)
Dimensions
18 x 14 x 12 in (457 x 356 x 305 mm)

What ships with it

Supplied components
14
Listed as optional
6
Included components (14 items)
  • Gun with Connectors (8' Cable)Part no. SA-00521 ea.
  • PR-2 Replacement WheelPart no. 51-00032 ea.
  • 6mm Allen WrenchPart no. CLT-591 ea.
  • Cable HolderPart no. 90-02571 ea.
  • Ground PlatePart no. CLT-341 ea.
  • Instruction Manual1 ea.
  • Spot Hammer (with CLT-53B contact tip)Part no. CLP-701 ea.
  • Stitch Weld ElectrodePart no. CLT-331 ea.
  • Carbon Electrode HolderPart no. CLT-291 ea.
  • Washer AdapterPart no. PS-8401 ea.
  • 6mm Stud ElectrodePart no. PS-8301 ea.
  • Rivet HolderPart no. PS-8701 ea.
  • 4mm Stud ElectrodePart no. PS-8201 ea.
  • Accessories kit: CLT-44 Weld-on Nut 6mm (20), PS-210 Nail 2.5 x 50mm (50), CLT-47 Washer (50), PS-1201 Weld-on Bolt M5 x 12 Coarse (50), PS-230 Weld-on Bolt M5 x 18 Coarse (50), PS-1202 Weld-on Bolt M6 x 12 (50), PS-1204 Moulding Clip Rivet (100), CLT-53B 8mm Contact Tip - Slide Hammer (1)Part no. PS-12001 ea.

View full component sheet

Listed as optional

The manufacturer prints these as optional — they are not included with the machine. TAG confirms exactly what is on your project before quoting.

  • Pull Bar Dent Pulling SystemPart no. PB-10
  • Weld-on Shaft Assembly Dent Pulling KitPart no. CLP-110
  • Lever BarPart no. CLP-73
  • Single Pull Pro PullPart no. PRO-65
  • 8mm Contact Tip (5 Pk), for slide hammerPart no. CLT-53B
  • Ground Knob, Weld OnPart no. SA-0157

Shipping data

Crate figures for transport planning. These are not operating specifications.

Shipping dimensions (Box 1, welder)
12" x 18" x 14"
Shipping weight (Box 1, welder)
77 lbs (34.93 kg)
Shipping dimensions (Box 2, cart)
6" x 18" x 14"
Shipping weight (Box 2, cart)
21 lbs (9.53 kg)

Source: Pro Spot Components List CL-PR-2.

Configure this PR-2 Multi-task Welder

Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for PR-2 Multi-task Welder

TAG confirms final fit and configuration before purchase.

28 of 28 shown

Optional accessory · 28

  • Optional accessory

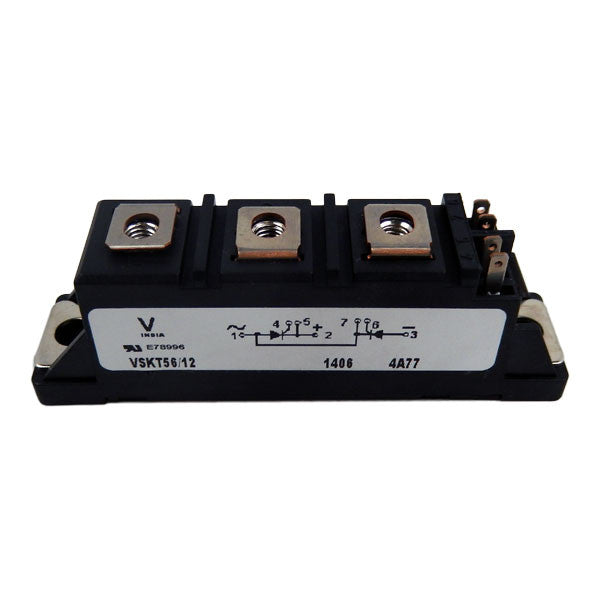

    Pro Spot PR-2 Thyristor

    Part no. P-14A

    Pro Spot P-14A — PR-2 Thyristor. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

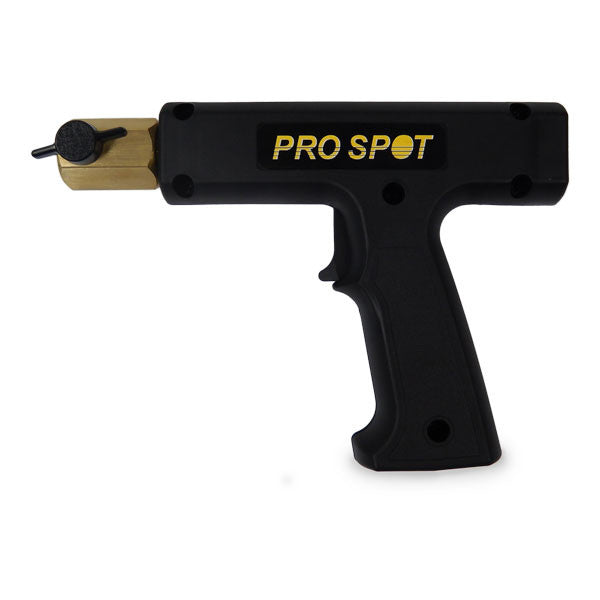

    Pro Spot Single Sided Gun

    Part no. PS-3201-2

    Pro Spot PS-3201-2 — Single Sided Gun. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

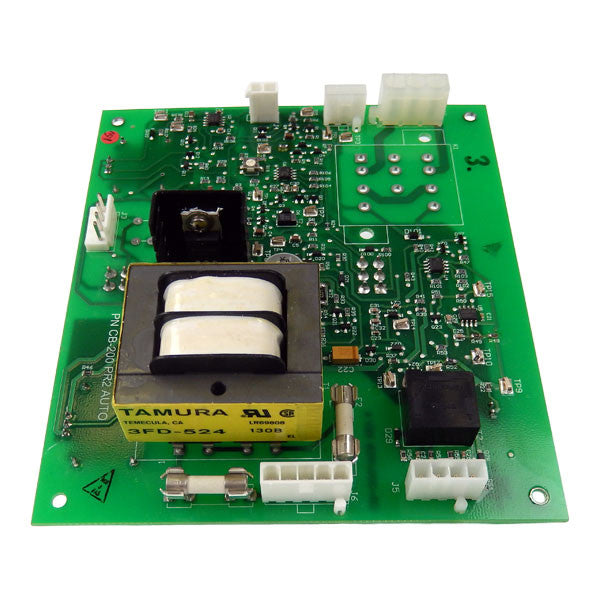

    Pro Spot PR-2 Circuit Board Green

    Part no. CB-200/A

    Pro Spot CB-200/A — PR-2 Circuit Board Green. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

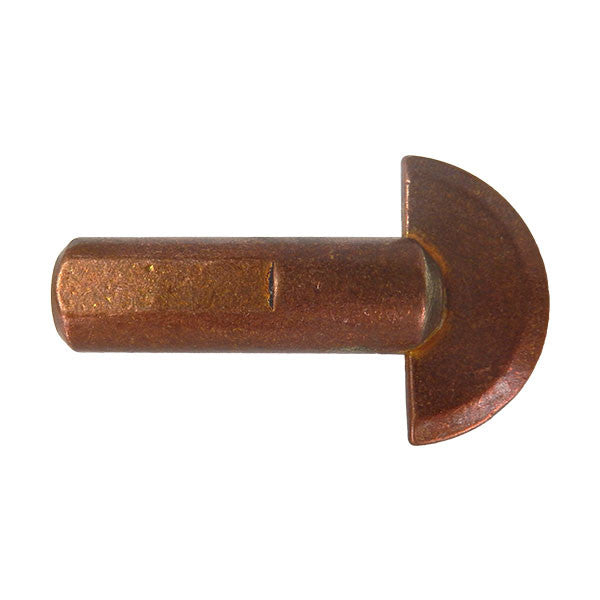

    Pro Spot Stitch Electrode

    Part no. CLT-33

    Pro Spot CLT-33 — Stitch Electrode. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

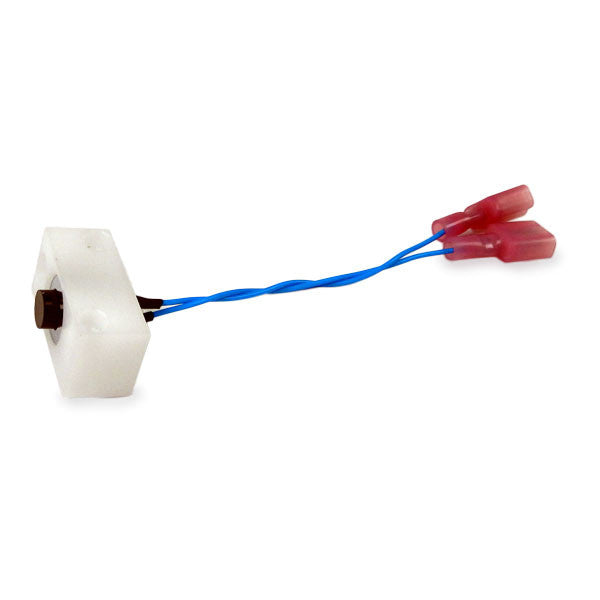

    Pro Spot PR-2 Trigger Switch

    Part no. SA-9006

    Pro Spot SA-9006 — PR-2 Trigger Switch. Stocked and supplied by TAG Auto Equipment.

    Fits this model.

    Full Details

  • Optional accessory

    Pro Spot CLP-110 Weld-On Shaft Dent Pulling Kit

    Part no. CLP-110

    Optional weld-on shaft dent pulling kit for the PR-3 and PR-2 dent pulling tools.

    Fits this model.

    Full Details
Quote Cart (—)

Compatible consumables

TAG confirms final fit and configuration before purchase.

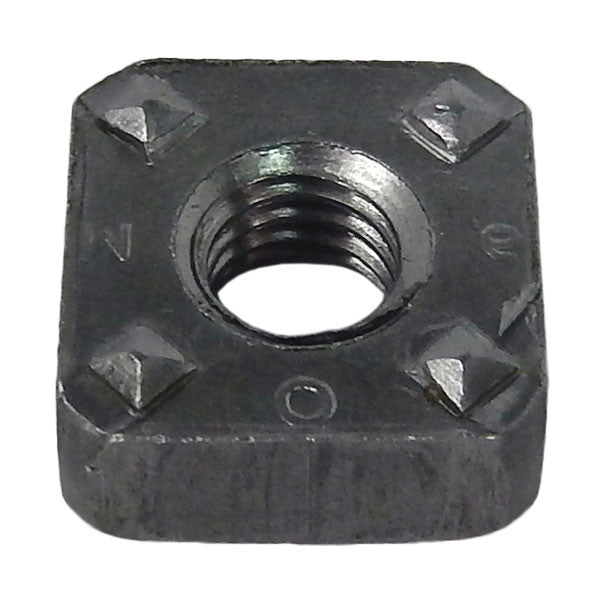

  • Pro Spot Weld-On Nut (pk. 20), part number CLT-44

    CLT-44

    Weld-On Nut (pk. 20)

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 20 pack

    Choose Options
  • Pro Spot Moulding Clip Rivet 3x3.2 (pk.100), part number PS-1204

    PS-1204

    Moulding Clip Rivet 3x3.2 (pk.100)

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 100 pack

    Choose Options
  • Pro Spot Weld-On Bolt - M5x18 (pk. 50), part number PS-230

    PS-230

    Weld-On Bolt - M5x18 (pk. 50)

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack

    Choose Options
  • Pro Spot Weld-On Washer, part number CLT-47

    CLT-47

    Weld-On Washer

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack

    Choose Options

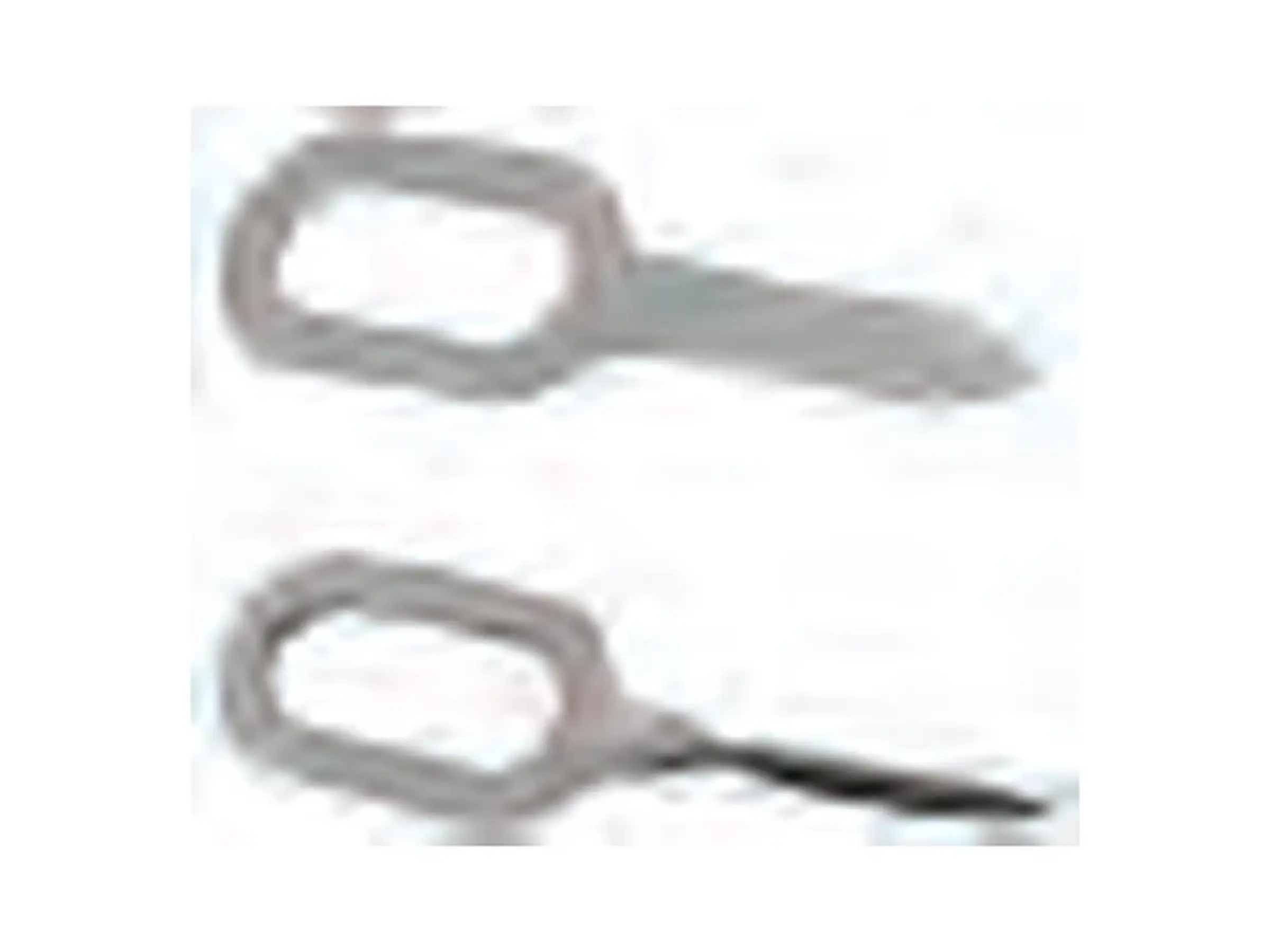

  • Pro Spot Weld-On Pull Tab, part number 90-0193

    90-0193

    Weld-On Pull Tab

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack

    Choose Options
  • Pro Spot Nail 2.5x50mm (pk. 50), part number PS-210

    PS-210

    Nail 2.5x50mm (pk. 50)

    Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack

    Choose Options

View all 10 consumables for this machine
