Hunter Engineering
TCX Table-Top Tire Changers (TCX51-TCX59 Pro)
Tire Changers
Hunter table-top tire changers in a configurable family: TCX59 Pro, TCX58, TCX53 Pro and the TCX5x "H" and "E" models. Power choices are 220V 2-speed, 110V single-speed or compressed air, so the right machine depends on the wheels you service and the utilities in the bay. We will confirm the exact model and options with you.
Finish
Choose a factory finish to add this product to your project.
Model
Choose a model to add this product to your project.
- Swing arm
- Automatic
- Mount head
- Not published for this configuration
- Clamping
- 10-26 in. external
- Power
- 220V 2-speed
Key specifications
- Models
- TCX59 Pro, TCX58, TCX53 Pro, TCX5x "H" models, TCX5x "E" models
- TCX5x "E" models
- Conventional mount head; manual swing arm; 220V or 110V single-speed motor; air models available
- FastBlast™ models
- TCX51H Plus, TCX58, TCX59 Pro; 6.5 gallon air tank
- Options
- Wheel lift, press cones, dual rollers, HunterNet® 2 connectivity kit
Choose a factory finish above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
What TAG confirms with you
- Wheel and tire sizes you service, including any oversize work
- Bay space and clearance around the machine for loading wheels
- Electrical service and air supply at that position
- Daily volume and how many technicians share the machine
- Delivery access and installation scope
family range
10-28 in. total clamp range; 16 in. shovel width; max tire diameter up to 46 in.; power supply 220V, 110V or air.
FastBlast™ models
FastBlast™ is published for TCX51H Plus, TCX58 and TCX59 Pro with a 6.5 gallon air tank.
options
Wheel lift, press cones, dual rollers and the HunterNet® 2 connectivity kit are published options.
Wheel & Rim Capacity
TCX58: automatic swing arm; heavyweight chassis; 10-26 in. external clamping; PowerOut™ bead breaker; locking lower demounting disk; 220V 2-speed power; FastBlast™ inflation. TAG confirms the exact model and options before purchase.
| Configuration | Swing arm | Mount head | Clamping | Power |
|---|---|---|---|---|
| TCX58 | Automatic | Not published for this configuration | 10-26 in. external | 220V 2-speed |
- TCX59 Pro, TCX58, TCX53 Pro, TCX5x "H" models, TCX5x "E" models
- 10-28 in. total clamp range; 16 in. shovel width; max tire diameter up to 46 in.; power supply 220V, 110V or air

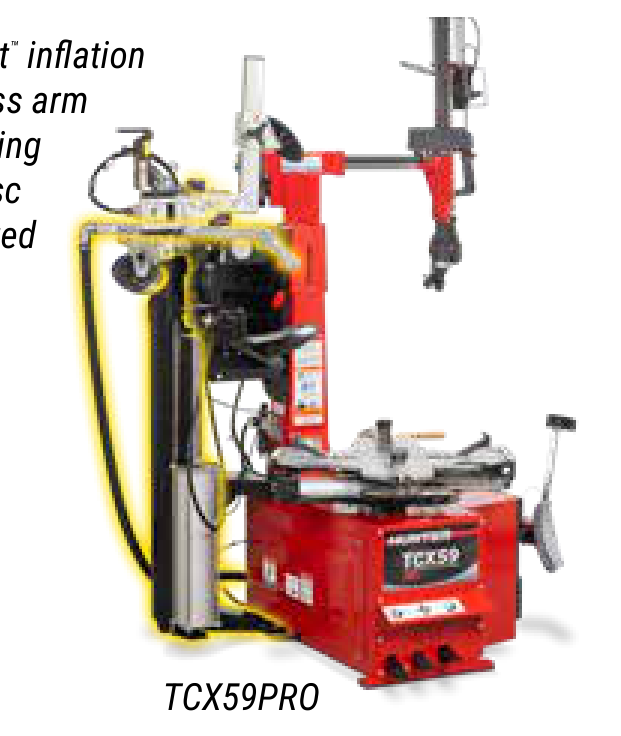

- Automatic swing arm; heavyweight chassis; 10-26 in. external clamping; PowerOut™ bead breaker; locking lower demounting disk; 220V 2-speed power; FastBlast™ inflation; full dual-disc bead press system and hybrid leverless head on the TCX59 Pro
- Hybrid leverless head; manual swing arm; full bead press system; locking lower demounting disk; heavyweight chassis; 220V 2-speed power
- Conventional mount head; manual swing arm; heavyweight chassis; bead press options; 220V 2-speed power
- Conventional mount head; manual swing arm; 220V or 110V single-speed motor; air models available
- TCX51H Plus, TCX58, TCX59 Pro; 6.5 gallon air tank
- Wheel lift, press cones, dual rollers, HunterNet® 2 connectivity kit
Configure this TCX Table-Top Tire Changers (TCX51-TCX59 Pro)
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for TCX Table-Top Tire Changers (TCX51-TCX59 Pro)
25 of 25 shown
Optional accessory · 25
Optional accessory
Hunter Engineering FastBlast™ Bead Press for TCX “H” Models
Part no. RP11-8-11100441
Optional accessory

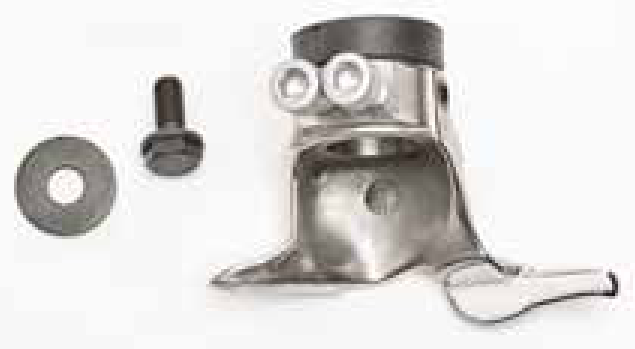

Hunter Engineering Small-Wheel Steel Mount Head
Part no. RP11-8-11100378
Optional accessory

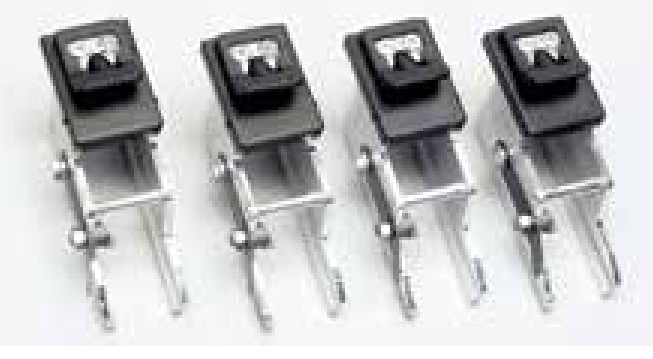

Hunter Engineering Jaw Extender & Reducer (4 ea.)
Part no. RP11-8-11100402
Optional accessory

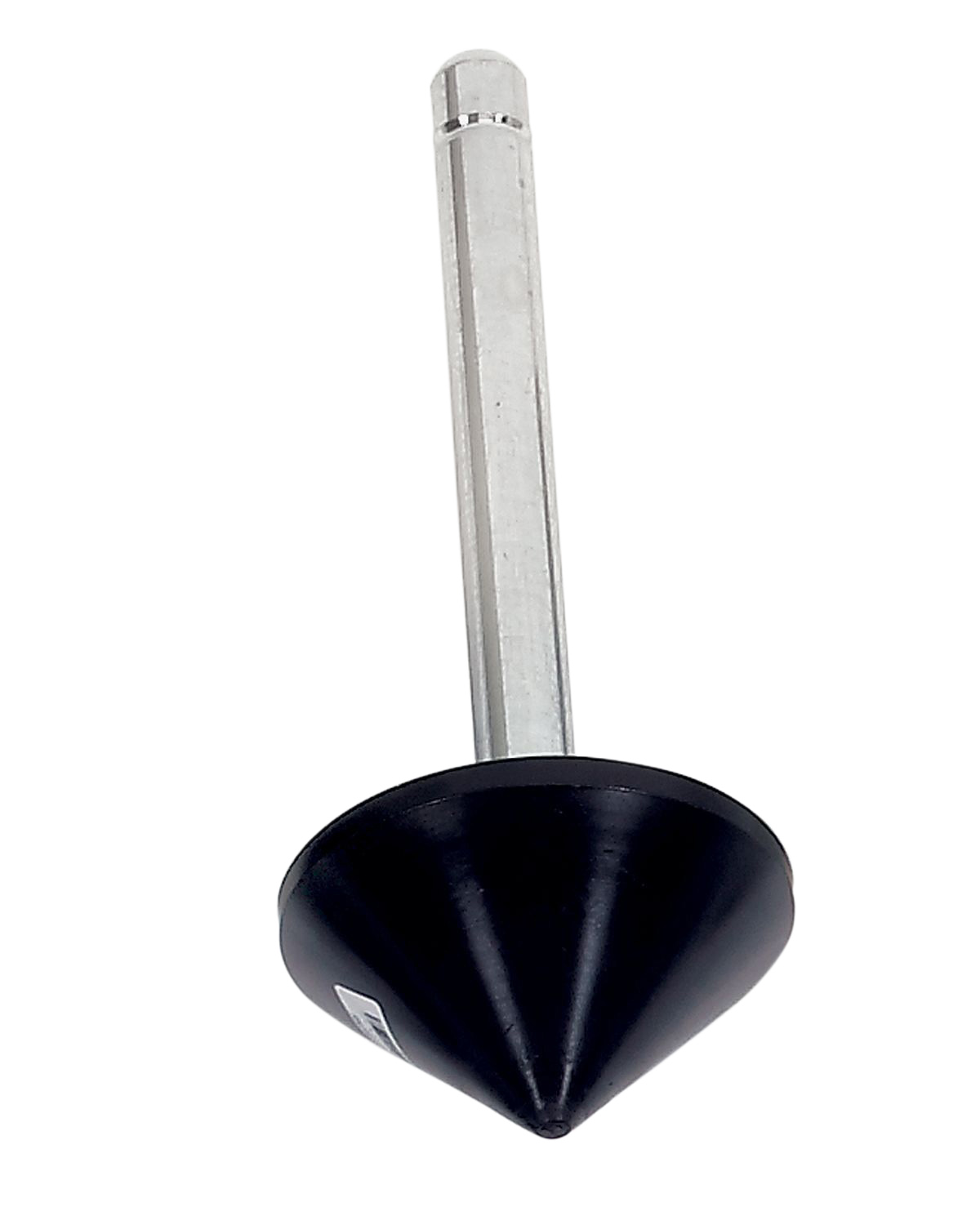

Hunter Engineering Small pressing cone
Part no. RP11-2413305
Optional accessory

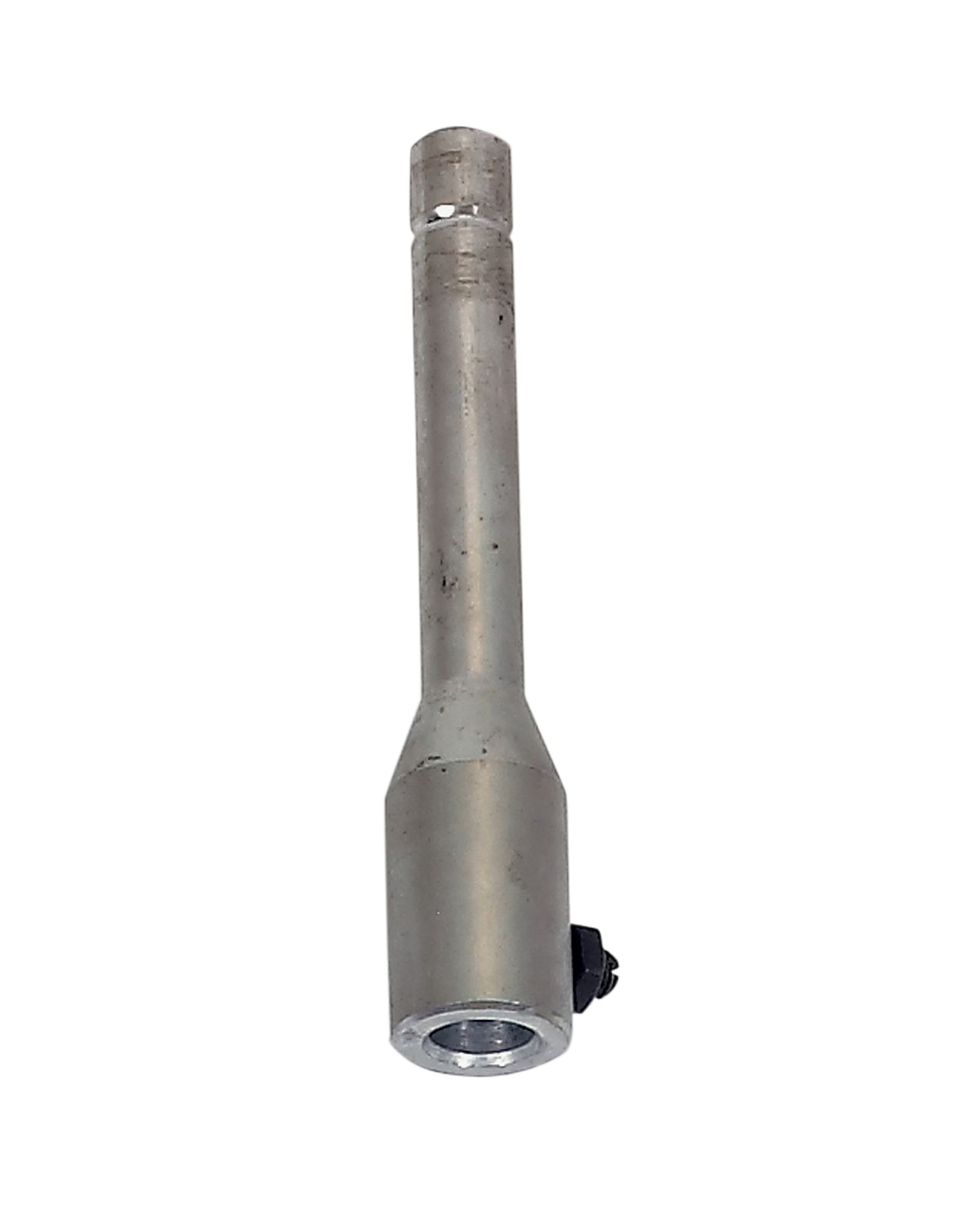

Hunter Engineering Pressing cone extension
Part no. RP11-2202239
Optional accessory

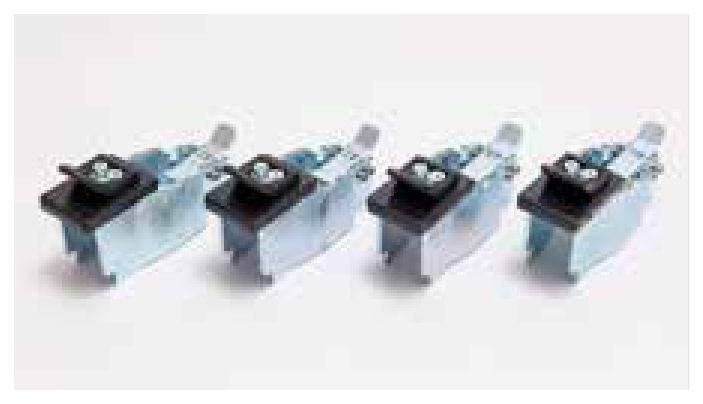

Hunter Engineering Jaw Reducer (4 ea.)
Part no. RP11-8-11100430
Compatible consumables
Mounting paste 3.5 kg
Tire Changers · Tire Changer Accessories
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Hunter Engineering SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)
Hunter Engineering
Wheel Balancers
SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)
Hunter publishes SmartWeight balancers for the balancing half of a tire service bay.
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Hunter Engineering | Hunter Engineering |
|---|---|---|
| Why TAG lists it | This model | Hunter publishes center-clamp TCX changers as a different clamping approach. Compare before choosing. |
| Models | TCX59 Pro, TCX58, TCX53 Pro, TCX5x "H" models, TCX5x "E" models | TCX51C (TCX51CSTD, TCX51CPRO) and TCX51M |
| Family specifications at a glance | 10-28 in. total clamp range; 16 in. shovel width; max tire diameter up to 46 in.; power supply 220V, 110V or air | torque up to 860 ft-lb; variable speed 7 and 17 rpm; max rim diameters 26 and 30 in.; max rim width 13 and 14 in. |
| Options | wheel lift, press cones, dual rollers, HunterNet® 2 connectivity kit | clamp adaptor accessory kit (RP11-8-11100417) for large center-hole truck wheels; rubber platten cover (RP11-8-11100470); flange plate options |
How TAG can help
Ask TAG about delivery, installation, training and service for this equipment. Your quote will state what is included.
Site review
TAG reviews equipment dimensions, clearances, slab, utilities and site requirements with you.
Delivery & installation
Plan delivery and installation with TAG. Your quote will state what is included.
Training
Ask TAG about training for your team and the equipment you choose.
Service & calibration
Contact TAG to confirm service options for this model in your area.
Next step
Ready to scope this model into your shop?
TAG will confirm configuration, installation requirements, training and service coverage for your facility.
