Hunter Engineering TCX Center-Clamp Tire Changers (TCX51C / TCX51M)

Hunter Engineering

TCX Center-Clamp Tire Changers (TCX51C / TCX51M)

Tire Changers

Center-clamp tire changers built to handle expensive wheels without touching the rim edge: the TCX51C shop models (TCX51CSTD and TCX51CPRO) and the 110V TCX51M for mobile service. Leverless and traditional heads are both available — we will quote the model and options that suit your wheel mix.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Model

Choose a model to add this product to your project.

Rim range
10-30 in.
Power
220V 2-speed
Mount head
Standard polymer head

Key specifications

Clamping
Center-shaft clamping, no teeth contacting the rim
Models
TCX51C (TCX51CSTD, TCX51CPRO) and TCX51M
TCX51CPRO
TCX51C features plus hybrid leverless mount head
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Clamping
center-shaft clamping, no teeth contacting the rim

What TAG confirms with you

  • Wheel and tire sizes you service, including any oversize work
  • Bay space and clearance around the machine for loading wheels
  • Electrical service and air supply at that position
  • Daily volume and how many technicians share the machine
  • Delivery access and installation scope
Ask TAG about this model

Center-shaft clamping

Center-shaft clamping, no teeth contacting the rim.

family envelope

Torque up to 860 ft-lb; variable speed 7 and 17 rpm; max rim diameters 26 and 30 in.

Shop or mobile

TCX51C models run on 220V 2-speed power; TCX51M uses a 110V two-speed inverter motor for mobile van configurations.

Wheel & Rim Capacity

TCX51C: 10-30 in. capability; manual swing arm; standard polymer head; bead press system with locking lower demounting disk; FastBlast™ inflation system; heavyweight rigid chassis; PowerOut™ bead breaker shovel; 220V 2-speed power; optional wheel lift.

ConfigurationRim rangePowerMount head
TCX51C10-30 in.220V 2-speedStandard polymer head
TCX51CPRO10-30 in.220V 2-speedHybrid leverless mount head
TCX51M14-26 in.110V two-speed inverterWinged polymer head
Models
TCX51C (TCX51CSTD, TCX51CPRO) and TCX51M
Family specifications at a glance
Torque up to 860 ft-lb; variable speed 7 and 17 rpm; max rim diameters 26 and 30 in.; max rim width 13 and 14 in.
TCX51C
10-30 in. capability; manual swing arm; standard polymer head; bead press system with locking lower demounting disk; FastBlast™ inflation system; heavyweight rigid chassis; PowerOut™ bead breaker shovel; 220V 2-speed power; optional wheel lift
TCX51CPRO
TCX51C features plus hybrid leverless mount head
TCX51M (mobile)
14-26 in. wheel rim capacity; winged polymer head; dual roller arms; bead press arm; optional FastBlast™; 110V two-speed inverter motor for mobile van configurations
Options
Clamp adaptor accessory kit (RP11-8-11100417) for large center-hole truck wheels; rubber platten cover (RP11-8-11100470); flange plate options
Clamping
Center-shaft clamping, no teeth contacting the rim

Configure this TCX Center-Clamp Tire Changers (TCX51C / TCX51M)

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for TCX Center-Clamp Tire Changers (TCX51C / TCX51M)

TAG confirms final fit and configuration before purchase.

Optional accessory · 12

  • Optional accessory

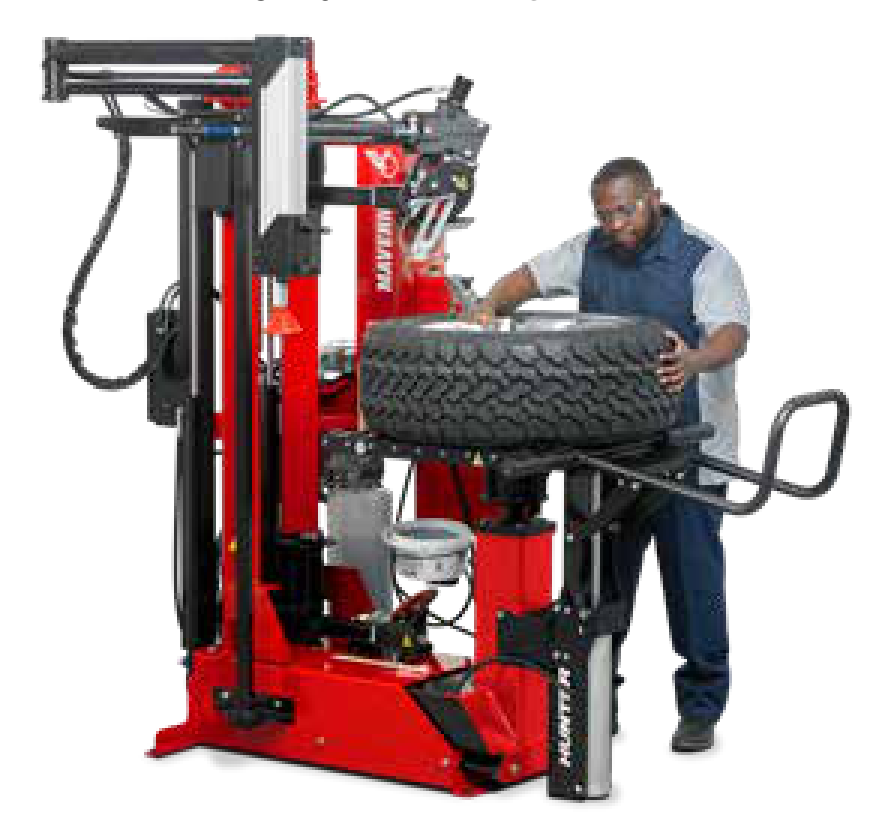

    Hunter Engineering Wheel Lift System (TCX51C)

    Part no. 20-3863-1

    Pedal-controlled pneumatic wheel lift retrofit or factory option for the TCX51C center-clamp tire changer.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering FastBlast™ with Press Arm and Locking Lower Disc

    Part no. 20-4019-1

    Top-side blast inflation system optimized to seat difficult tires. 6.5 gallon air tank. Optional for TCX51M.

    Fits this model.

    Full Details

  • Optional accessory

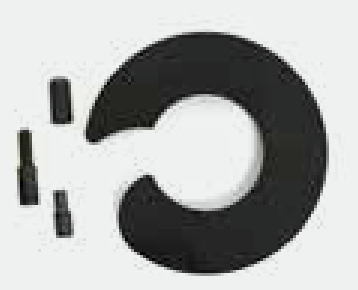

    Hunter Engineering Rubber Platen Cover Kit

    Part no. RP11-8-11100470

    Rubber pad and pin extensions allow reverse clamping of some wheels without a flange plate.

    Fits this model.

    Full Details

  • Optional accessory

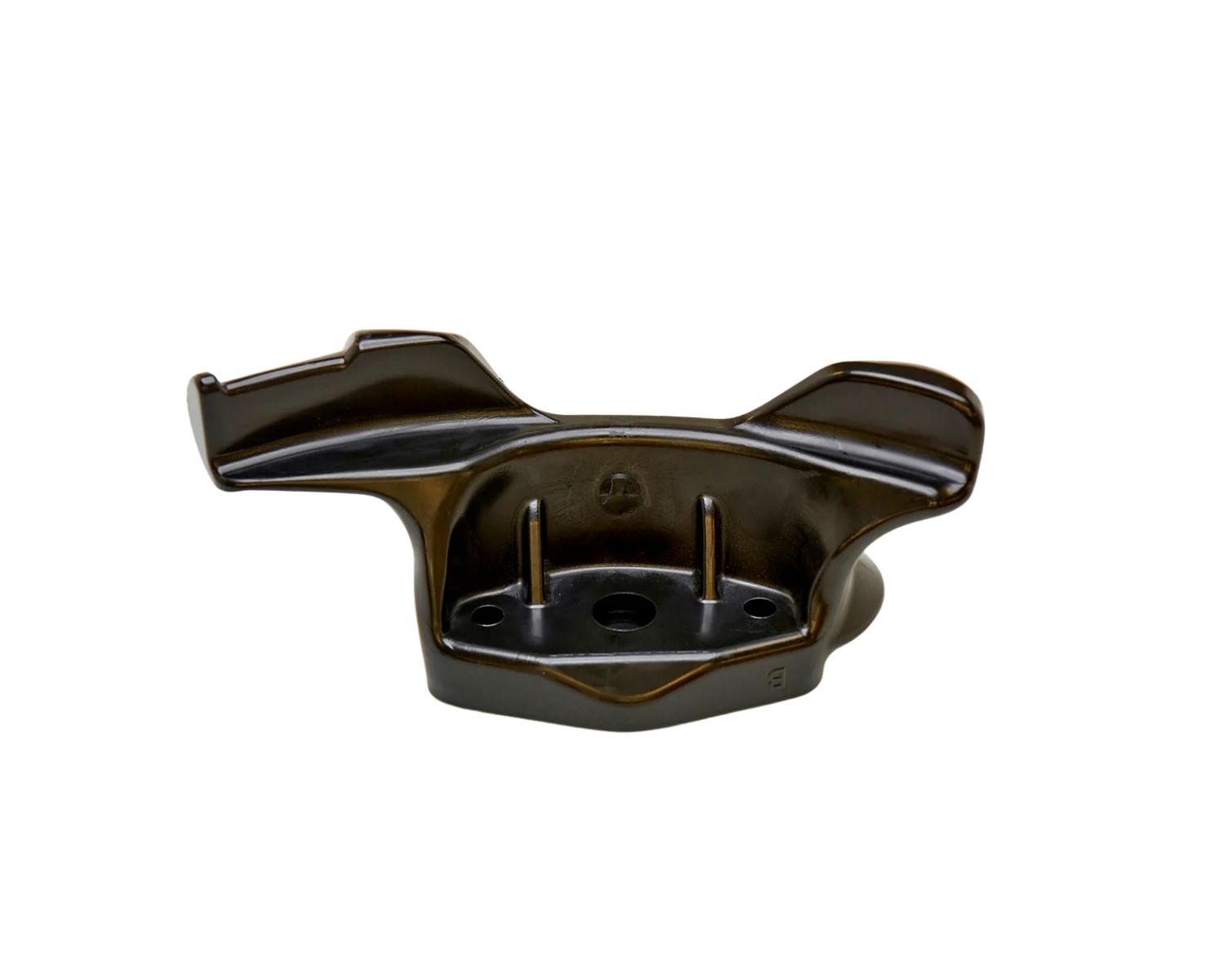

    Hunter Engineering Bolt-on plastic head

    Part no. RP11-8-11400327

    Bolt-on Wing plastic mount head in Hunter's TCX Series tire changer accessory range.

    Fits this model.

    Full Details

  • Optional accessory

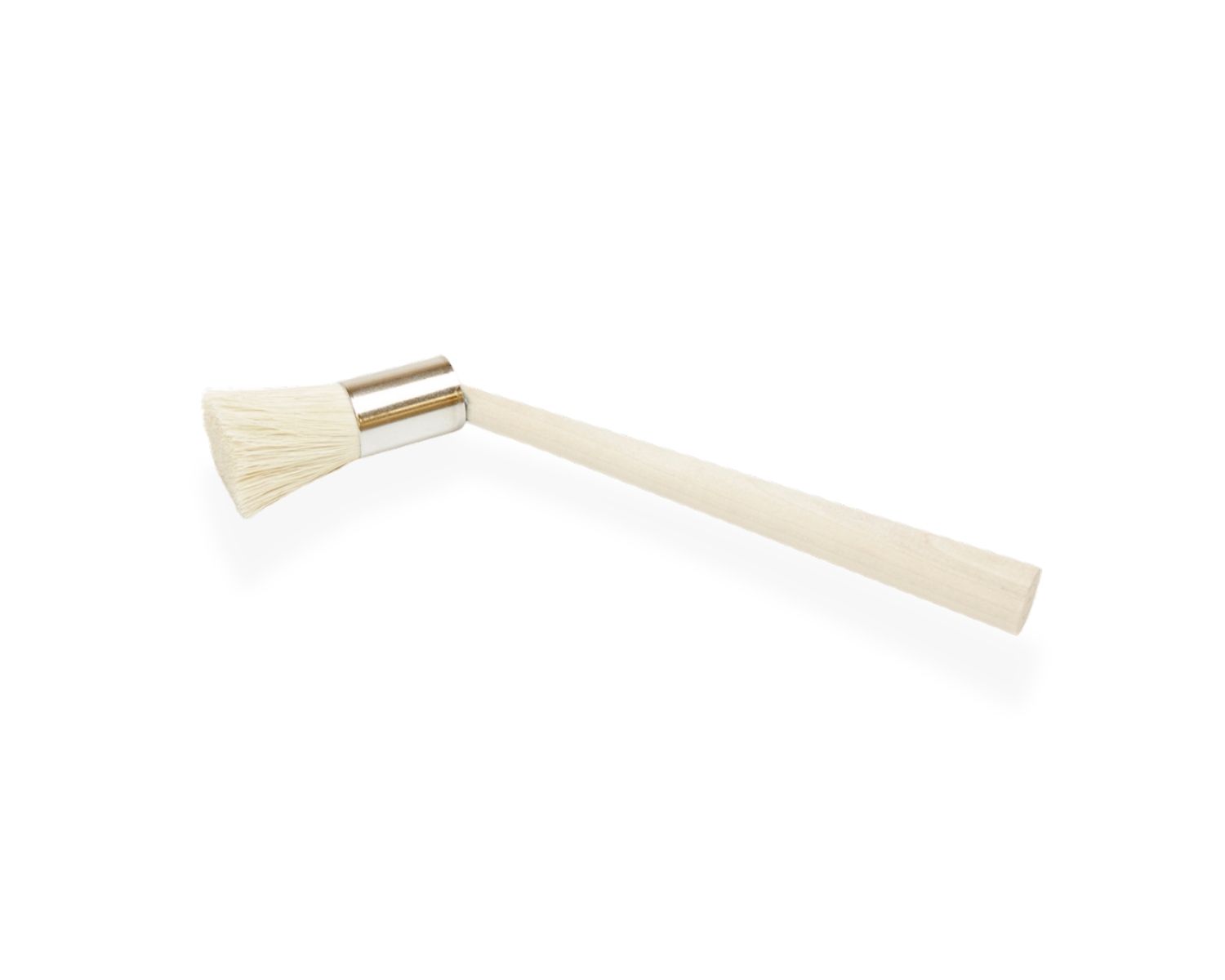

    Hunter Engineering Applicator brush

    Part no. RP6-1506

    Angled applicator brush for applying tire mounting paste.

    Fits this model.

    Full Details

  • Optional accessory

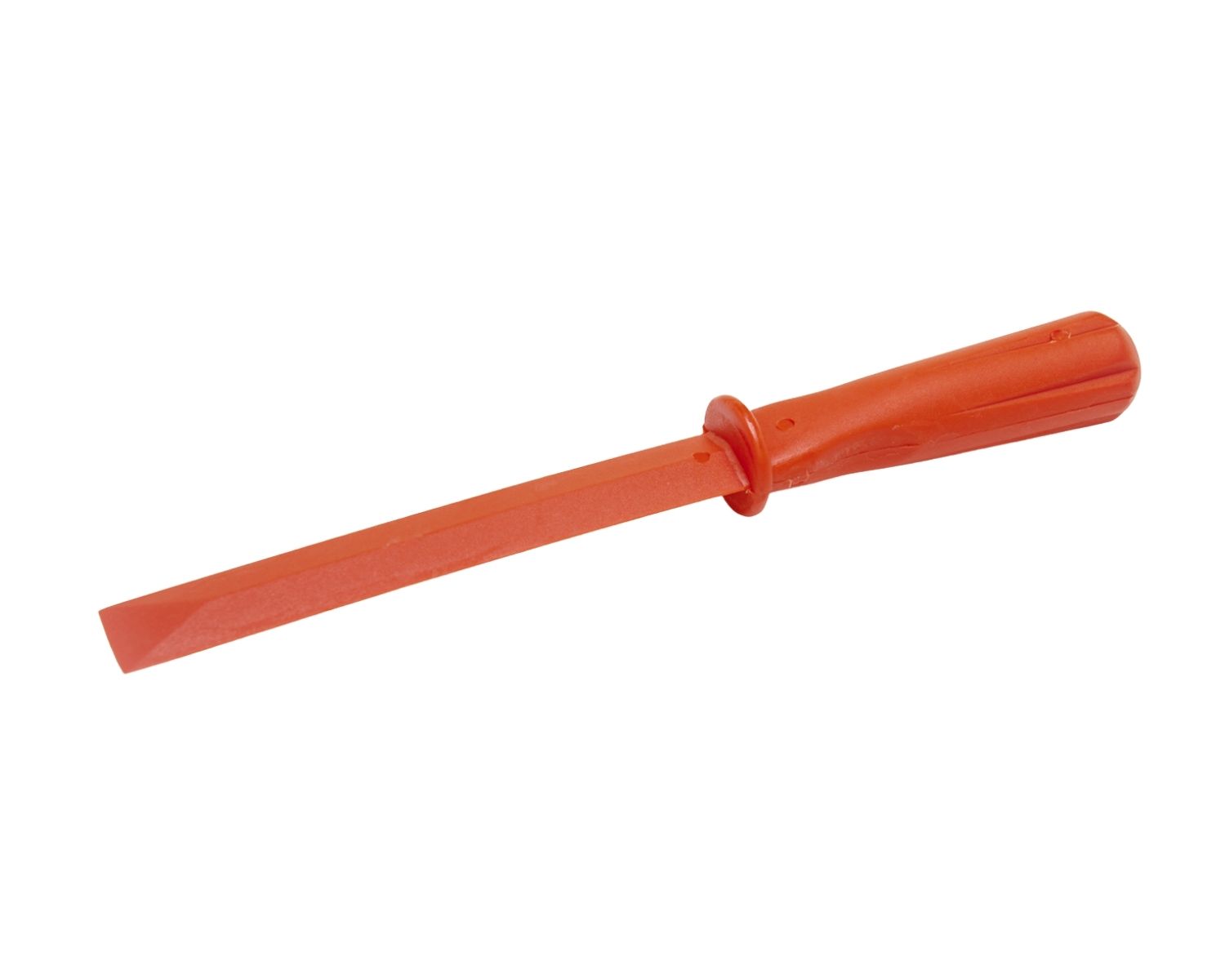

    Hunter Engineering Bead starting tool

    Part no. 221-659-2

    Bead starting tool for tire service, listed in Hunter's tire changer accessory range.

    Fits this model.

    Full Details

  • Optional accessory

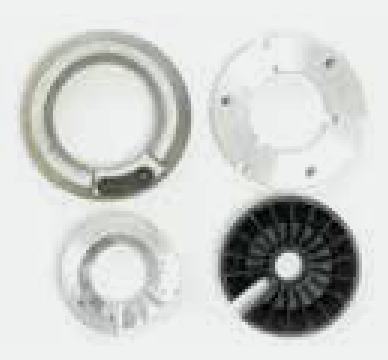

    Hunter Engineering Large Bore Clamping Kit

    Part no. 20-4018-1

    Adds clamping capability for truck wheels with large center holes, plus clamping height for high-offset and wide wheels.

    Fits this model.

    Full Details

  • Optional accessory

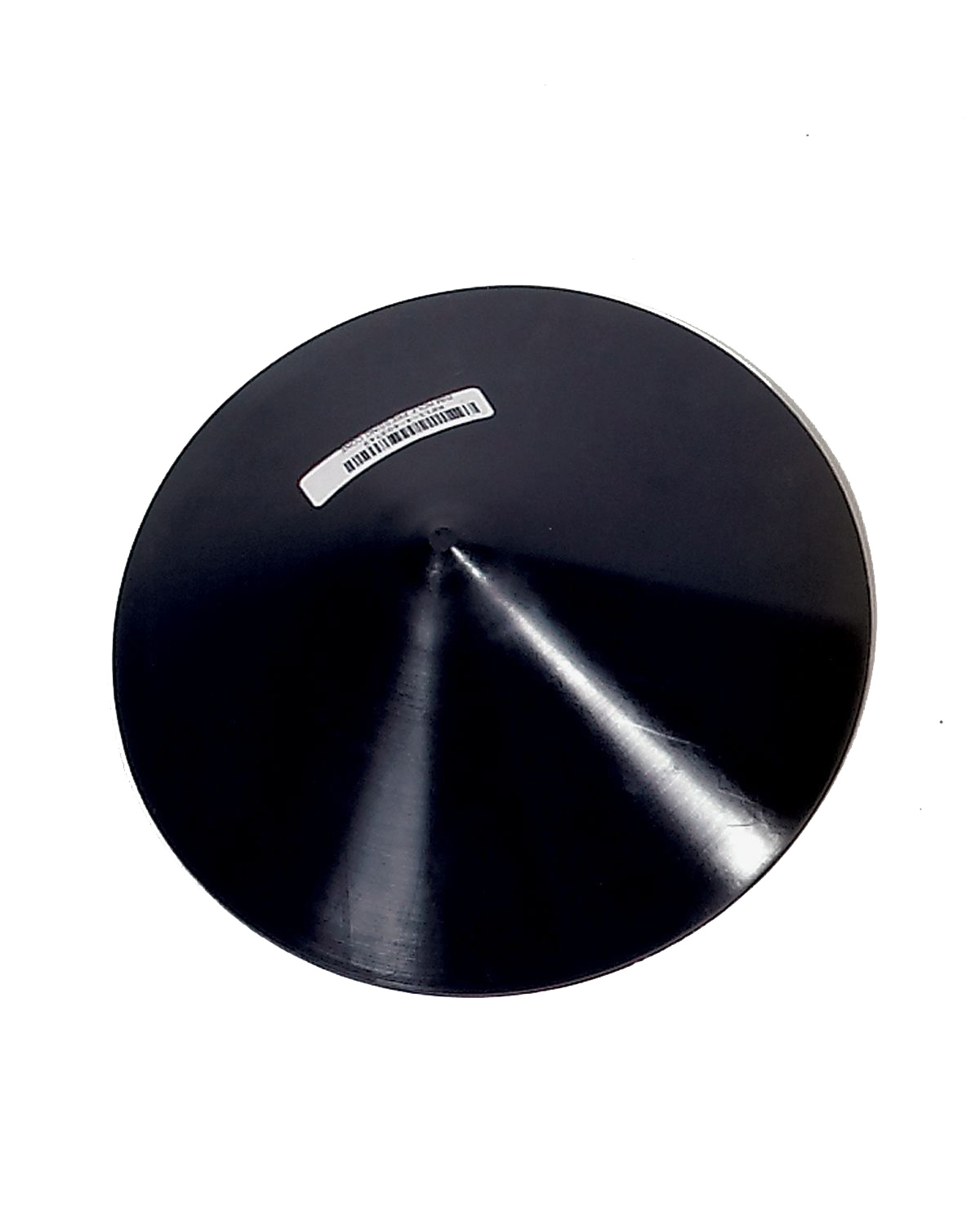

    Hunter Engineering Bead press cone

    Part no. RP11-4-403749

    Clamping press cone for Hunter TCX51, TCX58 and TCX59 tire changers.

    Fits this model.

    Full Details

  • Optional accessory

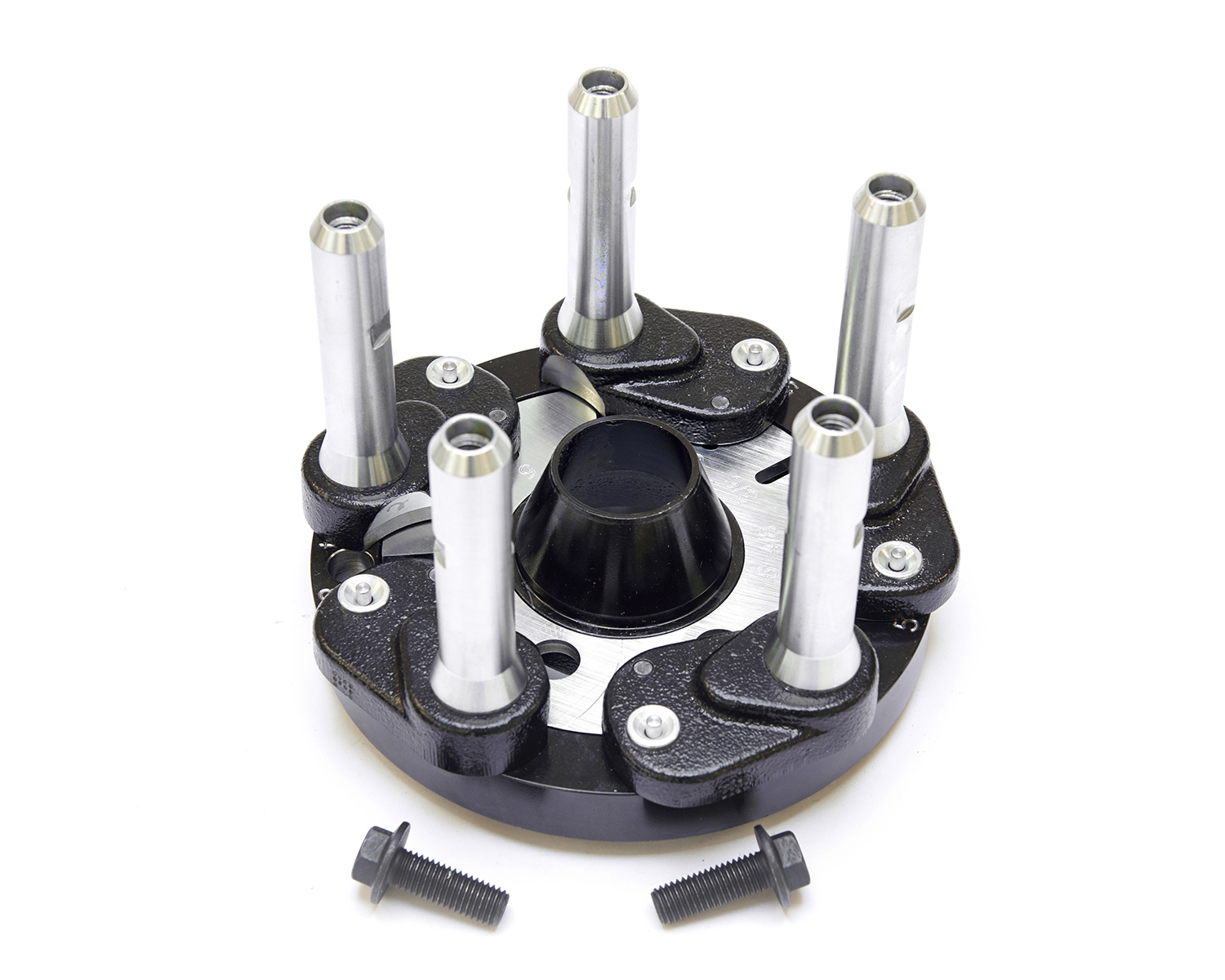

    Hunter Engineering Flange Plate Kit

    Part no. 20-3158-1

    Flange plate kit for plastic-clad wheels or reverse wheels where maximum protection is needed. Diameter range 98 to 240 mm.

    Fits this model.

    Full Details

  • Optional accessory

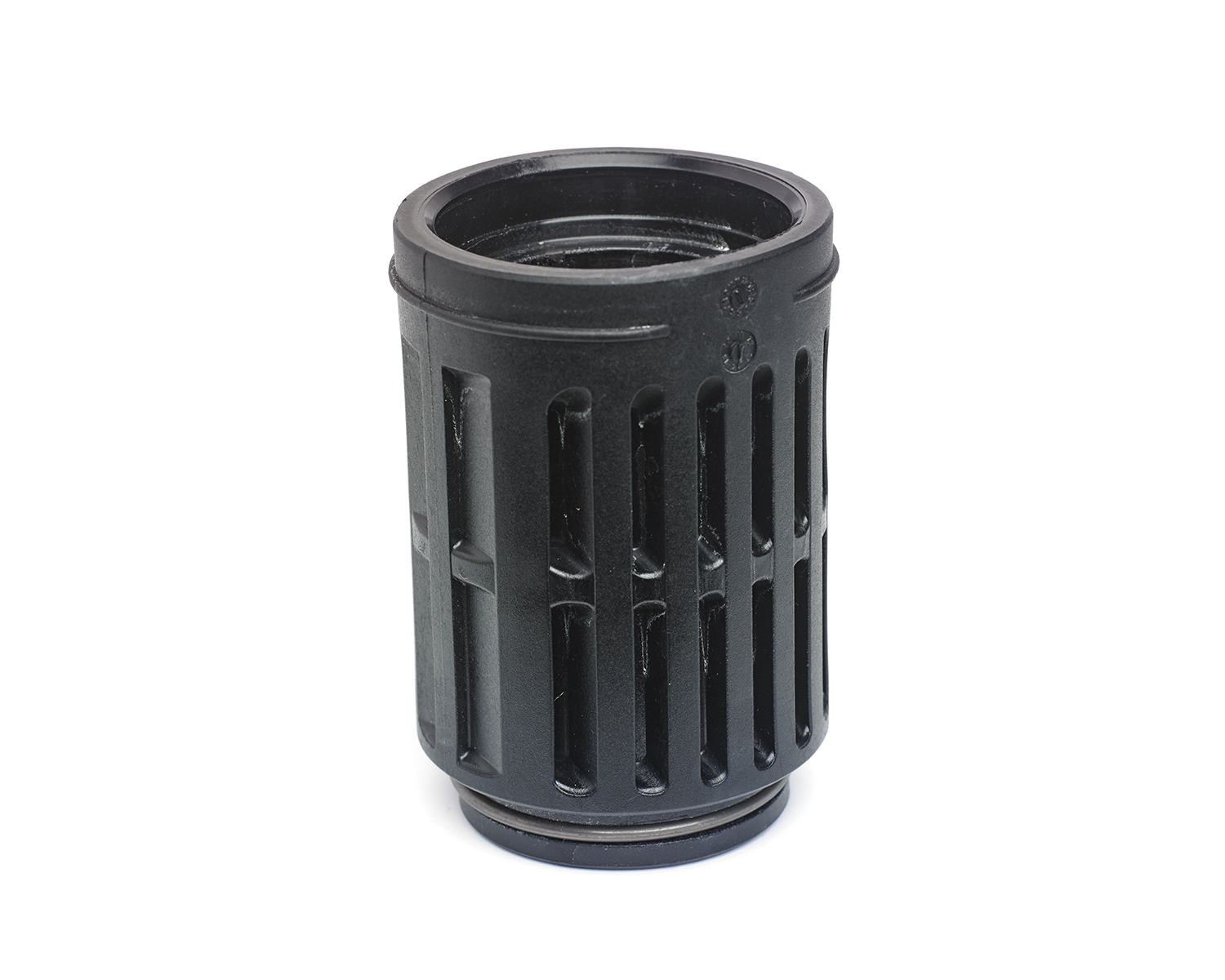

    Hunter Engineering Shaft spacer

    Part no. RP11-5-102722

    Shaft spacer listed in Hunter's TCX51C and TCX51M center-clamp tire changer accessory package.

    Fits this model.

    Full Details

  • Optional accessory

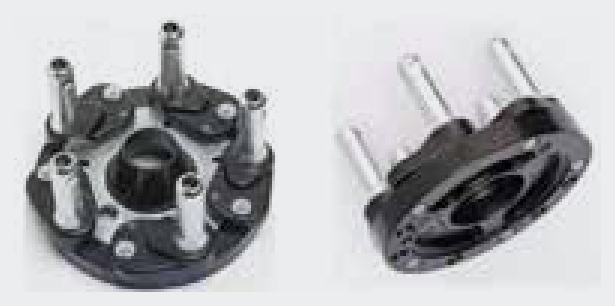

    Hunter Engineering Specialty Flange Plate for Center-Clamp Tire Changers

    Part no. 20-3892-1

    Rounded pins compatible with spherical lug seat wheels. Base is also compatible with Hunter pin kit 20-3675-1.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Mounting paste 3.5 kg

    Part no. RP6-3784

    Premixed tire mounting paste that eases mounting and bead sealing during inflation, supplied in a 3.5 kg container.

    Fits this model.

    Full Details
My TAG Project (0)

Compatible consumables

TAG confirms final fit and configuration before purchase.

  • Hunter Engineering Mounting paste 3.5 kg, part number RP6-3784

    RP6-3784

    Mounting paste 3.5 kg

    Tire Changers · Tire Changer Accessories

    Choose Options

View all 1 consumables for this machine

Build out this work area

Related Equipment to Review

Related equipment to review for this work area.

Ways to Expand the Workflow

Equipment to review when expanding this workflow.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelHunter Engineering
TCX Center-Clamp Tire Changers (TCX51C / TCX51M)You are viewing		Hunter Engineering
TCX Table-Top Tire Changers (TCX51–TCX59 Pro)
Why TAG lists itThis modelHunter publishes table-top TCX changers as a different clamping approach. Compare before choosing.
ModelsTCX51C (TCX51CSTD, TCX51CPRO) and TCX51MTCX59 Pro, TCX58, TCX53 Pro, TCX5x "H" models, TCX5x "E" models
Family specifications at a glancetorque up to 860 ft-lb; variable speed 7 and 17 rpm; max rim diameters 26 and 30 in.; max rim width 13 and 14 in.10-28 in. total clamp range; 16 in. shovel width; max tire diameter up to 46 in.; power supply 220V, 110V or air
Optionsclamp adaptor accessory kit (RP11-8-11100417) for large center-hole truck wheels; rubber platten cover (RP11-8-11100470); flange plate optionswheel lift, press cones, dual rollers, HunterNet® 2 connectivity kit
