Hunter Engineering SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)

Hunter Engineering

SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)

Wheel Balancers

The SmartWeight® balancers come in three models, Elite, Hybrid and Pro, all using patented SmartWeight® technology to improve balance and reduce weight usage. Feature level, measurement automation and interface differ by model, so we help you match the model to your volume and wheel mix.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Model

Choose a model to add this product to your project.

Max rim diameter
30 in.
Max tire diameter
up to 38 in.
Max width
20 in.
Max tire weight
up to 175 lb

Key specifications

SmartWeight® Hybrid
Single-knob navigation; CenteringCheck®; manual wheel measurement; HunterNet® 2 connectivity
Options
SpeedClamp, premium BullsEye® collets, HammerHead top-dead-center laser, wheel lift
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

SmartWeight® Elite
touchscreen interface; automatic CenteringCheck®; hands-free wheel measurement and profiling; automatic rim runout and condition check; TruWeight® guided weight placement; eCal automatic calibration; HunterNet® 2 connectivity; TPMSpecs® on-board vehicle database
SmartWeight® Hybrid
single-knob navigation; CenteringCheck®; manual wheel measurement; HunterNet® 2 connectivity
SmartWeight® Pro
single-knob navigation; CenteringCheck®; optional automatic wheel width entry; space-saving design; HunterNet® 2 connectivity
SmartWeight® technology
Hunter reports up to 35% reduced weight usage and single-weight solutions as much as 60% of the time

What TAG confirms with you

  • Wheel and tire sizes you service, including any oversize work
  • Bay space and clearance around the machine for loading wheels
  • Electrical service and air supply at that position
  • Daily volume and how many technicians share the machine
  • Delivery access and installation scope
Ask TAG about this model

One published capacity envelope

All three SmartWeight® models share max 20 in. width, 30 in. rim diameter and up to 38 in. tire diameter.

Interface choice

Elite uses a touchscreen interface; Hybrid and Pro use single-knob navigation.

SmartWeight® technology

Hunter publishes up to 35% reduced weight usage and single-weight solutions as much as 60% of the time.

Wheel & Rim Capacity

SmartWeight® Elite: touchscreen interface; automatic CenteringCheck®; hands-free wheel measurement and profiling; automatic rim runout and condition check; TruWeight® guided weight placement; eCal automatic calibration; HunterNet® 2 connectivity; TPMSpecs® on-board vehicle database.

ConfigurationMax rim diameterMax tire diameterMax widthMax tire weight
Elite30 in.up to 38 in.20 in.up to 175 lb
Hybrid30 in.up to 38 in.20 in.up to 175 lb
Pro30 in.up to 38 in.20 in.up to 175 lb
Family specifications at a glance
Max width 20 in.; max rim diameter 30 in.; max tire diameter up to 38 in.; maximum tire weight up to 175 lb
SmartWeight® Elite
Touchscreen interface; automatic CenteringCheck®; hands-free wheel measurement and profiling; automatic rim runout and condition check; TruWeight® guided weight placement; eCal automatic calibration; HunterNet® 2 connectivity; TPMSpecs® on-board vehicle database
SmartWeight® Hybrid
Single-knob navigation; CenteringCheck®; manual wheel measurement; HunterNet® 2 connectivity
SmartWeight® Pro
Single-knob navigation; CenteringCheck®; optional automatic wheel width entry; space-saving design; HunterNet® 2 connectivity
SmartWeight® technology
Hunter reports up to 35% reduced weight usage and single-weight solutions as much as 60% of the time
Options
SpeedClamp, premium BullsEye® collets, HammerHead top-dead-center laser, wheel lift

Configure this SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for SmartWeight® Wheel Balancers (Elite / Hybrid / Pro)

TAG confirms final fit and configuration before purchase.

Optional accessory · 11

  • Optional accessory

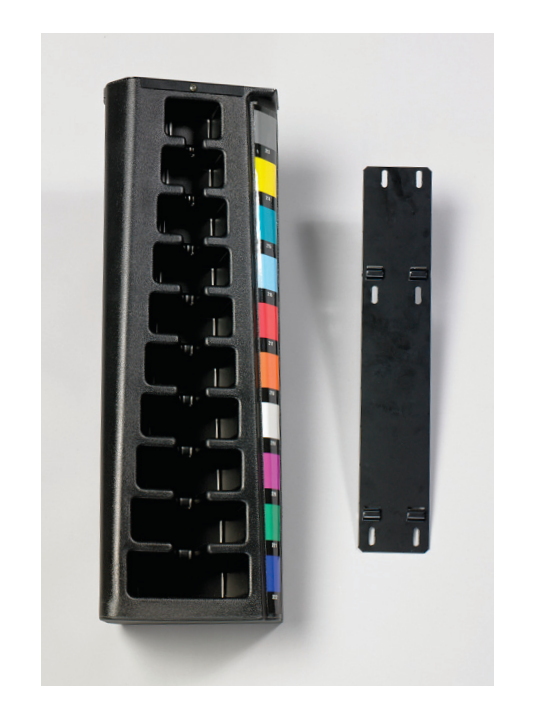

    Hunter Engineering BullsEye® Cone Carrier for SmartWeight® Pro

    Part no. 20-2750-1

    Collet carrier and mounting hardware for SmartWeight® Pro balancers.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering 6 in. Clamping Cup

    Part no. 175-392-1

    6 in. clamping cup that fits aluminum and forged steel wing nuts, QuickNut and the AutoClamp feature.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Cone carrier bracket support

    Part no. 14-1470-005

    Cone carrier bracket support in Hunter's BullsEye collet and storage kit for Elite Series balancers.

    Fits this model.

    Full Details

  • Optional accessory

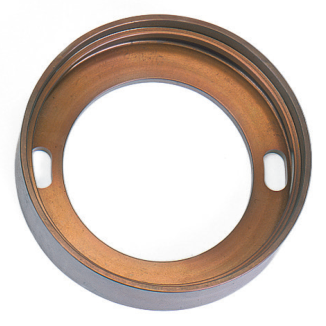

    Hunter Engineering Performance Wheel & Light-Truck Spacer

    Part no. 46-653-2

    Spacer (7.89 in. O.D. x 5.25 in. I.D. x 1.5 in.) providing 1.5 in. of offset for wide performance wheels.

    Fits this model.

    Full Details

  • Optional accessory

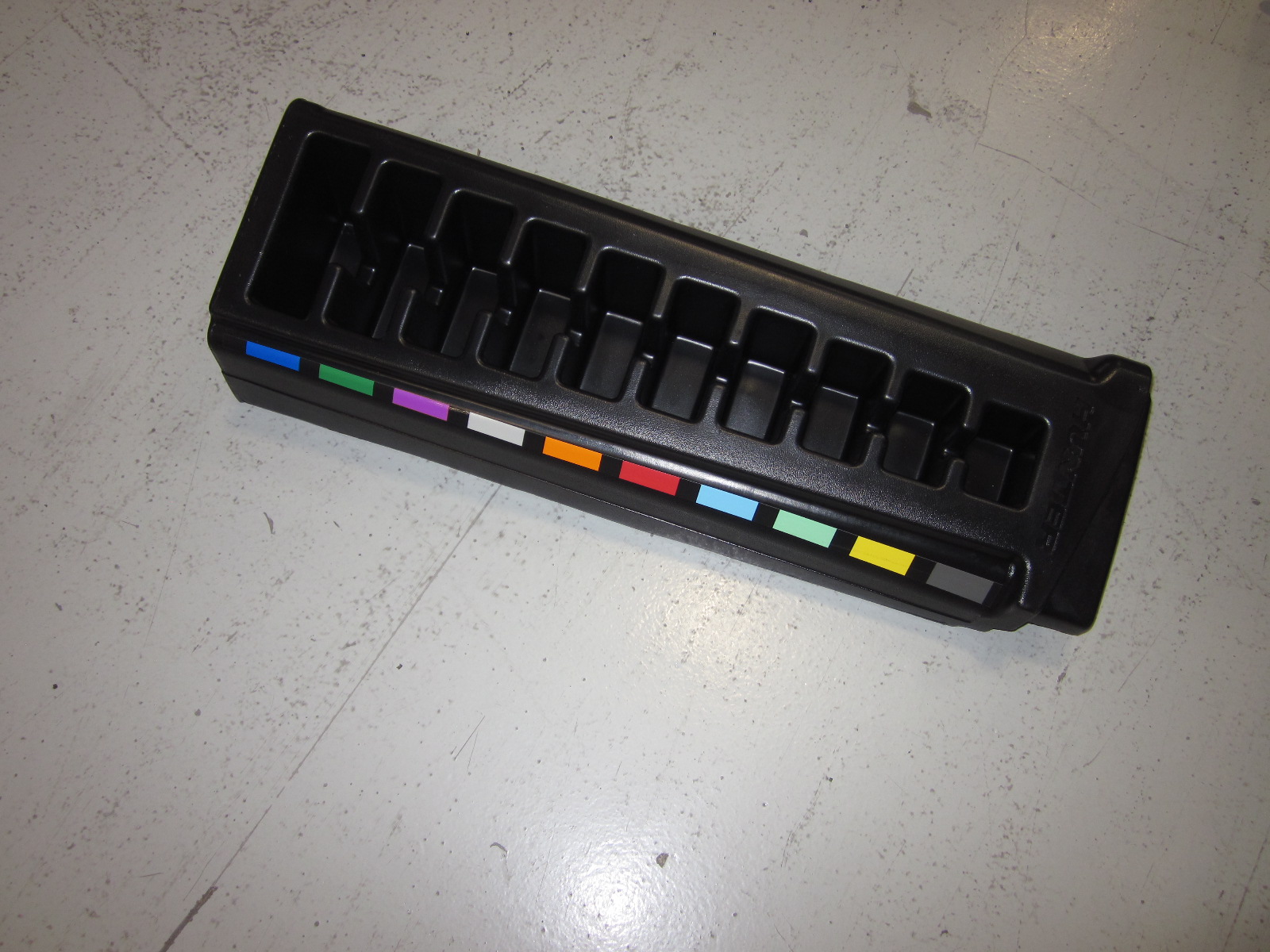

    Hunter Engineering Front balancer cone carrier

    Part no. 56-70-2

    Front cone carrier for Hunter's Elite Series BullsEye storage kit. This carrier is not compatible with SmartWeight Pro.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering TruckChuck™ Wheel and Drum Balancing Kit

    Part no. 20-1602-1

    Three-jaw chuck adaptor for factory steel and some aluminum wheels with centering holes from 3.13 in. to 7.13 in.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Adjustable Flange Plate and Stud Kit

    Part no. 20-3698-1

    Adjustable flange plate with interchangeable pins covering 3-lug through 10-lug vehicles with bolt circles from 3.86 in. (98 mm) to 8.26 in. (210 mm).

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Hunter ProBike Kit

    Part no. 20-4142-2

    Motorcycle balancing kit with ProBike adaptor, 14 mm and 19 mm shafts, QuickFix clamps, centering cones and two storage boards. Max assembly diameter 27.5 in.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering 6 in. Clamping Protector Sleeve

    Part no. 106-157-2

    Fits all 6 in. cups to protect finished wheel surfaces when using a cup to clamp.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering HammerHead® Top-Dead-Center Clip-Weight Laser System

    Part no. 20-3765-1

    Projects laser lines on the rim flange for precise clip-weight application and includes an overhead work light. Can be ordered with a balancer or as a separate line item.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Basic Collet Kit with Accessories

    Part no. 20-2989-1

    Basic collet kit 20-3062-1 plus 1.5 in. offset wheel spacer, 6 in. clamping cup with retainer and 6 in. clamping protector sleeve.

    Fits this model.

    Full Details
