Hunter Engineering Revolution™ WalkAway™ Tire Changer

Hunter Engineering

Revolution™ WalkAway™ Tire Changer

Tire Changers

Revolution™ is a fully automatic tire changer with WalkAway™ semi-autonomous operation, a center-clamp design, leverless polymer tool, powered press arms, touch-screen guidance and HunterNet® 2 connectivity. Paired with Hunter Road Force® Elite automated wheel balancing, WalkAway™ can reduce a four-tire changeover time by 25% or more. Tell us your wheel mix and we will help you set the configuration and accessories.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Rim diameter range
12-30 in. (305-762 mm)
Maximum wheel width
15 in. (381 mm)
Tire changer type
Fully automatic center-clamp tire changer with WalkAway™ semi-autonomous operation
Maximum tire diameter
50 in. (1,270 mm)
Clamping
Center clamp with quick clamp
Model
TCRH
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Mount/demount tool
polymer, self-inserting leverless tool
Clamping
center clamp with quick clamp
Power
208-230V, single phase, 60 Hz, 24A; NEMA L6-30P, 5,520W
Air supply
125 ± 25 psi (8.6 ± 1.7 bar)
Shipping weight
1,856 lb (842 kg)
Dimensions
50 in. W × 78.5 in. H to top of unit, 86.0 in. H to top of stack light, 78 in. D

What TAG confirms with you

  • Wheel and tire sizes you service, including any oversize work
  • Bay space and clearance around the machine for loading wheels
  • Electrical service and air supply at that position
  • Daily volume and how many technicians share the machine
  • Delivery access and installation scope
Ask TAG about this model

Wheel & Rim Capacity

Model
TCRH
Tire changer type
Fully automatic center-clamp tire changer with WalkAway™ semi-autonomous operation
Mount/demount tool
Polymer, self-inserting leverless tool
Clamping
Center clamp with quick clamp
Bead loosening
Upper/lower roller
Power
208-230V, single phase, 60 Hz, 24A; NEMA L6-30P, 5,520W
Air supply
125 ± 25 psi (8.6 ± 1.7 bar)
Rim diameter range
12-30 in. (305-762 mm)
Maximum tire diameter
50 in. (1,270 mm)
Maximum wheel width
15 in. (381 mm)
Drive
Variable up to 15 rpm, clockwise/counter-clockwise; 875 ft-lb torque
Shipping weight
1,856 lb (842 kg)
Dimensions
50 in. W × 78.5 in. H to top of unit, 86.0 in. H to top of stack light, 78 in. D
Connected workflow
HunterNet® 2 can log tire-change results, including service time, wheel dimensions, images and tire pressure when connected.

Additional details

  • We will confirm the electrical circuit and plug, air supply, accessory package, wheel and tire range, delivery path, installation, training, price and any Road Force pairing before anything is ordered.

Configure this Revolution™ WalkAway™ Tire Changer

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for Revolution™ WalkAway™ Tire Changer

TAG confirms final fit and configuration before purchase.

Optional accessory · 8

  • Optional accessory

    Hunter Engineering Specialty Pin Kit

    Part no. 20-3877-1

    Pins have rounded tips for spherical lug seats and are shorter to reduce stack height for reverse applications.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Dual Wheel Adaptor

    Part no. 20-2964-1

    Optional adaptor adds clamping capability for dual wheels, 19.5 in. wheels and other wheels with large center holes.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Thick Bead Kit

    Part no. 20-3160-1

    Wider hook for thicker beads. Suitable for skid steer and load range G-H-J tires. Includes reverse wheel plate for 19.5- and 17.5-in. rims.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Flange Plate Accessory Pin Kit

    Part no. 20-3675-1

    Optional pin kit for wheels with extreme lug hole and lug depth variances.

    Fits this model.

    Full Details

  • Optional accessory

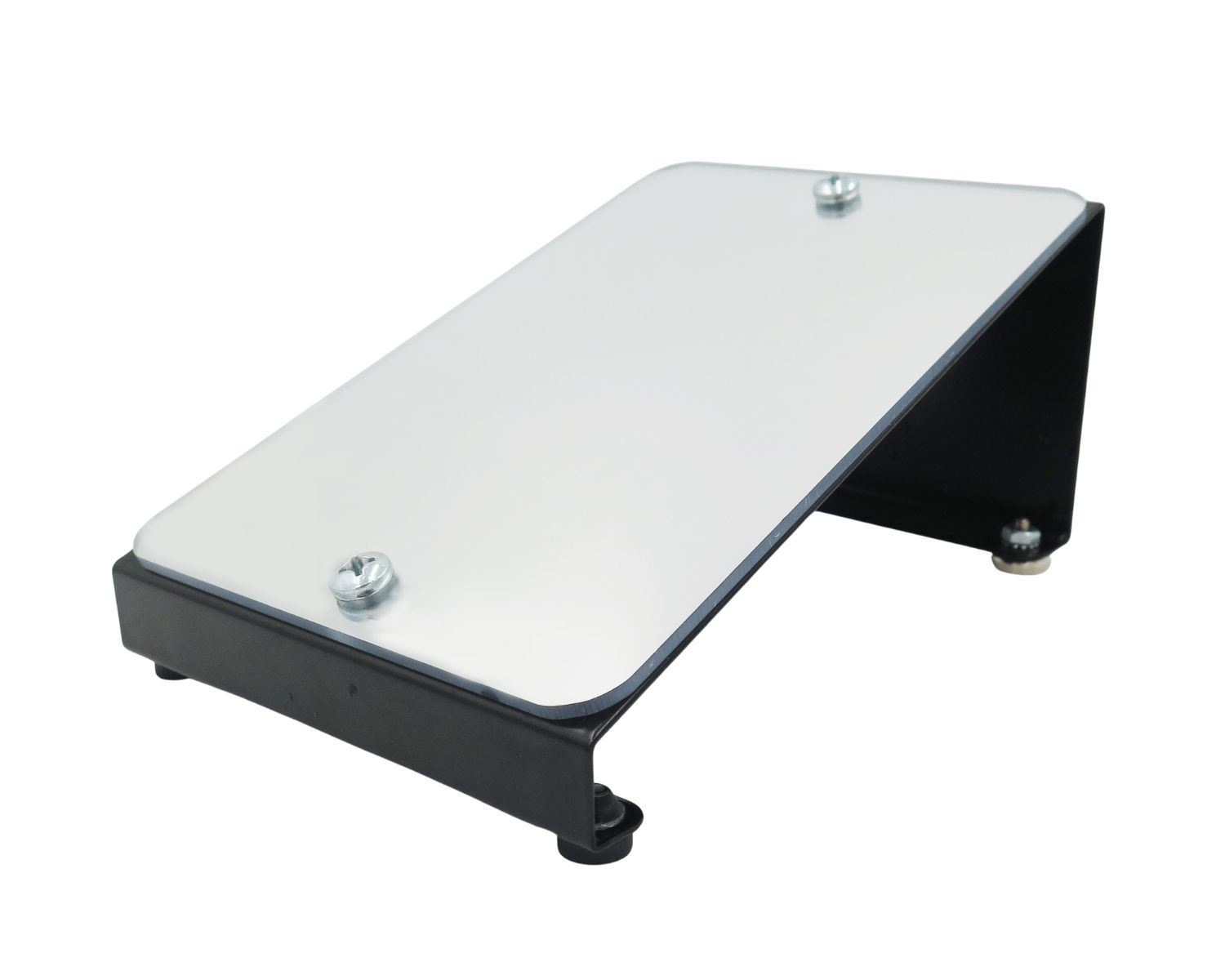

    Hunter Engineering Mirror (TCM only)

    Part no. 213-58-1

    Mirror accessory for Hunter TCM tire changers.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Polymer mount head

    Part no. 221-713-2

    Polymer mount head listed in Hunter's Revolution and Maverick tire changer accessory package.

    Fits this model.

    Full Details

  • Optional accessory

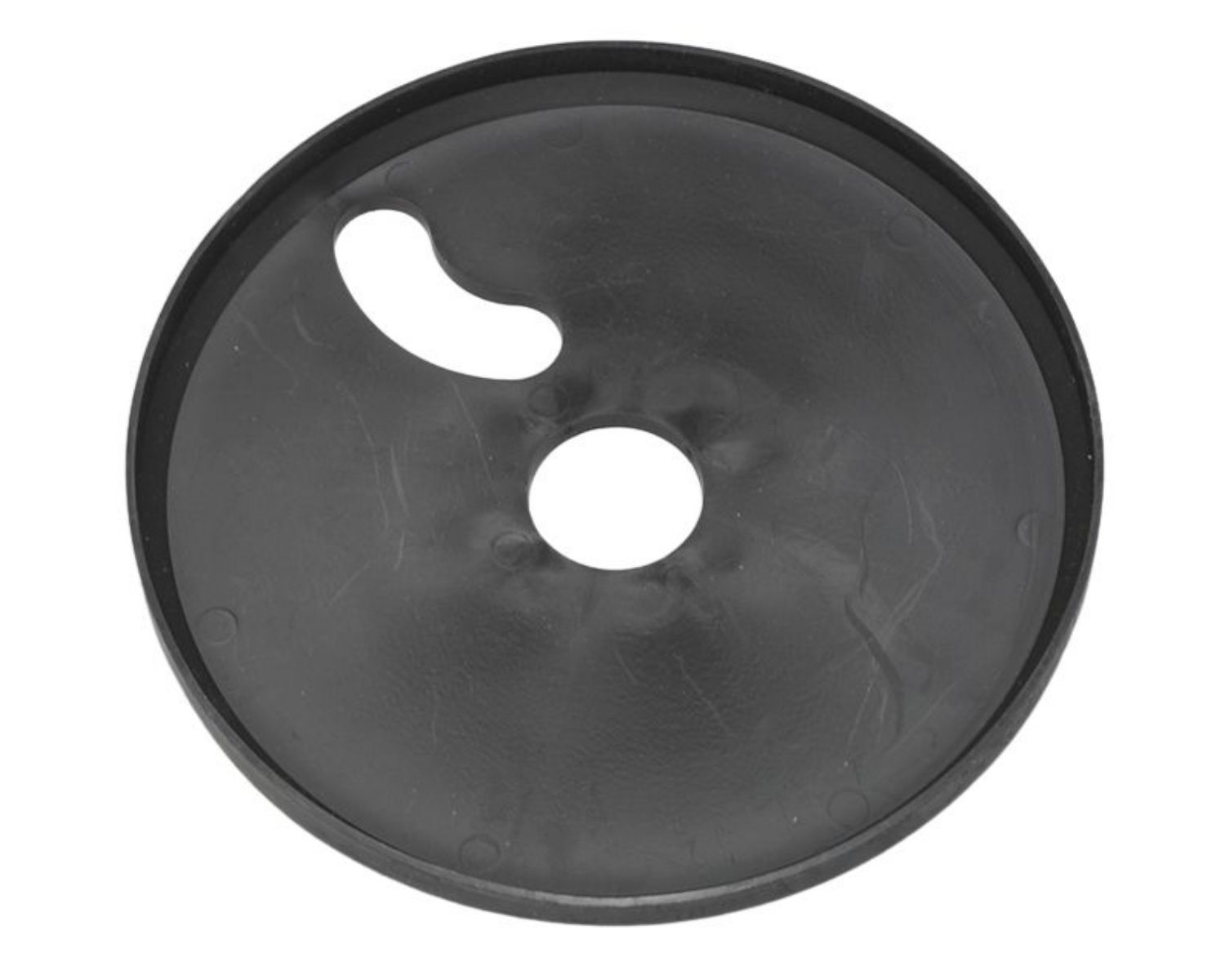

    Hunter Engineering Rubber platen cover

    Part no. 69-1392-2

    Rubber platen cover listed in Hunter's Revolution and Maverick tire changer accessory package.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Safety goggles

    Part no. 179-15-2

    Safety goggles included in Hunter's brake lathe accessory packages.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Related Equipment to Review

Related equipment to review for this work area.

Ways to Expand the Workflow

Equipment to review when expanding this workflow.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelHunter Engineering
Revolution™ WalkAway™ Tire ChangerYou are viewing		Hunter Engineering
Maverick® Tire Changer
Why TAG lists itThis modelHunter publishes Maverick as a second full-service tire changer platform. Compare the two before choosing.
Mount/demount toolpolymer, self-inserting leverless toolpolymer leverless
Clampingcenter clamp with quick clampcenter with quick clamp
Bead looseningupper/lower rollerupper and lower roller
Power208-230V, single phase, 60 Hz, 24A; NEMA L6-30P, 5,520W208-230 VAC, single phase, 60 Hz, 14A; NEMA 20A L6-20P
Air supply125 ± 25 psi (8.6 ± 1.7 bar)125 ± 25 psi (8.6 ± 1.7 bar)
Rim diameter range12-30 in. (305-762 mm)10-34 in. (254-863 mm)
