Hunter Engineering Maverick® Tire Changer

Hunter Engineering

Maverick® Tire Changer

Tire Changers

Maverick® is a made-in-USA center-clamp tire changer built around fully variable hydraulic controls, the SmartSet® leverless toolhead and InflationStation™. It comes in TCM, TCMW and TCMPRO configurations, and included features and options differ between them. Tell us the wheels you handle and we will help you match the machine, lift, light and accessories.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Rim diameter range
10-34 in. (254-863 mm)
Maximum wheel width
19 in. (483 mm)
Maximum wheel weight
175 lb (79 kg)
Maximum tire diameter
50 in. (1,270 mm)
Clamping
Center with quick clamp
TCM base features
SmartSet® leverless head, proportional controls and InflationStation™
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Power
208-230 VAC, single phase, 60 Hz, 14A; NEMA 20A L6-20P
Air supply
125 ± 25 psi (8.6 ± 1.7 bar)
Mount/demount tool
polymer leverless
Clamping
center with quick clamp
Match-mounting
capable
Maximum wheel weight
175 lb (79 kg)
Model weights
TCM 1,065 lb; TCMW 1,132 lb; TCMPRO 1,145 lb

What TAG confirms with you

  • Wheel and tire sizes you service, including any oversize work
  • Bay space and clearance around the machine for loading wheels
  • Electrical service and air supply at that position
  • Daily volume and how many technicians share the machine
  • Delivery access and installation scope
Ask TAG about this model

Wheel & Rim Capacity

Configurations
TCM base; TCMW with compact wheel lift; TCMPRO with ergonomic pick-and-place wheel lift and lighted lower roller
TCM base features
SmartSet® leverless head, proportional controls and InflationStation™
TCMPRO lift capability
Lift and tilt heavy assemblies and 19.5s up to 175 lb in one motion
Power
208-230 VAC, single phase, 60 Hz, 14A; NEMA 20A L6-20P
Air supply
125 ± 25 psi (8.6 ± 1.7 bar)
Mount/demount tool
Polymer leverless
Clamping
Center with quick clamp
Bead loosening
Upper and lower roller
Match-mounting
Capable
Rim diameter range
10-34 in. (254-863 mm)
Maximum tire diameter
50 in. (1,270 mm)
Maximum wheel width
19 in. (483 mm)
Maximum wheel weight
175 lb (79 kg)
Drive
Variable up to 17 rpm, clockwise/counter-clockwise; torque 700 ft-lb (949 Nm)
Model weights
TCM 1,065 lb; TCMW 1,132 lb; TCMPRO 1,145 lb

Additional details

  • Model- or accessory-dependent features listed by Hunter: RollerLock® clamp, optional compact wheel lift, optional flange plate kit
  • We will confirm the Maverick model, electrical circuit and plug, air supply, wheel and tire range, lift and lighting options, accessories, delivery path, installation, training and price before anything is ordered.

Configure this Maverick® Tire Changer

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for Maverick® Tire Changer

TAG confirms final fit and configuration before purchase.

15 of 15 shown

Optional accessory · 15

  • Optional accessory

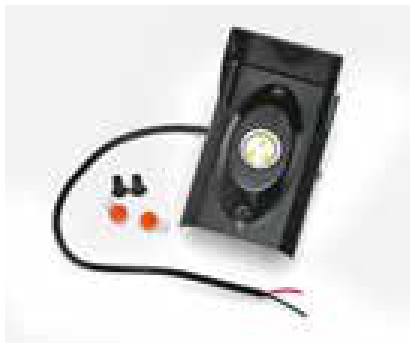

    Hunter Engineering Under-Wheel Light Kit

    Part no. 20-4153-1

    Illuminates the bottom bead for easier bead breaking and lubrication.

    Fits this model.

    Full Details

  • Optional accessory

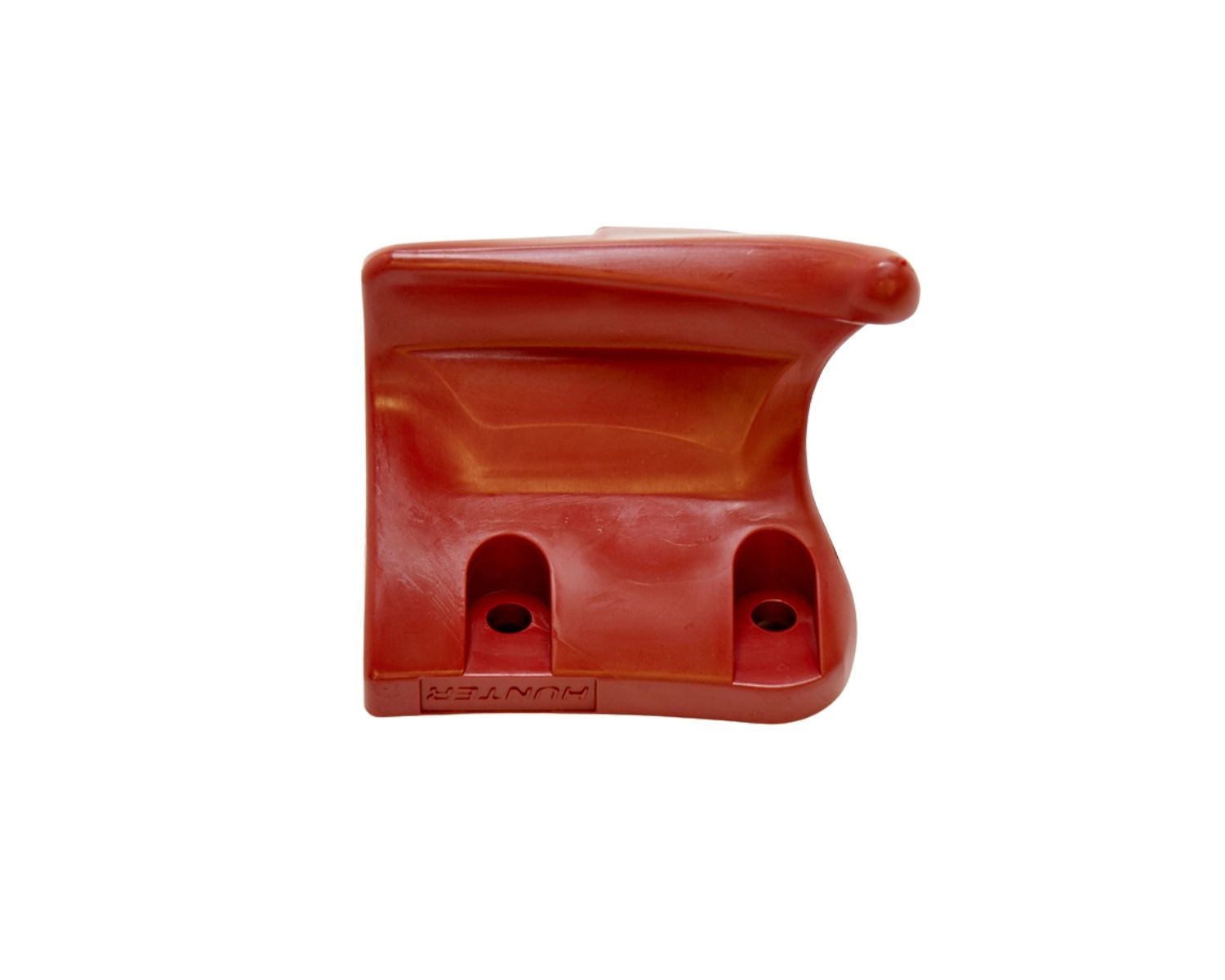

    Hunter Engineering Polymer mount head

    Part no. 221-713-2

    Polymer mount head listed in Hunter's Revolution and Maverick tire changer accessory package.

    Fits this model.

    Full Details

  • Optional accessory

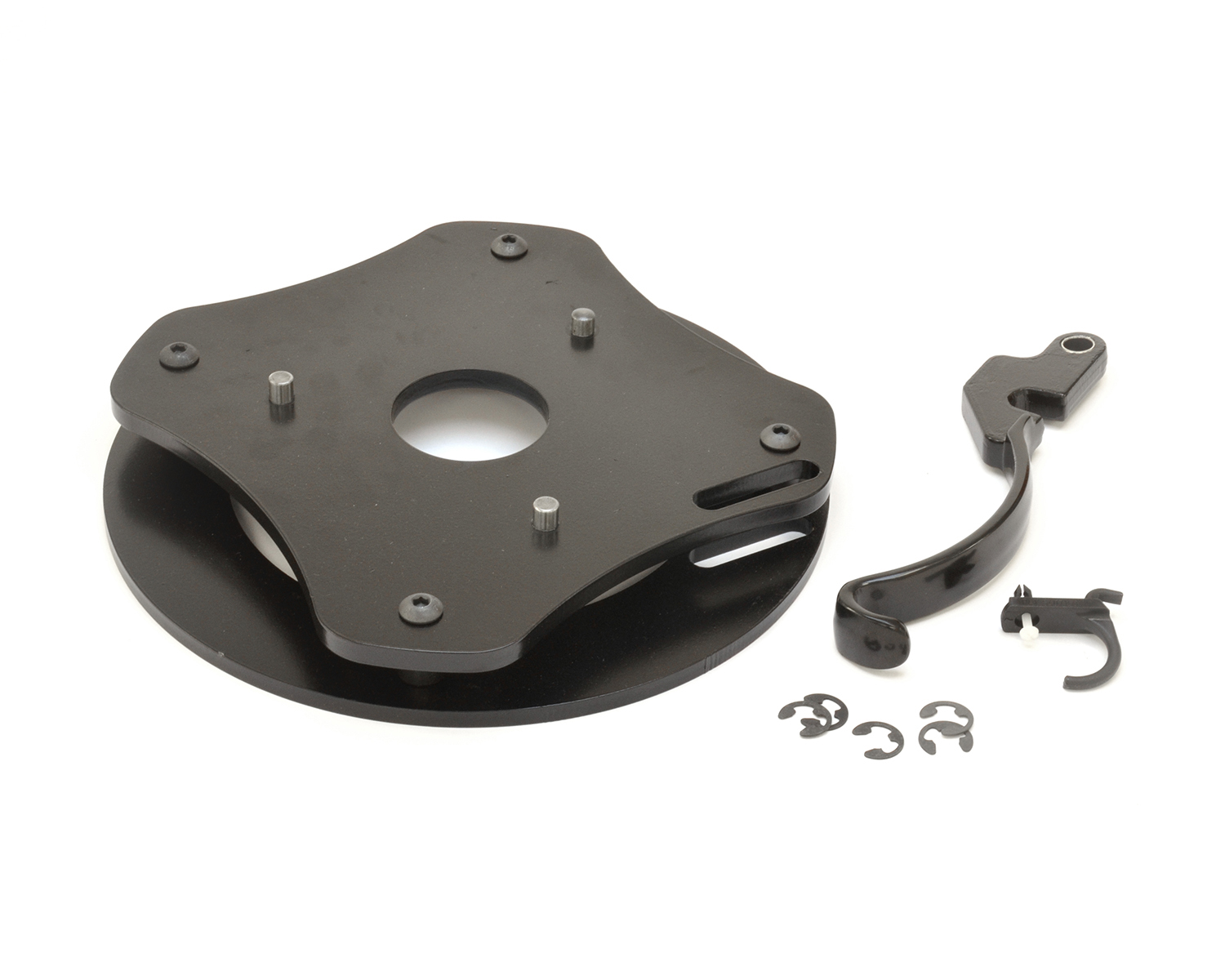

    Hunter Engineering Thick Bead Kit

    Part no. 20-3160-1

    Wider hook for thicker beads. Suitable for skid steer and load range G-H-J tires. Includes reverse wheel plate for 19.5- and 17.5-in. rims.

    Fits this model.

    Full Details

  • Optional accessory

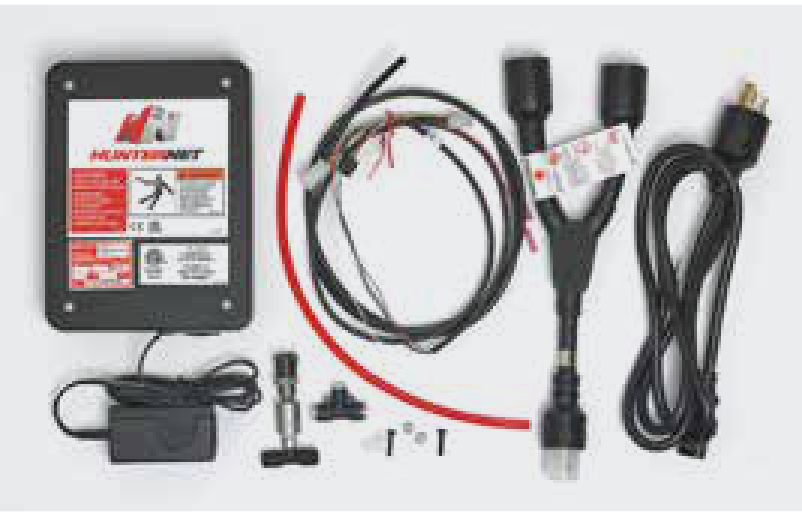

    Hunter Engineering HunterNet® Connectivity Kit (TCM)

    Part no. 20-3914-1

    Connectivity kit that records individual tire changes with inflation pressure and reports results to HunterNet®.

    Fits this model.

    Full Details

  • Optional accessory

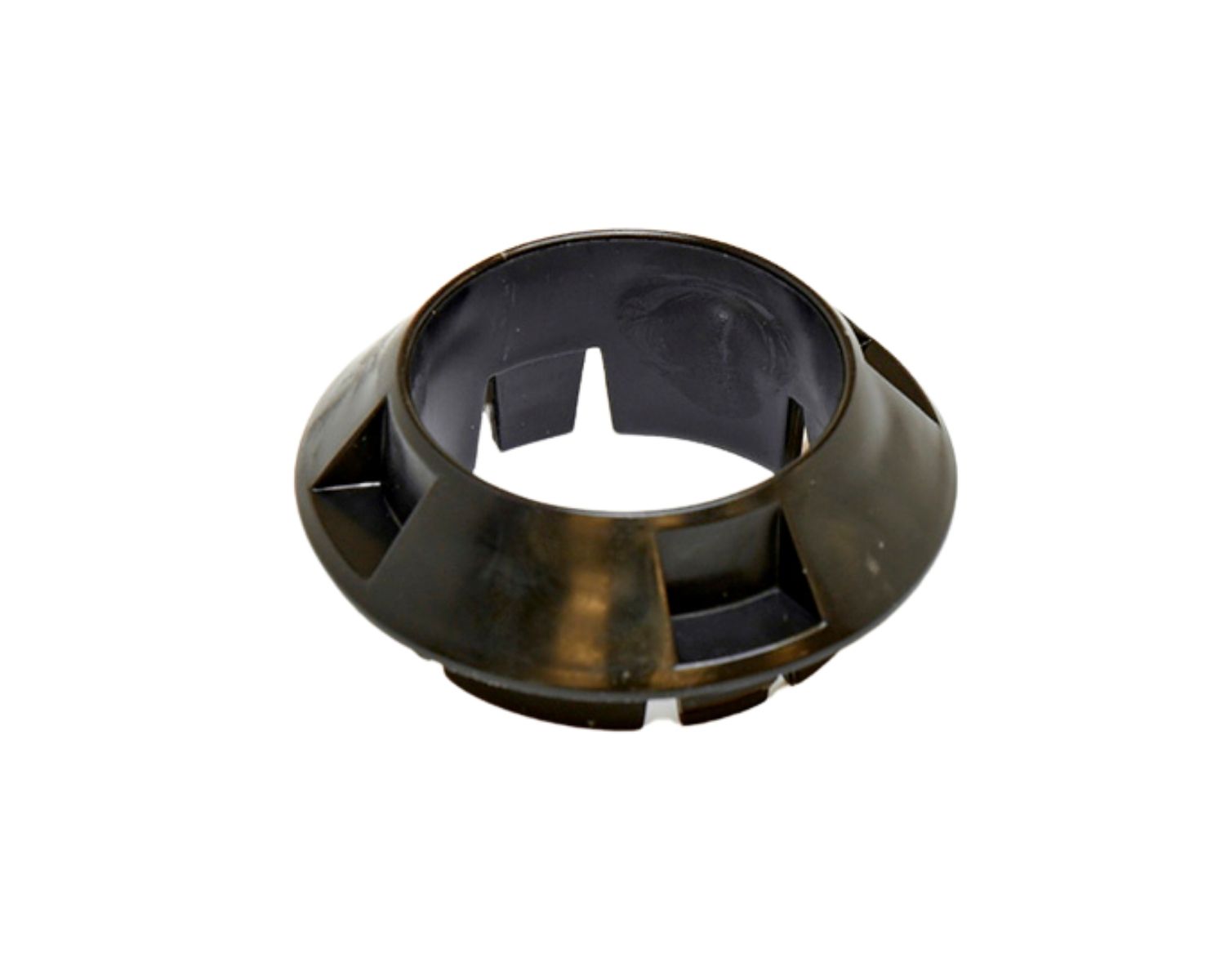

    Hunter Engineering Small polymer cone

    Part no. 192-223-2

    Small polymer cone listed in Hunter's Revolution and Maverick tire changer accessory package.

    Fits this model.

    Full Details

  • Optional accessory

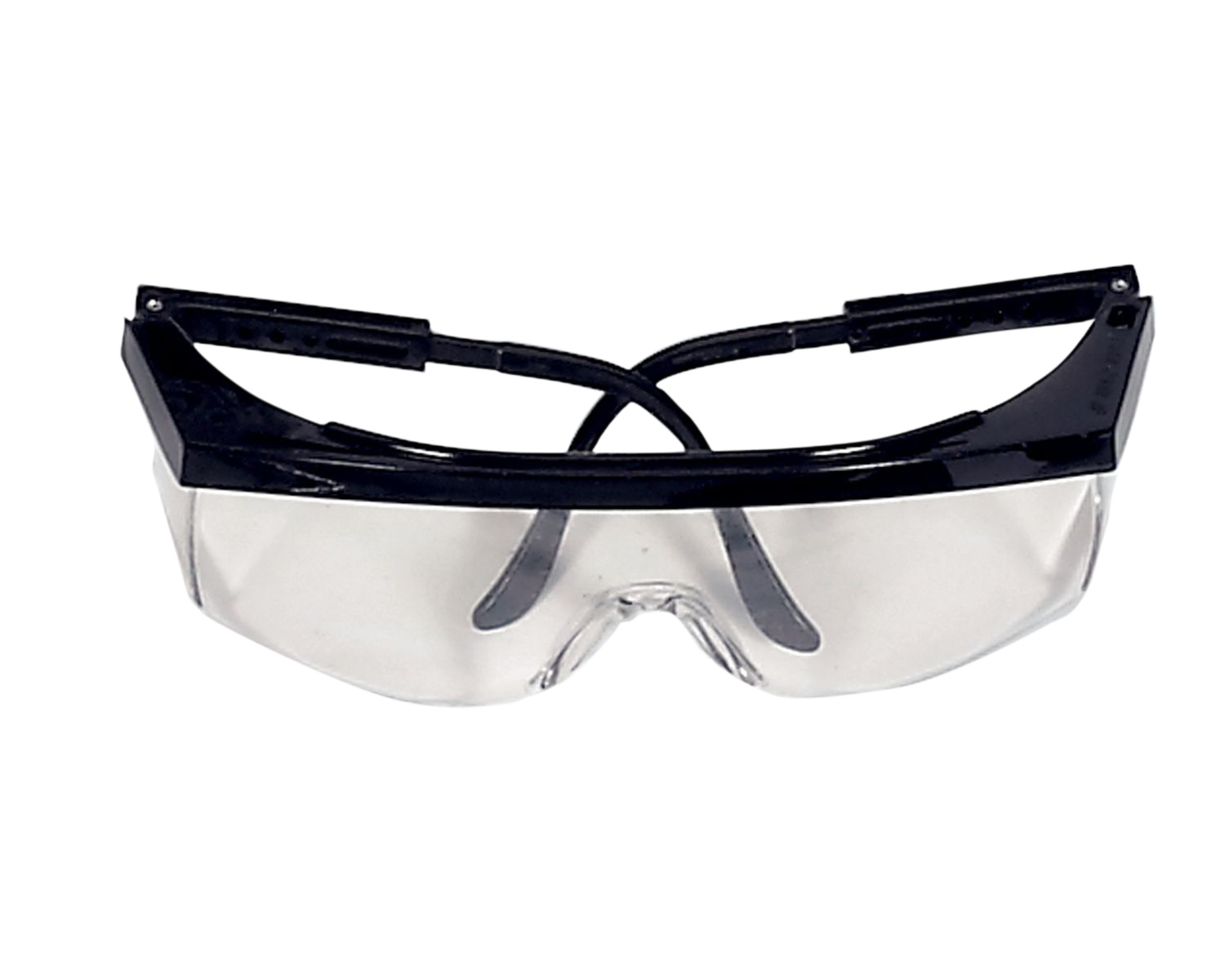

    Hunter Engineering Safety goggles

    Part no. 179-15-2

    Safety goggles included in Hunter's brake lathe accessory packages.

    Fits this model.

    Full Details
