Challenger Lifts EW10 Series 10K Wide Inground Lift

Challenger Lifts

EW10 Series 10K Wide Inground Lift

In-Ground Lifts

Challenger's 10,000 lb. hydraulic wide inground cassette lift. The extra-wide drive-through clearance allows batteries to be lowered out of electric vehicles without losing conventional cassette function, and true 3-stage arms with double-telescoping screw pads suit wide EVs and luxury vehicles.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Model

Choose a model to add this product to your project.

Capacity
10,000 lb
Rise height
78 in
Speed of rise
41 s
Motor
2HP 208v-230v 60Hz 1Ph

Key specifications

Lifting capacity
10,000 lbs.
Capacity per arm
2,500 lbs.
Rise height
78"
Speed of rise
41 s (EW1020) / 24 s (EW1020-QC)
Screw pad height
4" - 6.125"
Width overall
118"
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
10,000 lbs.
Capacity per arm
2,500 lbs.
Drive-thru clearance
88"
Width overall
118"
Air required
90 - 120 psi
Motor / voltage
2HP 208v-230v 60Hz 1Ph (EW1020) / 3HP 208v-230v 60Hz 1Ph (EW1020-QC)

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

10,000 lb capacity

Both published EW10 models lift 10,000 lbs., 2,500 lbs. per arm.

88 in. drive-thru

118 in. overall width with an 88 in. drive-thru clearance.

QuickCycle option

The -QC model publishes a 24 second rise against 41 seconds on the standard unit.

Capacity & Dimensions

EW1020: 10,000 lb wide inground lift with 3-stage front and rear arms, a 72 in. stroke, 78 in. rise height and a 41 s speed of rise.

ConfigurationCapacityRise heightSpeed of riseMotor
EW102010,000 lb78 in41 s2HP 208v-230v 60Hz 1Ph
EW1020-QC10,000 lb78 in24 s3HP 208v-230v 60Hz 1Ph
Models
EW1020, EW1020-QC
Lifting capacity
10,000 lbs.
Capacity per arm
2,500 lbs.
Arms
3-stage front / 3-stage rear
Screw pad height
4" - 6.125"
Arm reach
20" - 42"
Stroke
72"
Rise height
78"
Drive-thru clearance
88"
Width overall
118"
Speed of rise
41 s (EW1020) / 24 s (EW1020-QC)
Air required
90 - 120 psi
Motor / voltage
2HP 208v-230v 60Hz 1Ph (EW1020) / 3HP 208v-230v 60Hz 1Ph (EW1020-QC)
ALI/ETL certified
Yes
Available colors
Black, Red, Blue

Configure this EW10 Series 10K Wide Inground Lift

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for EW10 Series 10K Wide Inground Lift

TAG confirms final fit and configuration before purchase.

Optional accessory · 7

  • Optional accessory

    Challenger Lifts Standard Footpad (B2270)

    Part no. B2270

    Premium telescoping polyurethane footpad, the standard pad for most Challenger lifts. The pads screw up and down so technicians can reach a variety of lift points on many different vehicle types. Sold individually.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts GM Truck Footpad Set (B2280PR)

    Part no. B2280PR

    Drop-in wide-frame footpads that prepare a Challenger lift for 2019 and newer GM half-ton pickup trucks. Challenger notes the front frame rails on these trucks are wider, which required a new footpad, and that using the standard footpads can cause damage to the frame at this lifting point. Only one pair is needed for the front section of the truck when lifting. Fits Cadillac, Chevrolet and GMC trucks.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Sprinter Kit (10333)

    Part no. 10333

    Challenger adapter kit for Challenger two-post lifts, including two cradle adapters for frame engagement and two pin adapters that fit tightly into holes on vehicle frames.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Round Rubber Footpad (B2260)

    Optional round rubber double telescoping footpad. Fits all 10K, 12K and 16K inground and above ground lifts. Sold individually.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Electric Vehicle Footpad Kit (EVFPK)

    Part no. EVFPK

    Challenger footpad kit designed to support select electric vehicles. Fits most Challenger two-post lifts. Sold in sets of four.

    Fits this model.

    Full Details

  • Optional accessory

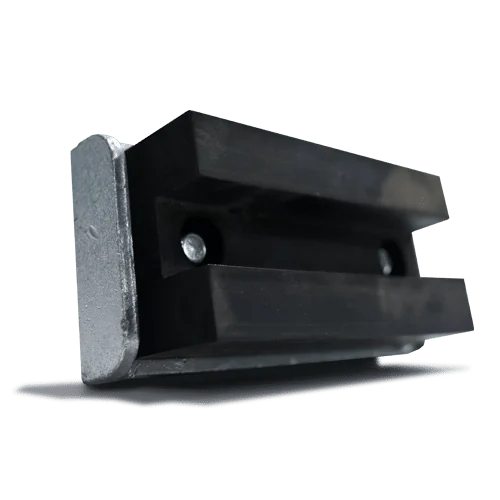

    Challenger Lifts Cab-Off Footpad Kit (B2290)

    Part no. B2290

    Challenger footpad kit for Challenger two-post lifts, designed to safely lift cabs off truck frames. The pads feature a U-channel that cradles the pinch welds. Sold in sets of four.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
EW10 Series 10K Wide Inground LiftYou are viewing		Challenger Lifts
EV1020 Series 10K Standard Inground Lift
Why TAG lists itThis modelChallenger publishes the EV1020 series as a 10K standard inground platform. Compare before choosing.
Lifting capacity10,000 lbs.10,000 lbs. (EV1020 / EV1020-QC); 9,000 lbs. (XP9 drive-on pad models)
Arms3-stage front / 3-stage rear3-stage front / 3-stage rear (EV1020, EV1020-QC); drive-on pad on XP9 models
Screw pad height4" - 6.125"3.875"–6" (EV1020 models); minimum pad height 2.25" (XP9 models)
Arm reach20" - 42"19.625" minimum / 42.125" maximum (EV1020 models)
Stroke72"72" (EV1020 models); 68" (XP9 models)
Rise height78"78" (EV1020 models); 70" (XP9 models)
