Challenger Lifts DX77 7.7K Scissor Lift

Challenger Lifts

DX77 7.7K Scissor Lift

scissor-lifts

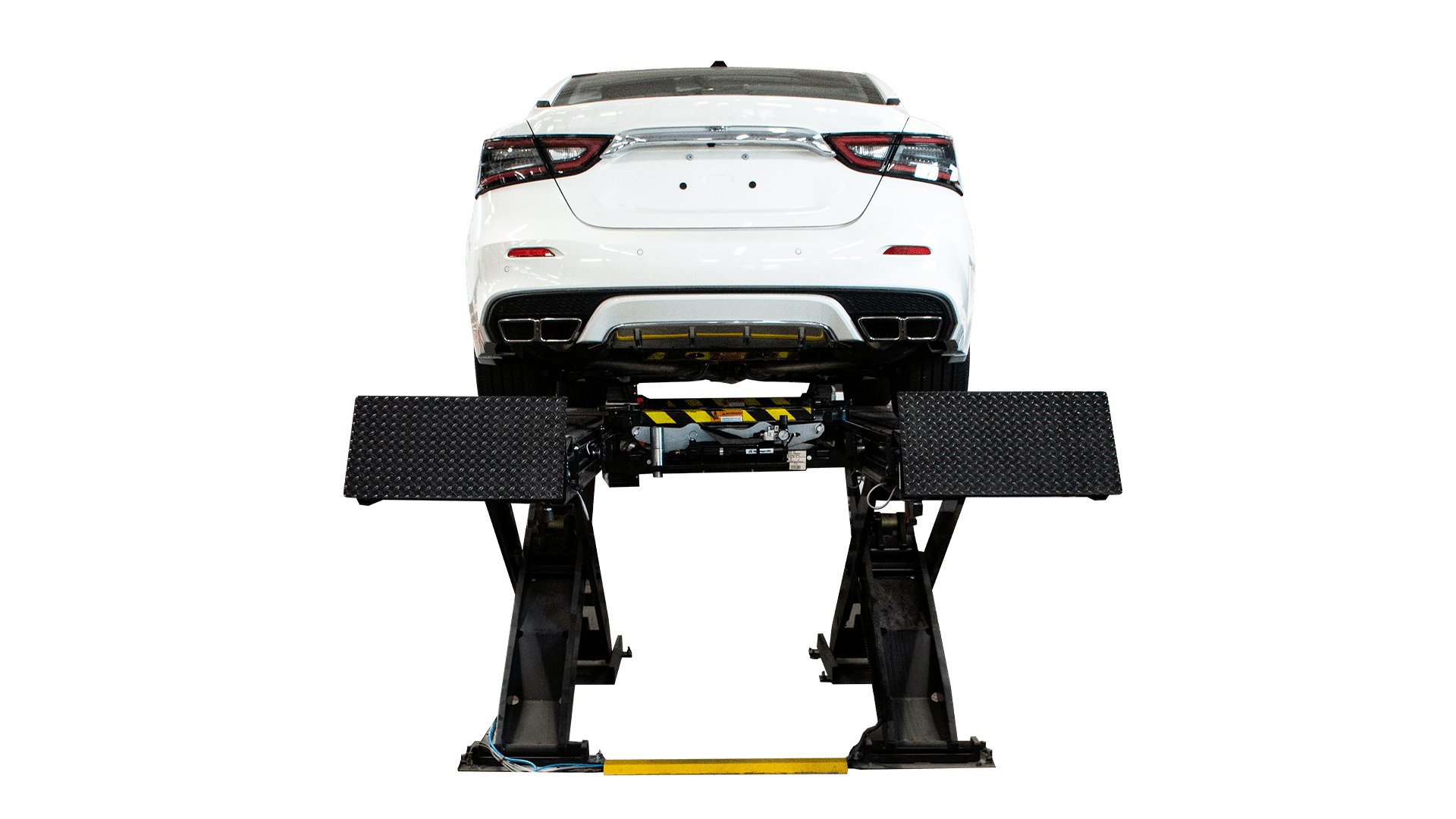

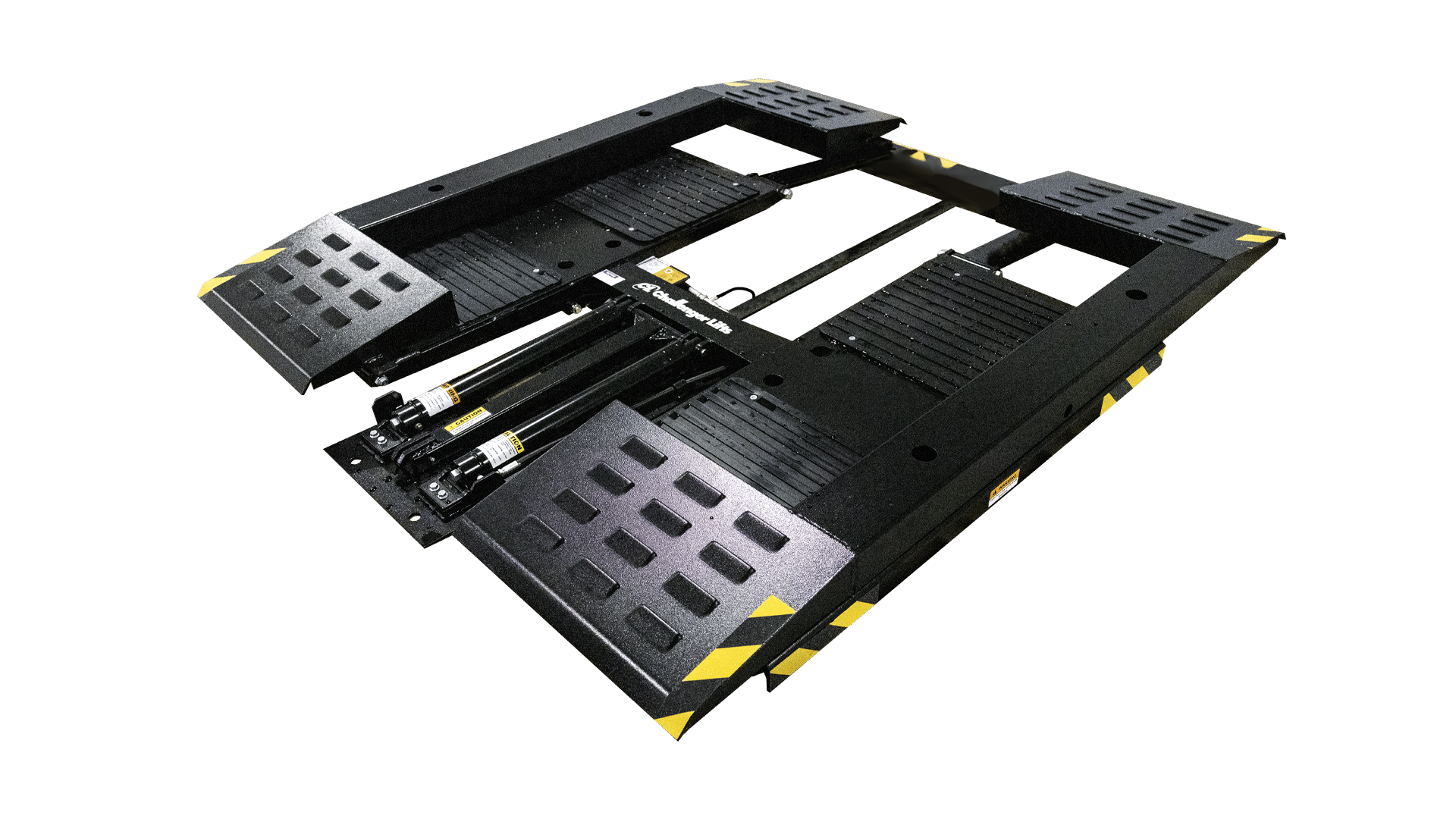

Challenger's DX77 Series is a 7,700 lb. capacity double scissor lift with a synchronized hydraulic system and a cross-member-free design that keeps access open around the vehicle. It can be installed above ground or flush with the floor, and reinforced diamond-plate front and rear access ramps flip up and lock to extend platform load length for longer wheelbase vehicles. Challenger positions it for express service, body shop and narrow bay applications.

Model

Choose a model to add this product to your project.

Capacity
7,700 lbs.
Mounting
Standard / surface mount
Rise height
74.5"
Overall width
82"

Key specifications

Lifting capacity
7,700 lbs.; max. load per platform 3,850 lbs.
Rise height
74.5" (70" flush mounted)
Rise time
43 s
Models
DX77 (standard) / DX77R (flush mount)
Overall length
83.25"; overall width 82" (DX77) / 69.5" (DX77R)
Platform
59" long, 24.5" wide; 21" – 27" between platforms
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a model above before adding this product to your project.

Not in your project yet

Configure This ModelRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
7,700 lbs.; max. load per platform 3,850 lbs.
Overall length
83.25"; overall width 82" (DX77) / 69.5" (DX77R)
Ramp length
11.75"; lowered height 4.5" (DX77)
Air supply required
90-120 psi

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Synchronized hydraulics

Both published models use the same synchronized hydraulic system.

Cross-member-free design

The published design keeps the area between the platforms free of cross members.

ALI certified

Challenger lists this model as ALI® certified.

Capacity & Dimensions

DX77: 7,700 lbs. lifting capacity; standard / surface mount; 74.5" rise height; 82" overall width.

ConfigurationCapacityMountingRise heightOverall width
DX777,700 lbs.Standard / surface mount74.5"82"
DX77R7,700 lbs.Flush mount70"69.5"
Models
DX77 (standard) / DX77R (flush mount)
Lifting capacity
7,700 lbs.; max. load per platform 3,850 lbs.
Rise height
74.5" (70" flush mounted)
Overall length
83.25"; overall width 82" (DX77) / 69.5" (DX77R)
Platform
59" long, 24.5" wide; 21" – 27" between platforms
Ramp length
11.75"; lowered height 4.5" (DX77)
Motor
2HP, single phase, 60Hz; 208/220v
Air supply required
90-120 psi
Rise time
43 s

Additional details

  • Includes 3" and 1.5" rubber spotting blocks (set of 4 each); extended ramp kit available
  • Challenger lists this model as ALI® certified

Configure this DX77 7.7K Scissor Lift

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Compatible accessories

TAG confirms final fit and configuration before purchase.

Optional accessory · 1

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
DX77 7.7K Scissor LiftYou are viewing		Challenger Lifts
SRM10 10K Short-Rise Lift
Why TAG lists itThis modelChallenger publishes SRM10 as a 10K short-rise platform. Compare before choosing.
Lifting capacity7,700 lbs.; max. load per platform 3,850 lbs.10,000 lbs.
Motor2HP, single phase, 60Hz; 208/220v1HP, 115v, 60Hz, 1Ph
