Challenger Lifts
44018 18K Heavy-Duty Four-Post Lift — General Service / Alignment
four-post-lifts
Challenger's 44018 Series is an 18,000 lb. capacity four-post lift with a 194" to 236" maximum wheelbase range for medium-sized transit vehicles. Adjustable runways accommodate a range of tread widths, diamond-plate approach ramps with heavy-duty steel roller wheels ease vehicle positioning, and a built-in runway rail system supports options such as rolling jacks and oil drain pans (sold separately). The alignment model adds a single-point air-actuated lock release that disengages the column locks simultaneously.
Model
Choose a model to add this product to your project.
- Capacity
- 18,000 lbs.
- Max. wheelbase
- 194"
- Rise height
- 78.75"
- Overall length
- 259"
Key specifications
- Lifting capacity
- 18,000 lbs.
- Rise height
- 78.75" (44018, 44018E) / 83.375" (44018AR)
- Speed of rise
- 60 s
- Overall height
- 102.5"
- Overall width
- 138.125" / 138.125" / 141.5"
- Inside columns
- 121" / 121" / 122"; between columns 204" / 240" / 204"
Choose a model above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Lifting capacity
- 18,000 lbs.
- Overall length
- 259" / 292" / 311.5"
- Overall width
- 138.125" / 138.125" / 141.5"
- Overall height
- 102.5"
What TAG confirms with you
- Slab thickness, age and condition where the lift will be anchored
- Bay width, drive-through length and ceiling height at the highest point
- Overhead obstructions: doors, lighting, ductwork and sprinkler heads
- Vehicles you lift most often, including the heaviest and longest
- Electrical service available at the bay and who runs the final connection
18,000 lb capacity
All three published 44018 models carry an 18,000 lbs. lifting capacity.
Three wheelbase lengths
Max. wheelbase 194", 230" and 236" across the published models.
Alignment configuration
44018AR publishes 98" – 206" four-wheel alignment and a 220" max. two-wheel alignment.
Capacity & Dimensions
44018: 18,000 lbs. lifting capacity; 194" max. wheelbase; 78.75" rise height; 259" overall length; 3HP, 208-230v single phase motor.
| Configuration | Capacity | Max. wheelbase | Rise height | Overall length |
|---|---|---|---|---|
| 44018 | 18,000 lbs. | 194" | 78.75" | 259" |
| 44018E | 18,000 lbs. | 230" | 78.75" | 292" |
| 44018AR | 18,000 lbs. | 236" | 83.375" | 311.5" |
- 44018 / 44018E / 44018AR
- 18,000 lbs.
- 194" / 230" / 236"
- 78.75" (44018, 44018E) / 83.375" (44018AR)
- 259" / 292" / 311.5"
- 138.125" / 138.125" / 141.5"
- 121" / 121" / 122"; between columns 204" / 240" / 204"
- 102.5"
- 22" wide; 7.25" high (11.875" on 44018AR); 36" – 54" between runways
- 4-wheel 98" – 206"; max. 2-wheel 220"
- 3HP, 208-230v single phase; 30 amps
- 60 s
Additional details
- Rolling jack application requires fixed runways with 33-15/16" to 41-11/16" spacing
Configure this 44018 18K Heavy-Duty Four-Post Lift — General Service / Alignment
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for 44018 18K Heavy-Duty Four-Post Lift — General Service / Alignment
Optional accessory · 5
Optional accessory
Challenger Lifts 32 Gallon Adjustable Oil Drain Pan (10267)
Optional accessory
Challenger Lifts 18K Airline Kit (44AK18)
Part no. 44AK18
Optional accessory
Challenger Lifts Rolling Oil Drain Pan 18K-30K (WOD-24)
Optional accessory
Challenger Lifts Light Bar Kit (EAK0361V64A-US)
Part no. EAK0361V64A-US
Optional accessory

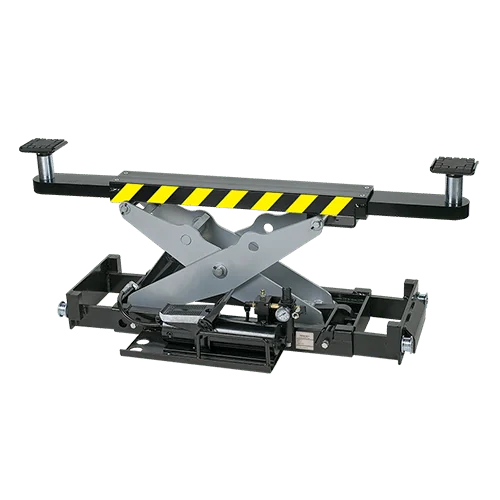

Challenger Lifts 9K Rolling Jack for 44018 (RJ9S)
Part no. RJ9S
Build out this work area
Upgrade Options to Review
Another option to compare in the same line.
- View details for Challenger Lifts 44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts
Challenger Lifts
four-post-lifts
44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts
Challenger publishes the 44030–44060 series as its 30K–60K four-post truck lift step up.
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Challenger Lifts | Challenger Lifts |
|---|---|---|
| Why TAG lists it | This model | Challenger publishes the 4018 as another 18K heavy-duty four-post platform. Compare before choosing. |
| Lifting capacity | 18,000 lbs. | 18,000 lbs. |
| Max. wheelbase | 194" / 230" / 236" | 220" |
| Rise height | 78.75" (44018, 44018E) / 83.375" (44018AR) | 72" |
| Overall length | 259" / 292" / 311.5" | 303.375"; overall width 152.125" |
| Inside columns | 121" / 121" / 122"; between columns 204" / 240" / 204" | 128.8125"; between columns 229.125" |
| Overall height | 102.5" | 98.625" |
