Challenger Lifts 4018 18K Heavy-Duty Four-Post Lift

Challenger Lifts

4018 18K Heavy-Duty Four-Post Lift

four-post-lifts

Challenger's 4018 Series is an 18,000 lb. capacity four-post lift for heavy-duty fleet service, with 24" wide runways and capacity for vehicles up to a 220" wheelbase. It uses Challenger's proven cable design and a single-point mechanical lock release.

Key specifications

Lifting capacity
18,000 lbs.
Rise height
72"
Rise time
70 s
Overall height
98.625"
Inside columns
128.8125"; between columns 229.125"
Max. wheelbase
220"
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
18,000 lbs.
Overall length
303.375"; overall width 152.125"
Overall height
98.625"
Motor / voltage
208-230v, 60Hz, 1Ph, 23a

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Lifting capacity
18,000 lbs.
Max. wheelbase
220"
Rise height
72"
Overall length
303.375"; overall width 152.125"
Inside columns
128.8125"; between columns 229.125"
Overall height
98.625"
Runways
24" wide, 9.5" high; 40" between runways
Motor / voltage
208-230v, 60Hz, 1Ph, 23a
Rise time
70 s

Additional details

  • Challenger lists this model as ALI® certified

Configure this 4018 18K Heavy-Duty Four-Post Lift

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 4018 18K Heavy-Duty Four-Post Lift

TAG confirms final fit and configuration before purchase.

Optional accessory · 4

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts 32 Gallon Adjustable Oil Drain Pan (10267)

    Adjustable-width oil drain pan kit with 32 gallon capacity. Fits 4P14, 4015, 4018, 4115 and 44018 series lifts.

    Fits this model.

    Full Details

  • Optional accessory

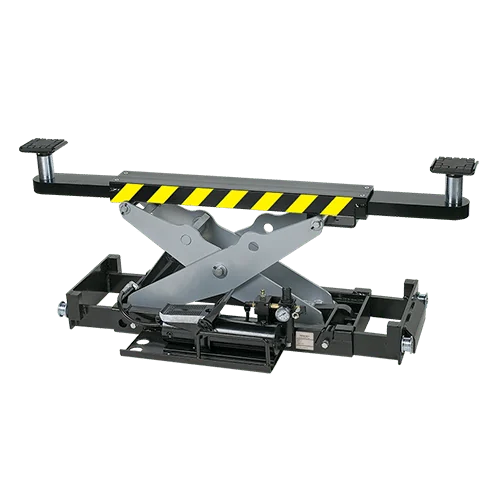

    Challenger Lifts 9K Rolling Jack for 4018 (RJ9-GS)

    Part no. RJ9-GS

    Challenger rolling jacks work with Challenger four-post lifts and remove the need for manual bottle jacks. They roll along the accessory rail and include extendable widths and adapters so technicians can reach vehicle pick-up points.

    Fits this model.

    Full Details

  • Optional accessory

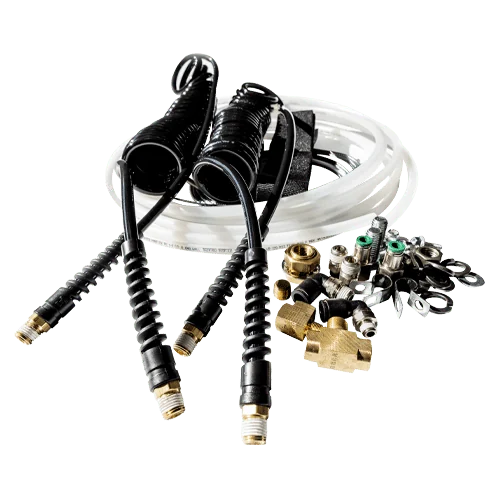

    Challenger Lifts 18K Airline Kit (44AK18)

    Part no. 44AK18

    Challenger airline kit that provides air for two rolling jacks and includes all necessary hardware. Fits all 18K four-post lifts.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
4018 18K Heavy-Duty Four-Post LiftYou are viewing		Challenger Lifts
44018 18K Heavy-Duty Four-Post Lift — General Service / Alignment
Why TAG lists itThis modelChallenger publishes the 44018 as another 18K heavy-duty four-post platform. Compare before choosing.
Lifting capacity18,000 lbs.18,000 lbs.
Max. wheelbase220"194" / 230" / 236"
Rise height72"78.75" (44018, 44018E) / 83.375" (44018AR)
Overall length303.375"; overall width 152.125"259" / 292" / 311.5"
Inside columns128.8125"; between columns 229.125"121" / 121" / 122"; between columns 204" / 240" / 204"
Overall height98.625"102.5"

How TAG can help

Ask TAG about delivery, installation, training and service for this equipment. Your quote will state what is included.

  • Site review

    TAG reviews equipment dimensions, clearances, slab, utilities and site requirements with you.

  • Delivery & installation

    Plan delivery and installation with TAG. Your quote will state what is included.

  • Training

    Ask TAG about training for your team and the equipment you choose.

  • Service & calibration

    Contact TAG to confirm service options for this model in your area.

Next step

Ready to scope this model into your shop?

TAG will confirm configuration, installation requirements, training and service coverage for your facility.

Build My Shop
