Challenger Lifts 44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts

Challenger Lifts

44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts

four-post-lifts

Challenger presents this page as a family of high-capacity four-post truck lifts from 30,000 lb. to 60,000 lb. capacity, covering the 44030, 44040, 44050 and 44060 models in multiple lengths. Diamond-plated anti-skid runways and ramps provide vehicle traction, and the synchro-power system uses dual heavy-duty lift cylinders with lever controls that supply variable or synchronous power to the front and rear of the lift for large axle vehicles with heavier front or rear ends, including waste and construction trucks. TAG will confirm which model in the family fits your vehicles and bay.

Key specifications

Rise height
68" (44030); 73" (40K-60K)
Speed of rise
105 s (44030); 70 s (40K-60K)
Overall width
12' 5.5" (44030); 17' 1.25" (40K-60K)
Width between runways
54" – 75" (44030); 36" – 58" (40K-60K), 43" – 53.5" with jacks
Max. wheelbase
230" (44030); 310" / 370" / 430" (40K-60K models)
Overall length
24' 7.5" (44030); 36' / 41' / 46' (40K-60K)
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Overall length
24' 7.5" (44030); 36' / 41' / 46' (40K-60K)
Overall width
12' 5.5" (44030); 17' 1.25" (40K-60K)
Width between runways
54" – 75" (44030); 36" – 58" (40K-60K), 43" – 53.5" with jacks

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Family members
44030 (30,000 lbs.), 44040/44040E/44040X (40,000 lbs.), 44050/44050E/44050X (50,000 lbs.), 44060/44060E/44060X (60,000 lbs.)
Max. wheelbase
230" (44030); 310" / 370" / 430" (40K-60K models)
Rise height
68" (44030); 73" (40K-60K)
Overall length
24' 7.5" (44030); 36' / 41' / 46' (40K-60K)
Overall width
12' 5.5" (44030); 17' 1.25" (40K-60K)
Runways
24" wide, 9" high (44030); 32" wide, 14" high (40K-60K)
Width between runways
54" – 75" (44030); 36" – 58" (40K-60K), 43" – 53.5" with jacks
Lock positions
10 on 40K-60K models
Motor
3HP 208-230v single phase (44030); 10HP three phase (40K); 15HP three phase (50K, 60K)
Speed of rise
105 s (44030); 70 s (40K-60K)

Additional details

  • Optional 15,000 lb. – 35,000 lb. rolling jacks

Configure this 44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 44030–44060 30K–60K Heavy-Duty Four-Post Truck Lifts

TAG confirms final fit and configuration before purchase.

Optional accessory · 3

  • Optional accessory

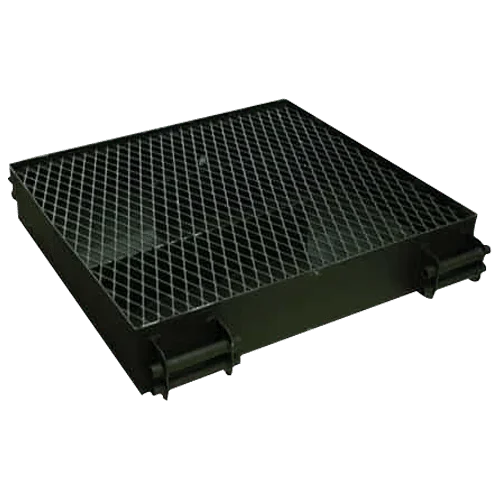

    Challenger Lifts Rolling Oil Drain Pan 18K-30K (WOD-24)

    Rolling oil drain pan for 44018, 4030 and 44030 series lifts.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Rolling Oil Drain Pan 30K-60K (WOD-30)

    Rolling oil drain pan for 44030, 44040, 44050 and 44060 series lifts.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details
My TAG Project (0)

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
44030–44060 30K–60K Heavy-Duty Four-Post Truck LiftsYou are viewing		Challenger Lifts
4030 30K Heavy-Duty Four-Post Lift — General Service / Alignment
Why TAG lists itThis modelChallenger publishes the 4030 as a 30K heavy-duty four-post platform. Compare before choosing.
Max. wheelbase230" (44030); 310" / 370" / 430" (40K-60K models)244.5" / 281" / 317"
Rise height68" (44030); 73" (40K-60K)71.75"
Overall length24' 7.5" (44030); 36' / 41' / 46' (40K-60K)308" / 344" / 380"; overall width 172.75"
Runways24" wide, 9" high (44030); 32" wide, 14" high (40K-60K)24" wide, 8.5" high; 46" – 52" between runways
Motor3HP 208-230v single phase (44030); 10HP three phase (40K); 15HP three phase (50K, 60K)3HP, 208v-230v single phase standard
Speed of rise105 s (44030); 70 s (40K-60K)Challenger lists this value as TBD, so we do not quote a figure
