Challenger Lifts 4115 15K Four-Post Lift / Alignment

Challenger Lifts

4115 15K Four-Post Lift / Alignment

four-post-lifts

Challenger's 4115 Series is a 15,000 lb. four-post lift offered in open- and closed-front configurations with 26" wide runways. Louvered approach ramps prevent wheel spin, 17 locking positions and an enclosed front column and crossbeam design support day-to-day service, and the alignment models add an improved four-wheel alignment wheelbase range compatible with current imaging alignment systems. An optional alignment kit adds rolling jacks, an internal airline system and stainless steel turn plates; a galvanized coating upgrade is available on selected models.

Key specifications

Lifting capacity
15,000 lbs.
Rise height
78"
Rise time
85 s
Between columns
195" – 223.375"
Models
4115EFO / 4115XFO / 4115EFX / 4115XFX / AR4115EAO / AR4115XAO / AR4115EAX / AR4115XAX
Front
Open (FO/AO) or Closed (FX/AX)
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
15,000 lbs.
Overall length
247.625" – 277"; overall width 142"
Air supply required
90-120 psi
Min. recommended bay size
14' x 24' or 14' x 26'

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Models
4115EFO / 4115XFO / 4115EFX / 4115XFX / AR4115EAO / AR4115XAO / AR4115EAX / AR4115XAX
Lifting capacity
15,000 lbs.
Front
Open (FO/AO) or Closed (FX/AX)
Overall length
247.625" – 277"; overall width 142"
Between columns
195" – 223.375"
Runways
26" wide, 7" high; 40.625" between runways
Max. wheelbase
183" (E models) / 210.5" (X models)
Rise height
78"
Max. 2-wheel alignment (AR models)
167.75" / 195.25"; max. 4-wheel alignment 68" – 158"
Air supply required
90-120 psi
Motor
2HP, 208v-230v, 60Hz, 1Ph
Rise time
85 s
Min. recommended bay size
14' x 24' or 14' x 26'

Additional details

  • Challenger lists these models as ALI/ETL certified

Configure this 4115 15K Four-Post Lift / Alignment

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 4115 15K Four-Post Lift / Alignment

TAG confirms final fit and configuration before purchase.

Optional accessory · 4

  • Optional accessory

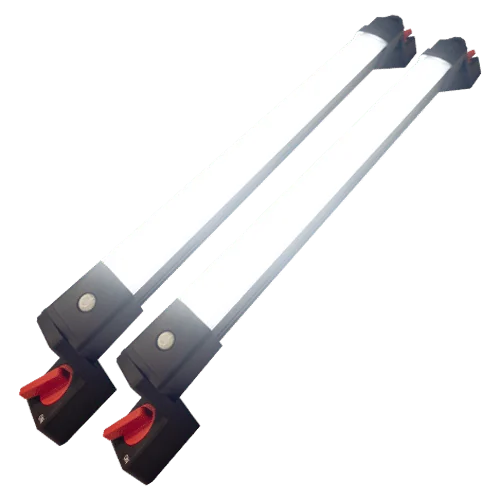

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

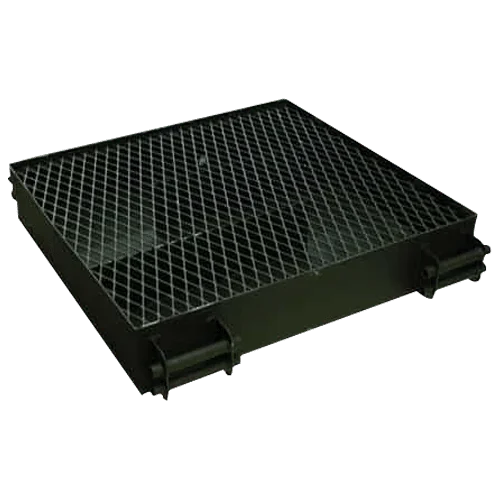

    Challenger Lifts 32 Gallon Adjustable Oil Drain Pan (10267)

    Adjustable-width oil drain pan kit with 32 gallon capacity. Fits 4P14, 4015, 4018, 4115 and 44018 series lifts.

    Fits this model.

    Full Details

  • Optional accessory

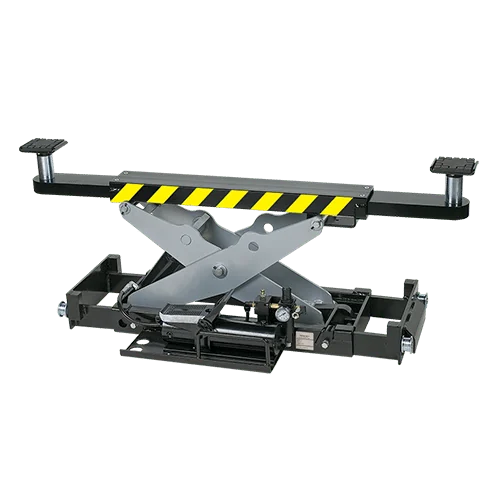

    Challenger Lifts 7.5K Rolling Jack (RJ7.5)

    Part no. RJ7.5

    Challenger rolling jacks work with Challenger four-post lifts and remove the need for manual bottle jacks. They roll along the accessory rail and include extendable widths and adapters so technicians can reach vehicle pick-up points.

    Fits this model.

    Full Details

  • Optional accessory

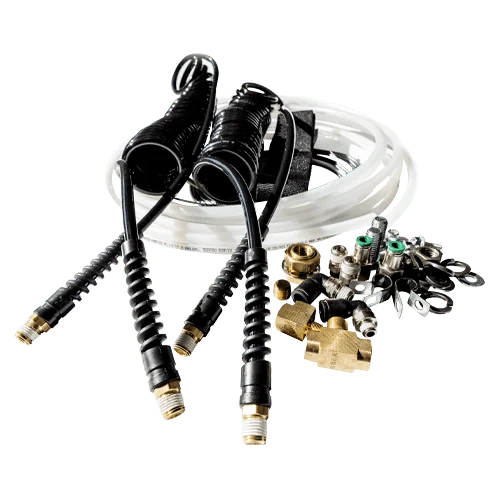

    Challenger Lifts 14K/15K Standard Airline Kit (40230-E)

    Part no. 40230-E

    Challenger airline kit that mounts and secures the airline to the bottom of a four-post lift runway, supplying air for Challenger's optional rolling jacks. One airline kit provides air for two jacks. Fits 4P14 and 4115 Standard Series four-post lifts.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
4115 15K Four-Post Lift / AlignmentYou are viewing		Challenger Lifts
4P14 14K Four-Post General Service Lift / Optional Alignment
Why TAG lists itThis modelChallenger publishes the 4P14 as a 14K general-service four-post lift. Compare before choosing.
Models4115EFO / 4115XFO / 4115EFX / 4115XFX / AR4115EAO / AR4115XAO / AR4115EAX / AR4115XAX4P14EFX / 4P14XFX
Lifting capacity15,000 lbs.14,000 lbs.
FrontOpen (FO/AO) or Closed (FX/AX)Closed
Overall length247.625" – 277"; overall width 142"245.75" / 273.25"
Runways26" wide, 7" high; 40.625" between runways20" wide, 7.25" high; 40" / 43" between runways
Max. wheelbase183" (E models) / 210.5" (X models)182.5" (EFX) / 210" (XFX)
