Challenger Lifts 4030 30K Heavy-Duty Four-Post Lift — General Service / Alignment

Challenger Lifts

4030 30K Heavy-Duty Four-Post Lift — General Service / Alignment

four-post-lifts

Challenger's 4030 Series is a 30,000 lb. capacity four-post lift using a cable-driven lift system with heavy-duty steel sheaves and cables and a single-point air-actuated lock release. It is offered in general service or alignment deck models and three lengths, with adjustable lock ladders for floors that are not perfectly level, recessed turn plate pockets on alignment models, and a built-in runway rail system for options such as rolling jacks and oil drain pans.

Key specifications

Lifting capacity
30,000 lbs.
Rise height
71.75"
Speed of rise
Challenger lists this value as TBD, so we do not quote a figure
Height of columns
92.25"
Inside columns
152"; between columns 246.125" – 318.625"
Models
4030SFX / 4030EFX / 4030XFX (general service) and 4030SAX / 4030EAX / 4030XAX (alignment)
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
30,000 lbs.
Overall length
308" / 344" / 380"; overall width 172.75"
Height of columns
92.25"
Air supply required
90-120 psi
Min. recommended bay size
28'–34' x 17'

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Models
4030SFX / 4030EFX / 4030XFX (general service) and 4030SAX / 4030EAX / 4030XAX (alignment)
Lifting capacity
30,000 lbs.
Max. wheelbase
244.5" / 281" / 317"
Rise height
71.75"
Overall length
308" / 344" / 380"; overall width 172.75"
Inside columns
152"; between columns 246.125" – 318.625"
Height of columns
92.25"
Runways
24" wide, 8.5" high; 46" – 52" between runways
Max. 2-wheel alignment (AX models)
219.5" / 256" / 292"
Air supply required
90-120 psi
Motor
3HP, 208v-230v single phase standard
Min. recommended bay size
28'–34' x 17'
Speed of rise
Challenger lists this value as TBD, so we do not quote a figure

Additional details

  • Challenger lists these models as ALI/ETL certified

Configure this 4030 30K Heavy-Duty Four-Post Lift — General Service / Alignment

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 4030 30K Heavy-Duty Four-Post Lift — General Service / Alignment

TAG confirms final fit and configuration before purchase.

Optional accessory · 4

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

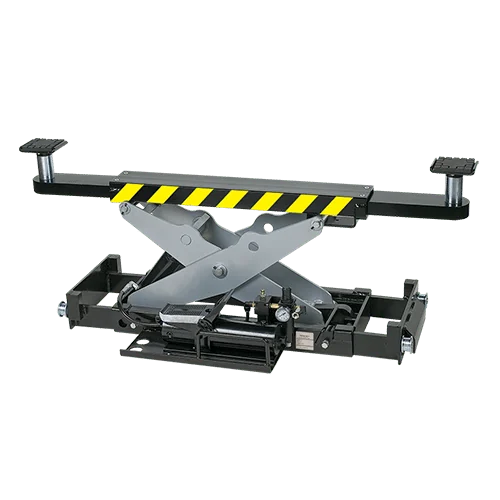

    Challenger Lifts 15K Rolling Jack for 4030 (RJ15)

    Part no. RJ15

    Challenger rolling jacks work with Challenger four-post lifts and remove the need for manual bottle jacks. They roll along the accessory rail and include extendable widths and adapters so technicians can reach vehicle pick-up points.

    Fits this model.

    Full Details

  • Optional accessory

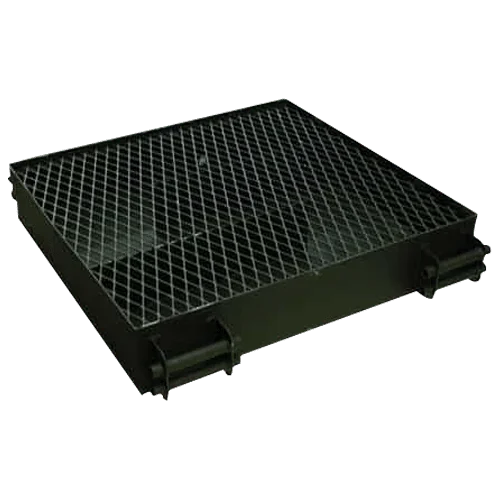

    Challenger Lifts Rolling Oil Drain Pan 18K-30K (WOD-24)

    Rolling oil drain pan for 44018, 4030 and 44030 series lifts.

    Fits this model.

    Full Details

  • Optional accessory

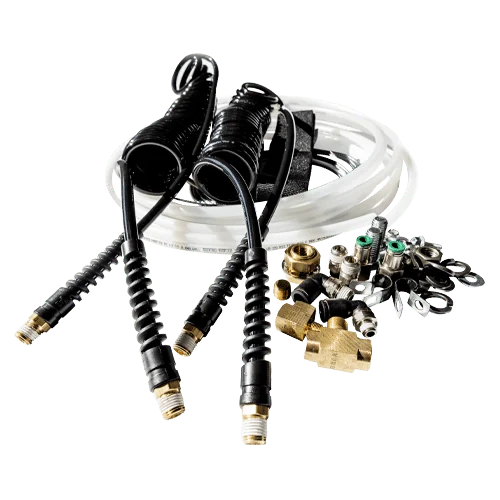

    Challenger Lifts 30K Airline Kit (44AK30)

    Part no. 44AK30

    Challenger airline kit that provides air for two rolling jacks and includes all necessary hardware. Fits all 30K four-post lifts.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
4030 30K Heavy-Duty Four-Post Lift — General Service / AlignmentYou are viewing		Challenger Lifts
44018 18K Heavy-Duty Four-Post Lift — General Service / Alignment
Why TAG lists itThis modelChallenger publishes the 44018 as an 18K heavy-duty four-post platform for lighter fleets.
Models4030SFX / 4030EFX / 4030XFX (general service) and 4030SAX / 4030EAX / 4030XAX (alignment)44018 / 44018E / 44018AR
Lifting capacity30,000 lbs.18,000 lbs.
Max. wheelbase244.5" / 281" / 317"194" / 230" / 236"
Rise height71.75"78.75" (44018, 44018E) / 83.375" (44018AR)
Overall length308" / 344" / 380"; overall width 172.75"259" / 292" / 311.5"
Inside columns152"; between columns 246.125" – 318.625"121" / 121" / 122"; between columns 204" / 240" / 204"
