Robinair 34288NI Economy R-134a Recover, Recycle & Recharge Machine

Robinair

34288NI Economy R-134a Recover, Recycle & Recharge Machine

A/C Recovery & Recycling

The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount.

Key specifications

Filter Capacity
68 kg (150 lb)
Oil Drain Bottle Capacity
355 ml (12 oz)
Dimensions
107 cm x 61 cm x 76 cm
Display
5 × 9 cm (4.3-in. diag) graphical LCD
Humidity
32.2°C (90°F), 80% RH non-condensing
Gauges
Ø 80 mm (3.15 in.)
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Dimensions
107 cm x 61 cm x 76 cm
Filter Capacity
68 kg (150 lb)
Maximum Pressure
27.3 bar (396 PSI)
Operating Voltage
115V, 60 Hz
Oil Drain Bottle Capacity
355 ml (12 oz)
Weight
73 kg (161 lb)

What TAG confirms with you

  • Vehicles and systems you service with this equipment
  • Power available where the unit will be used or stored
  • Fluid handling, storage and disposal already in place
  • Whether the unit needs to move between bays
  • Technician training and certification you want included
Ask TAG about this model

Refrigerant Performance

Dimensions
107 cm x 61 cm x 76 cm
Display
5 × 9 cm (4.3-in. diag) graphical LCD
Filter Capacity
68 kg (150 lb)
Humidity
32.2°C (90°F), 80% RH non-condensing
Gauges
Ø 80 mm (3.15 in.)
Maximum Pressure
27.3 bar (396 PSI)
Noise
<70 dB(A)
Operating Voltage
115V, 60 Hz
Oil Drain Bottle Capacity
355 ml (12 oz)
Operating Temperature
10°C to 50°C (50°F to 122°F)
Vacuum Pump
1.5 CFM (42 L/m) @ 60 Hz
Service Hoses
2.75 m (9 ft) / SAE J2196
Internal cylinder
30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Weight
73 kg (161 lb)
Model Number
34288NI
Warranty
One Year

Configure this 34288NI Economy R-134a Recover, Recycle & Recharge Machine

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 34288NI Economy R-134a Recover, Recycle & Recharge Machine

TAG confirms final fit and configuration before purchase.

Optional accessory · 9

  • Optional accessory

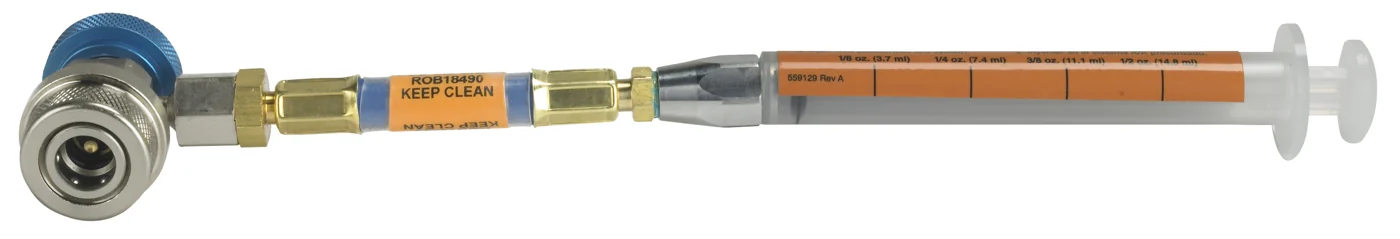

    Robinair 18490 POE Oil Injector, R-134a

    Part no. 18490

    Includes low side manual quick coupler to connect to the vehicle's A/C system. Use this syringe-type injector to add PAG type lubricant oil to a fully pressurized A/C system. Just fill the barrel with the amount of oil needed, connect the injector, and press the plunger.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13172 Maintenance Kit

    Part no. 13172

    Keep recovery and recycling units operating at peak efficiency with a convenient maintenance kit. Contains one quick change filter-drier to be used on both R-12 and R-134a stations, and one 16 ounce bottle of our Premium High Vacuum Pump Oil. For models:

    Fits this model.

    Full Details

  • Optional accessory

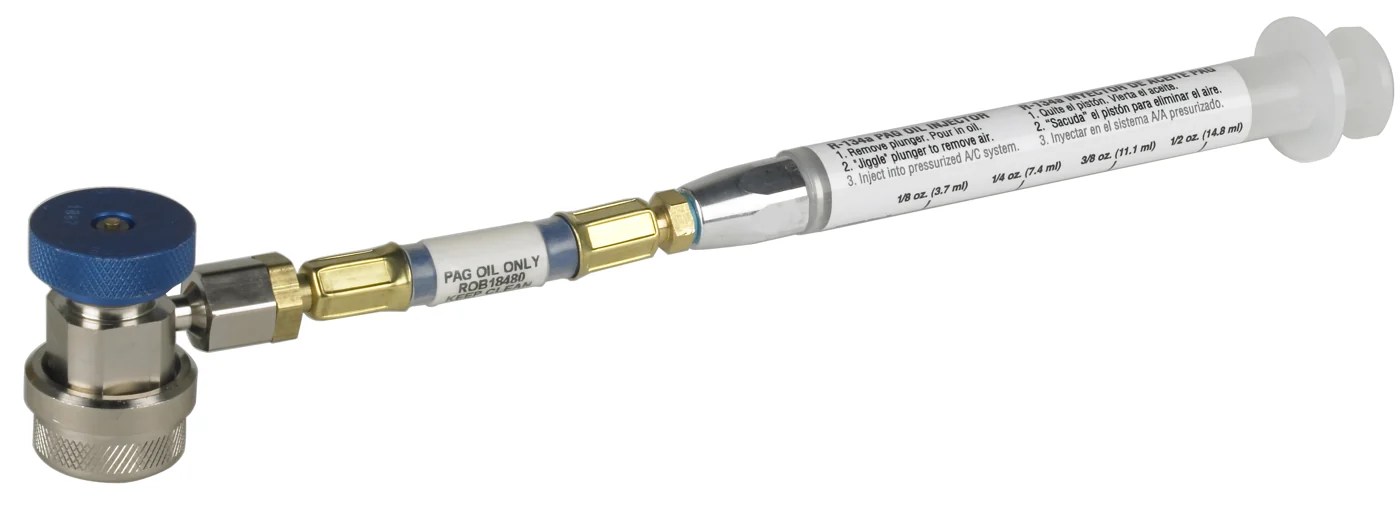

    Robinair 18480 PAG Oil Injector, R-134a

    Part no. 18480

    Includes low side manual quick coupler to connect to the vehicle's A/C system. Use this syringe-type injector to add PAG type lubricant oil to a fully pressurized A/C system. Just fill the barrel with the amount of oil needed, connect the injector, and press the plunger.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 30038 Add-On Printer

    Part no. 30038

    Add-on printer that can be user installed on most Robinair A/C Recover, Recycle and Recharge machines, including those listed below. Installation instructions included. Paper Sold Separately, see part #34214.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 17499 Dust Cover for A/C RRR Machines

    Part no. 17499

    Fits AC1234-4, AC1234-4-230, AC1234-6, AC1234-9, 34288NI, 34288NI-230, 34788NI, 34788NI-230, 34788NI-H, 34988NI, 34988NI-230, and 34998 models

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13119 Premium High Vacuum Pump Oil, Pint (Case of 12)

    Part no. 13119

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 34724 Recycling Filter-Driers

    Part no. 34724

    Specially blended for maximum acid and moisture removal. Spin-on filter for models:

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13204 Premium High Vacuum Pump Oil, Gallon (Case of 4)

    Part no. 13204

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13203 Premium High Vacuum Pump Oil, Quart (Case of 12)

    Part no. 13203

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details
