Robinair 34788NI Premier R-134a Recover, Recycle & Recharge Machine

Robinair

34788NI Premier R-134a Recover, Recycle & Recharge Machine

A/C Recovery & Recycling

Robinair introduces its next innovation, the 34788NI, featuring an industry leading 98.5% recovery efficiency for standard and hybrid vehicles and fully automatic function.

Key specifications

Recovery Performance
>95% at 70 to 75° F (21 to 24°C) <30 minutes
Charge Performance
+/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Filter-Drier Capacity
150 lb (68kg), spin-on type
Operating Range
32° - 120°F (0°-50°C)
Voltage
125 VAC 60 Hz
Display
5 cm x 9 cm graphical display
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Voltage
125 VAC 60 Hz
Filter-Drier Capacity
150 lb (68kg), spin-on type
Weight
Approximately 230 lbs. (103 kg)
Dimensions(HxWxD)
48.5 in x 24 x 36 (123 cm x 61 cm x 91 cm)

What TAG confirms with you

  • Vehicles and systems you service with this equipment
  • Power available where the unit will be used or stored
  • Fluid handling, storage and disposal already in place
  • Whether the unit needs to move between bays
  • Technician training and certification you want included
Ask TAG about this model

Refrigerant Performance

Operating Range
32° - 120°F (0°-50°C)
Recovery Performance
>95% at 70 to 75° F (21 to 24°C) <30 minutes
Voltage
125 VAC 60 Hz
Charge Performance
+/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Display
5 cm x 9 cm graphical display
Filter-Drier Capacity
150 lb (68kg), spin-on type
Hoses
9 ft (2.75 m)
Weight
Approximately 230 lbs. (103 kg)
Compressor
3/8 hp, pressure protected, oiled, hermetically sealed
Dimensions(HxWxD)
48.5 in x 24 x 36 (123 cm x 61 cm x 91 cm)
Vacuum Pump
1.5 cfm Dual Stage, 29.9 InHg
Languages
English, French, Spanish, Portuguese
Internal cylinder
30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Certifications
SAE J2788
Warranty
One Year

Configure this 34788NI Premier R-134a Recover, Recycle & Recharge Machine

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 34788NI Premier R-134a Recover, Recycle & Recharge Machine

TAG confirms final fit and configuration before purchase.

Optional accessory · 7

  • Optional accessory

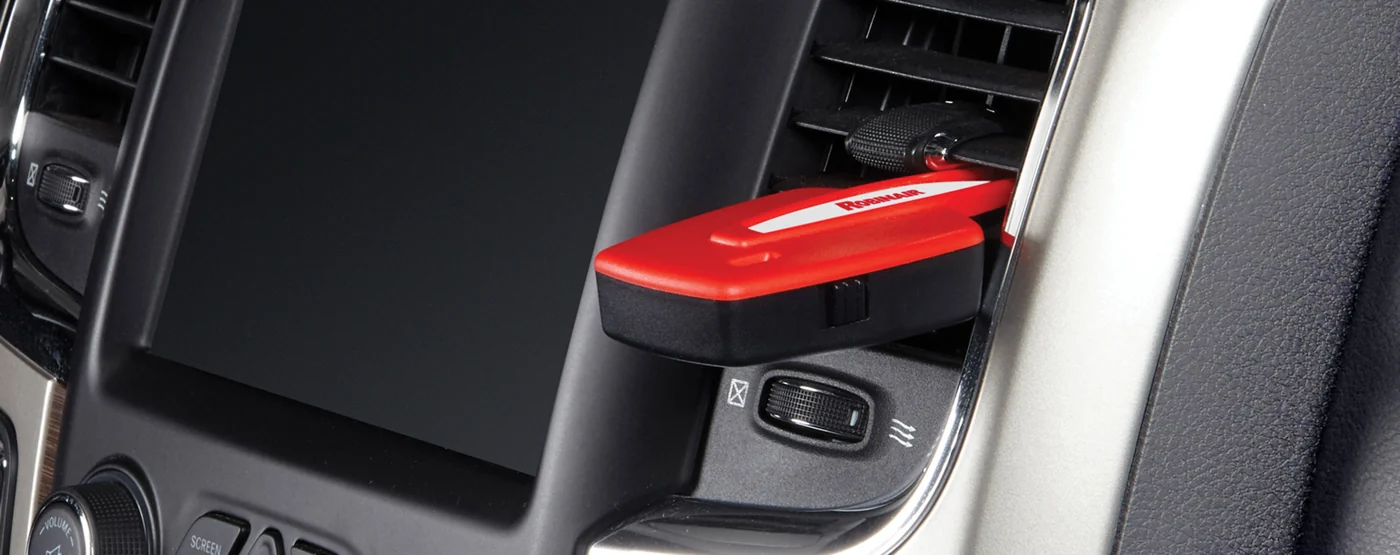

    Robinair 80211TMP Wi-Fi / Temperature Probes Master Kit

    Part no. 80211TMP

    With a wireless connection, read and track temperature from multiple vehicle locations from your A/C machine. The 2-probe kit can be used to compare internal cabin vent temperatures across multiple vents or from vents and outside temperature. Before and after temperatures can be included in service reports to verify and confirm service for customers.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 30038 Add-On Printer

    Part no. 30038

    Add-on printer that can be user installed on most Robinair A/C Recover, Recycle and Recharge machines, including those listed below. Installation instructions included. Paper Sold Separately, see part #34214.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13172 Maintenance Kit

    Part no. 13172

    Keep recovery and recycling units operating at peak efficiency with a convenient maintenance kit. Contains one quick change filter-drier to be used on both R-12 and R-134a stations, and one 16 ounce bottle of our Premium High Vacuum Pump Oil. For models:

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 17499 Dust Cover for A/C RRR Machines

    Part no. 17499

    Fits AC1234-4, AC1234-4-230, AC1234-6, AC1234-9, 34288NI, 34288NI-230, 34788NI, 34788NI-230, 34788NI-H, 34988NI, 34988NI-230, and 34998 models

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 34724 Recycling Filter-Driers

    Part no. 34724

    Specially blended for maximum acid and moisture removal. Spin-on filter for models:

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13203 Premium High Vacuum Pump Oil, Quart (Case of 12)

    Part no. 13203

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13119 Premium High Vacuum Pump Oil, Pint (Case of 12)

    Part no. 13119

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details
