Robinair 17800C Multi-Refrigerant Recover, Recycle & Recharge Machine

Robinair

17800C Multi-Refrigerant Recover, Recycle & Recharge Machine

A/C Recovery & Recycling

The Robinair 17800C can recover, recycle, evacuate and recharge multiple refrigerants, all in one fast and continuous operation through one hook-up. It's ideal for mass transit vehicles, buses, refrigerated trailers or containers and other applications that use refrigerants other than R-134a and not typically found in mobile vehicle applications.

Key specifications

Recovery Rate
Vapor, 0.5 lbs./min and Liquid 1 lbs./min
Voltage
115VAC, 60Hz
Operating Temp Range
50 to 105° F (11 to 41° C)
Vacuum Pump
5.0 cfm at 60 Hz
Hose length
18 ft. (5.5 m)
Recycling filter
300 lbs. refrigerant capacity
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Voltage
115VAC, 60Hz
Dimensions
47” H x 26” W x 30” D
Weight
280 lbs. (without tank)

What TAG confirms with you

  • Vehicles and systems you service with this equipment
  • Power available where the unit will be used or stored
  • Fluid handling, storage and disposal already in place
  • Whether the unit needs to move between bays
  • Technician training and certification you want included
Ask TAG about this model

Refrigerant Performance

Voltage
115VAC, 60Hz
Operating Temp Range
50 to 105° F (11 to 41° C)
Recovery Rate
Vapor, 0.5 lbs./min and Liquid 1 lbs./min
Vacuum Pump
5.0 cfm at 60 Hz
Hose length
18 ft. (5.5 m)
Recycling filter
300 lbs. refrigerant capacity
Dimensions
47” H x 26” W x 30” D
Weight
280 lbs. (without tank)
Certification
UL 1963, UL STANDARD FOR SAFETY REFRIGERANT RECOVERY/RECYCLING EQUIPMENT
External cylinder
50 lb generic recovery tank (22.68 kg); 40 lb capacity
Warranty
One Year

Configure this 17800C Multi-Refrigerant Recover, Recycle & Recharge Machine

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for 17800C Multi-Refrigerant Recover, Recycle & Recharge Machine

TAG confirms final fit and configuration before purchase.

Optional accessory · 7

  • Optional accessory

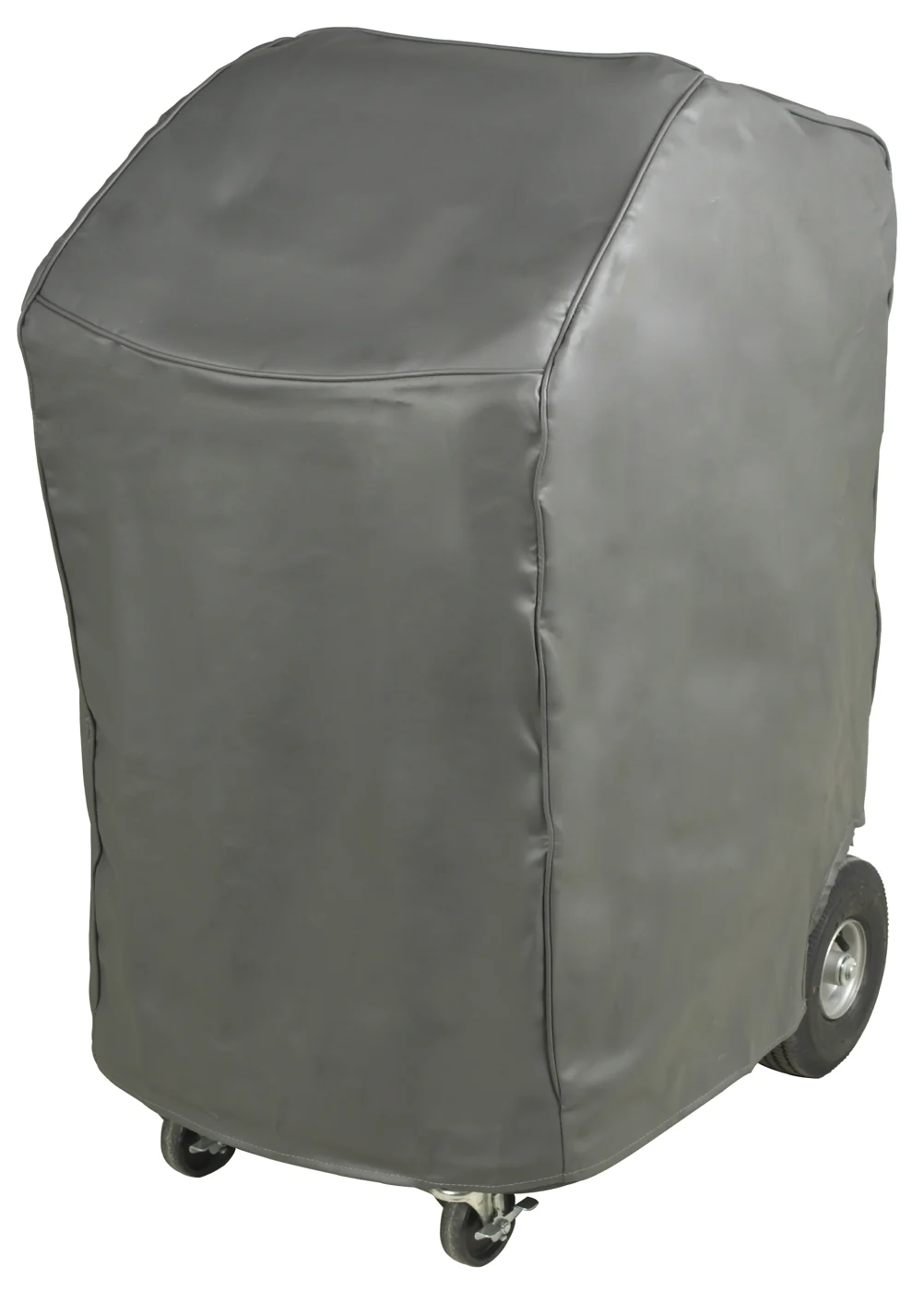

    Robinair 17490 Heavy-Duty Vinyl Dust Cover

    Part no. 17490

    Protect your investment with a heavy-duty vinyl dust cover. Features corded seams for durability. Medium gray color.

    Fits this model.

    Full Details

  • Optional accessory

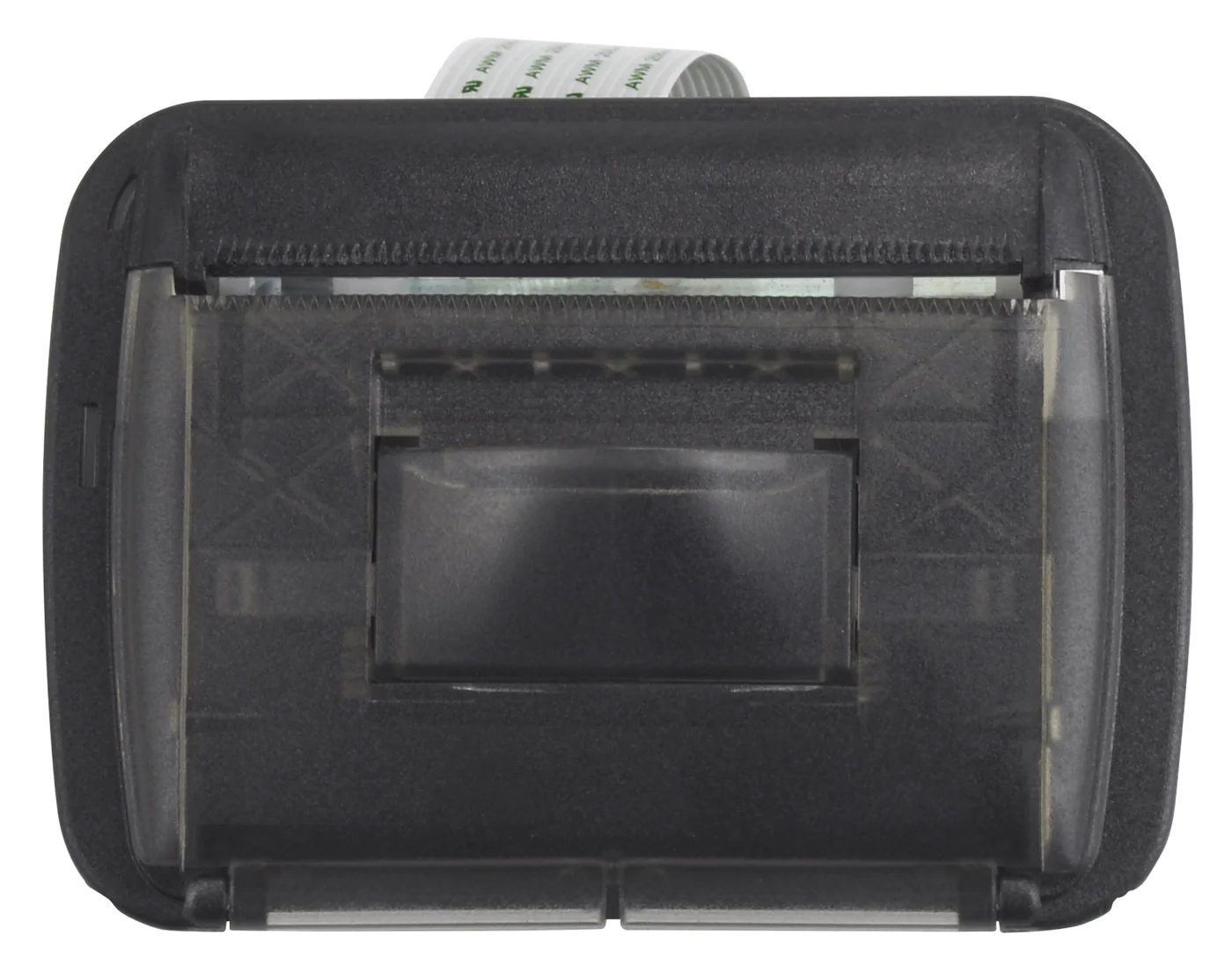

    Robinair 30038 Add-On Printer

    Part no. 30038

    Add-on printer that can be user installed on most Robinair A/C Recover, Recycle and Recharge machines, including those listed below. Installation instructions included. Paper Sold Separately, see part #34214.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 17506 50 lb (32 kg) Refillable Tank

    Part no. 17506

    50 lb. tank, 1/4" fittings (17800C, 17800A,17800-2K, 17700A, 25150, 25175, 25200B series).

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13119 Premium High Vacuum Pump Oil, Pint (Case of 12)

    Part no. 13119

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 13203 Premium High Vacuum Pump Oil, Quart (Case of 12)

    Part no. 13203

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details

  • Optional accessory

    Robinair 19776 Replacement Filter-Drier for 17800B / 17800C

    Part no. 19776

    Recycling filter-drier. Replacement filter-drier for: • 17800B

    Fits this model.

    Full Details

  • Optional accessory

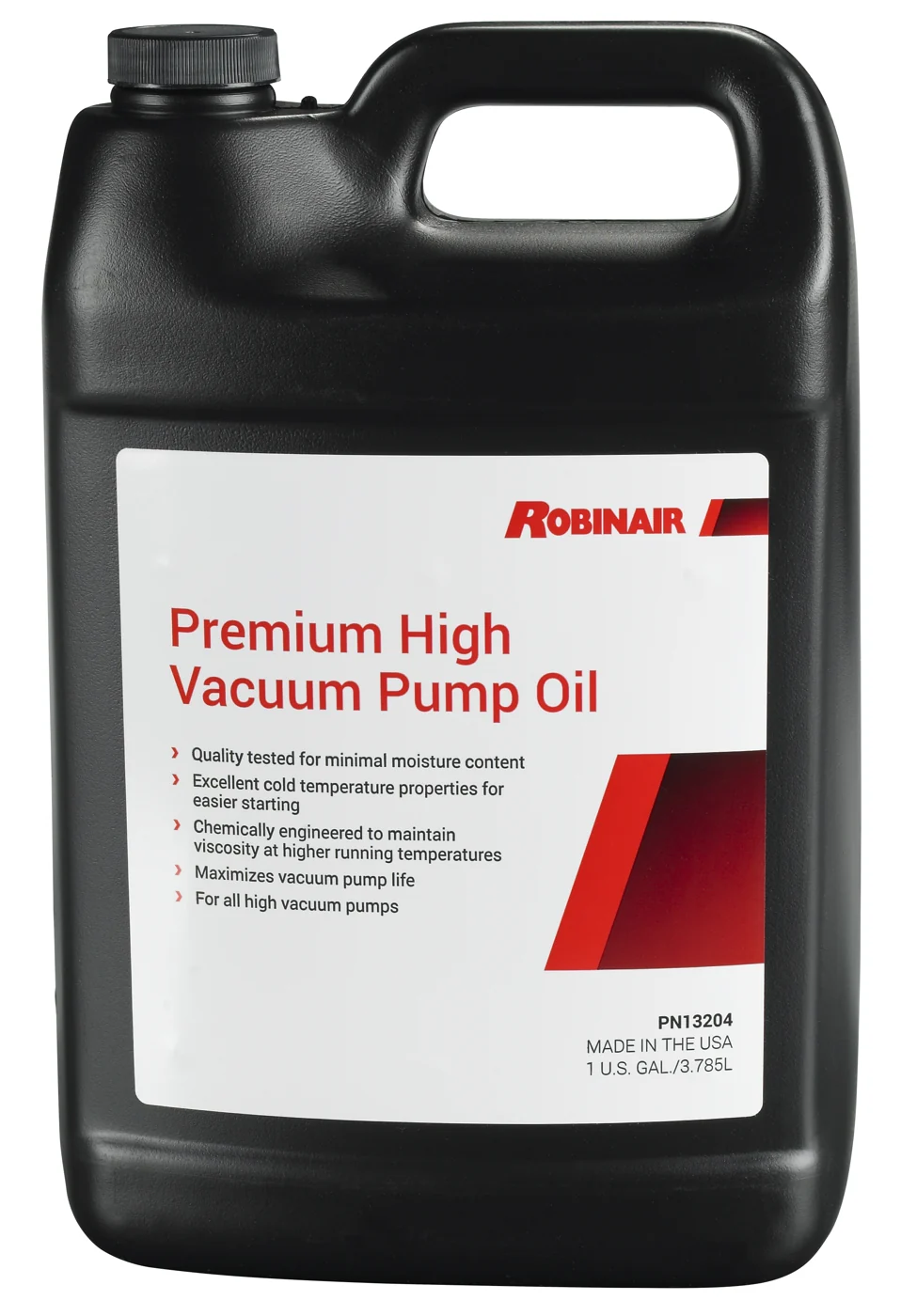

    Robinair 13204 Premium High Vacuum Pump Oil, Gallon (Case of 4)

    Part no. 13204

    Robinair's oil is engineered to maintain maximum viscosity at high running temperatures and to improve cold weather starts. Laboratory tests prove that Robinair oil is more thermally stable in comparison to other leading brands, which means it resists breaking down due to heat for a longer period of time.

    Fits this model.

    Full Details
