Pro Spot
VAC-U-PULL Dent Pulling Tower (Product Family: VAC-U-PULL-L, VAC-U-PULL-XL, VAC-U-PULL-XL-LB)
Dent Pulling Systems & Towers
VAC-U-PULL is a mobile dent pulling tower with a vacuum system that seals to the floor, so the tower is secured without hooks, straps or anchors. It comes in VAC-U-PULL-L, VAC-U-PULL-XL and VAC-U-PULL-XL-LB configurations, with an optional Lever Bar Kit and anchor plate for the XL and an extension kit for the L. This listing covers the family rather than one model.
Model
Choose a model to add this product to your project.
- Pulling force
- 500 lb (220 kg)
- Air pressure
- 60 PSI
- Operating height
- 3.5-54 in
- Weight
- 56 lb (25.4 kg)
Key specifications
- VAC-U-PULL-XL weight
- 61 lb (27.7 kg)
- VAC-U-PULL-L weight
- 56 lb (25.4 kg)
- VAC-U-PULL-XL dimensions
- 73 H x 19 W x 32 D in (185.4 x 48.2 x 81.2 cm)
- VAC-U-PULL-L dimensions
- 56.5 H x 16 W x 28 D in (143.5 x 40.6 x 71 cm)
- VAC-U-PULL-XL maximum pulling force
- 550 lb (249 kg)
- VAC-U-PULL-XL air pressure
- 75 PSI
Choose a model above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- VAC-U-PULL-XL air pressure
- 75 PSI
- VAC-U-PULL-XL dimensions
- 73 H x 19 W x 32 D in (185.4 x 48.2 x 81.2 cm)
- VAC-U-PULL-XL weight
- 61 lb (27.7 kg)
- VAC-U-PULL-L air pressure
- 60 PSI
- VAC-U-PULL-L dimensions
- 56.5 H x 16 W x 28 D in (143.5 x 40.6 x 71 cm)
- VAC-U-PULL-L weight
- 56 lb (25.4 kg)
What TAG confirms with you
- Bay dimensions, ceiling height and working clearances
- Floor slab thickness, condition and anchoring
- Electrical service, air supply and any drainage needed
- Vehicle mix, throughput and how the bay is used day to day
- Delivery access, rigging and installation scope
Two pulling forces
VAC-U-PULL-L is rated at 500 lb (220 kg); VAC-U-PULL-XL is rated at 550 lb (249 kg).
Shop air powered
air pressure is 60 PSI on the L and 75 PSI on the XL.
Operating height
3.5-54 in on the L and 3.5-65 in on the XL.
System Specifications
VAC-U-PULL-L: 500 lb (220 kg) maximum pulling force; 60 PSI air pressure; 3.5-54 in (8.9-137 cm) operating height; 56.5 H x 16 W x 28 D in; 56 lb (25.4 kg).
| Configuration | Pulling force | Air pressure | Operating height | Weight |
|---|---|---|---|---|
| VAC-U-PULL-L | 500 lb (220 kg) | 60 PSI | 3.5-54 in | 56 lb (25.4 kg) |
| VAC-U-PULL-XL | 550 lb (249 kg) | 75 PSI | 3.5-65 in | 61 lb (27.7 kg) |
- 550 lb (249 kg)
- 75 PSI
- 3.5-65 in (89 mm-165 cm)
- 73 H x 19 W x 32 D in (185.4 x 48.2 x 81.2 cm)
- 61 lb (27.7 kg)
- 500 lb (220 kg)
- 60 PSI
- 3.5-54 in (8.9-137 cm)
- 56.5 H x 16 W x 28 D in (143.5 x 40.6 x 71 cm)
- 56 lb (25.4 kg)
Configure this VAC-U-PULL Dent Pulling Tower (Product Family: VAC-U-PULL-L, VAC-U-PULL-XL, VAC-U-PULL-XL-LB)
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for VAC-U-PULL Dent Pulling Tower (Product Family: VAC-U-PULL-L, VAC-U-PULL-XL, VAC-U-PULL-XL-LB)
Optional accessory · 9
Optional accessory
Pro Spot VAC-LB-RK Lever Bar Kit
Part no. VAC-LB-RK
Optional accessory
Pro Spot VAC-EXT Vac-U-Pull Extension Kit
Part no. VAC-EXT
Optional accessory

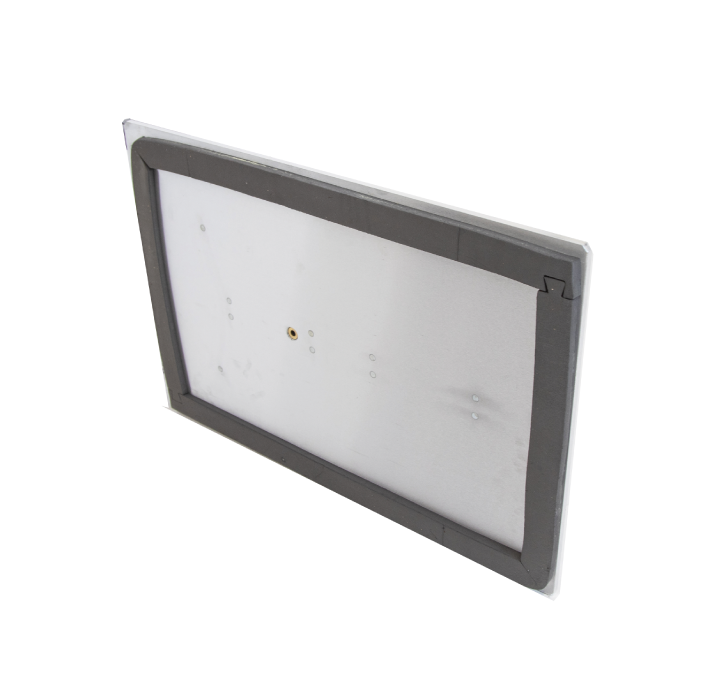

Pro Spot Floor gasket seal for VAC-U-PULL (56" tall)
Part no. 84-0501
Optional accessory
Pro Spot Muffler for SA-0148: Vacuum Ejector Venturi
Part no. 51-0183
Optional accessory

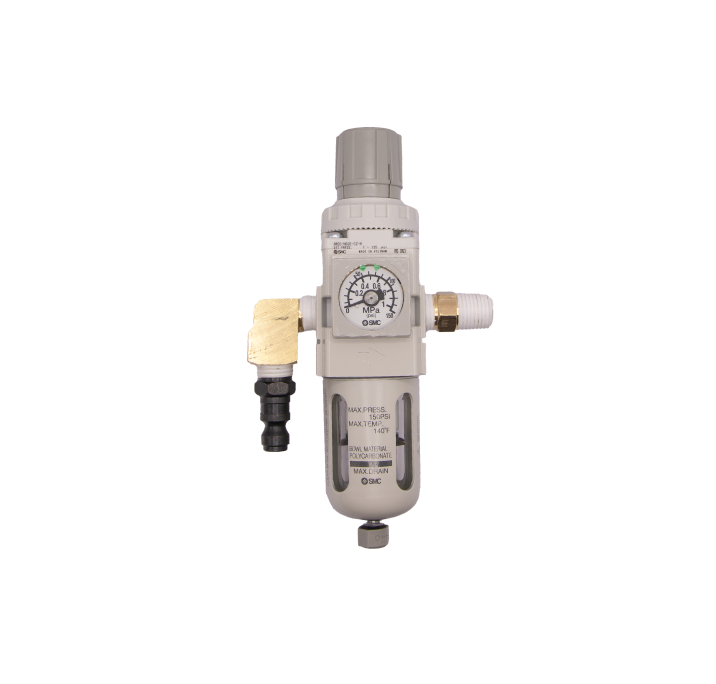

Pro Spot Air Regulator for VAC-U-PULL-XL
Part no. SA-0813
Optional accessory

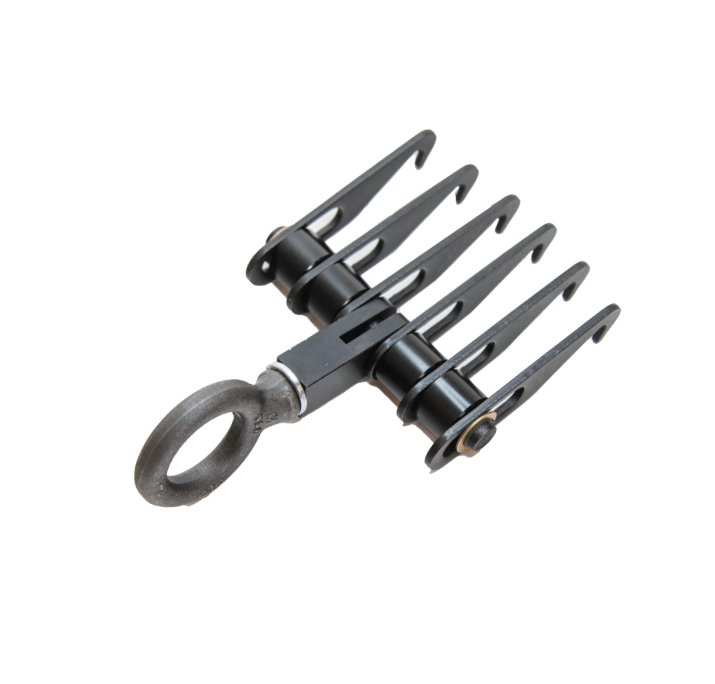

Pro Spot 6 Hook Claw
Part no. SA-0812
Optional accessory

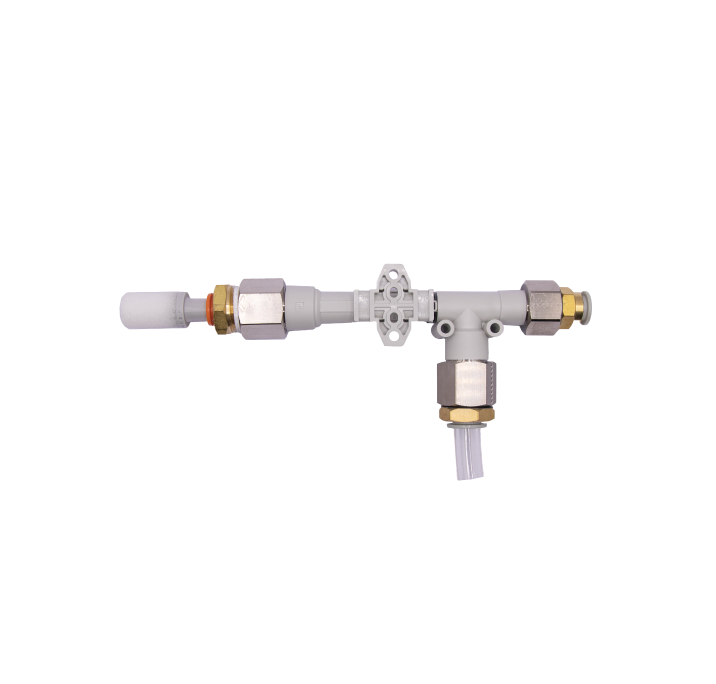

Pro Spot Vacuum Ejector Venturi Muffler
Part no. SA-0148
Optional accessory
Pro Spot Floor gasket seal for VAC-U-PULL XL (73" tall)
Part no. 90-2526
Optional accessory

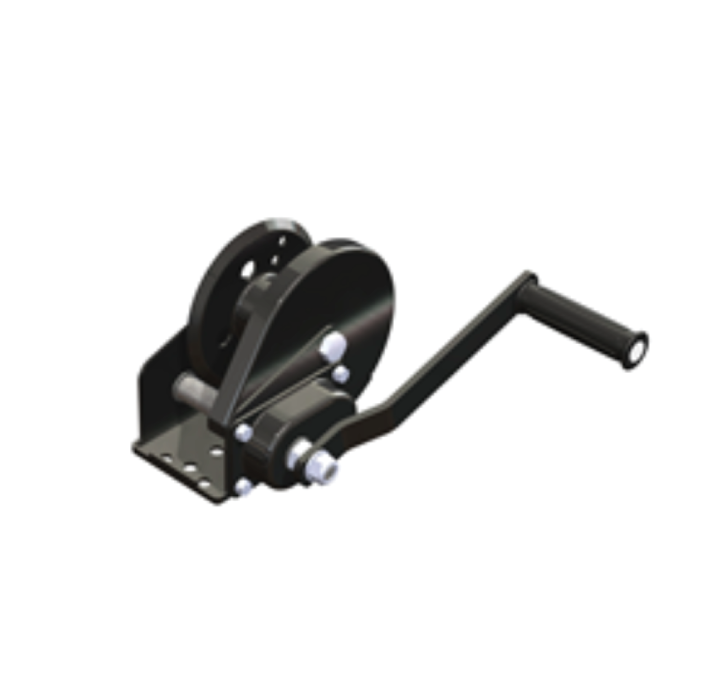

Pro Spot : Hand Winch w/Belt Black 19mm Hook for VAC-U-PULL-XL
Part no. 82-0300
Compatible consumables
Floor gasket seal for VAC-U-PULL (56" tall)
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
Muffler for SA-0148: Vacuum Ejector Venturi
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
Air Regulator for VAC-U-PULL-XL
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
6 Hook Claw
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
Vacuum Ejector Venturi Muffler
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
Floor gasket seal for VAC-U-PULL XL (73" tall)
Steel & Single-Sided Dent Repair · VAC-U-PULL-XL Components
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Pro Spot MWS-GTK-AL-ST Aluminum, Steel and Glue Dent Repair Station
Pro Spot
Dent Pulling Systems & Towers

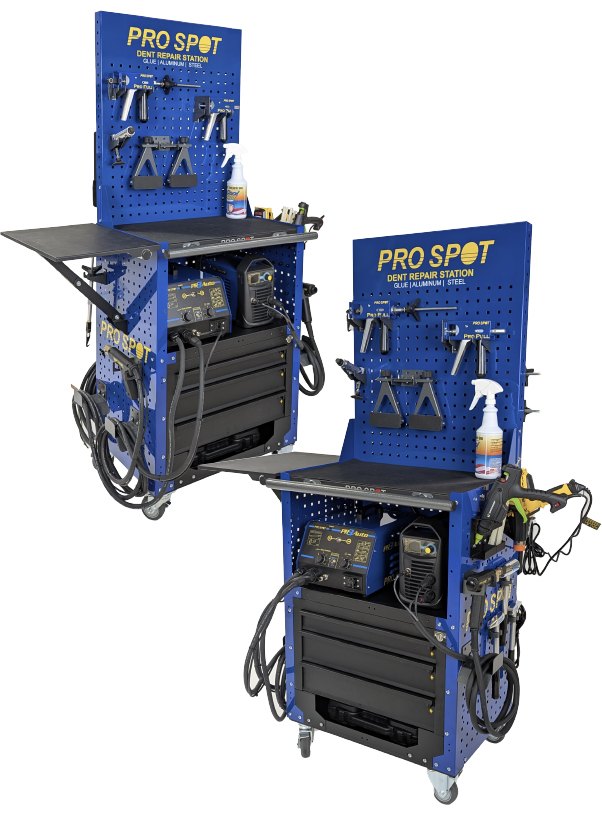

MWS-GTK-AL-ST Aluminum, Steel and Glue Dent Repair Station
Pro Spot publishes the MWS-GTK-AL-ST station for aluminum, steel and glue dent work in the same area.
Ways to Expand the Workflow
Equipment to review when expanding this workflow.
- View details for Pro Spot PR-3 Multi Task Automatic Steel Dent Repair System
Pro Spot
Steel Dent Repair
PR-3 Multi Task Automatic Steel Dent Repair System
Pro Spot publishes the PR-3 automatic steel dent repair system for steel panel work.
