PR-3 Multi Task Automatic Steel Dent Repair System
Steel Dent Repair
The PR-3 is a versatile resistance welder for light welding and dent pulling: shrinking, single-sided spot welding, attaching threaded studs, nuts and windshield mounting clip rivets, and patchwork welding. The PR-3 Auto senses when a weld tip or pull key makes contact and welds automatically after a short delay, and it uses minimal heat compared with other welding methods, so there is less cleanup afterward.
Key specifications
- Input
- 1 phase; 208-230V; 24A
- Input cable
- 30 ft (9 m)
- Output amperage
- 2,000A max at tips
- Weight
- 80 lb (36 kg)
- Dimensions
- 18 x 14 x 12 in (458 x 356 x 305 mm)
- Welding cable
- 8 ft (2.5 m)
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Output amperage
- 2,000A max at tips
- Weight
- 80 lb (36 kg)
- Dimensions
- 18 x 14 x 12 in (458 x 356 x 305 mm)
What TAG confirms with you
- Tools and machines that will run on the system, and how many at once
- Electrical service available at the compressor location
- Air quality needed downstream — drying, filtration or paint-grade air
- Existing piping, tank and drain arrangements you want to keep
- Where the equipment can sit for noise, heat and service access
System Specifications
- 1 phase; 208-230V; 24A
- 30 ft (9 m)
- 2,000A max at tips
- 8 ft (2.5 m)
- 80 lb (36 kg)
- 18 x 14 x 12 in (458 x 356 x 305 mm)
What ships with it
The sheet footnotes that the PR-2B cart is included with specific configurations only. SA-0199 ships as a complete accessory kit; the sheet's SA-0199 contents matrix is not re-keyed as separate shipped items.
- Supplied components
- 6
- Listed as optional
- 8
Included components (6 items)
- PR-3 Auto1 ea.
- PR-3 GunPart no. SA-01551 ea.
- PR-3 Cart Kit (included with specific configurations)Part no. PR-2B1 ea.
- Accessories kitPart no. SA-01991 ea.
- ManualPart no. MNL-PR-31 ea.
- Spot HammerPart no. CLP-701 ea.
Listed as optional
- Pull Bar - QuadrupedalPart no. PB-10
- Pull Bar, BipedalPart no. PB-11
- Pivot PullerPart no. PB-20
- Pull GunPart no. PRO-65
- Dent Puller, SteelPart no. PRO-66
- Lever BarPart no. CLP-73
- Weld On ShaftPart no. CLP-110
- T-dent Auto Weld Key Handle (11' Cable)Part no. SA-0154
Shipping data
- Shipping dimensions, with cart (2 boxes)
- 23" x 15" x 7" (cart) and 24" x 15" x 14" (PR-3)
- Shipping weight, with cart
- 22 lbs / 10 kg (cart) and 87 lbs / 39 kg (PR-3)
- Shipping dimensions, without cart (1 box)
- 24" x 15" x 14"
- Shipping weight, without cart
- 87 lbs / 39 kg
Configure this PR-3 Multi Task Automatic Steel Dent Repair System
Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PR-3 Multi Task Automatic Steel Dent Repair System
18 of 18 shown
Optional accessory · 18
Optional accessory
Pro Spot SA-0154 T-Dent Auto Weld Key Handle, 11 ft Cable
Part no. SA-0154
Optional accessory
Pro Spot PB-LITE Pull Bar System
Part no. PB-LITE
Optional accessory
Pro Spot Spot Hammer Assembly
Part no. CLP-70
Optional accessory
Pro Spot CLP-80 Lever Bar with 4-Hook and Single Hook
Part no. CLP-80
Optional accessory
Pro Spot PB-11 Pull Bar, Two-Footed
Part no. PB-11
Optional accessory
Pro Spot Pro-65 Pull Gun
Part no. Pro-65
Compatible consumables
Nail 2.5x50mm (pk. 50)
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack
Weld-On Pull Tab
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack
Moulding Clip Rivet 3x3.2 (pk.100)
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 100 pack

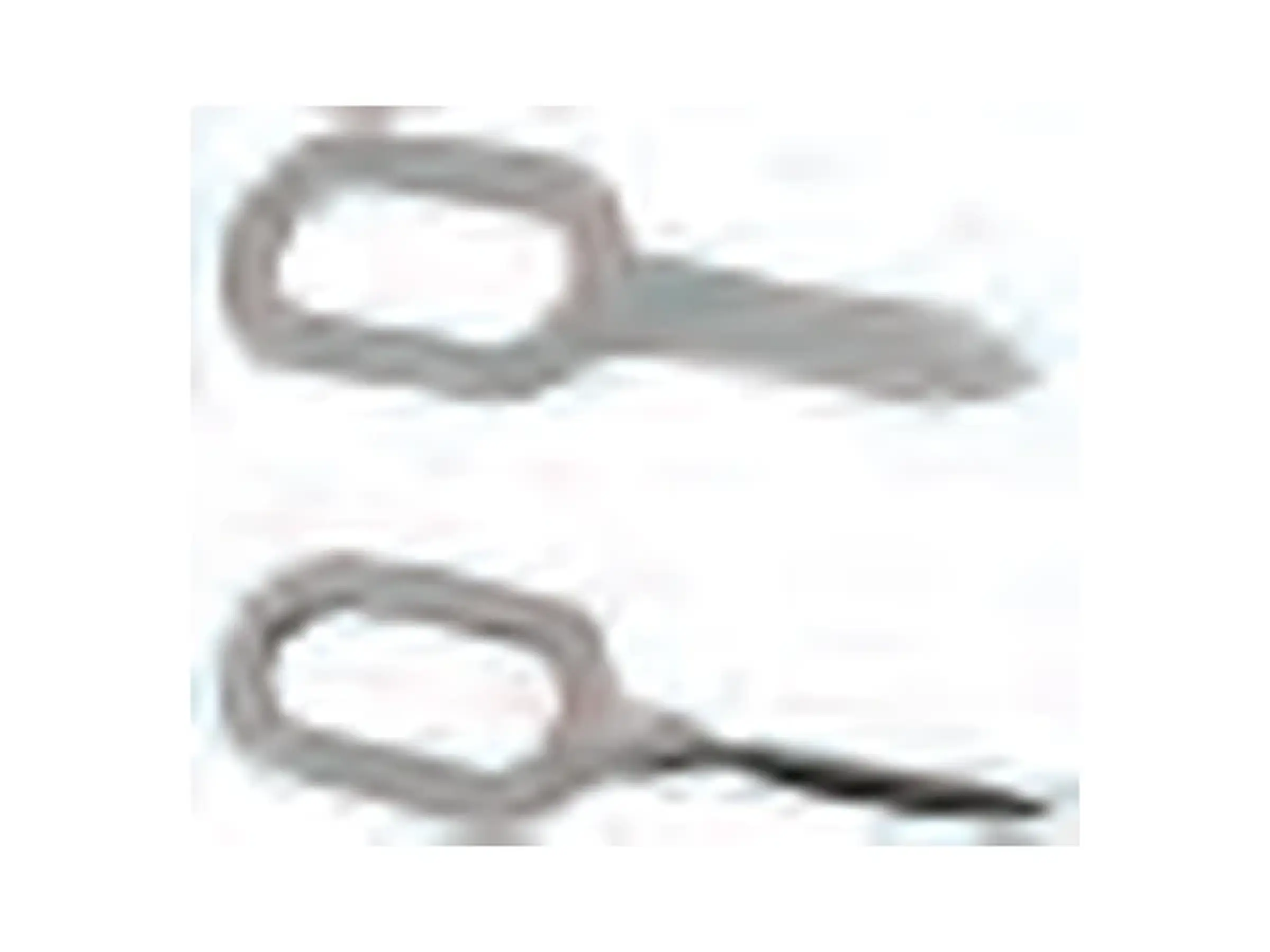

Twisted Weld-On Pull Tab
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack

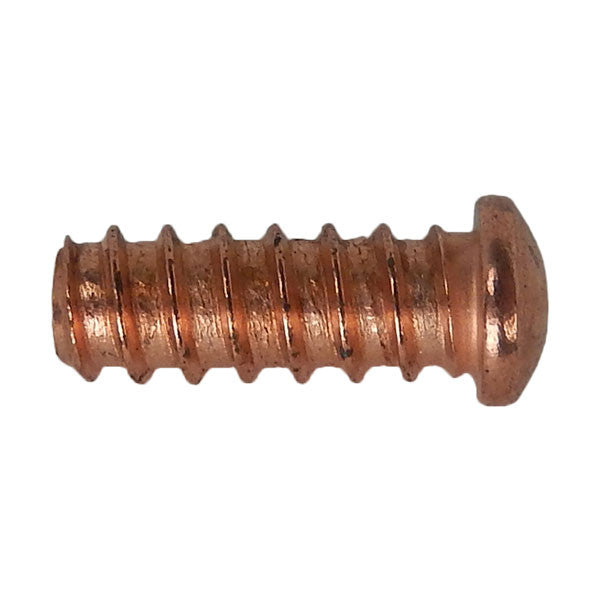

Weld-On Bolt - M5x12 (pk. 50)
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack
Weld-On Nut (pk. 20)
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 20 pack
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Pro Spot MWS-ST Steel Dent Pulling Station
Pro Spot
Steel Dent Repair

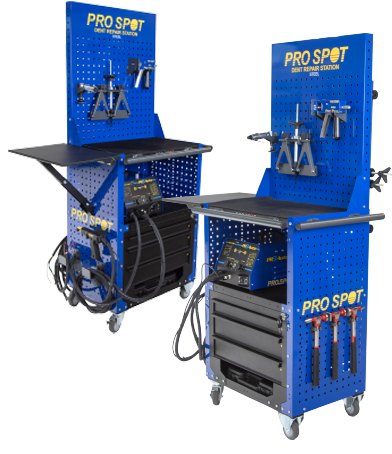

MWS-ST Steel Dent Pulling Station
