PHS-101 Battery Operated Welder
Resistance Spot Welding
The PHS-101 is a battery-operated DC resistance spot welding system that requires no 3-phase input power, with weld current monitoring that shows the current delivered to each weld and can alert the operator when weld current falls below a preset level, a built-in charging system that charges all batteries at the same time through a 110V/220V auto-sensing outlet, the PS-500 double-acting spot gun, a range of extension arms and single-sided welding applications.
Key specifications
- Welding amperage
- 10,500 amps DC
- Weld cable
- 8 ft (2.5 m) standard
- Input
- 1 phase; 110VAC 15A; 220VAC 15A model for use outside the U.S.
- Auto-sensing duty cycle
- 80+ welds per charge
- Cooling
- Air, two fans, and compressed air for the weld gun and weld cables
- Electrode pressure
- At 8 bar (116 PSI), 320 daN (720 lb)
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Welding amperage
- 10,500 amps DC
- Electrode pressure
- at 8 bar (116 PSI), 320 daN (720 lb)
- High-pressure gun
- at 90 PSI (6.2 bar), 1060 lb (470 daN)
- System weight
- 275 lb (125 kg)
- Dimensions
- 34 x 25 x 43.5 in (864 x 635 x 1105 mm)
What TAG confirms with you
- Incoming power at the weld station: voltage, phase and breaker size
- Materials you repair — steel, high-strength steel, aluminium or a mix
- Processes you need to cover, such as squeeze-type resistance, MIG or brazing
- Whether aluminium work must be isolated from steel work
- Fume extraction and ground/clamp access around the vehicle
Welding Output & Power
- 1 phase; 110VAC 15A; 220VAC 15A model for use outside the U.S.
- 10,500 amps DC
- 8 ft (2.5 m) standard
- At 8 bar (116 PSI), 320 daN (720 lb)
- At 90 PSI (6.2 bar), 1060 lb (470 daN)
- Air, two fans, and compressed air for the weld gun and weld cables
- 275 lb (125 kg)
- 34 x 25 x 43.5 in (864 x 635 x 1105 mm)
- 80+ welds per charge
Configure this PHS-101 Battery Operated Welder
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for PHS-101 Battery Operated Welder
70 of 70 shown
Optional accessory · 70
Optional accessory

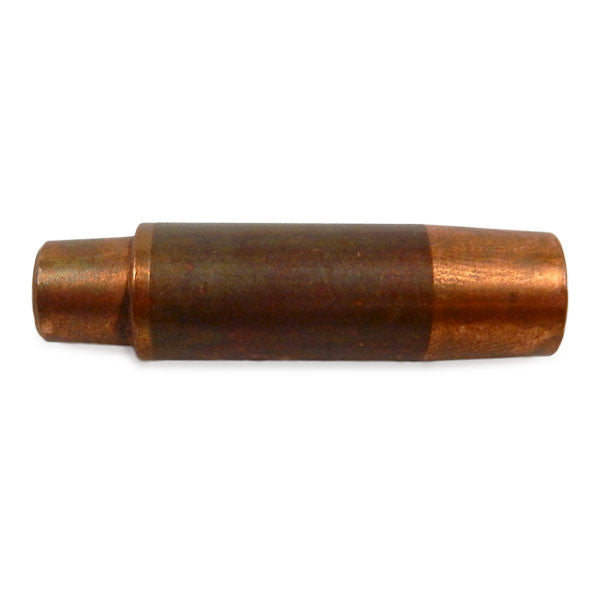

Pro Spot Electrode Shank 40mm
Part no. PS-102-CM
Optional accessory
Pro Spot PS-306/A Extension Arm Assembly, 280mm
Part no. PS-306/A
Optional accessory

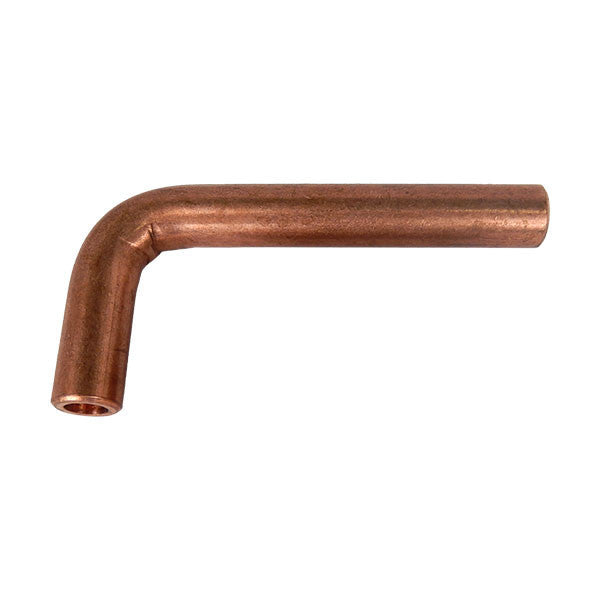

Pro Spot X-Adapter 90º Electrode - Lower
Part no. PS-412
Optional accessory
Pro Spot Electrode Shank 120mm
Part no. PS-130-CM
Optional accessory
Pro Spot Wheelhouse Electrode Washer - PS-1135s
Part no. PS-1135
Optional accessory

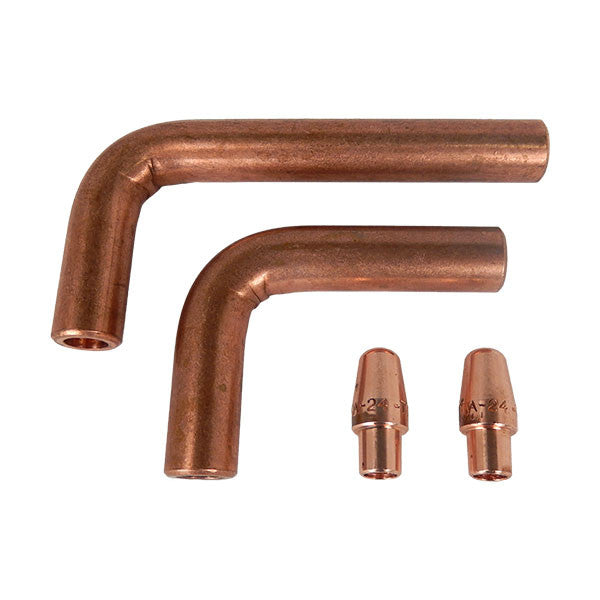

Pro Spot X-Adapter 90º Electrode Set
Part no. PS-410
Compatible consumables
18 Gauge Steel Weld Coupon, 2 x 12 in
Resistance Spot Welding · Weld Coupons

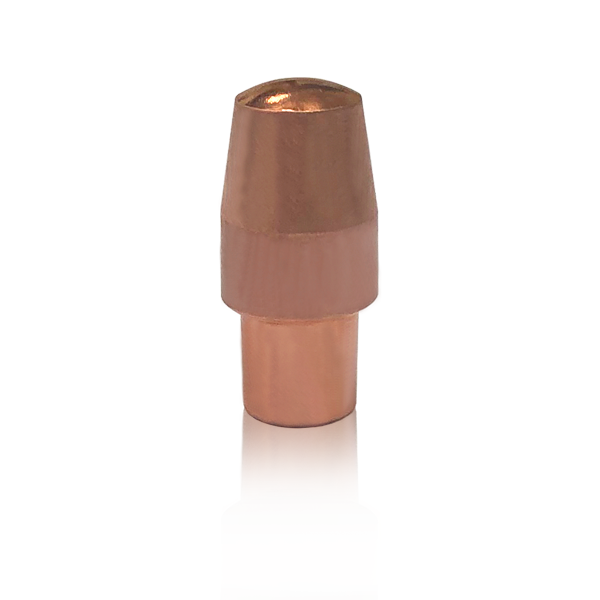

Weld Cap Male
Resistance Spot Welding · Resistance Spot Welding Consumables · 15 pack
Weld Caps Female
Resistance Spot Welding · Resistance Spot Welding Consumables · 15 pack
18 Gauge Steel Weld Coupon, 2 x 8 in
Resistance Spot Welding · Weld Coupons
Weld-On Washer
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 50 pack
Moulding Clip Rivet 3x3.2 (pk.100)
Steel & Single-Sided Dent Repair · Single-Sided Fasteners · 100 pack
Build out this work area
Ways to Expand the Workflow
Equipment to review when expanding this workflow.
- View details for Pro Spot PR-2 Multi-task Welder
Pro Spot
Single-Sided Welding
PR-2 Multi-task Welder
Pro Spot publishes the PR-2 multi-task welder for single-sided work in the same shop.
Compare models
Compare equipment options with TAG based on the work you do and the space available.
| Model | Pro Spot | Pro Spot |
|---|---|---|
| Why TAG lists it | This model | Pro Spot publishes the i4s as a mains-powered smart spot welder. Compare against a battery-operated unit. |
| Weld cable | 8 ft (2.5 m) standard | 8.75 ft |
| Cooling | air, two fans, and compressed air for the weld gun and weld cables | radiator and pump active-loop |
| System weight | 275 lb (125 kg) | 373 lb |
