Pro Spot
DA-3 Dent Pulling System
Dent Pulling Systems & Towers
The DA-3 Synergic Drawn Arc welder applies pulling keys and threaded studs so a range of tools can pull dents from steel and aluminum panels. It has programs for both steel and aluminum, a color graphics screen, customizable and storable weld programs, SD card memory for program updates, and a synergic mode plus a manual mode with up to 64 saved programs. It is available on a weld cart or on the MWS-GTK-AL and MWS-GTK-AL-ST dent pulling stations.
Key specifications
- Power
- 300W max
- Input
- 1 phase; 200-230V; 20A
- Weight
- 12.3 lb (5.6 kg)
- Dimensions
- 14.17 x 6.3 x 10.8 in (360 x 160 x 275 mm)
- Current range
- 50-200A
- Metals
- ALMG3; ALMGSI; steel; stainless steel; galvanized steel
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Power
- 300W max
- Dimensions
- 14.17 x 6.3 x 10.8 in (360 x 160 x 275 mm)
- Weight
- 12.3 lb (5.6 kg)
What TAG confirms with you
- Bay dimensions, ceiling height and working clearances
- Floor slab thickness, condition and anchoring
- Electrical service, air supply and any drainage needed
- Vehicle mix, throughput and how the bay is used day to day
- Delivery access, rigging and installation scope
System Specifications
- 1 phase; 200-230V; 20A
- 50-200A
- 300W max
- 14.17 x 6.3 x 10.8 in (360 x 160 x 275 mm)
- 12.3 lb (5.6 kg)
- ALMG3; ALMGSI; steel; stainless steel; galvanized steel
What ships with it
- Supplied components
- 17
- Listed as optional
- 14
Included components (17 items)
- TorchPart no. 84-1021
- Spring Loaded GroundPart no. SA-0921
- DA-3 Kit accessories (items below)Part no. SA-0815
- Traction Nail AlMg3Part no. 84-100550pcs.
- Traction Nail PullerPart no. 90-25461pc.
- Pull Keys AlMg3 1.0mmPart no. 84-101250pcs.
- Pull Keys AlMg3 1.5mmPart no. 84-101350pcs.
- Pull Keys AlMgSi 1.0mmPart no. 84-101450pcs.
- Pull Keys AlMgSi 1.5mmPart no. 84-101550pcs.
- Twisted Pull Keys AlMg3 1.0mmPart no. 84-101615pcs.
- Twisted Pull Keys AlMg3 1.5mmPart no. 84-101715pcs.
- Twisted Pull Keys AlMgSi 1.0mmPart no. 84-101815pcs.
- Twisted Pull Keys AlMgSi 1.5mmPart no. 84-101915pcs.
- Cleaning BrushPart no. 50-05802pcs.
- Electrode, 4mm DiameterPart no. 50-55011 ea.
- Ground Rod 90mm for keys and traction nail applicationsPart no. 84-10061ea.
- Pulling RodPart no. 51-00591ea.
Listed as optional
- Weld Stud M4x16 AlMg3Part no. 84-102025pcs.
- Weld Stud M5 x 20, AISiPart no. 84-1007100pcs.
- Electrode 5mm DiameterPart no. 50-55021ea.
- Ground Rod 114mmPart no. 84-10091 ea.
- Steel Pull KeyPart no. 50-0016-5050pcs.
- Steel Pull Key TwistedPart no. 50-0017-5050pcs.
- Electrode for Alu and Steel keysPart no. 84-10111ea.
- Threaded Anchoring EyePart no. 84-101050pcs.
- Self-Thread Rivets M5X25Part no. 84-1008100pcs.
- Pull BarPart no. PB-10
- Pull BarPart no. PB-11
- Pivot Puller (requires PB-10 or PB-11 pull bar)Part no. PB-20
- Pull Bar SystemPart no. PB-LITE
- Pull GunPart no. PRO-65
Shipping data
- Shipping dimensions (Box 1)
- 14.17" x 6.3" x 10.8"
- Shipping weight (Box 1)
- 12.3 lbs (5.5 kg)
Configure this DA-3 Dent Pulling System
Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for DA-3 Dent Pulling System
36 of 36 shown
Optional accessory · 36
Optional accessory
Pro Spot PB-LITE Pull Bar System
Part no. PB-LITE
Optional accessory
Pro Spot Electrode 4mm Diameter
Part no. 50-5501
Optional accessory
Pro Spot PB-20 Pivot Puller
Part no. PB-20
Optional accessory
Pro Spot PB-11 Pull Bar, Two-Footed
Part no. PB-11
Optional accessory
Pro Spot Pro-65 Pull Gun
Part no. Pro-65
Optional accessory
Pro Spot PB-10 Pull Bar, Four-Footed
Part no. PB-10
Compatible consumables
GROUND Rod 114mm
Steel & Single-Sided Dent Repair · DA-3 Dent Pulling Consumables

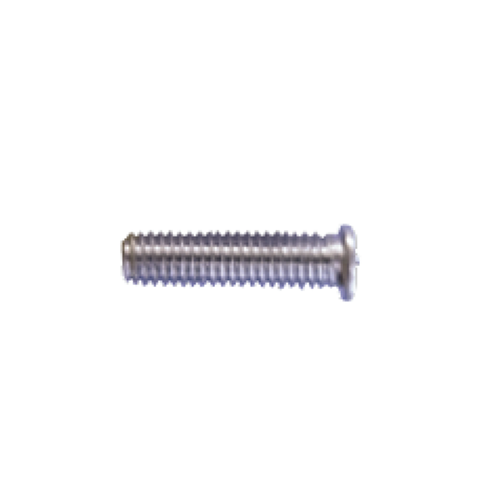

WELD STUD M4x16 AlMg3 100pcs.
Steel & Single-Sided Dent Repair · DA-3 Dent Pulling Consumables · 100 pack
WELD STUD M5 x 20, AISi
Steel & Single-Sided Dent Repair · DA-3 Dent Pulling Consumables · 100 pack

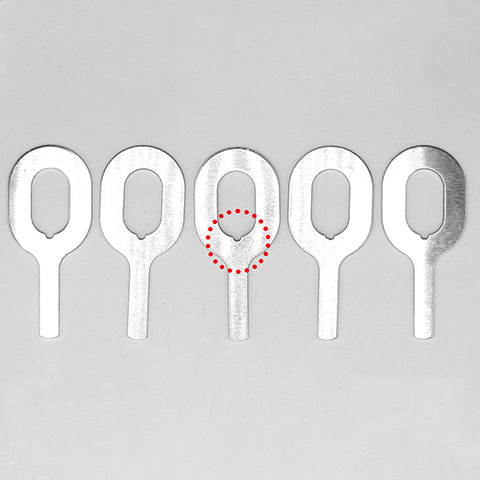

Pull Keys AlMgSi 1.0mm
Steel & Single-Sided Dent Repair · DA-3 Dent Pulling Consumables · 50 pack

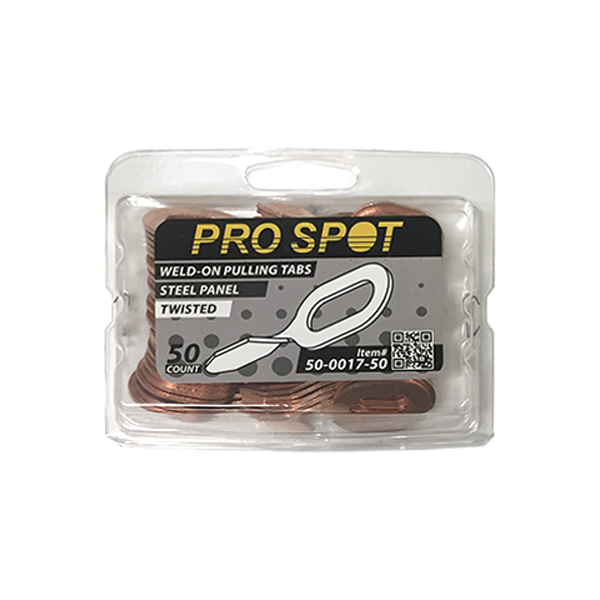

Twisted Steel Pull Key
Aluminum Dent Repair · Pull Keys and Studs · 50 pack

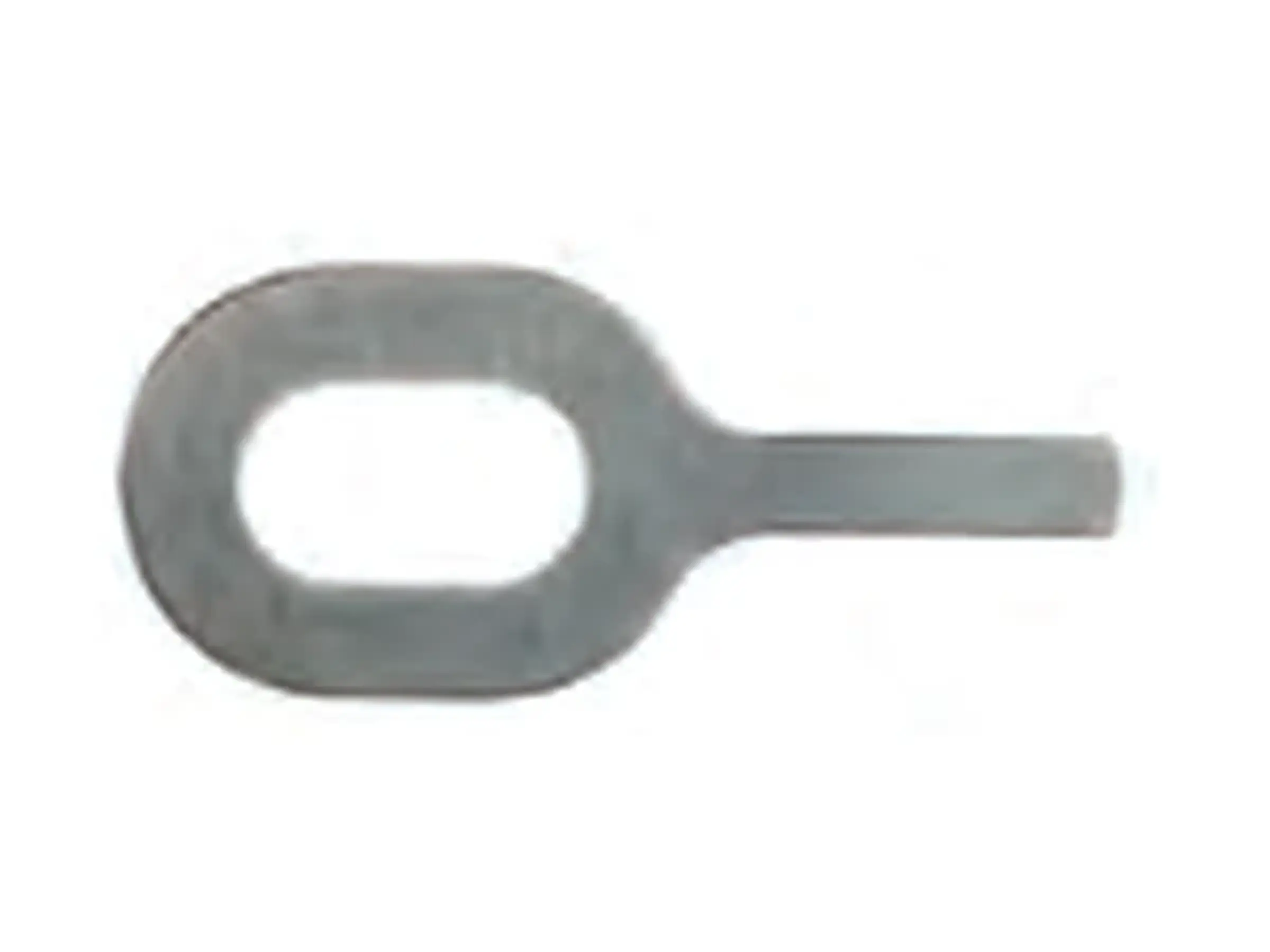

Twisted AlMg3 Pull Keys, 1.0 mm
Aluminum Dent Repair · Pull Keys and Studs · 15 pack
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for Pro Spot IH-500 Induction Heater
Pro Spot
Dent Repair

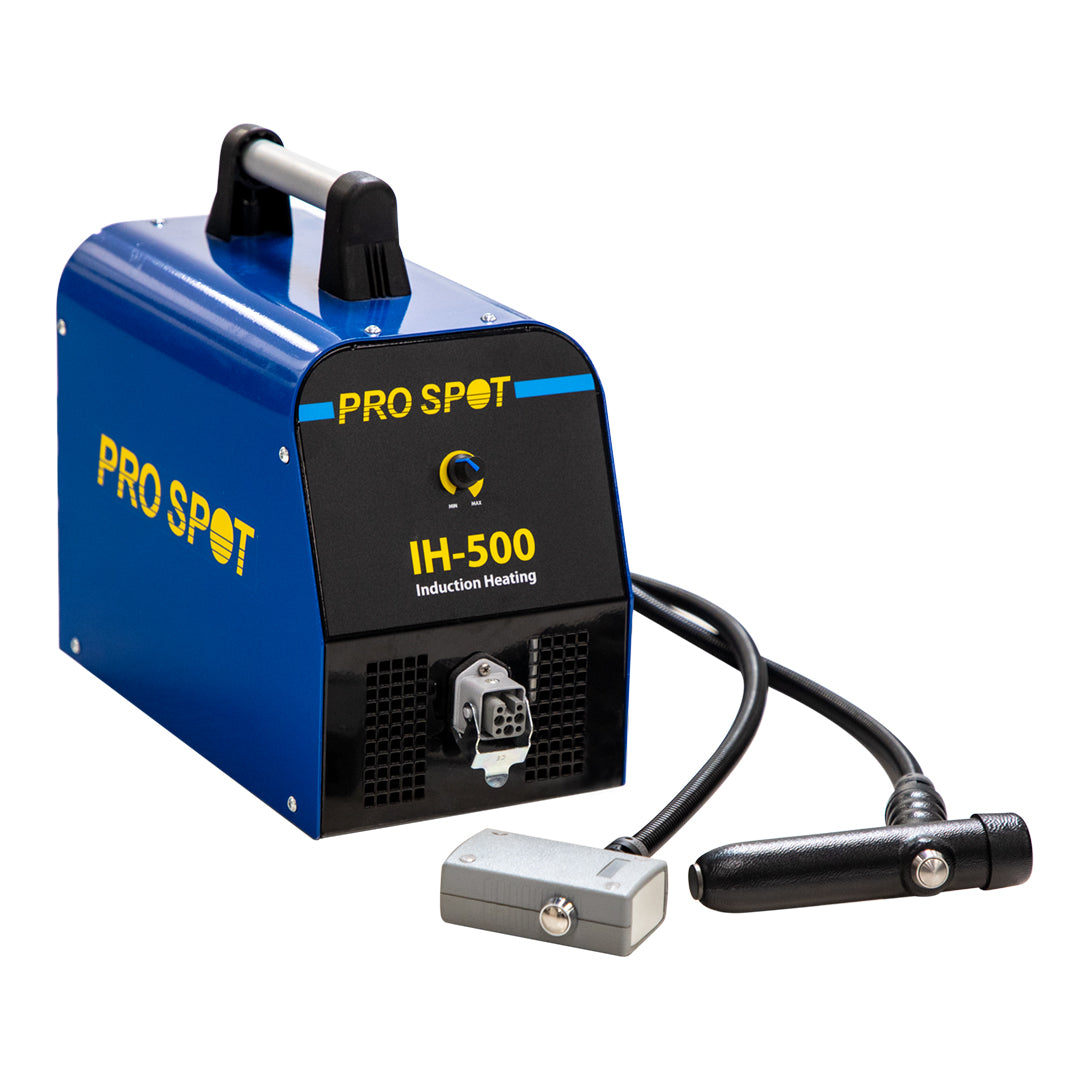

IH-500 Induction Heater
