Hunter Engineering HawkEye® XL Alignment System

Hunter Engineering

HawkEye® XL Alignment System

Alignment

HawkEye® XL is a heavy-duty alignment machine for semi trucks and buses, medium-duty utility and fleet vehicles, and light-duty passenger vehicles. Its extra-long-range cameras can show three axles live at once and give alignment measurements in four minutes or less. Tell us about your bay and utilities and we will work out the configuration, installation and price with you.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Camera technology
Extra-long-range cameras; three axles shown live simultaneously (Hunter-stated)
Camera resolution
5 MP
Target weight with adaptor
13 lb
Track width
102 in.
Measurement time
Four minutes or less (Hunter-stated)
Application (Hunter-stated)
Semi trucks and buses, medium-duty utility/fleet vehicles, light-duty passenger vehicles
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Target weight with adaptor
13 lb

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Measurement & Coverage

Application (Hunter-stated)
Semi trucks and buses, medium-duty utility/fleet vehicles, light-duty passenger vehicles
Camera technology
Extra-long-range cameras; three axles shown live simultaneously (Hunter-stated)
Measurement time
Four minutes or less (Hunter-stated)
Camera resolution
5 MP
Track width
102 in.
Target weight with adaptor
13 lb

Additional details

  • Configuration families (HXL421 sensor sheet, Form AS08589-00, 03-26): drive-through towers, fixed single-column floor mount, mobile cabinet mount
  • Recommended maximum camera-to-furthest-target distance: 700 in.
  • These details vary by configuration. We will confirm the final configuration, bay fit, utilities, options, installation and price with you.

Configure this HawkEye® XL Alignment System

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for HawkEye® XL Alignment System

TAG confirms final fit and configuration before purchase.

Optional accessory · 6

  • Optional accessory

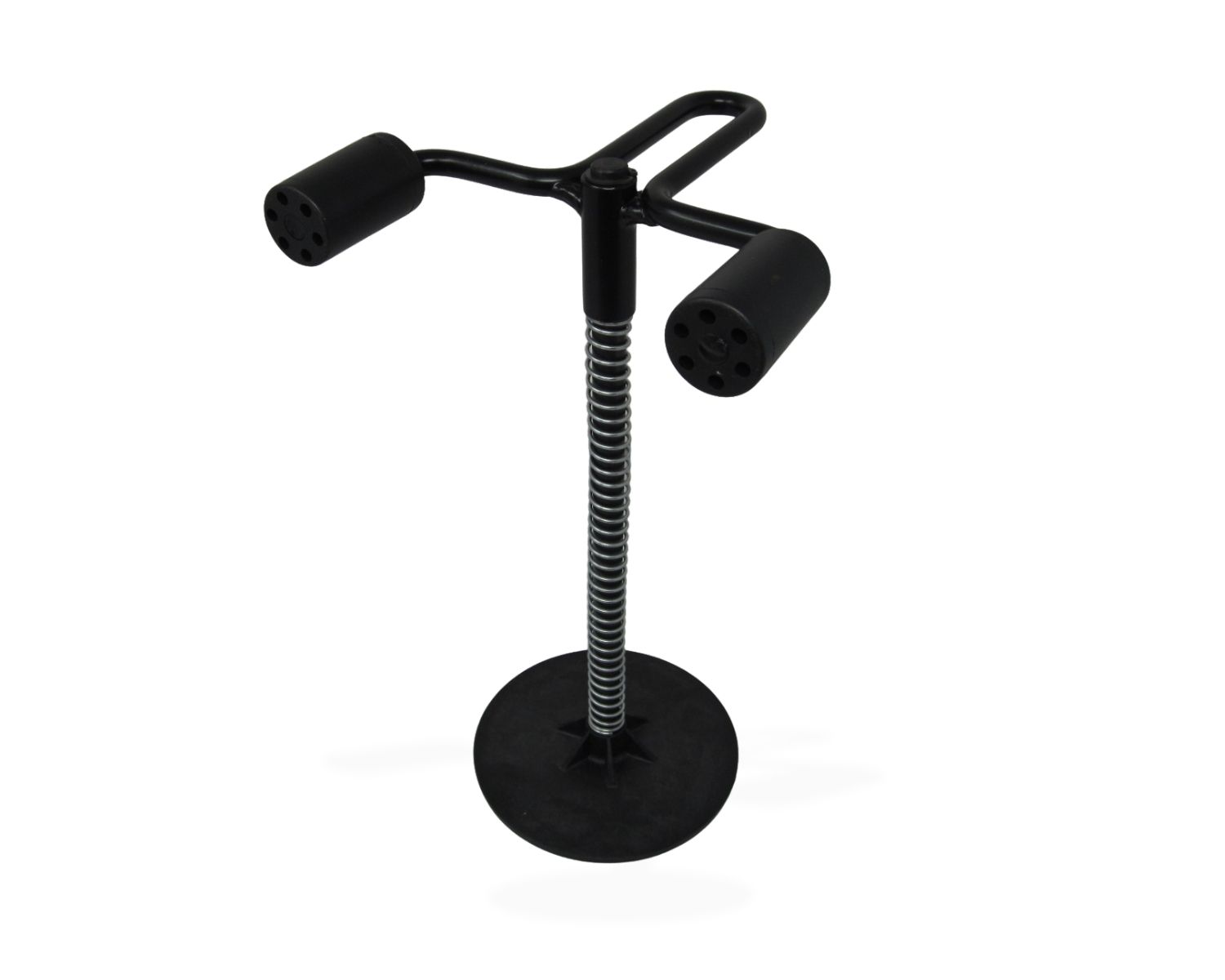

    Hunter Engineering Steering Wheel Holder

    Part no. CTN-20

    Steering wheel holder used to lock the steering wheel during alignment measurement and adjustment procedures.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Self-Centering Wheel Adaptor (HXL / DSP700 / DSP500)

    Part no. 175-321-1

    Wheel adaptor for HXL, DSP700 and DSP500 alignment sensors.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Secondary Console Kit

    Part no. 20-4039-1

    Secondary console with monitor, keyboard and mouse that mounts to the rolling storage cart for better visibility and control.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering HawkEye® XL Wide Angle Targets

    Part no. 20-4101-1

    Wider maximum steering range and better visibility around fenders. Includes two target extensions.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Six-Position Battery Charger

    Part no. 20-2760-1

    Charging station for up to six DSP700 sensor batteries.

    Fits this model.

    Full Details

  • Optional accessory

    Hunter Engineering Rolling Storage Cart

    Part no. 20-4139-1

    Rolling storage cart providing convenient access for alignment instruments.

    Fits this model.

    Full Details
