CellBlock FCS
Lithium-Ion Battery Transport & Storage Cases
EV / Battery Equipment
Battery cases lined with CellBlock's patented Fire Containment Panel composite, with a gas mitigation system and a self-deploying CellBlockEX extinguishing system in the lid for storing and shipping high-energy lithium-ion batteries.
Select case
Choose a model to add this product to your project.
- Interior
- 25.9 in x 12.9 in x 12 in h (65.8 cm x 32.8 cm x 30.5 cm)
- Exterior
- 32.2 in x 19.2 in x 16.6 in h (81.8 cm x 48.8 cm x 42.2 cm)
- Tare weight
- 164 lbs (74.4 kg)
- Gross weight limit
- 282.2 lbs (128 kg)
Not in your project yet
Fit & requirements
Review the selected application and the manufacturer's handling and deployment instructions.
What TAG confirms with you
- Vehicles and systems you service with this equipment
- Power available where the unit will be used or stored
- Fluid handling, storage and disposal already in place
- Whether the unit needs to move between bays
- Technician training and certification you want included
Fire Containment Panel liner
Cases are lined with CellBlock's Fire Containment Panel composite.
CellBlockEX in the lid
A self-deploying CellBlockEX system sits in the lid, with a gas mitigation system.
Case-specific shipping requirements
Each case lists its own UN mark, special permit and test certification.
Handling & Containment
Ballistic Battery Case. Interior: 25.9 in x 12.9 in x 12 in h (65.8 cm x 32.8 cm x 30.5 cm).
| Configuration | Interior | Exterior | Tare weight | Gross weight limit | UN mark | Configuration | Construction | Compliance | Application |
|---|---|---|---|---|---|---|---|---|---|
| Ballistic Battery Case (CBSTC3219) | 25.9 in x 12.9 in x 12 in h (65.8 cm x 32.8 cm x 30.5 cm) | 32.2 in x 19.2 in x 16.6 in h (81.8 cm x 48.8 cm x 42.2 cm) | 164 lbs (74.4 kg) | 282.2 lbs (128 kg) | — | — | — | — | — |
| Giga Max Battery Case (CBSTC14078) | 137.5 in x 73.5 in x 38.1 in h (349.25 cm x 186.7 cm x 96.8 cm) | 151.75 in x 87.5 in x 54.6 in h (385.4 cm x 222.25 cm x 138.7 cm) | 7236 lbs - base 4560 lbs, lid 2676 lbs (3236 kg - base 2068 kg, lid 1213 kg) | — | Pending - not authorized for shipping | — | — | — | — |
| Max Battery Case (CBSTC085) | 76 in x 46 in x 19 in h (193 cm x 116.8 cm x 48.3 cm) | 90.3 in x 59.5 in x 38.2 in h (229.4 cm x 151.1 cm x 97 cm) | 3000 lbs (1361 kg) | 5366 lbs max (2432 kg max) | — | — | — | — | — |
| Micro Case I (CBSTC122) | — | — | — | — | — | Micro Case I | CellBlock high-temperature composite liner; filter releases pressure while trapping smoke and fumes | P908/P911 compliant; UN rated and Special Permit 20549 and 21442 | Safe and compliant transportation of small power cells, tool batteries, drone batteries; DDR batteries by land or sea |
| Micro Case II (CBSTC018) | 4.4 in x 16.7 in x 6 in h (11.2 cm x 42.4 cm x 15.2 cm) | 6.5 in x 19.4 in x 9.3 in h (16.5 cm x 49.3 cm x 23.6 cm) | 15 lbs (6.8 kg) | — | — | Micro Case II | — | — | — |
| Module I Battery Case (CBSTC5845) | 55.5 in x 38.5 in x 14.5 in h (141 cm x 97.8 cm x 36.8 cm) | 64 in x 46 in x 28.3 in h (162.6 cm x 116.8 cm x 71.9 cm) | 502 lbs (228 kg) | 2130 lbs (966 kg) | — | — | — | — | — |
| Module II Battery Case (CBSTC7562) | 70 in x 57 in x 14 in h (177.8 cm x 144.8 cm x 35.6 cm) | 75.6 in x 68.7 in x 27 in h (192 cm x 174.5 cm x 68.6 cm) | 1034 lbs (469 kg) | — | — | Module II Battery Case | — | — | — |
| Small Battery Case (CBSTC020) | 16.3 in x 13 in x 5.9 in h (41.4 cm x 33 cm x 15 cm) | 20.7 in x 18 in x 10.5 in h (52.6 cm x 45.7 cm x 26.7 cm) | 39.9 lbs (18.1 kg) | — | — | Small Battery Case | — | — | — |
| Small Battery Case (CBSTC030) | 26 in x 13 in x 5.9 in h (66 cm x 33 cm x 15 cm) | 30.7 in x 18 in x 10.5 in h (78 cm x 45.7 cm x 26.7 cm) | 58 lbs (26.3 kg) | — | — | Small Battery Case | — | — | — |
| Specialty 6T Case - 1 Battery Capacity CBSTC06T1 | 1 compartment, 11.1 in x 10.6 in x 9.9 in h (28.2 cm x 26.9 cm x 25.1 cm) | 19.2 in x 19.0 in x 16.6 in h (48.8 cm x 48.3 cm x 42.2 cm) | 73.5 lbs (33.3 kg) | 165.3 lbs (75 kg) | — | — | — | — | — |
| Specialty 6T Case - 2 Battery Capacity CBSTC06T2 | 2 compartments, each 11.1 in x 10.6 in x 9.9 in h (28.2 cm x 26.9 cm x 25.1 cm) | 32.2 in x 19.2 in x 16.6 in h (81.8 cm x 48.8 cm x 42.2 cm) | 126 lbs (57.2 kg) | 282.2 lbs (128 kg) | — | — | — | — | — |
| Specialty 6T Case - 6 Battery Capacity CBSTC06T6 | 6 compartments, each 11.1 in x 10.6 in x 9.9 in h (28.2 cm x 26.9 cm x 25.1 cm) | 46.3 in x 33.5 in x 19.4 in h (117.6 cm x 85 cm x 49.3 cm) | 246 lbs (112 kg) | 831 lbs (377 kg) | — | — | — | — | — |
| SubModule I Battery Case (CBSTC3024) | 25 in x 18.8 in x 8 in h (63.5 cm x 47.8 cm x 20.3 cm) | 31.1 in x 23.9 in x 18.4 in h (79 cm x 60.7 cm x 46.7 cm) | 105.8 lbs (48 kg) | 352.7 lbs (160 kg) | — | — | — | — | — |
| Super Max Battery Case (CBSTC10078) | 92 in x 69.5 in x 22 in h (233.7 cm x 176.5 cm x 55.9 cm) | 106 in x 84 in x 37 in h (269.2 cm x 213.4 cm x 94 cm) | 5200 lbs (2359 kg) | 6679 lbs max (3029 kg max) | — | — | — | — | — |
| XLS Battery Case (CBSTC4635) | 40.8 in x 29.8 in x 40.4 in h (103.6 cm x 75.7 cm x 102.6 cm) | 49.6 in x 38.6 in x 53.9 in h (126 cm x 98 cm x 136.9 cm) | 1167 lbs (529 kg) | 3190 lbs max (1447 kg max) | — | — | — | — | — |
| XLarge I Battery Case (CBSTC052) | 46.8 in x 23.5 in x 18.5 in h (118.9 cm x 59.7 cm x 47 cm) | 53 in x 29.4 in x 32.3 in h (134.6 cm x 74.7 cm x 82 cm) | 208 lbs (94 kg) | — | — | XLarge I Battery Case | — | — | — |
| XLarge II Battery Case (CBSTC5232) | 47 in x 26.8 in x 30 in h (119.4 cm x 68.1 cm x 76.2 cm) | 55.5 in x 34 in x 43.8 in h (140.1 cm x 86.4 cm x 111.3 cm) | 463 lbs (210 kg) | — | — | XLarge II Battery Case | — | — | — |
- CBSTC052, CBSTC5232, CBSTC5845, CBSTC7562, CBSTC085, CBSTC10078, CBSTC14078
Additional details
- FCP (Fire Containment Panel) composite lining
- Gas mitigation system for gas and explosive pressure from thermal degeneration
- Self-deployed CellBlockEX extinguishing system housed in the lid
Configure this Lithium-Ion Battery Transport & Storage Cases
Add this product to your TAG Project to select quantity and record your configuration. Nothing is priced or ordered online.
Compatible accessories
Optional accessories · 1
Optional accessories

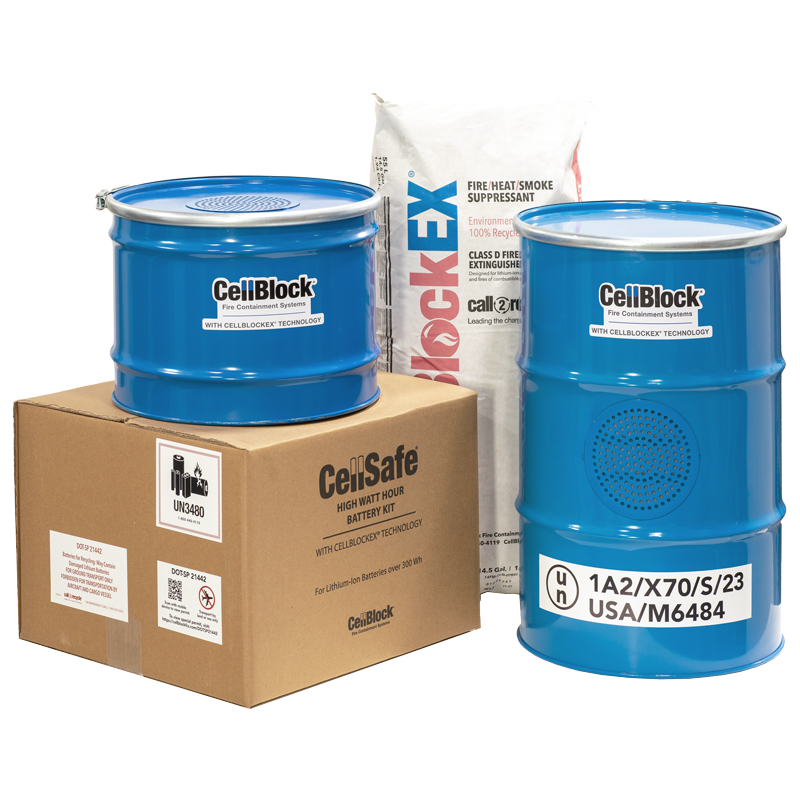

CellBlock FCS CellSafe Battery Pail & Drum Kits
