CellBlock FCS
Lithium-Ion Battery Storage Cabinets
EV / Battery Equipment
Aluminum battery storage cabinets lined with CellBlock Fire Containment Panels, with a gravity-fed CellBlockEX deployment system that releases in the presence of flames without mechanical or electrical systems.
Select cabinet
Choose a model to add this product to your project.
- Number of shelves
- 2
- Interior
- 32"w x 31.5"h x 20"d (81.3 cm x 80.0 cm x 50.8 cm)
- Exterior
- 37.3"w x 36.5"h x 28"d (94.7 cm x 92.7 cm x 71.1 cm)
- Weight
- 400 lbs (181 kg)
Not in your project yet
Fit & requirements
Review the selected application and the manufacturer's handling and deployment instructions.
What TAG confirms with you
- Vehicles and systems you service with this equipment
- Power available where the unit will be used or stored
- Fluid handling, storage and disposal already in place
- Whether the unit needs to move between bays
- Technician training and certification you want included
Lined aluminium build
Aluminium cabinets lined with CellBlock Fire Containment Panels.
Gravity-fed release
CellBlockEX releases in the presence of flames with no mechanical or electrical system.
Pressure relief filters
Pressure relief filters eliminate smoke and fumes.
Handling & Containment
CBSC2537 Toolbox Cabinet. Number of shelves: 2.
| Configuration | Number of shelves | Interior | Exterior | Weight | Shelf spacing | Interior capacity | Base |
|---|---|---|---|---|---|---|---|
| CBSC2537 Toolbox Cabinet | 2 | 32"w x 31.5"h x 20"d (81.3 cm x 80.0 cm x 50.8 cm) | 37.3"w x 36.5"h x 28"d (94.7 cm x 92.7 cm x 71.1 cm) | 400 lbs (181 kg) | — | — | — |
| CBSC3672 Floor Cabinet | — | 30.5 in w x 13.8 in d x 67 in h | 36.2 in w x 22.1 in d x 77.5 in h with electric option | — | 11.2 in (28.4 cm) | 13.8 cu ft | — |
| CBSC6165 Large Floor Cabinet | 4 | 55.8 in w x 30 in d x 54.6 in h | 61.3 in w x 38 in d x 65.5 in h with electric option | — | 11.6 in (29.5 cm) | — | — |
| CBSC617235 Max Floor Cabinet | 5 | 56 in w x 28.9 in d x 68.4 in h | 61.3 in w x 38.8 in d x 77.6 in h with electric option | — | — | 52.8 cu ft | — |
| CBSC1952 Bench Top Cabinet | 3 | — | 52.2 in w x 22.1 in d x 41.4 in h body plus 1.8 in feet | — | 10 in (25.4 cm) | 11.6 cu ft | — |
| CBES6060 Energy Safe I | — | 55.5"w x 55.7"d x 55.9"h (141 cm x 141.5 cm x 142 cm) | 59.9"w x 60"d x 74.3"h (152.15 cm x 152.4 cm x 188.7 cm) | 2273 lbs (1031 kg) | — | — | Omni-directional forklift glides |
- CBSC1952, CBSC2537 benchtop cabinets; CBSC3672, CBSC6165, CBSC617235 floor cabinets; CBES6060 energy safe
- Aluminum, lined with CellBlock Fire Containment Panels
Additional details
- Gravity-fed CellBlockEX deployment from CellBlock
Configure this Lithium-Ion Battery Storage Cabinets
Add this product to your TAG Project to select quantity and record your configuration. Nothing is priced or ordered online.
Compatible consumables
CellBlockEX Fire Extinguishing Media
EV / Battery Equipment · CellBlock Suppression Media
Build out this work area
Related Equipment to Review
Related equipment to review for this work area.
- View details for CellBlock FCS FireShield EV Fire Blankets
CellBlock FCS
EV / Battery Equipment

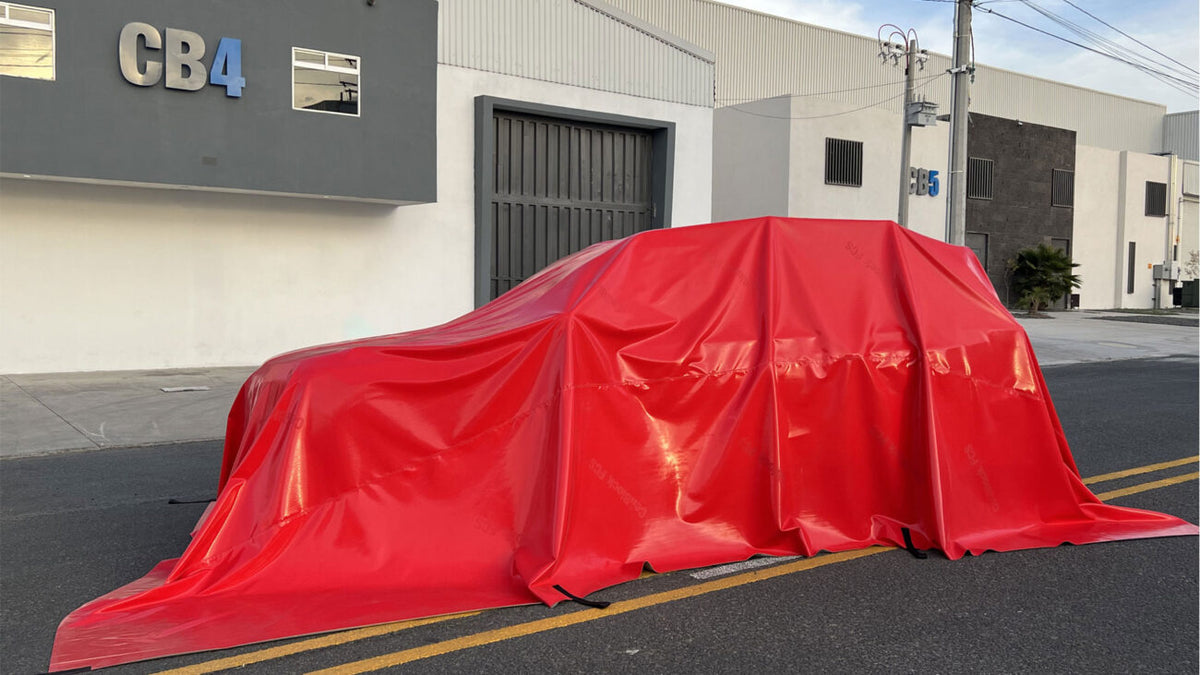

FireShield EV Fire Blankets
CellBlock FCS offers FireShield EV fire blankets for lithium-ion incident response in the same area.
Ways to Expand the Workflow
Equipment to review when expanding this workflow.
- View details for CellBlock FCS LIBIK Lithium-Ion Battery Incident Kits
CellBlock FCS
EV / Battery Equipment

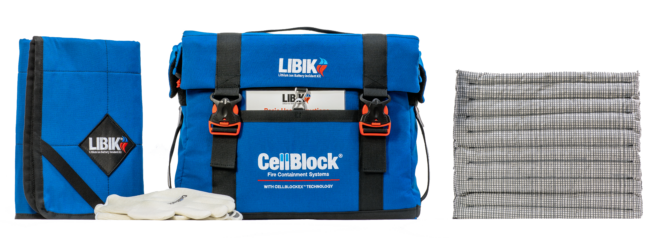

LIBIK Lithium-Ion Battery Incident Kits
