Lift King Main Component

Lift King

Main Component

Light Duty Lift Systems

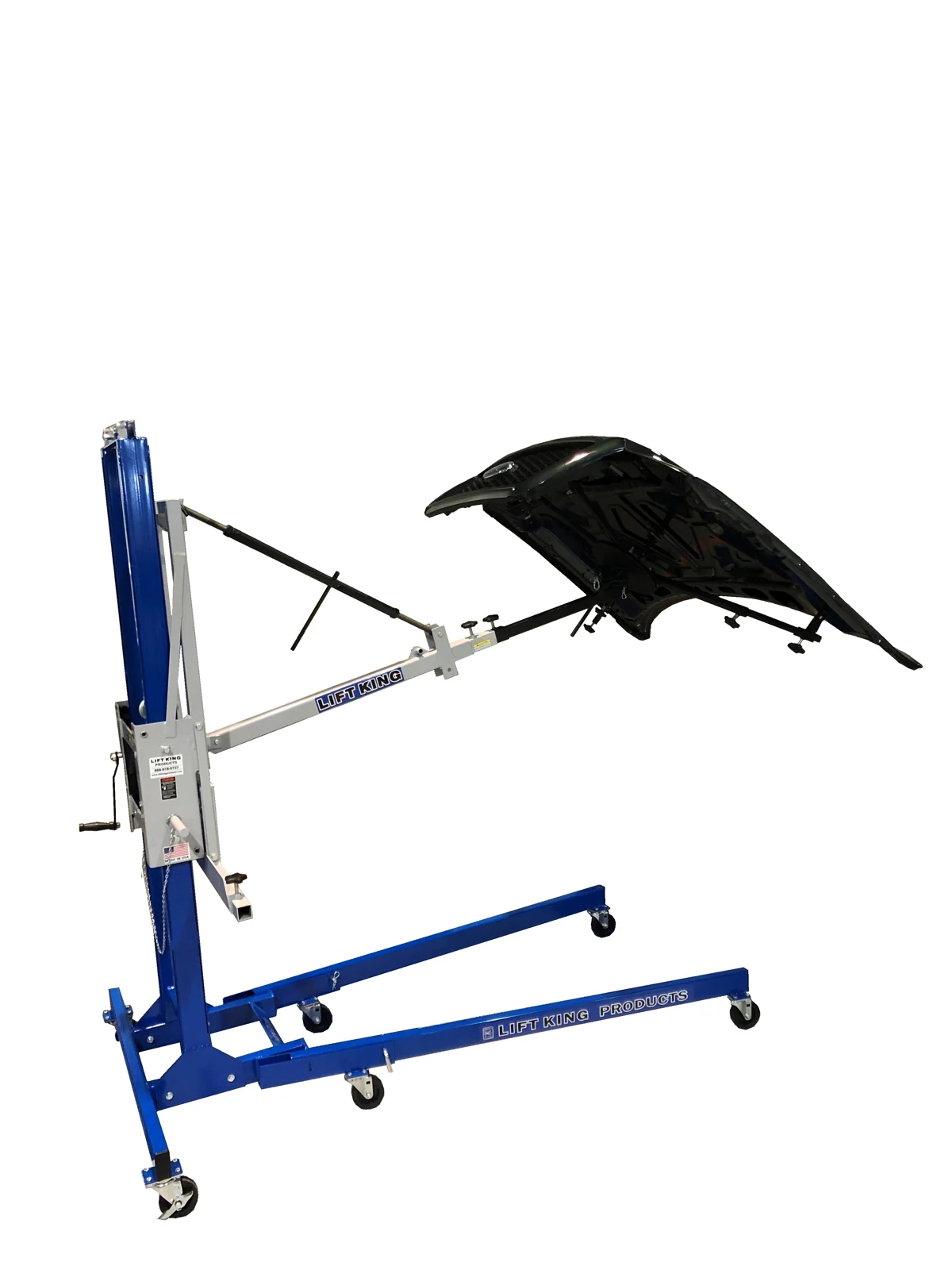

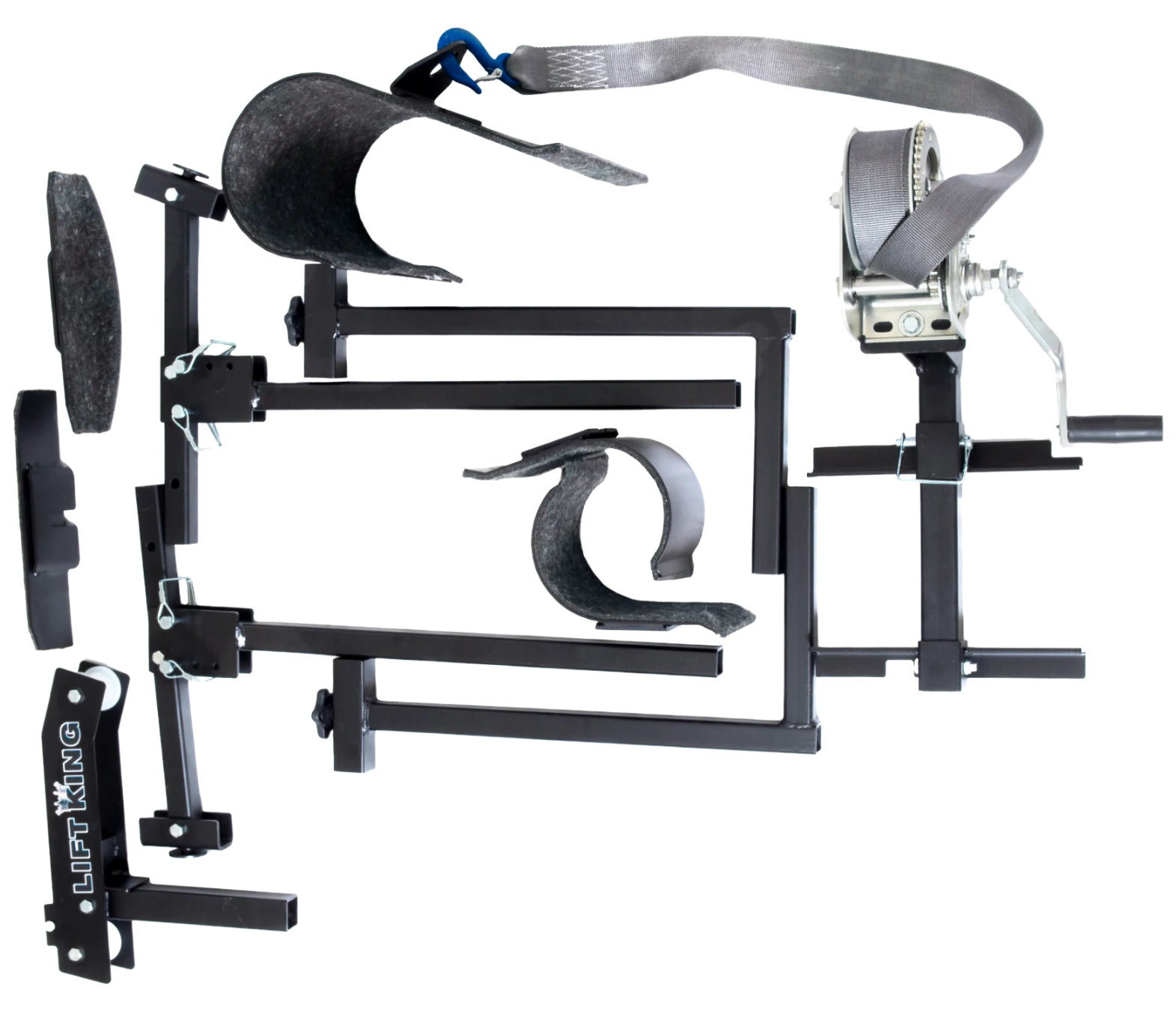

The Lift King Main Component is designed to increase: SAFETY by protecting the technician from physical strain or injury PRODUCTIVITY by reducing the need of multiple technicians to only one QUALITY by reducing the chance for damage The Main Component is designed to accommodate many attachments for one technician to perform multiple functions. Some applications include the removal or installation of any size pickup boxes, camper toppers, and semi and automotive hoods, doors, and fifth wheel plates. Additional attachments continue to be designed and introduced to our product line.

Key specifications

Rated capacity
600 lb
Stored floor footprint
3 x 3 ft
Test load
1,000 lb
Brake winch rating
1,500 lb
Construction
Steel with powder-coat finish
Operator requirement
One technician
Specifications

Product options — Light Duty Lift Systems

Browse all Lift King products
Quantity
1
Request a Quote

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Stored floor footprint
3 x 3 ft
Rated capacity
600 lb

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Usable bay dimensions and clear height across the full installation and operating area, measured to the lowest overhead obstruction, including doors, lights, ductwork and sprinklers
  • Manufacturer clearance requirements for the exact model and configuration through its full operation
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection

Capacity & Dimensions

Stored floor footprint
3 x 3 ft
Rated capacity
600 lb
Test load
1,000 lb
Brake winch rating
1,500 lb
Construction
Steel with powder-coat finish
Operator requirement
One technician

Configure this Main Component

Add the equipment to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for Main Component

TAG confirms final fit and configuration before purchase.

12 of 12 shown

Optional accessory · 12

  • Optional accessory

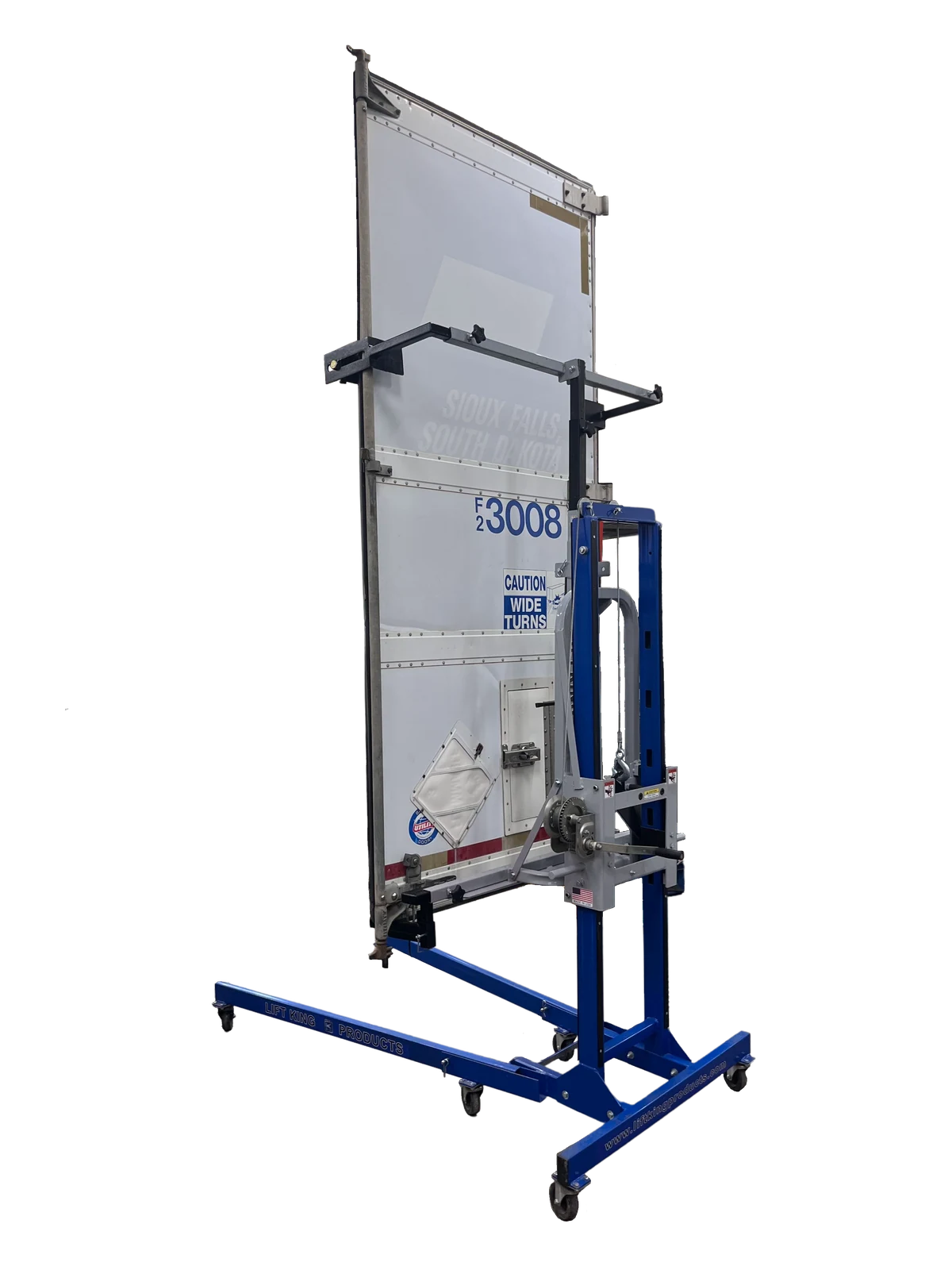

    Lift King Door Attachment

    Part no. LK5200

    The Lift King Door Attachment comes with everything needed to quickly connect to the Main Component. This attachment allows one technician to perform the removal or installation of doors on cars, trucks, semis, and all types of automotive and commercial vehicles such as sprinter doors. There are THREE key benefits that the Lift King Main Component and Door Attachment offers compared to the typical door jack. Improved quality by allowing technician to get the door into the perfect, precise position. Reaching height allows technician to remove or install doors while the vehicle is on the frame rack. This attachment allows the Main Component to lift much larger doors such as sprinter doors and semi-truck doors.

    Fits this model.

    Full Details

  • Optional accessory

    Lift King Box Attachment

    Part no. LK4053

    The Lift King Box Attachment comes with everything needed to connect to the Main Component for one technician to perform the removal and installation of pickup boxes without any human strain or lifting.This application greatly reduces the risk of injury and strain, increases labor productivity, and mitigates damage.This is the best way to remove or install pickup boxes when changing fuel pumps, performing collision repairs, restoration work, and paint work.Shops that don’t have the Lift King Main Component and Box Attachment use other unsafe practices such as forklifts, engine hoists, overhead cranes, or multiple technicians. The Lift King is the safest and most efficient way to remove or install a pickup box.

    Fits this model.

    Full Details

  • Optional accessory

    Lift King Bushing Kit Holder

    Part no. LK4056H

    The Lift King Bushing Kit Holder has a magnetic base so that it can be mounted anywhere on the lift. This Bushing Kit Holder can be quickly relocated at any time. This is a great way to keep the bushings immediately accessible.

    Fits this model.

    Full Details

  • Optional accessory

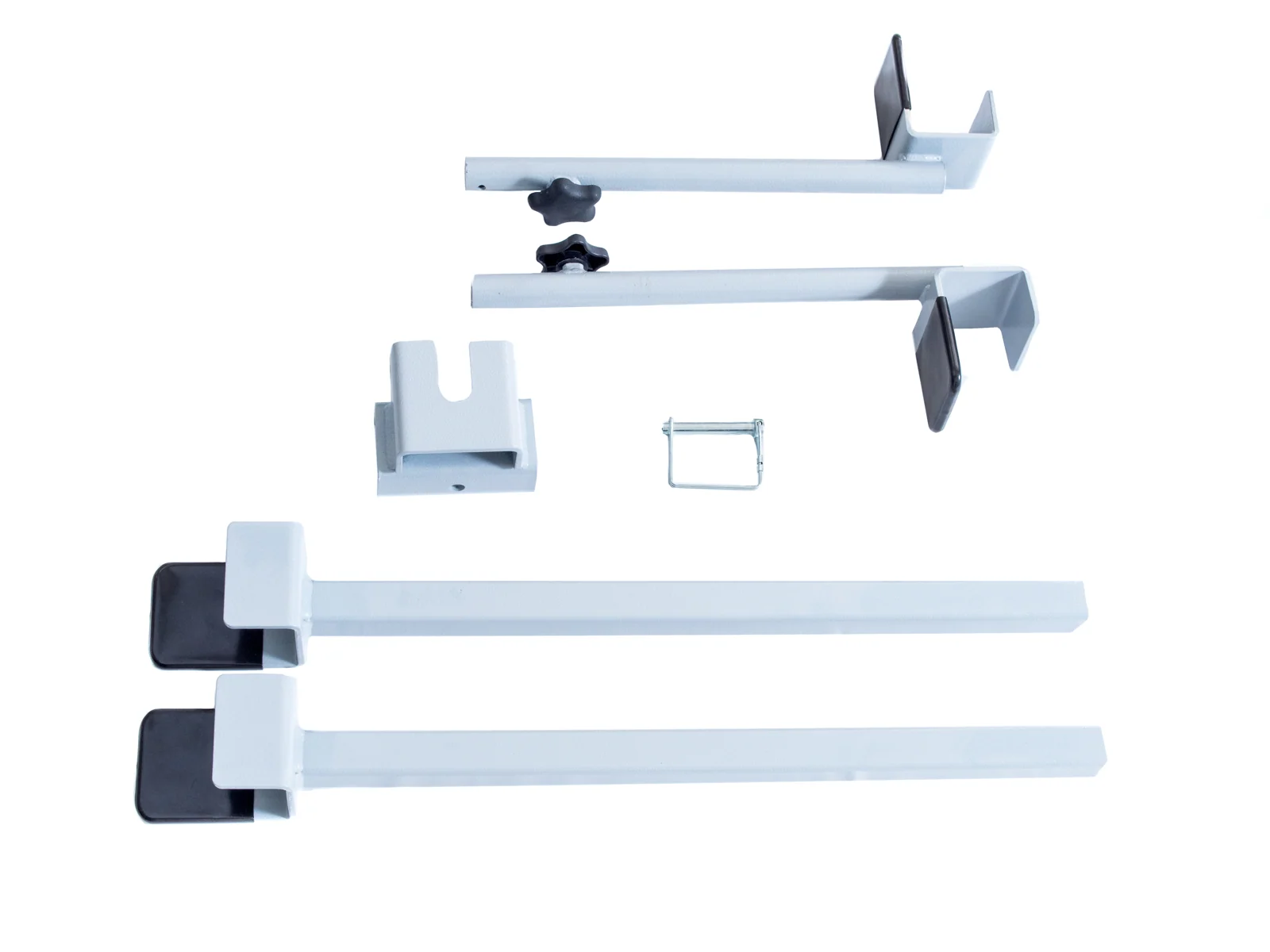

    Lift King Topper Attachment

    Part no. LK4054

    The Lift King Topper Attachment connects to the Main Component quickly without needing any tools. One technician can easily remove or install a pickup topper with ease while reducing labor costs and increasing safety to the technician. The Lift King Topper Attachment works with any style, including fiberglass and aluminum toppers.

    Fits this model.

    Full Details

  • Optional accessory

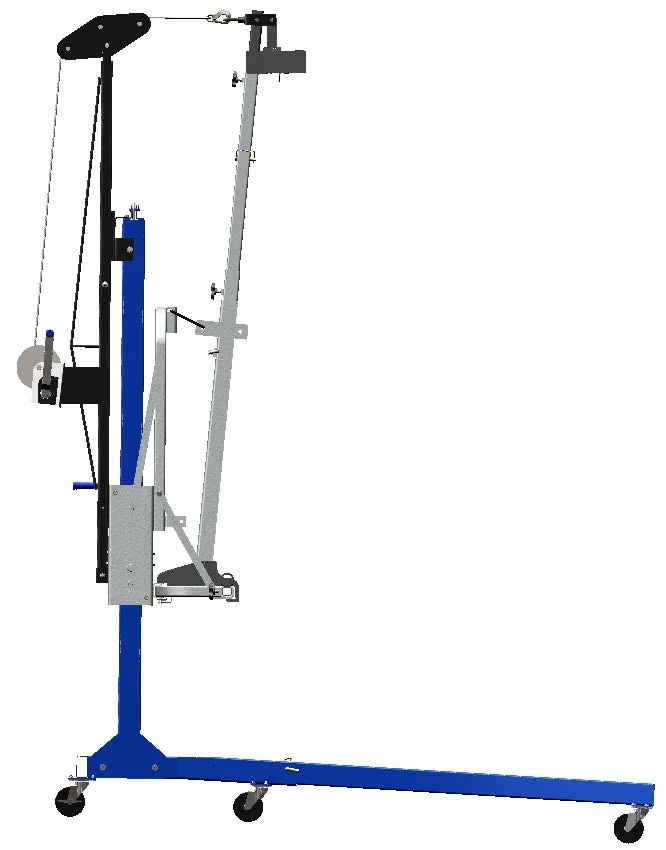

    Lift King Tilt Boom Attachment

    Part no. LK4036

    The Tilt Boom Attachment is designed to tilt a pickup box in an upward position for under box repairs, sandblasting, restoration, painting, or rust proofing. Once the box is tilted in the upward position, the safety pin that is included is to be inserted to lock it into position for the operator’s safety. The Tilt Boom Attachment connects to the Main Component in the matter of seconds by setting it in the designated position with the addition of one pin. The Tilt Boom makes is easy to tilt the pickup box in an upward position with only one operator on no physical lifting. This attachment is a must-have asset for restoration, custom, hot rod shops.

    Fits this model.

    Full Details

  • Optional accessory

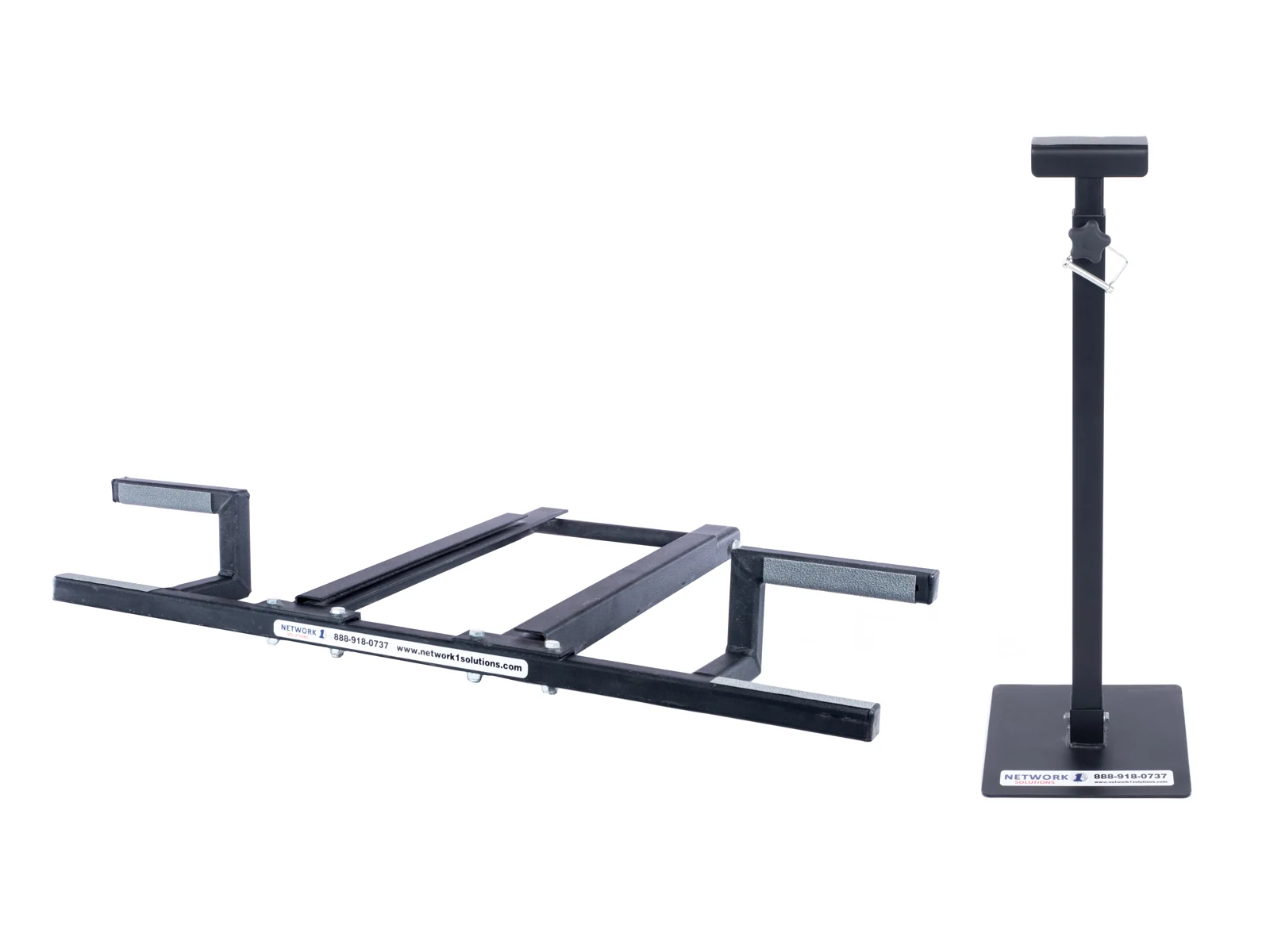

    Lift King Stabilizer Kit

    Part no. LKSK

    The Lift King Stabilizer Kit is a great feature when performing collision repairs to a pickup box This feature allows the technician to eliminate most of the front-end bounce of the box, while doing heavy repairs or changing out box sides while on the Lift King Main Component.

    Fits this model.

    Full Details
