TCX Heavy-Duty Tire Changers (TCX635HD / TCX645HD)
Tire Changers
Two heavy-duty tire changers for trucks, fleets and tractors. The TCX635HD is set up for over-the-road truck tires; the TCX645HD goes up to implement and skidder tires as large as 90.5 in. Both use tulip-style clamping and roller demounting instead of bars and hammers. Tell us the tires you handle and we will point you to the right one.
Finish
Choose a factory finish to add this product to your project.
Model
Choose a model to add this product to your project.
- Rim diameter
- 14.5-24.5 in.
- Max tire diameter
- 58 in.
- Max weight
- 1,545 lb
- Power
- 208-240V, 1 ph, 20A
Key specifications
- Family features
- Tulip-style wheel clamp; safety-focused controls; roller demounting; standard hook
- TCX635HD options
- Ramps and mounting bar ("plus" model); hydraulic carriage; inner drop roller
Choose a factory finish above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
What TAG confirms with you
- Wheel and tire sizes you service, including any oversize work
- Bay space and clearance around the machine for loading wheels
- Electrical service and air supply at that position
- Daily volume and how many technicians share the machine
- Delivery access and installation scope
family features
Tulip-style wheel clamp; safety-focused controls; roller demounting; standard hook.
Two capacity ranges
TCX635HD covers 14.5-24.5 in. rims; TCX645HD covers 14-46 in. rims.
Single or three phase
TCX635HD is 208-240V, 1 ph; TCX645HD is 230V, 3 ph.
Wheel & Rim Capacity
TCX635HD: 14.5-24.5 in. rim diameter; 3.94 in. min rim hole diameter; 58 in. max tire diameter; 27 in. max width; 1,545 lb max weight; 9 rpm CW and CCW; 208-240V, 1 ph, 60 Hz, 20A.
| Configuration | Rim diameter | Max tire diameter | Max weight | Power |
|---|---|---|---|---|
| TCX635HD | 14.5-24.5 in. | 58 in. | 1,545 lb | 208-240V, 1 ph, 20A |
| TCX645HD | 14-46 in. | 90.5 in. | 2,200 lb | 230V, 3 ph, 26A |
- 14.5-24.5 in. rim diameter; 3.94 in. min rim hole diameter; 58 in. max tire diameter; 27 in. max width; 1,545 lb max weight; 9 rpm CW and CCW; 208-240V, 1 ph, 60 Hz, 20A
- 14-46 in. rim diameter; 3.94 in. min rim hole diameter; 90.5 in. max diameter; 42 in. max width; 2,200 lb max weight; 10 and 5 rpm CW and CCW; 230V, 3 ph, 60 Hz, 26A
- Tulip-style wheel clamp; safety-focused controls; roller demounting; standard hook
- Ramps and mounting bar ("plus" model); hydraulic carriage; inner drop roller
- Mobile controller (wireless optional); skidder clamp; spring-loaded hook / disc roller; two speeds; tire cutter attachment; on-board storage
Configure this TCX Heavy-Duty Tire Changers (TCX635HD / TCX645HD)
Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.
Accessories for TCX Heavy-Duty Tire Changers (TCX635HD / TCX645HD)
14 of 14 shown
Optional accessory · 14
Optional accessory
Hunter Engineering Self-Centering Tulip Chuck Extensions (4 ea.)
Part no. RP11-8-12100155
Optional accessory
Hunter Engineering Disk Roller
Part no. RP11-2016908
Optional accessory

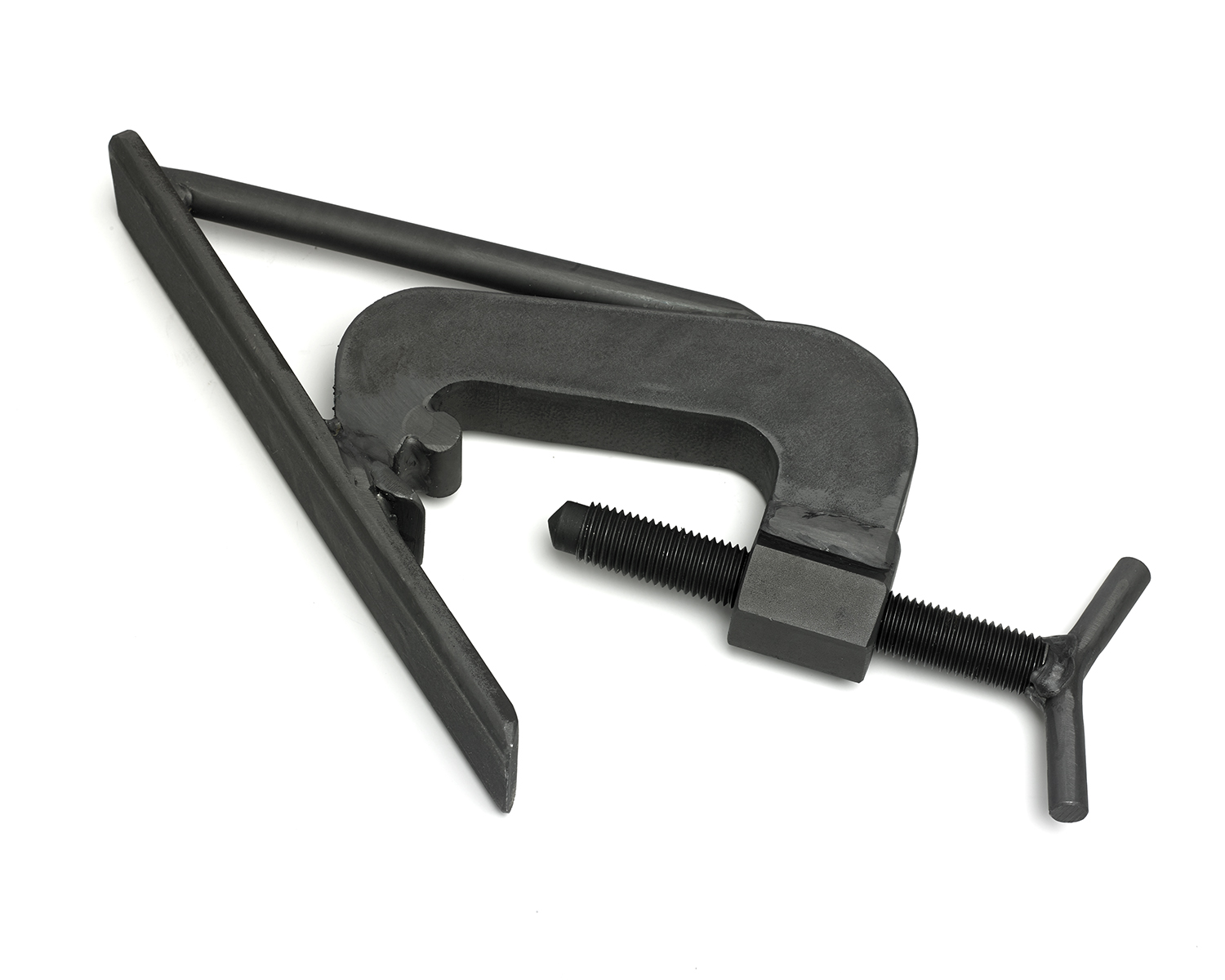

Hunter Engineering Drop-center clamp
Part no. RP11-801251904
Optional accessory
Hunter Engineering Bead Breaker Roller
Part no. RP11-2016581
Optional accessory

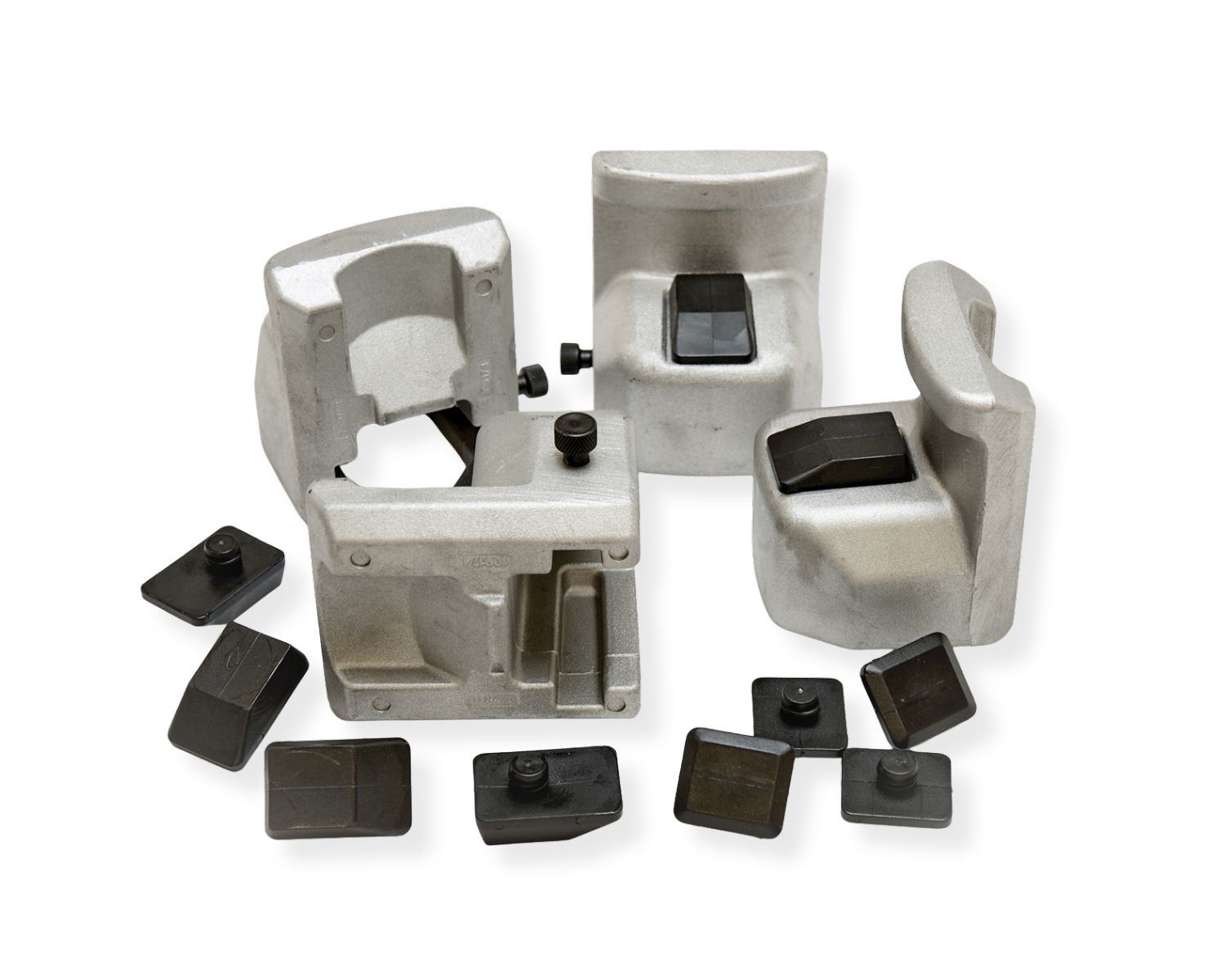

Hunter Engineering Alloy Jaws Insert
Part no. RP11-8-12100172
Optional accessory

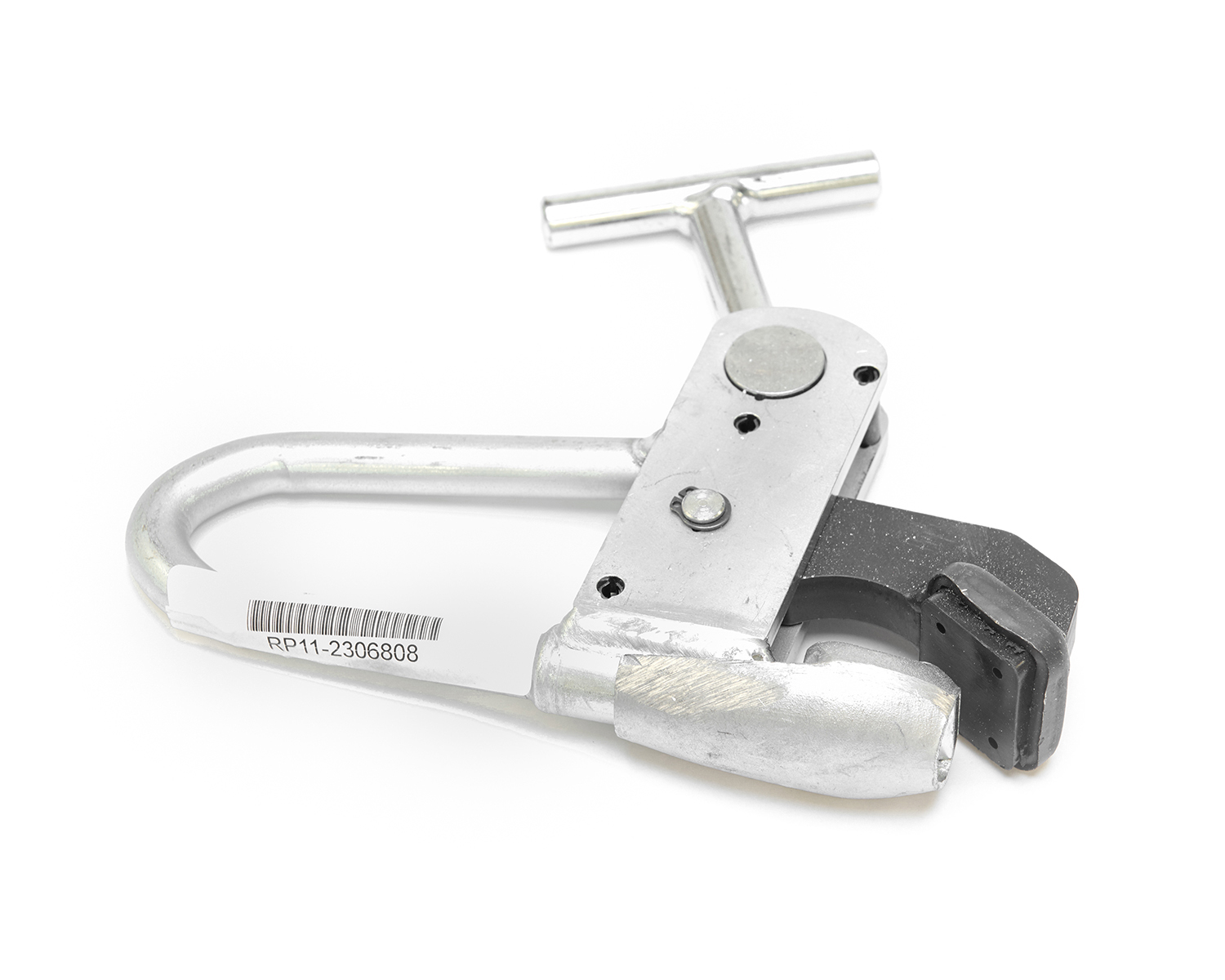

Hunter Engineering Alloy wheel clamp
Part no. RP11-2306808
Configuration-specific items
Required accessory
Hunter Engineering Alloy wheel clamp jaws (4)
Part no. RP11-8-12100156
Full DetailsTAG confirms for your configuration
Compatible consumables
Mounting paste 3.5 kg
