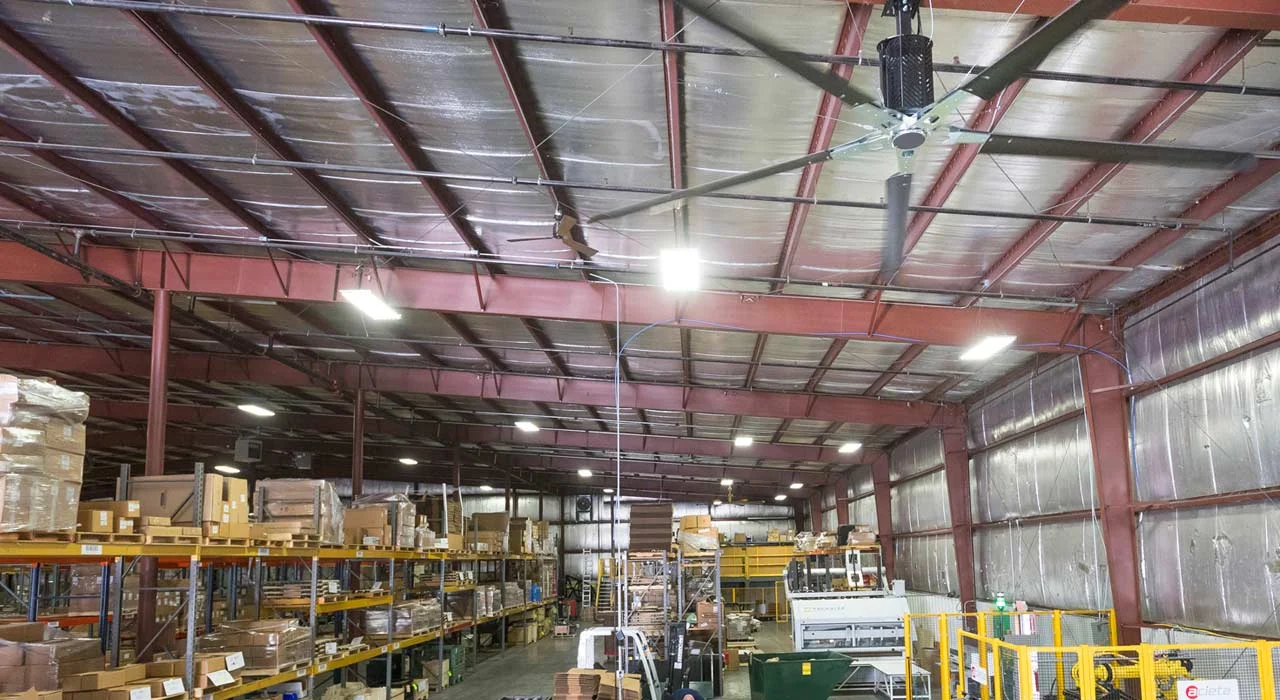

Brevis 3-Blade Industrial Ceiling Fan
Fans / Shop Environment
The Brevis 3-blade HVLS fan moves extraordinary volumes of air across wide industrial spaces while keeping energy use low.
Key specifications
- Diameter range
- 8 - 24 ft
- Voltage options
- 110V 1Ph, 208-240V 1Ph, 208-240V 3Ph, 380-480V 3Ph, 575V 3Ph
- Sound level
- Less than 55 dBA
- Blades
- Clear anodized, 3-blade
- Controls
- Wired touch screen standard, network control options available
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Voltage options
- 110V 1Ph, 208-240V 1Ph, 208-240V 3Ph, 380-480V 3Ph, 575V 3Ph
What TAG confirms with you
- Booth or prep area size and how it is currently ventilated
- Electrical service and compressed-air supply at the work area
- Products and finishes you spray most often
- Cure times and throughput you are trying to hit
- Local permitting or fire-code review you already have underway
Airflow & Coverage
- 8 - 24 ft
- Less than 55 dBA
- Clear anodized, 3-blade
- Wired touch screen standard, network control options available
- 110V 1Ph, 208-240V 1Ph, 208-240V 3Ph, 380-480V 3Ph, 575V 3Ph
- Standard I-beam mount (5" - 10.5"), laminated wood beam bracket, truss mounting kit, Z purlin kit, extra wide beam plate
Additional details
- AMCA CFM tested (see product spec sheet for CFM values)
Configuration options
Available choices for this line. TAG confirms the size, mounting, controls and installation scope for your building before quoting.
Size
- Diameters from 8 ft to 24 ft
- Size confirmed by TAG for your site
Blade finish
- Black anodized standard
- Clear anodized optional
Mounting
- I-beam
- Truss and truss span
- Z-purlin
- Laminated wood beam
Controls & networking
- Wired touchscreen control standard
- Network control options available
Enclosure / environment
- Finish options for the installed environment
- Confirm conditions with TAG
Fire & BMS coordination
- Fire-system shutdown connection points
- Optional building-management system integration
Why it fits automotive facilities
- More consistent air movement across open service bays
- Less dependence on portable floor fans and extension cords
- Summer air movement and winter destratification
- Multi-fan and building-control options for larger facilities
Plan your fan layout
Share your building details and TAG will confirm fan size, quantity, mounting and controls. Nothing here sizes or quotes a fan automatically.
What TAG confirms
- Site conditions
- Recommended size and quantity
- Mounting approach
- Electrical needs
- Control package
- Installation scope
- Final manufacturer documentation
