Champion Pneumatic

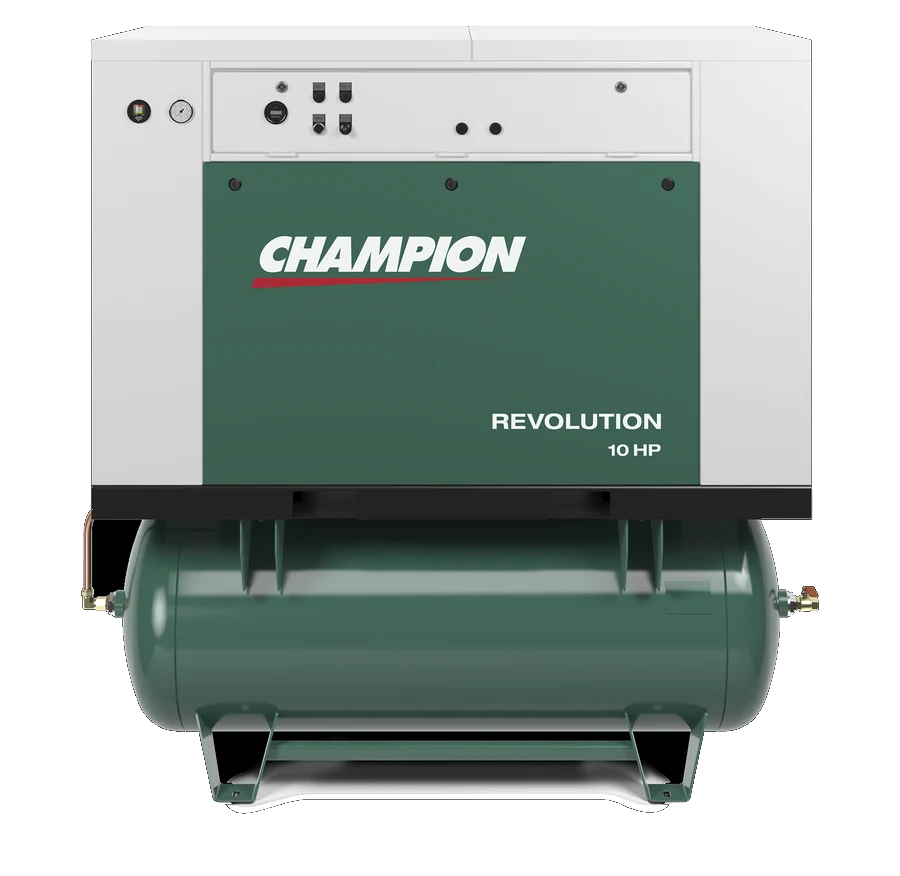

Revolution Quiet Enclosed Reciprocating Air Compressor
Air Compressors
Quiet enclosed reciprocating package built around the R-Series pump, combining reciprocating reliability with sound levels as low as 62 dBA. Ideal where a shop needs reciprocating technology without rotary-screw noise.
Select package model
Choose a model to add this product to your project.
- Horsepower
- 5 HP
- Tank
- —
- Less dryer
- 61 x 32 x 45 in
- With dryer
- —
A dash is reproduced from Champion's table and means the manufacturer does not list that value for this package.
Choose a model above before adding this product to your project.
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
What TAG confirms with you
- Tools and machines that will run on the system, and how many at once
- Electrical service available at the compressor location
- Air quality needed downstream — drying, filtration or paint-grade air
- Existing piping, tank and drain arrangements you want to keep
- Where the equipment can sit for noise, heat and service access
Eight packages
Compare the exact package models in Champion's current Revolution Product Specs table.
5 to 15 hp
The packages span 5, 7.5, 10 and 15 hp configurations.
Explicit table values
A dash means Champion does not list that value for the package; it never means zero or compatible.
Air Delivery & Power
BQR5: 5 HP; tank —; footprint less dryer 61 x 32 x 45 in; footprint with dryer —.
| Configuration | Horsepower | Tank | Less dryer | With dryer |
|---|---|---|---|---|
| BQR5 | 5 HP | — | 61 x 32 x 45 in | — |
| HQR5-8 | 5 HP | 80 gal | 70 x 32 x 64 in | 71 x 32 x 64 in |
| BQR7F | 7.5 HP | — | 61 x 32 x 45 in | — |
| HQR7F | 7.5 HP | 80 gal | 70 x 32 x 64 in | 71 x 32 x 64 in |
| BQR10 | 10 HP | — | 68 x 33 x 50 in | — |
| HQR10-12 | 10 HP | 120 gal | 76 x 33 x 74 in | 93 x 33 x 71 in |
| BQR15F | 15 HP | — | 68 x 33 x 50 in | — |
| HQR15F-12 | 15 HP | 120 gal | 76 x 33 x 74 in | 93 x 33 x 71 in |
- BQR5, HQR5-8, BQR7F, HQR7F, BQR10, HQR10-12, BQR15F, HQR15F-12
Additional details
- 5–15 HP simplex packages
- Quiet enclosed design with 2" foam on external panels
- Pump models R-15B (5–7.5 HP) and R-30D (10–15 HP)
- Sound levels as low as 62 dBA
- ASME coded receiver and ASME inter-stage pressure relief valve
- ODP NEMA 1760 RPM electric motor
- Optional factory-mounted refrigerated dryer
- Single phase 208-230; three phase 208/230/460/575
