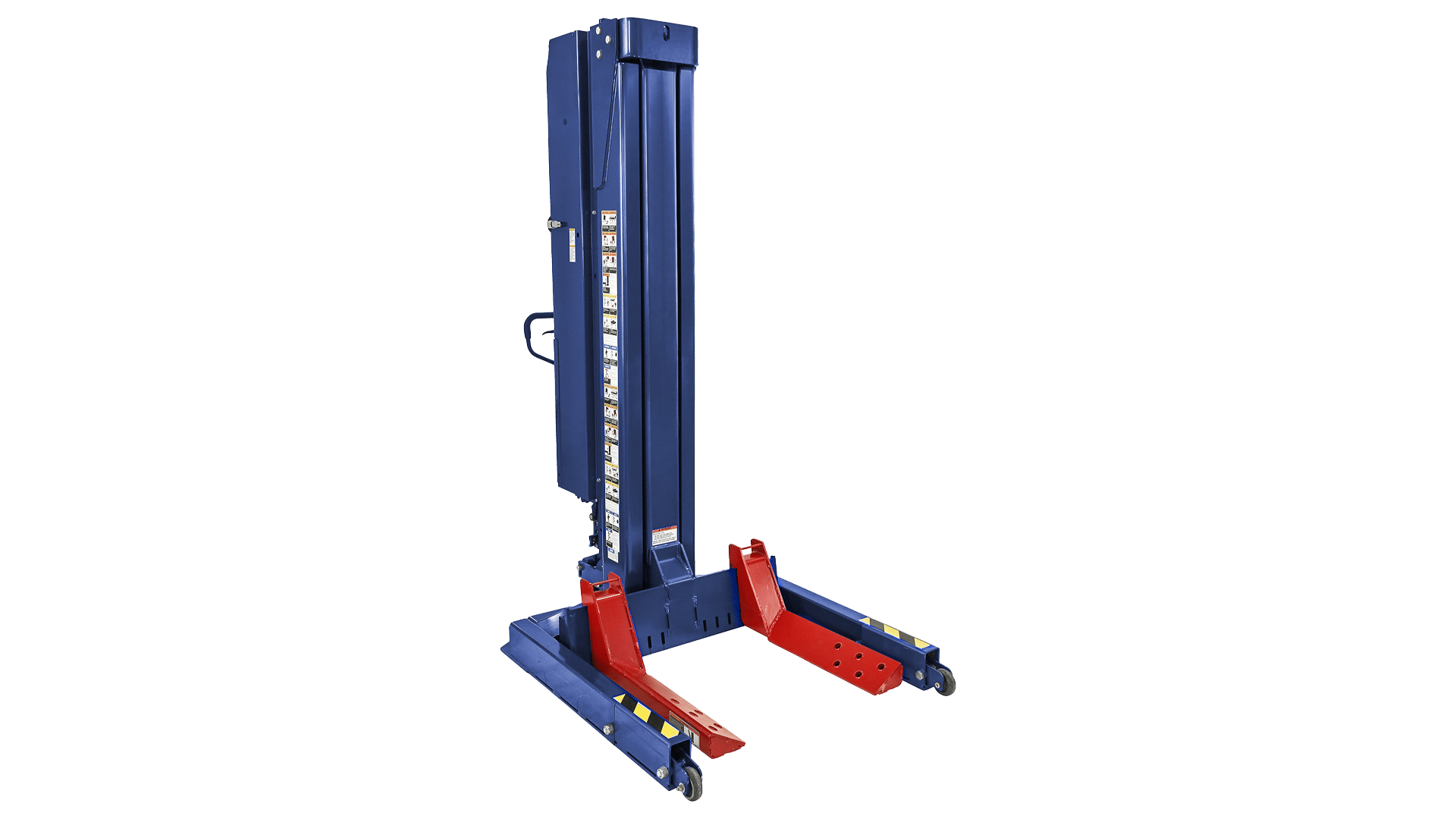

Challenger Lifts CLMM-5000 5K Medium-Duty Mobile Column Lift

Challenger Lifts

CLMM-5000 5K Medium-Duty Mobile Column Lift

mobile-column-lifts

Challenger's medium-duty mobile column lifting system. Sold in sets of four columns rated 5,000 lbs. each, the CLMM Series lifts rubber-tired vehicles up to 20,000 lbs. and can be set up in any flat bay instead of a dedicated lift bay. Columns are rechargeable battery powered with a 110v charging system and require no air. Wireless operation from any column keeps cables out of the work area, and tow handles with spring-loaded wheels allow the columns to be moved across any solid surface. Full under-car clearance also suits electric vehicle work where battery packs are dropped and reinstalled.

Key specifications

Lifting capacity per column
5,000 lbs. (sold in sets of 4; up to 20,000 lbs.)
Height of lift unit at full rise
157"
Height of lift unit
88.5"
Maximum lift height (4 units)
69"
Maximum lift height (2 units, normal mode)
32"
Width of lift unit
38.5"
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Not in your project yet

Configure This ModelRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity per column
5,000 lbs. (sold in sets of 4; up to 20,000 lbs.)
Height of lift unit
88.5"
Height of lift unit at full rise
157"
Width of lift unit
38.5"
Length of lift unit
46.75"
Max. hydraulic system operating pressure
2,230 psi
Operating peak power
4HP
Operating voltage
24 VDC nominal

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Model number
CLMM-5000
Lifting capacity per column
5,000 lbs. (sold in sets of 4; up to 20,000 lbs.)
Height of lift unit
88.5"
Height of lift unit at full rise
157"
Width of lift unit
38.5"
Length of lift unit
46.75"
Maximum lift height (4 units)
69"
Maximum lift height (2 units, normal mode)
32"
Min-max wheel diameter
6" - 22"
Max. hydraulic system operating pressure
2,230 psi
Lift speed (max load)
60" per min.
Turning radius of lift unit
50.5"
Operating peak power
4HP
Operating voltage
24 VDC nominal
Charger voltage required
120-240 VAC @ 50-60 Hz
Charger amps required
2.8 Amps
Color
Black
