Challenger Lifts CL20 20K Heavy-Duty Two-Post Adjustable Lift

Challenger Lifts

CL20 20K Heavy-Duty Two-Post Adjustable Lift

two-post-lifts

Challenger's heavy-duty two-post lift engineered for vehicles up to 20,000 lbs. It is wider and taller than the standard two-post range, uses 2-stage arms, and offers adjustable width to suit different vehicle sizes. Optional 2' column extensions allow taller vehicles to be serviced.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Lifting capacity
20,000 lbs.
Rise height with stack adapters
Min. 76.6" / max. 84.6"
Rise time
62 s
Overall height options
162", 168", 174" (extended height 186", 192", 198")
Minimum ceiling height
13'8", 14'2", 14'8" (extended height 15'8"–16'8")
Overall width options
154.75", 160.75", 166.75"
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
20,000 lbs.
Overall height options
162", 168", 174" (extended height 186", 192", 198")
Overall width options
154.75", 160.75", 166.75"
Drive-thru clearance
104.25", 110.25", 116.25"
Air supply required
90-120 psi
Minimum ceiling height
13'8", 14'2", 14'8" (extended height 15'8"–16'8")

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Lifting capacity
20,000 lbs.
Lift configuration
Symmetric
Arm configuration
2-stage front/rear
Maximum load per arm
5,000 lbs.
Rise height with stack adapters
Min. 76.6" / max. 84.6"
Overall height options
162", 168", 174" (extended height 186", 192", 198")
Overall width options
154.75", 160.75", 166.75"
Drive-thru clearance
104.25", 110.25", 116.25"
Arm reach
Min. 38.5" / max. 62"
Motor
3HP, 1Ph, 60Hz, 208/230v
Air supply required
90-120 psi
Rise time
62 s
Minimum ceiling height
13'8", 14'2", 14'8" (extended height 15'8"–16'8")
Available colors
Black, Red, Blue

Configure this CL20 20K Heavy-Duty Two-Post Adjustable Lift

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for CL20 20K Heavy-Duty Two-Post Adjustable Lift

TAG confirms final fit and configuration before purchase.

Optional accessory · 4

  • Optional accessory

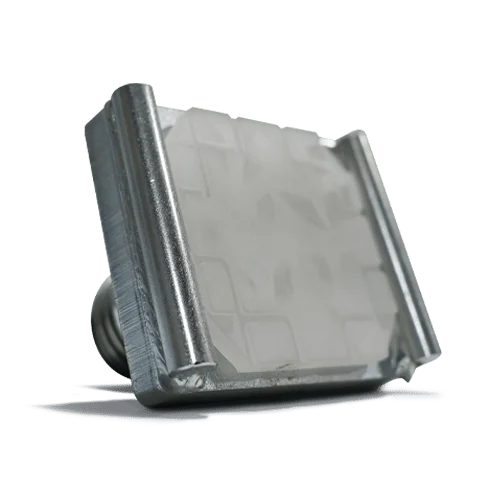

    Challenger Lifts Heavy-Duty Footpad 20K (B12162S)

    Standard footpad for Challenger CL20 and E15 two-post lifts, rated at 20,000 lbs. capacity.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Air & Electric Workstation (B10264A)

    Part no. B10264A

    Challenger workstation that provides electricity and air mounted directly to the lift column, keeping both at the technician's work area.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Blackout Kit (10700 / 10702)

    Challenger's Blackout Kit allows a lift to be lowered manually during a facility power outage, so a customer vehicle is not stuck while raised. The lightweight, easy-to-carry kit is intended for use on Challenger two-post lift models, should only be used by properly trained technicians, is designed as a temporary solution, and should only be used once per lift during a single outage event.

    Fits this model.

    Full Details
My TAG Project (0)

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
CL20 20K Heavy-Duty Two-Post Adjustable LiftYou are viewing		Challenger Lifts
CL16 16K Heavy-Duty Two-Post Adjustable Lift
Why TAG lists itThis modelChallenger publishes CL16 as a 16K heavy-duty two-post platform. Compare before choosing.
Lifting capacity20,000 lbs.16,000 lbs.
Lift configurationSymmetricSymmetric
Arm configuration2-stage front/rear3-stage front/rear
Maximum load per arm5,000 lbs.4,000 lbs.
Rise height with stack adaptersmin. 76.6" / max. 84.6"min. 75.5" / max. 81.5"
Overall height options162", 168", 174" (extended height 186", 192", 198")162", 168", 174" (extended height 186", 192", 198")
