Challenger Lifts CL10AV3 10K Versymmetric® Two-Post Adjustable Lift

Challenger Lifts

CL10AV3 10K Versymmetric® Two-Post Adjustable Lift

two-post-lifts

Challenger's 10,000 lb. capacity two-post lift with Versymmetric® technology. 3-stage front and 3-stage rear arms with directSPOT™ design let a technician reach recommended lift points without shuffling the vehicle, and the lift can be installed symmetrically or asymmetrically in the same bay. Challenger offers additional configurations including a drive-on pad option for express bays, QuickCycle™ models that rise in 27 seconds and lower in 17 seconds, and adjustable height and width options.

Finish

Choose a factory finish to add this product to your project.

Finish availability can change by model, series and production run. TAG confirms current factory finish availability with the manufacturer before ordering.

Key specifications

Lifting capacity
10,000 lbs. (CL10A-XP9 drive-on pad configurations: 9,000 lbs.)
Rise height
74.125"
Speed of rise
38 s (27 s QuickCycle™)
Overall height
11' 2" or 11' 8" (2' and 3' height extensions available)
Ceiling height required
12'
Overall width options
11' 6.5" / 12' 0.5" / 12' 6.5"
Specifications

Nothing is purchased online. TAG confirms configuration with you.

Choose a factory finish above before adding this product to your project.

Not in your project yet

Configure This ModelChoose AccessoriesRequest Consultation

Fit & requirements

Review the space and utility needs for this model with TAG before ordering.

Lifting capacity
10,000 lbs. (CL10A-XP9 drive-on pad configurations: 9,000 lbs.)
Overall height
11' 2" or 11' 8" (2' and 3' height extensions available)
Overall width options
11' 6.5" / 12' 0.5" / 12' 6.5"
Drive-thru clearance
100" / 106" / 112"
Ceiling height required
12'

What TAG confirms with you

  • Slab thickness, age and condition where the lift will be anchored
  • Bay width, drive-through length and ceiling height at the highest point
  • Overhead obstructions: doors, lighting, ductwork and sprinkler heads
  • Vehicles you lift most often, including the heaviest and longest
  • Electrical service available at the bay and who runs the final connection
Ask TAG about this model

Capacity & Dimensions

Lifting capacity
10,000 lbs. (CL10A-XP9 drive-on pad configurations: 9,000 lbs.)
Lift configuration
Versymmetric® — symmetric and asymmetric in the same bay
Arms
3-stage front / 3-stage rear
Rise height
74.125"
Overall height
11' 2" or 11' 8" (2' and 3' height extensions available)
Overall width options
11' 6.5" / 12' 0.5" / 12' 6.5"
Drive-thru clearance
100" / 106" / 112"
Motor
2HP, 208v-230v, 60Hz, 1Ph (3HP on QuickCycle™)
Speed of rise
38 s (27 s QuickCycle™)
Ceiling height required
12'
Available colors
Black, Red, Blue

Additional details

  • Challenger lists this model as ALI®/ETL® certified

Configure this CL10AV3 10K Versymmetric® Two-Post Adjustable Lift

Add the machine to your TAG Project and the configuration steps — quantity, installation, training and site readiness — open right here. Nothing is priced or ordered online.

Accessories for CL10AV3 10K Versymmetric® Two-Post Adjustable Lift

TAG confirms final fit and configuration before purchase.

Optional accessory · 9

  • Optional accessory

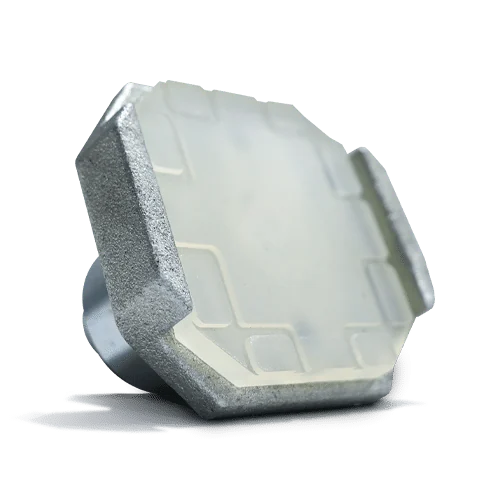

    Challenger Lifts Standard Footpad (B2270)

    Part no. B2270

    Premium telescoping polyurethane footpad, the standard pad for most Challenger lifts. The pads screw up and down so technicians can reach a variety of lift points on many different vehicle types. Sold individually.

    Fits this model.

    Full Details

  • Optional accessory

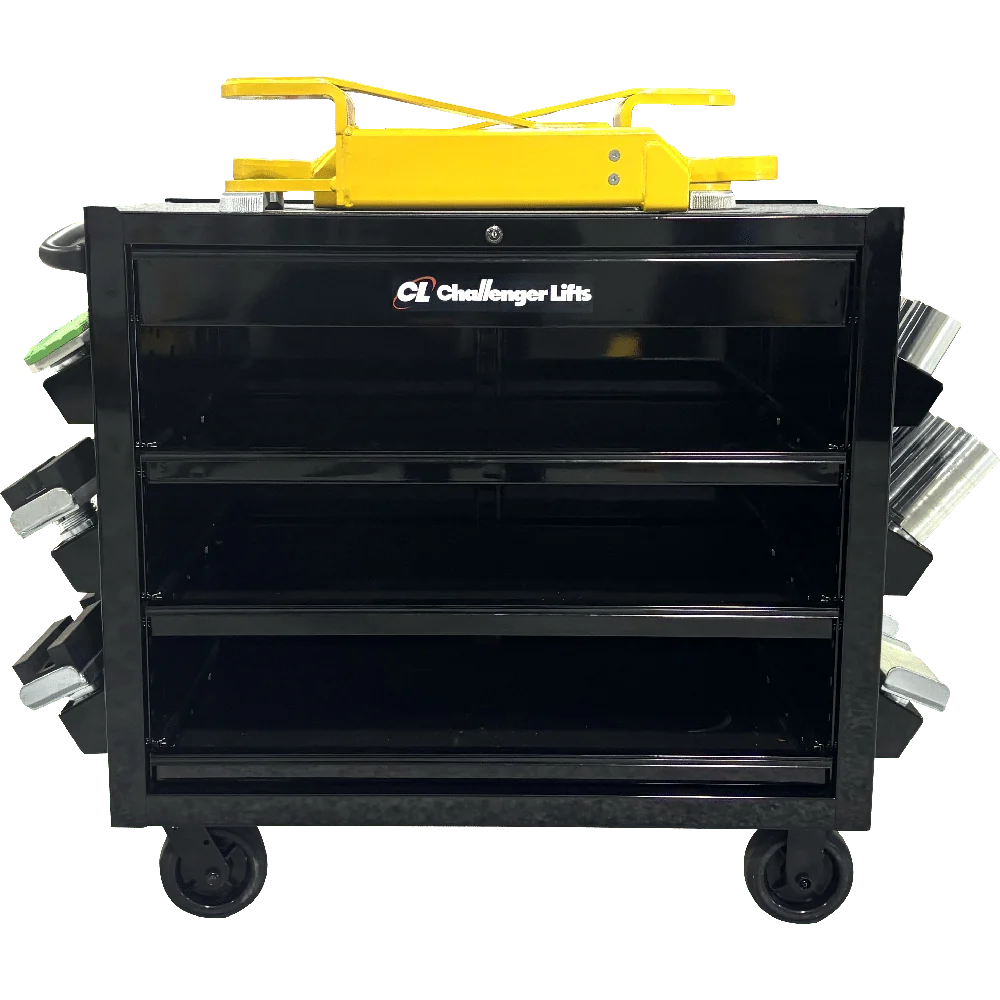

    Challenger Lifts Adapter Cart Package (ACC-CART-PKG)

    Mobile cart package that keeps lift adapters, footpads and spacers organized at the point of use. Challenger includes the accessory cart, four 6" stack adapters, four 3" stack adapters, an EV foot pad kit (set of four), a GM foot pad set (sold in pairs), cab-off adapters (set of four), 1" and 1.5" rubber spacers, two 3-stage arms for low-profile vehicle access, and four replacement footpads.

    Fits this model.

    Full Details

  • Optional accessory

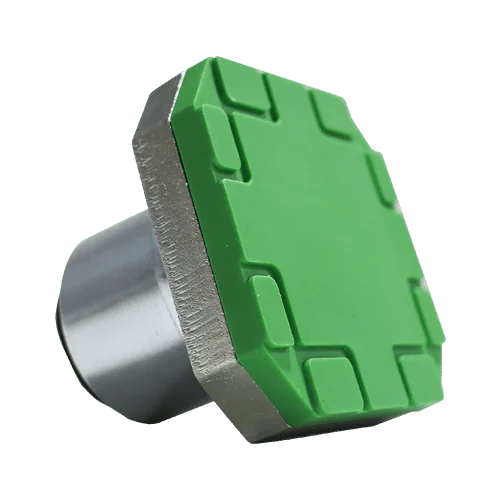

    Challenger Lifts Electric Vehicle Footpad Kit (EVFPK)

    Part no. EVFPK

    Challenger footpad kit designed to support select electric vehicles. Fits most Challenger two-post lifts. Sold in sets of four.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Light Bar Kit (EAK0361V64A-US)

    Part no. EAK0361V64A-US

    LED light bars that come in pairs, feature motion detection, are 27" long and include 10400 mAh rechargeable batteries. The strong magnets place light in many different areas of a shop, output is adjustable from 100 to 1000 lumens, and the ends rotate 360 degrees.

    Fits this model.

    Full Details

  • Optional accessory

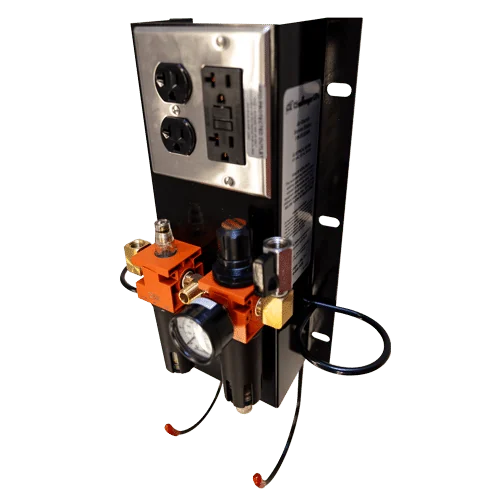

    Challenger Lifts Air & Electric Workstation (B10264A)

    Part no. B10264A

    Challenger workstation that provides electricity and air mounted directly to the lift column, keeping both at the technician's work area.

    Fits this model.

    Full Details

  • Optional accessory

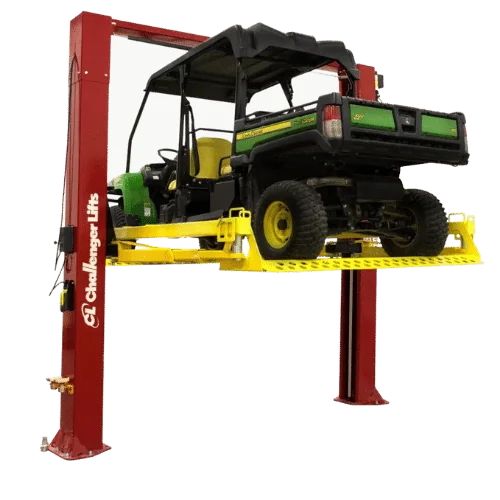

    Challenger Lifts 7K Turf Rail (TR07)

    Part no. TR07

    Challenger Turf Rail picks up turf and all-terrain equipment by wheel engagement. The patented system uses two rails that engage onto the height adapters of most two-post, symmetrically installed lifts. Two trays then attach to the rails and are fully adjustable from 26" to 116" wheelbases. Challenger positions the kit for airports, golf courses, parks and landscape companies.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Round Rubber Footpad (B2260)

    Optional round rubber double telescoping footpad. Fits all 10K, 12K and 16K inground and above ground lifts. Sold individually.

    Fits this model.

    Full Details

  • Optional accessory

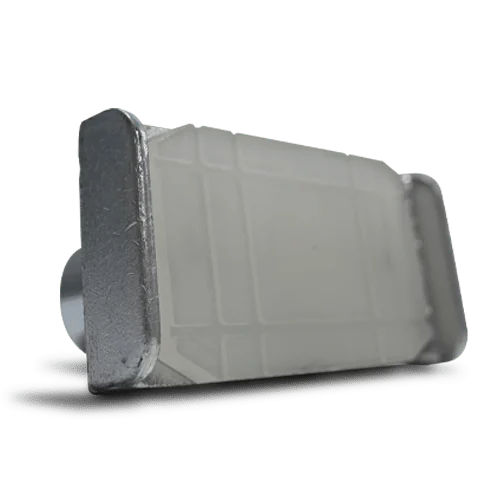

    Challenger Lifts GM Truck Footpad Set (B2280PR)

    Part no. B2280PR

    Drop-in wide-frame footpads that prepare a Challenger lift for 2019 and newer GM half-ton pickup trucks. Challenger notes the front frame rails on these trucks are wider, which required a new footpad, and that using the standard footpads can cause damage to the frame at this lifting point. Only one pair is needed for the front section of the truck when lifting. Fits Cadillac, Chevrolet and GMC trucks.

    Fits this model.

    Full Details

  • Optional accessory

    Challenger Lifts Blackout Kit (10700 / 10702)

    Challenger's Blackout Kit allows a lift to be lowered manually during a facility power outage, so a customer vehicle is not stuck while raised. The lightweight, easy-to-carry kit is intended for use on Challenger two-post lift models, should only be used by properly trained technicians, is designed as a temporary solution, and should only be used once per lift during a single outage event.

    Fits this model.

    Full Details
My TAG Project (0)

Build out this work area

Upgrade Options to Review

Another option to compare in the same line.

Ways to Expand the Workflow

Equipment to review when expanding this workflow.

Final configuration is confirmed before purchase.

Compare models

Compare equipment options with TAG based on the work you do and the space available.

ModelChallenger Lifts
CL10AV3 10K Versymmetric® Two-Post Adjustable LiftYou are viewing		Challenger Lifts
VLE10 10K Versymmetric® VLE Two-Post Lift
Why TAG lists itThis modelChallenger publishes VLE10 as another 10K Versymmetric two-post platform. Compare before choosing.
Lifting capacity10,000 lbs. (CL10A-XP9 drive-on pad configurations: 9,000 lbs.)10,000 lbs.
Lift configurationVersymmetric® — symmetric and asymmetric in the same baySymmetric and asymmetric
Overall height11' 2" or 11' 8" (2' and 3' height extensions available)standard 143.875"; extended height 167.875"
Drive-thru clearance100" / 106" / 112"98.375"
Motor2HP, 208v-230v, 60Hz, 1Ph (3HP on QuickCycle™)2HP, 208v-230v, 60Hz, 1Ph
Ceiling height required12'standard 12'; extended height 14'
