Challenger Lifts
BT3300 3.3K Lift Table
lift-tables

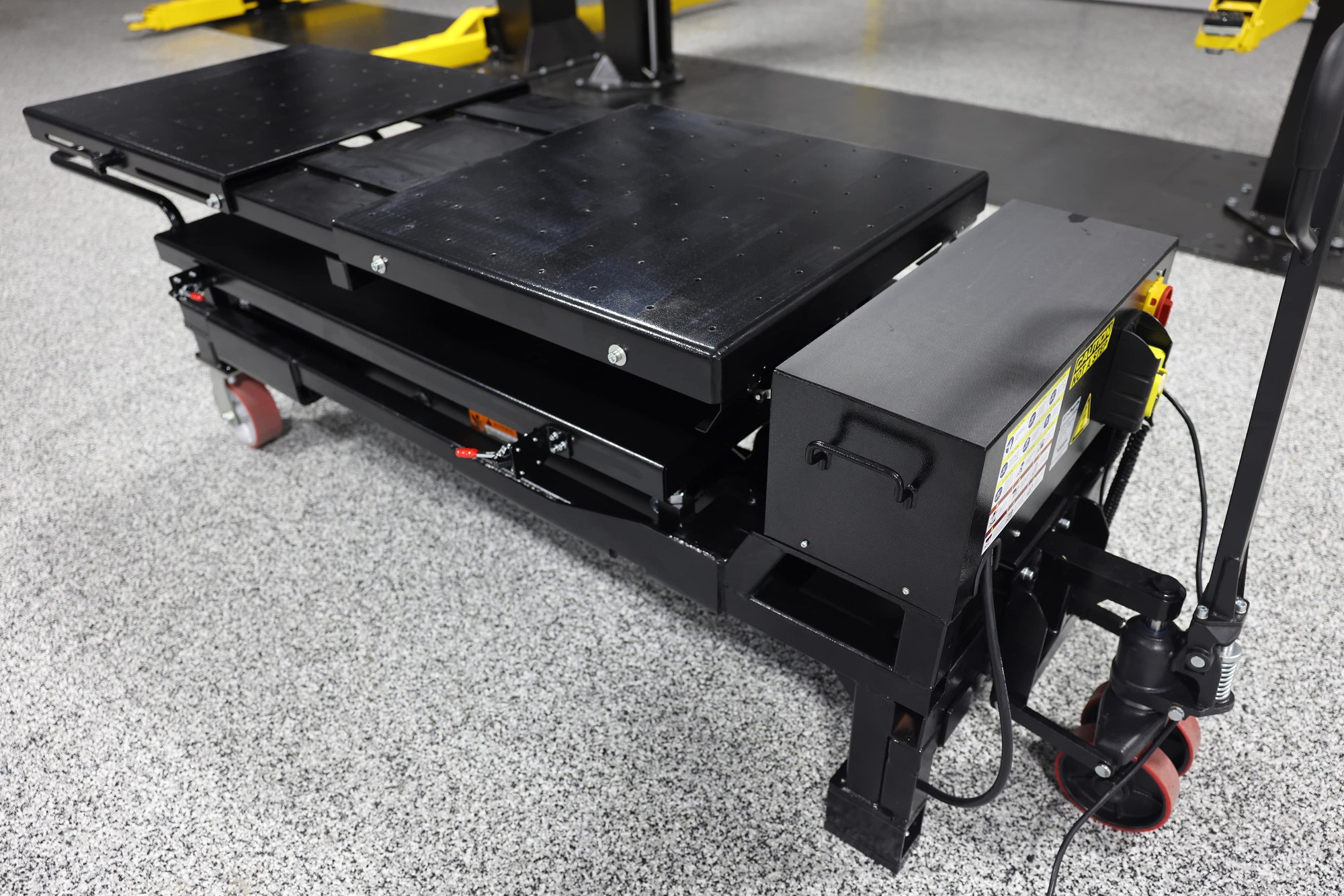

Challenger's 3,300 lb. capacity scissor-style lift table for high-voltage batteries, engines, drivetrains, rear differentials, fuel tanks and similar components. A pallet-jack style handle gives low rolling resistance and easy movement around the shop, and 6 degrees of angle adjustment plus a side-shift top plate help technicians line components up precisely during removal and installation. Fastener holes every 4" in the top surface accommodate various OEM adapters. Rise height is over 76" and the table plugs into any 120v outlet with the included power cord.
Key specifications
- Lifting capacity
- 3,300 lbs.
- Rise height
- 76.77"
- Collapsed height
- 29.53"
- Platform height
- 9.02" (±1.77")
- Base height
- 8.07"
- Platform width
- 31.50"
Not in your project yet
Fit & requirements
Review the space and utility needs for this model with TAG before ordering.
- Lifting capacity
- 3,300 lbs.
- Overall length
- 116.38"
- Power supply
- 110V-1Ph-60Hz
- Control voltage
- 24V
- Hydraulic pressure
- 3,625 psi
What TAG confirms with you
- Slab thickness, age and condition where the lift will be anchored
- Bay width, drive-through length and ceiling height at the highest point
- Overhead obstructions: doors, lighting, ductwork and sprinkler heads
- Vehicles you lift most often, including the heaviest and longest
- Electrical service available at the bay and who runs the final connection
Capacity & Dimensions
- BT3300
- 3,300 lbs.
- 76.77"
- 29.53"
- 68.54" - 81.34"
- 31.50"
- 9.02" (±1.77")
- 8.07"
- 7.87"
- 116.38"
- 2HP
- 110V-1Ph-60Hz
- 14 Amps
- 24V
- 3,625 psi
- 6 degrees
- Yes
- 45s / 70s
- 55s
Additional details
- Challenger states the BT3300 complies with ASME PASE-2019.
